Combination Meter: Notes

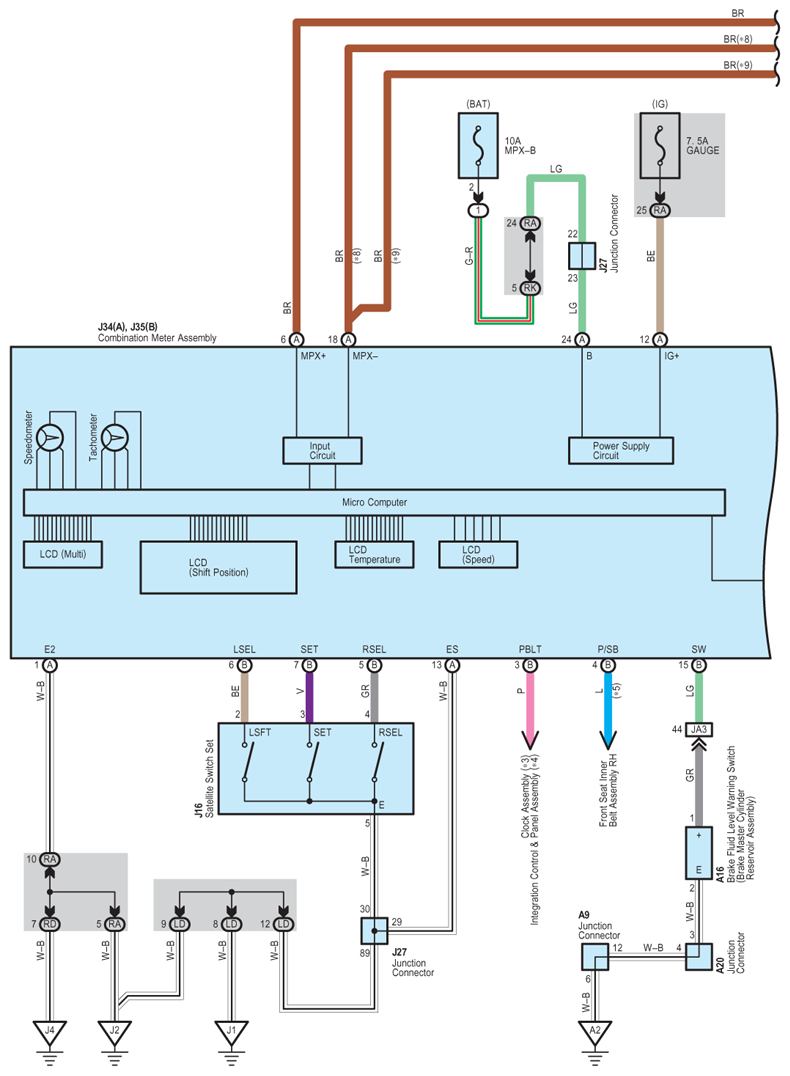

Fig 1: Combination Meter - Circuit Diagram (1 Of 9)
G07580223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

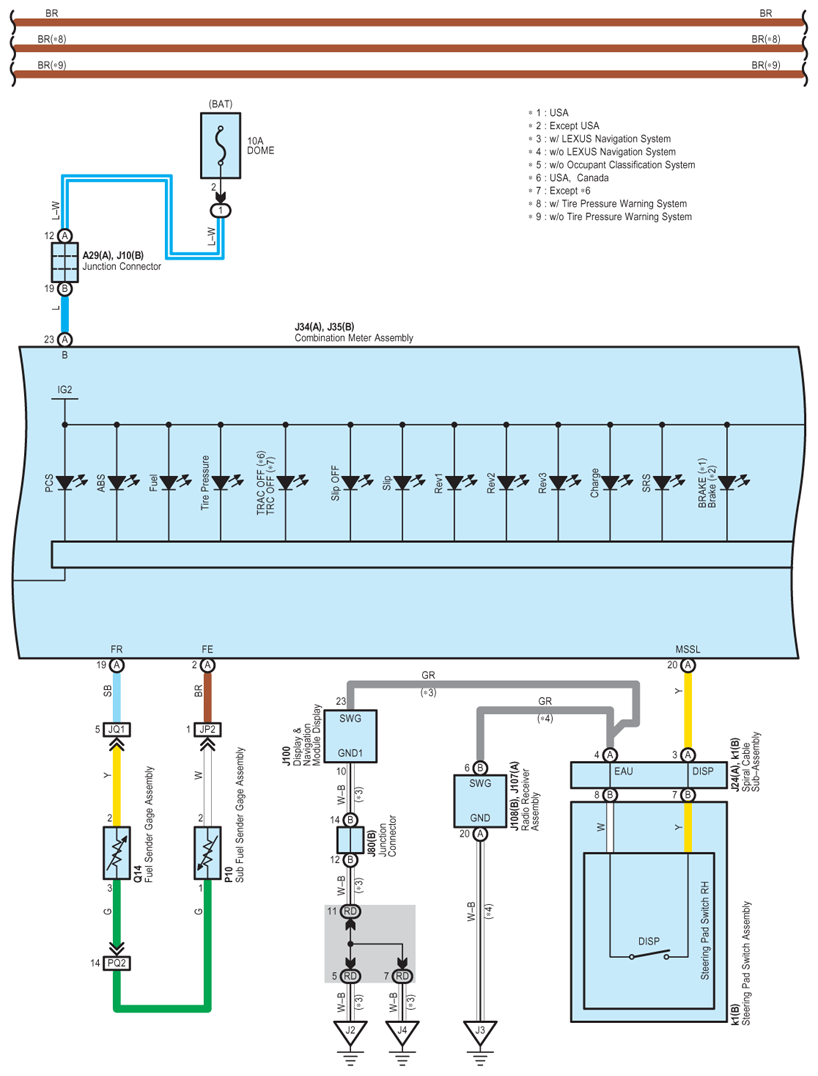

Fig 2: Combination Meter - Circuit Diagram (2 Of 9)
G07580224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Combination Meter - Circuit Diagram (3 Of 9)
G07580225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

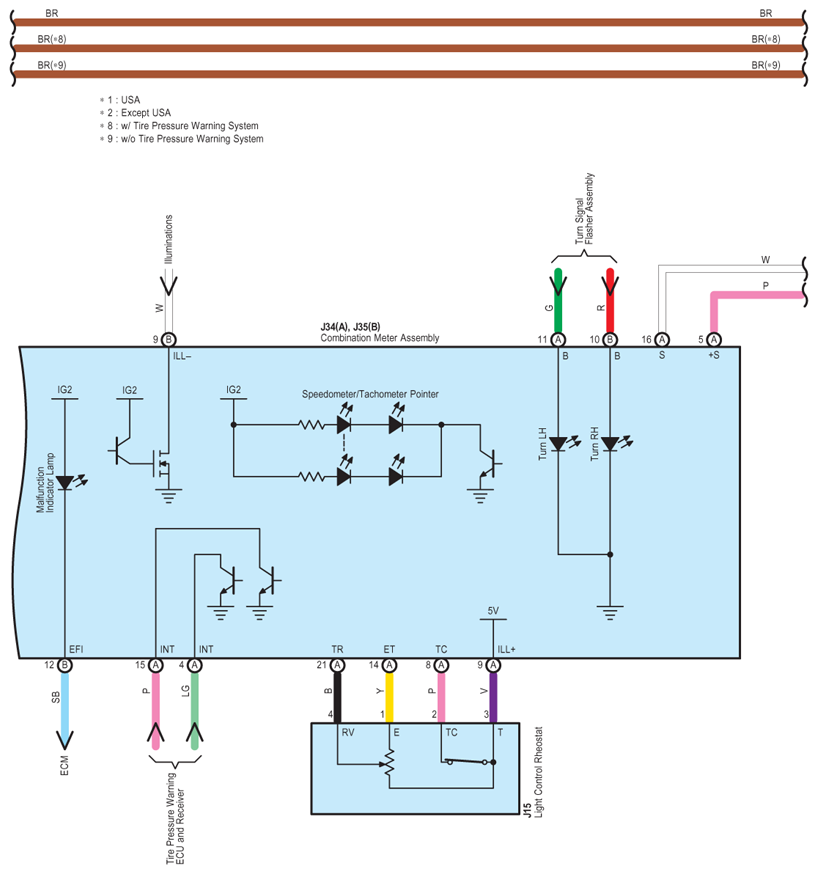

Fig 4: Combination Meter - Circuit Diagram (4 Of 9)
G07580226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

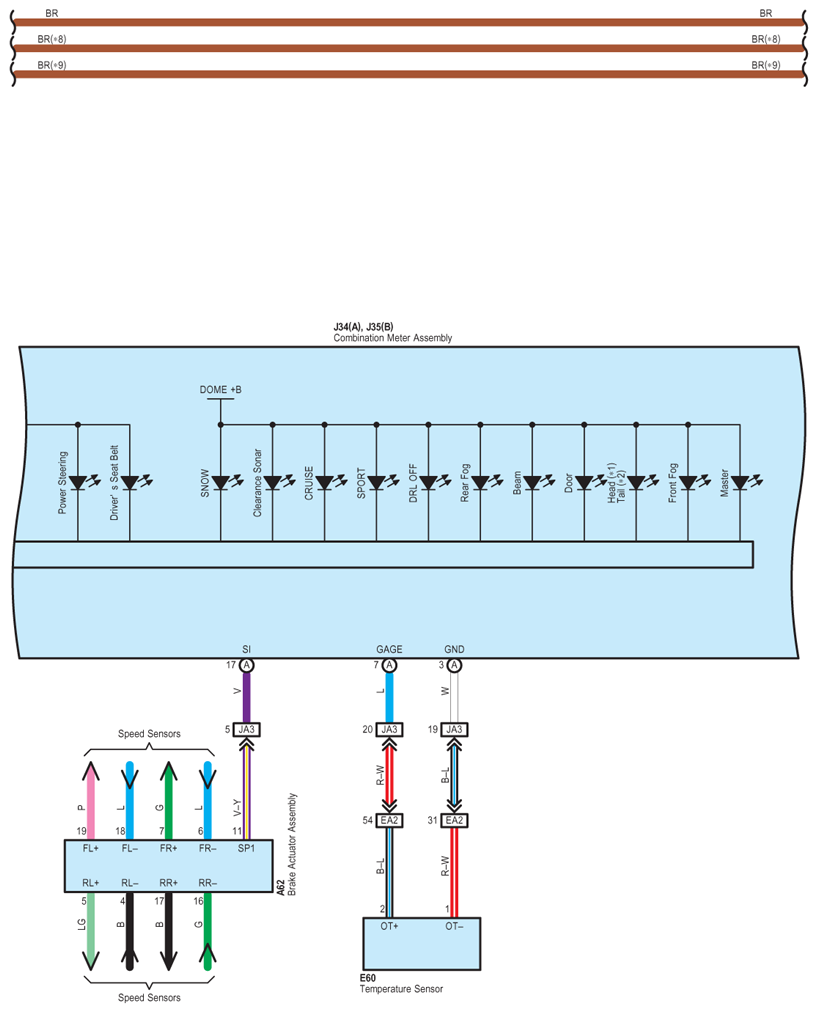

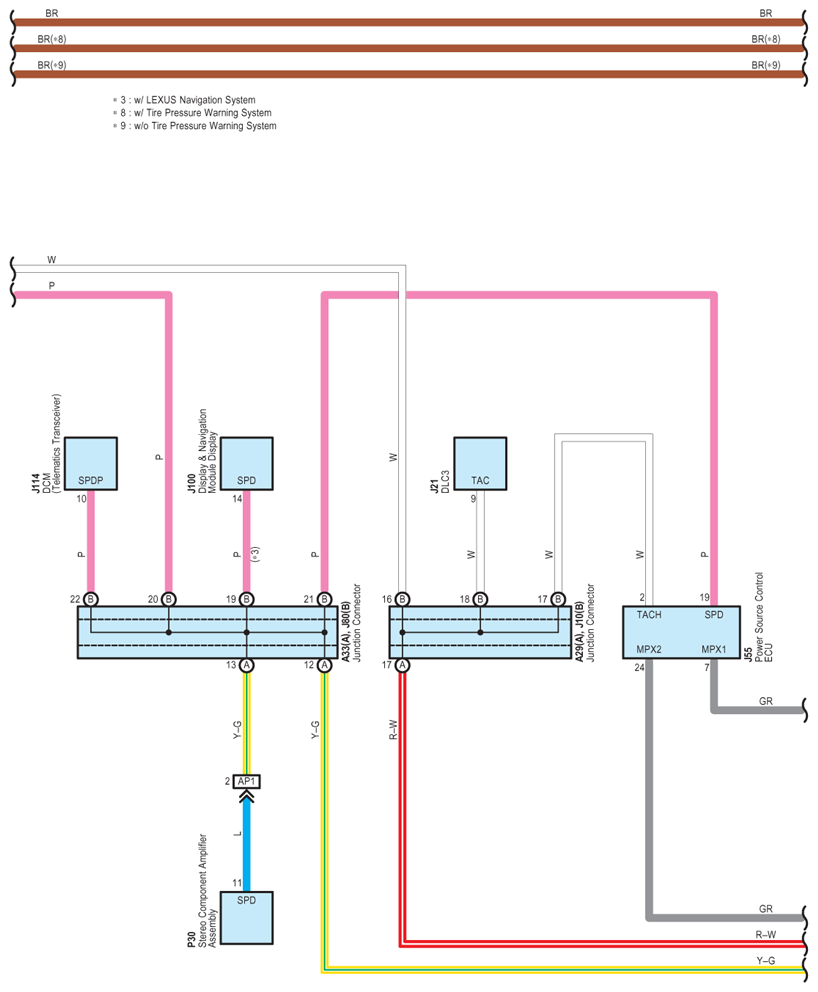

Fig 5: Combination Meter - Circuit Diagram (5 Of 9)
G07580227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

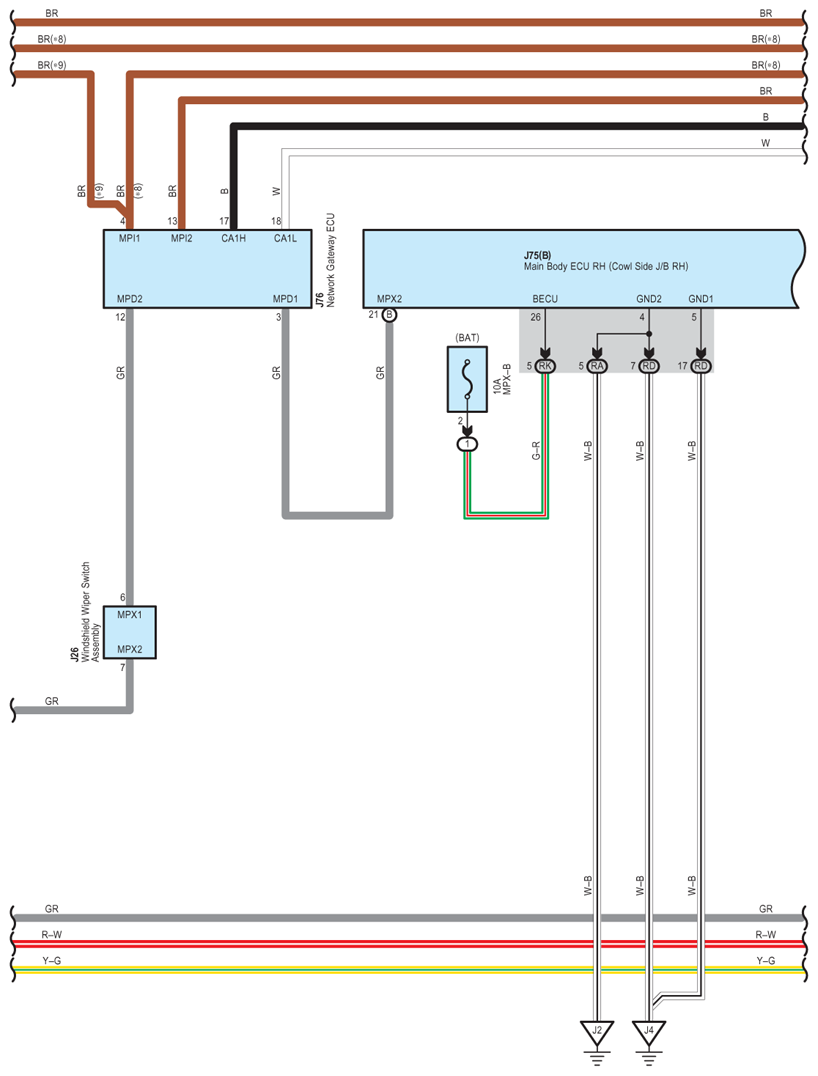

Fig 6: Combination Meter - Circuit Diagram (6 Of 9)
G07580229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

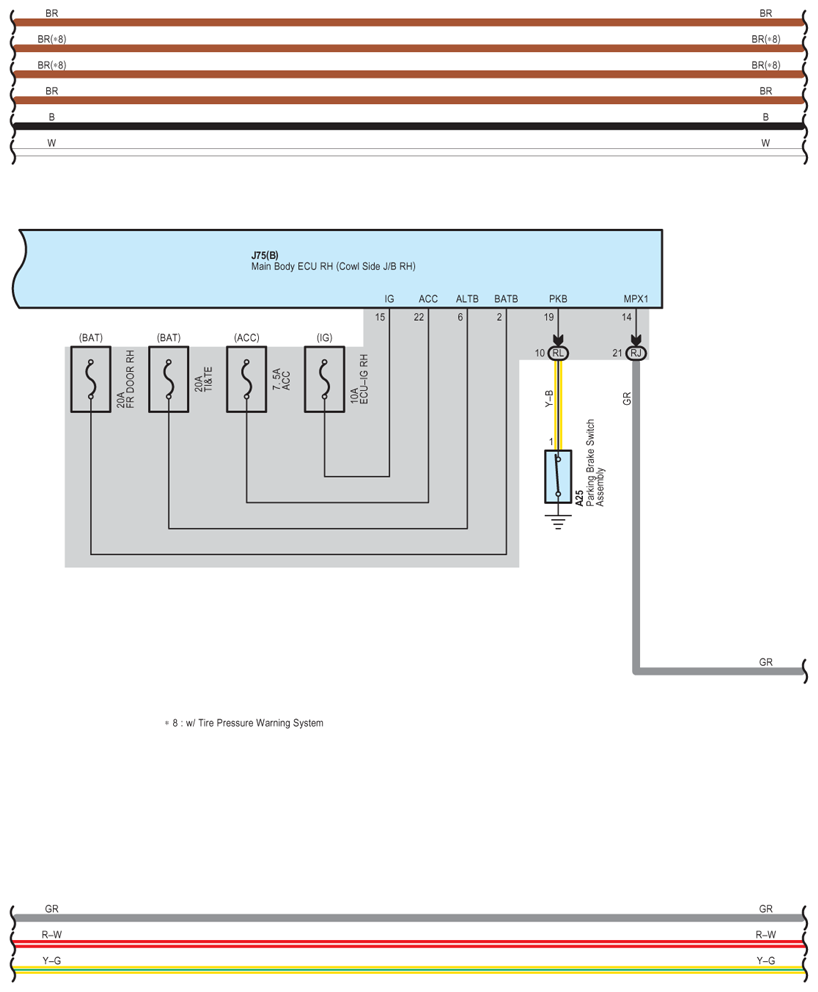

Fig 7: Combination Meter - Circuit Diagram (7 Of 9)
G07580228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

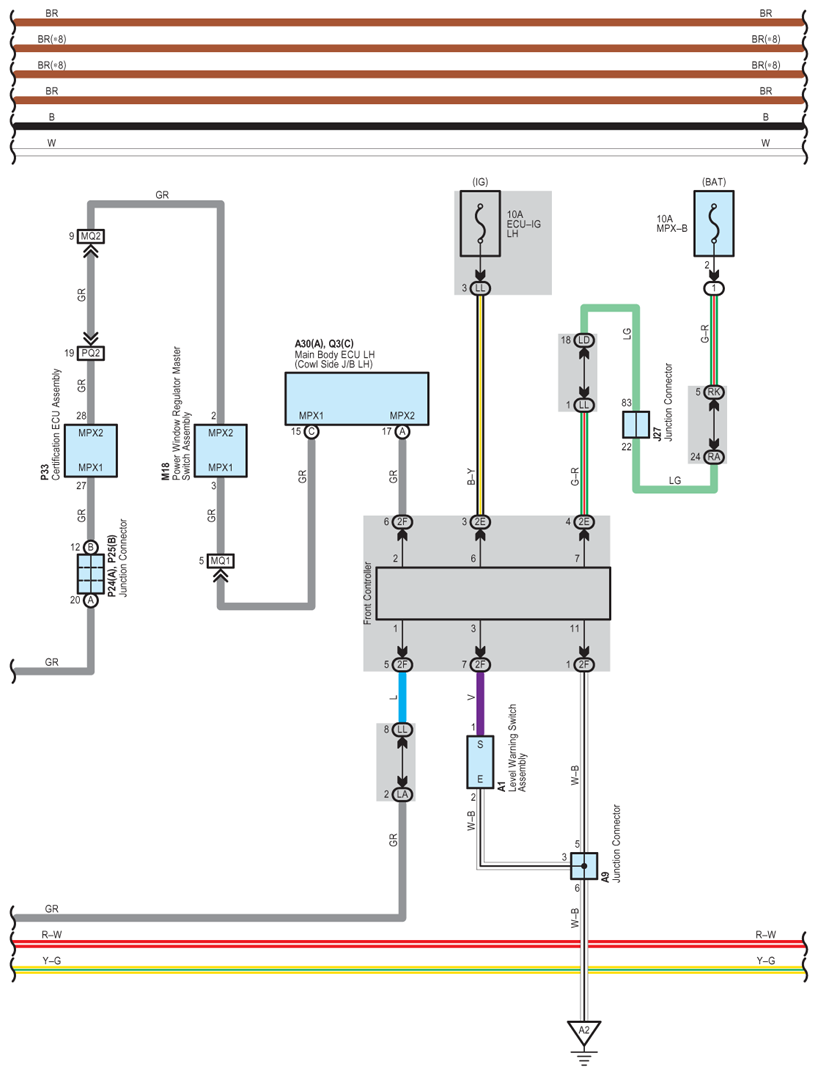

Fig 8: Combination Meter - Circuit Diagram (8 Of 9)
G07580230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

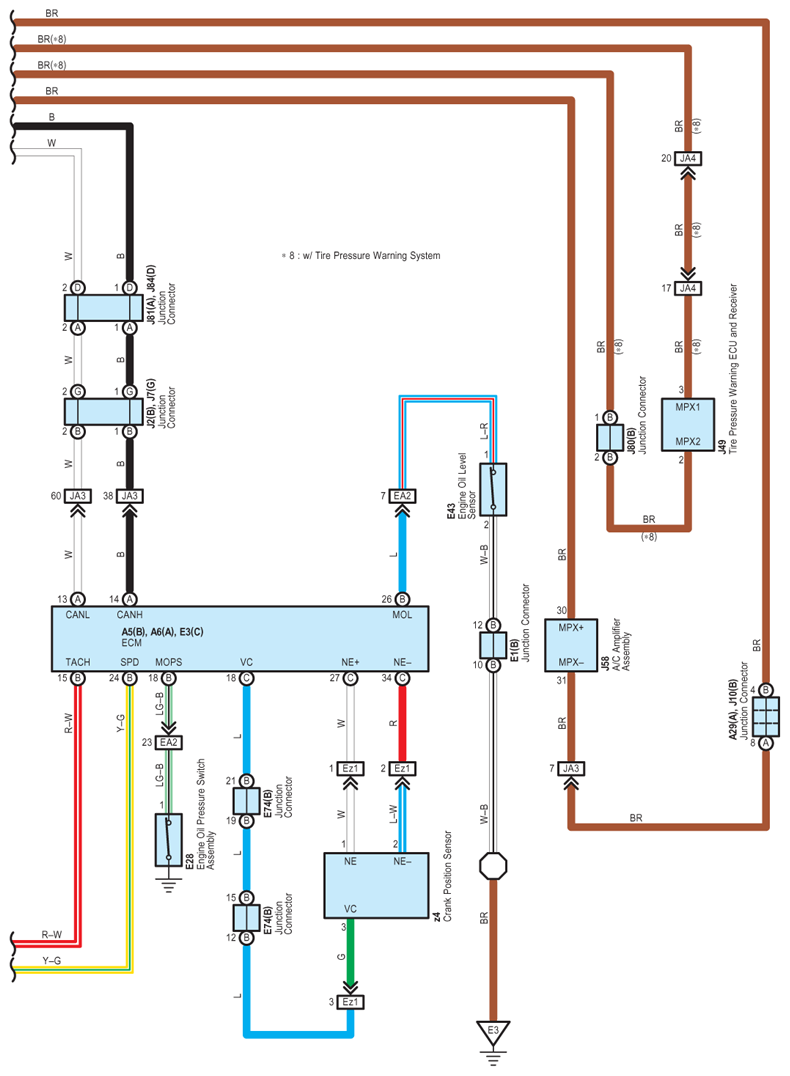

Fig 9: Combination Meter - Circuit Diagram (9 Of 9)
G07580231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
