Multiplex Communication System (AVC-LAN): Notes

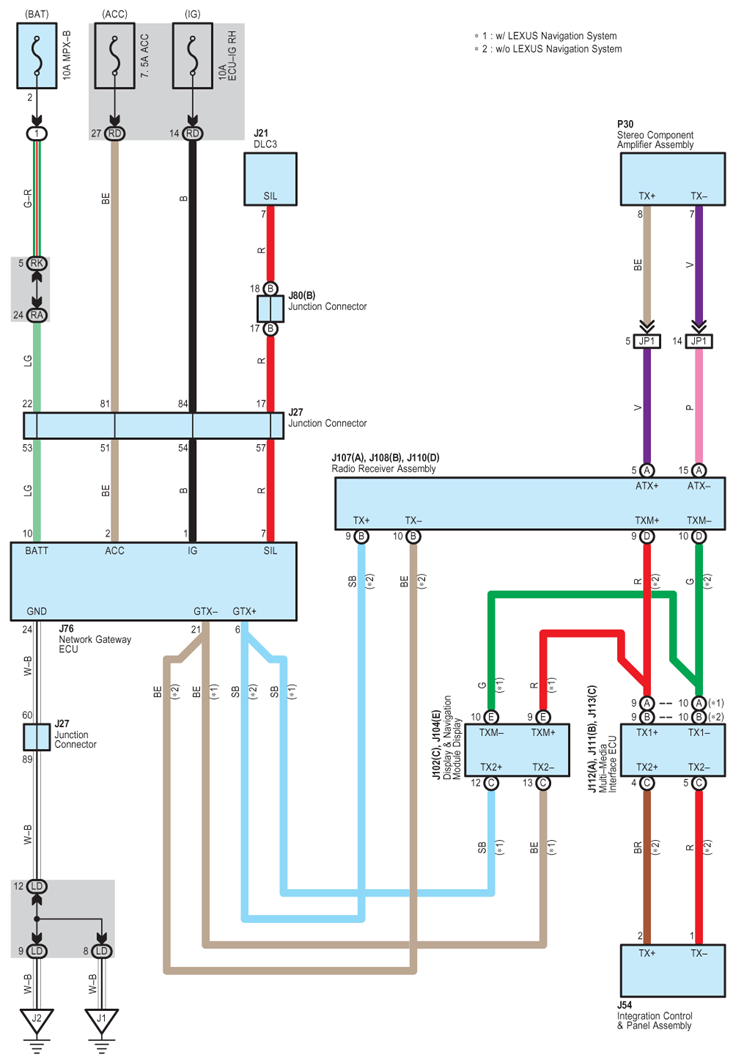

Fig 1: Multiplex Communication System (AVC-LAN) - Circuit Diagram
G07579996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
