OEM System Circuits: Taillight: Notes

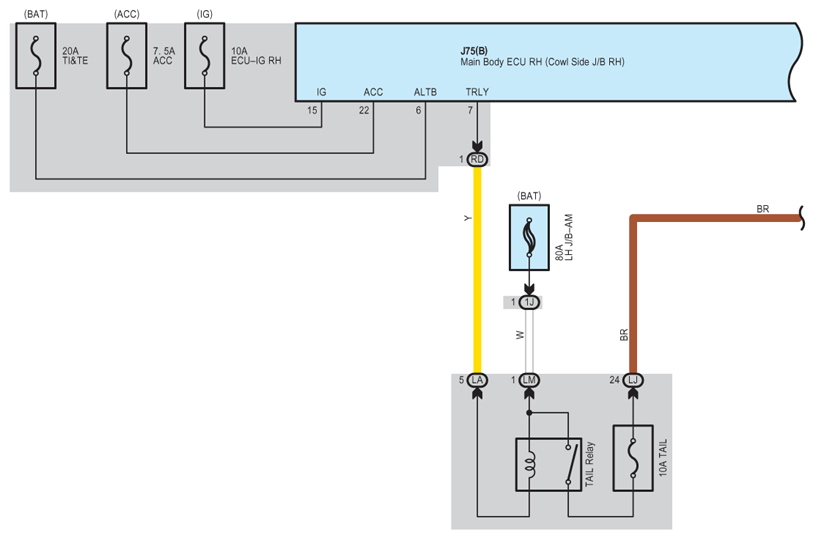

Fig 1: Taillight - Circuit Diagram (1 Of 8)

G07580029

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

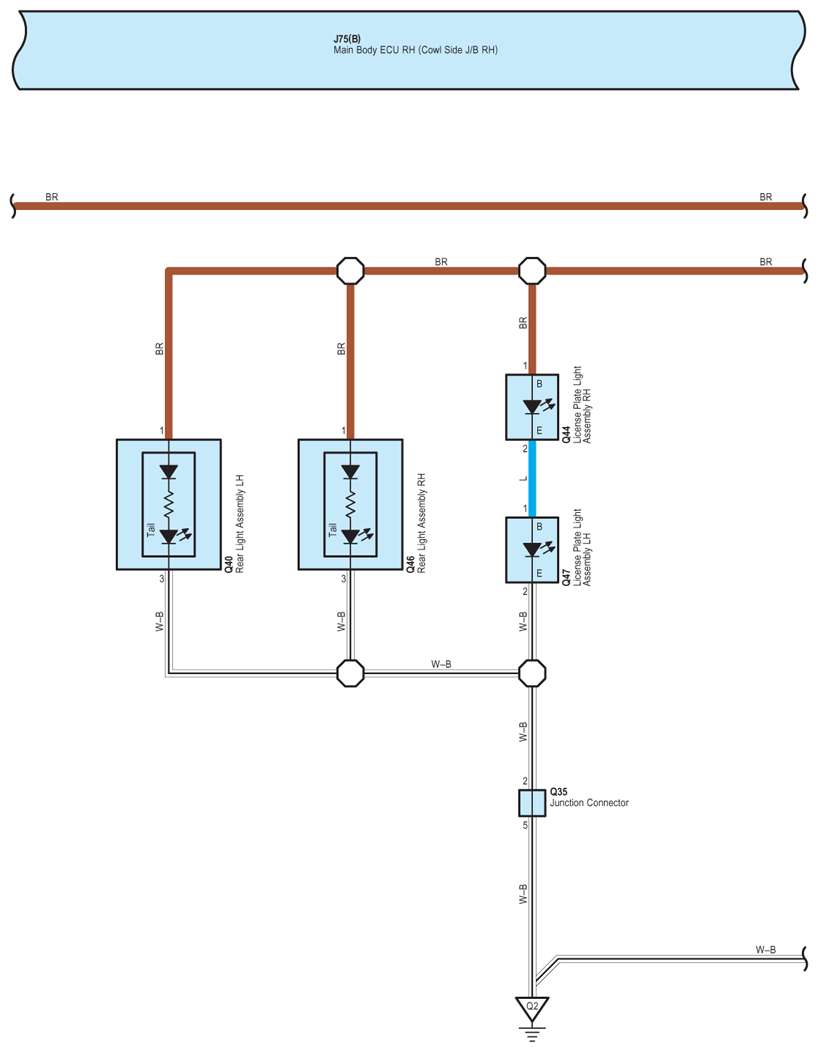

Fig 2: Taillight - Circuit Diagram (2 Of 8)

G07580030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

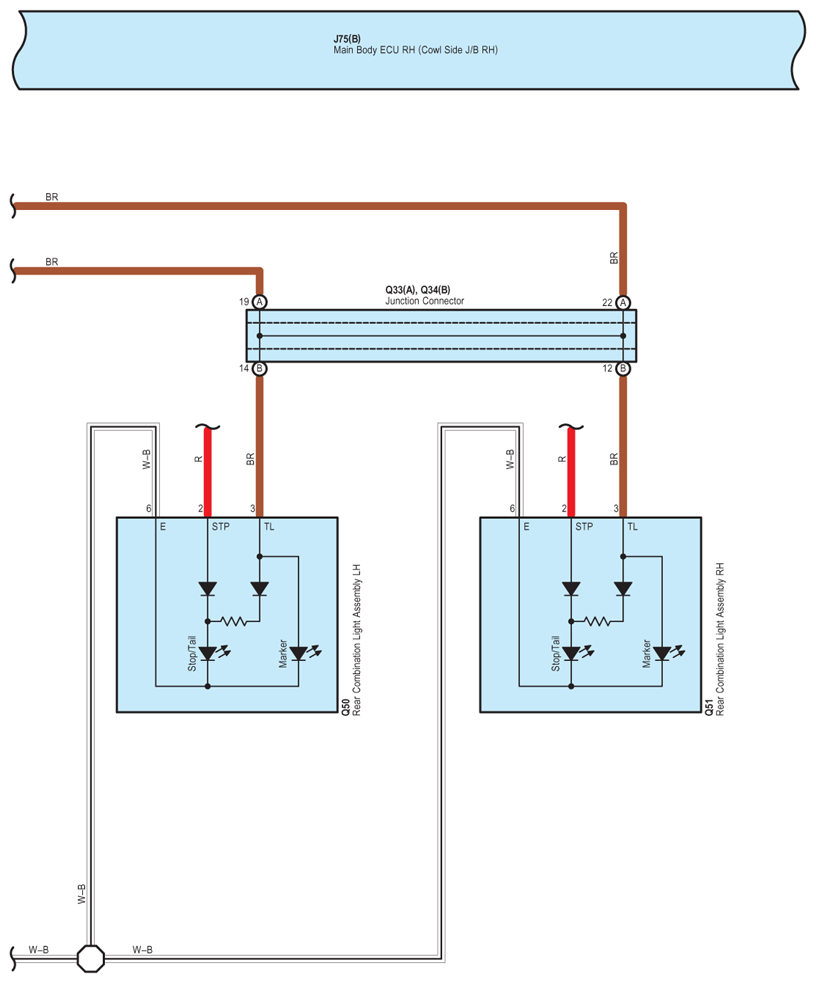

Fig 3: Taillight - Circuit Diagram (3 Of 8)

G07580031

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

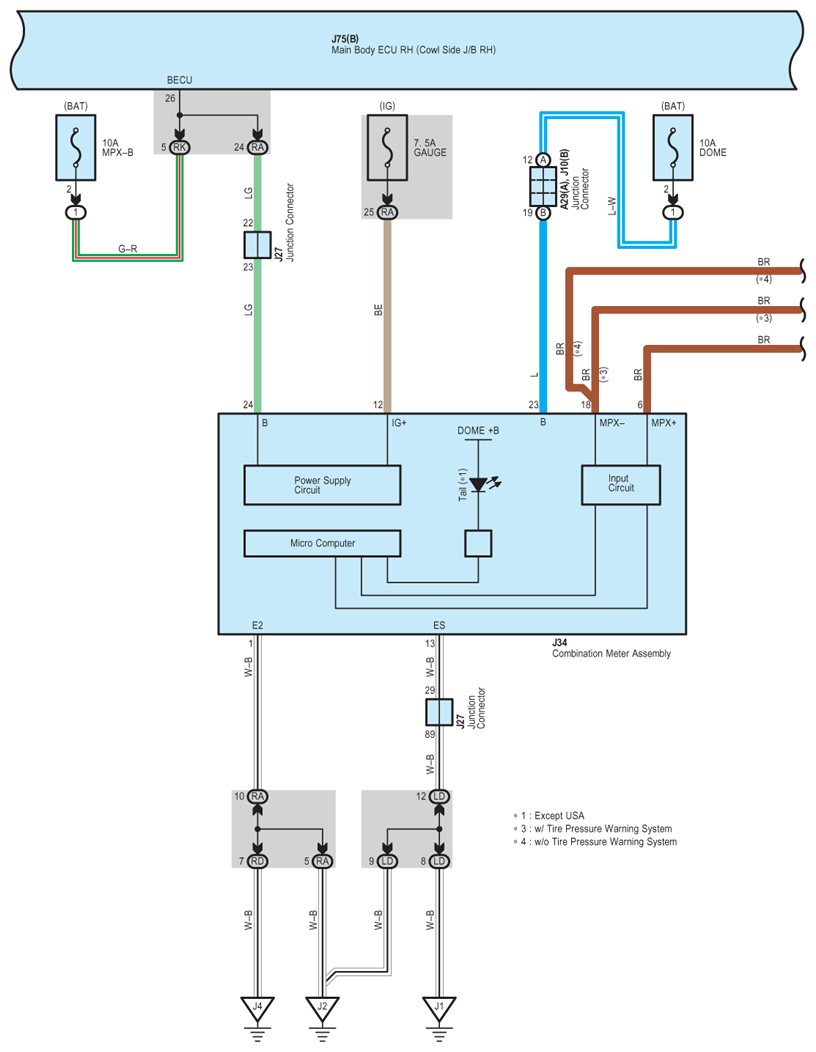

Fig 4: Taillight - Circuit Diagram (4 Of 8)

G07580032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

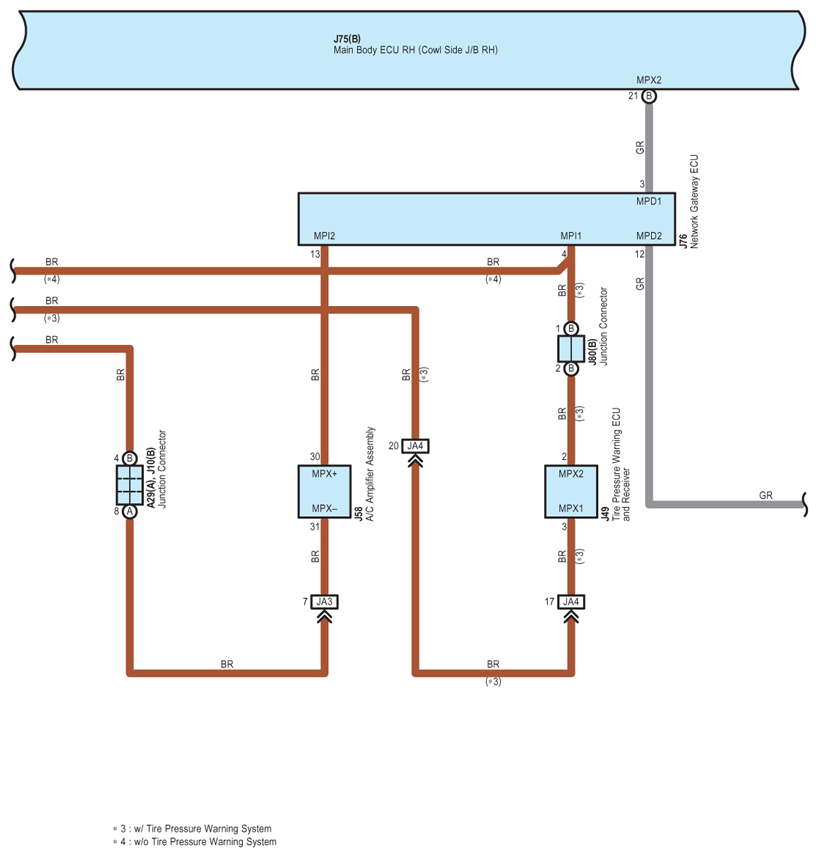

Fig 5: Taillight - Circuit Diagram (5 Of 8)

G07580033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

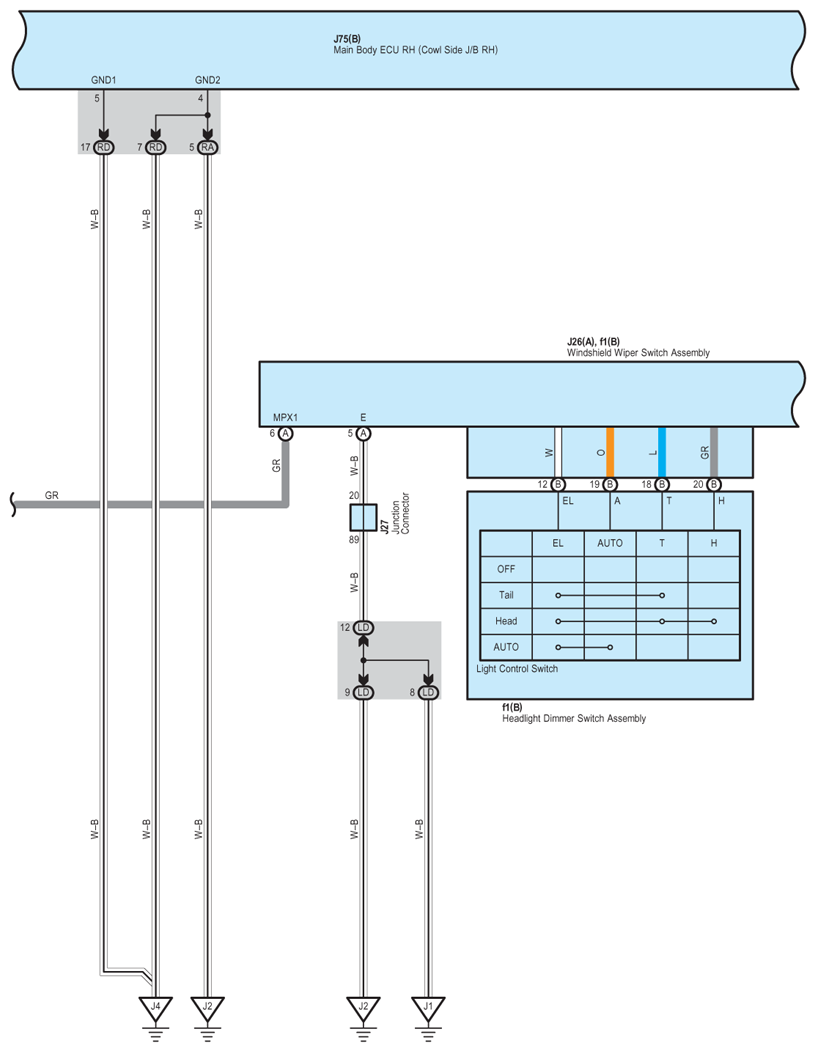

Fig 6: Taillight - Circuit Diagram (6 Of 8)

G07580034

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

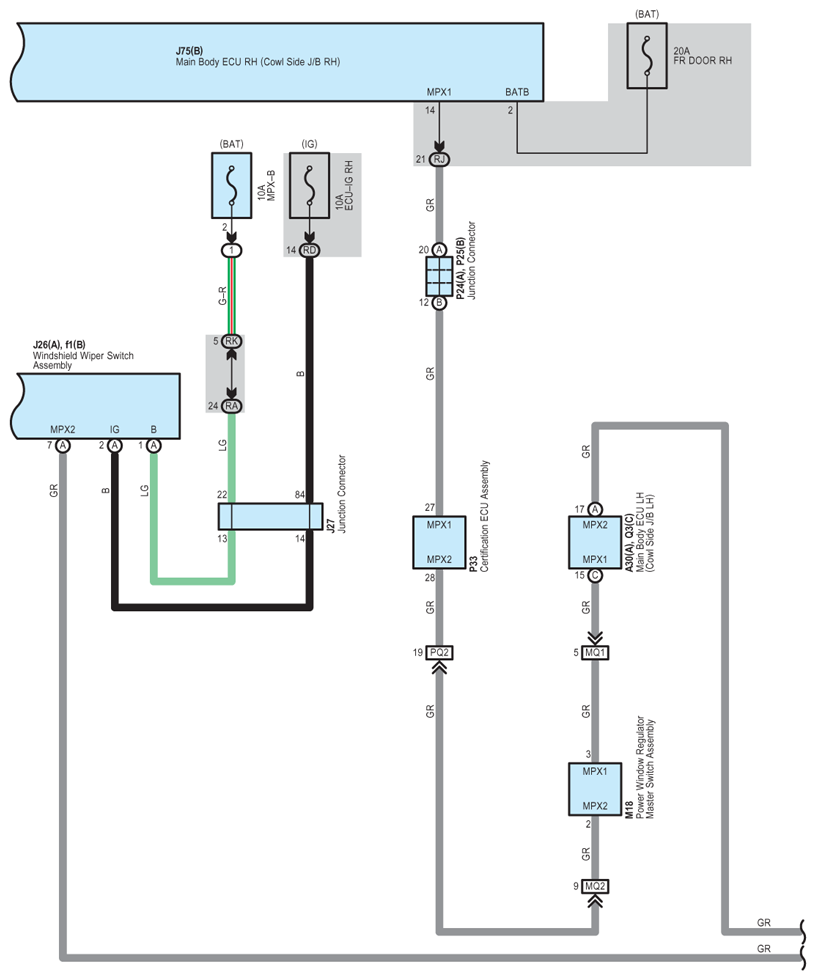

Fig 7: Taillight - Circuit Diagram (7 Of 8)

G07580035

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

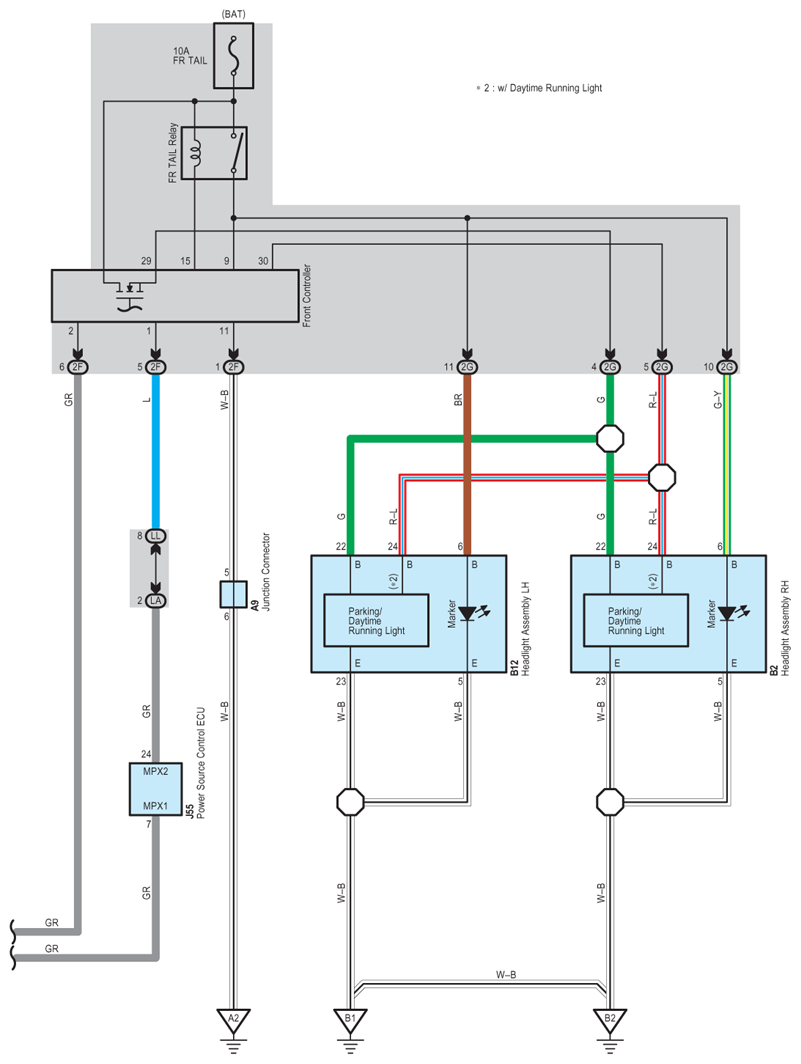

Fig 8: Taillight - Circuit Diagram (8 Of 8)

G07580036

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
