Brake Hold System: Notes

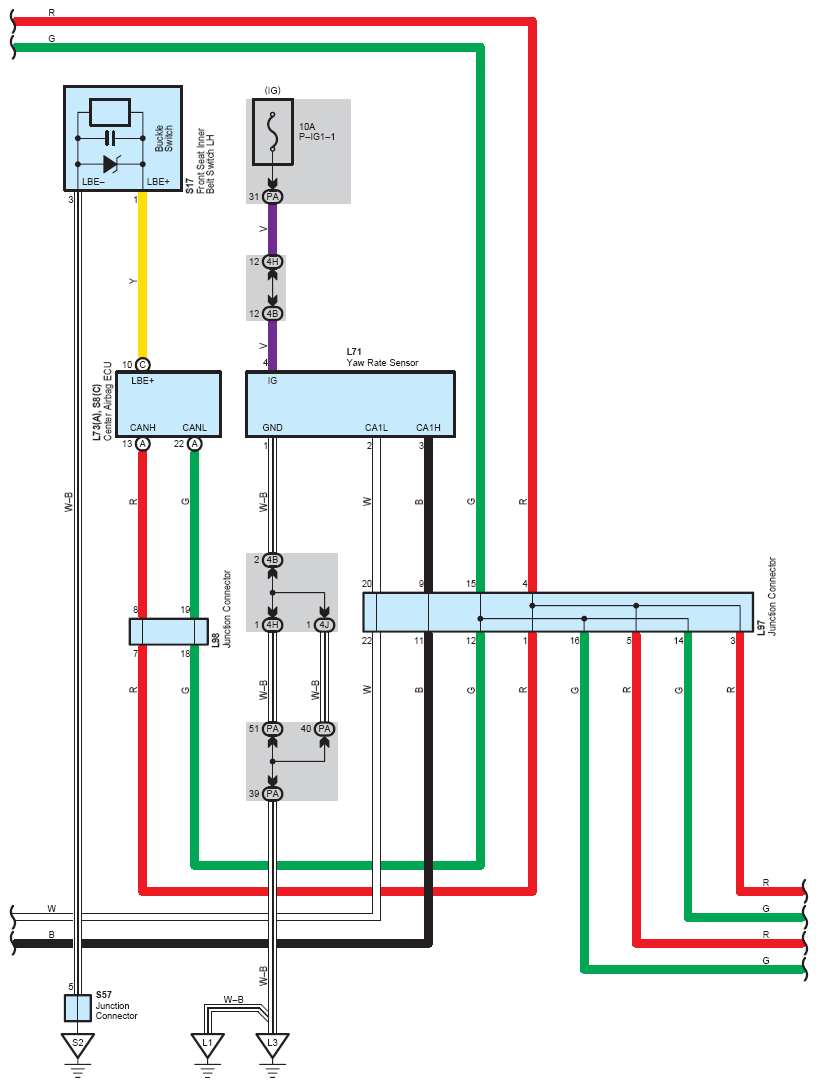

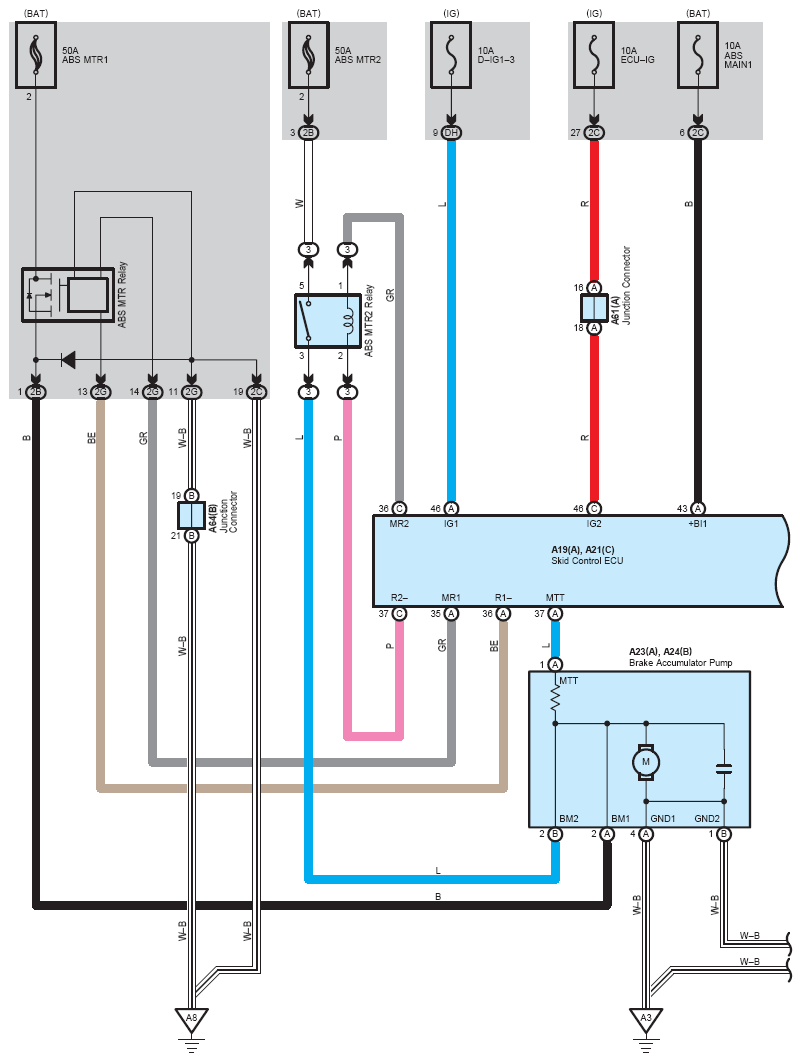

Fig 1: Brake Hold System - Circuit Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

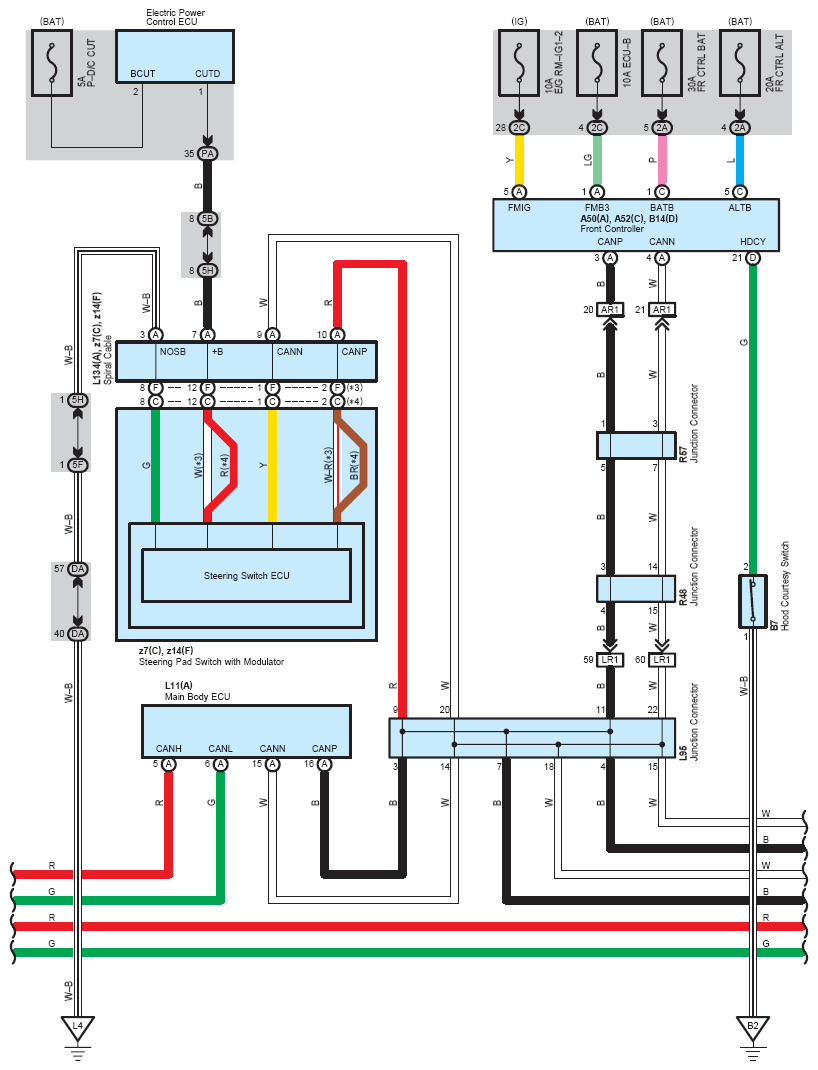

Fig 2: Brake Hold System - Circuit Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

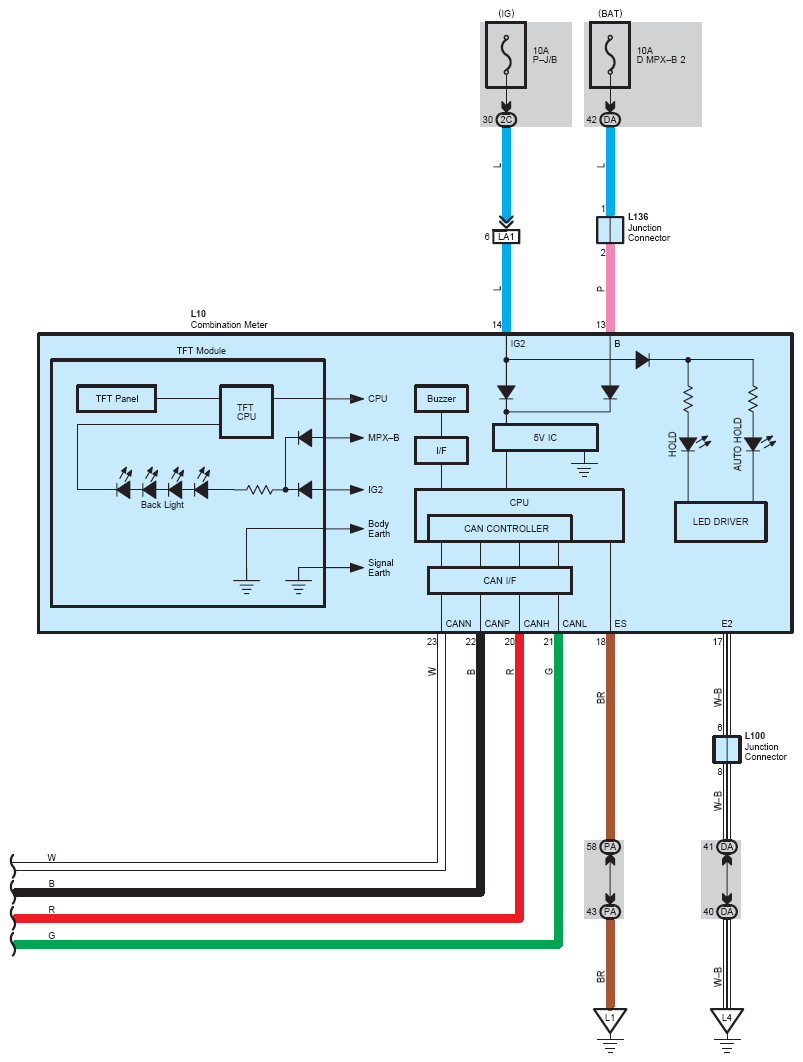

Fig 3: Brake Hold System - Circuit Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

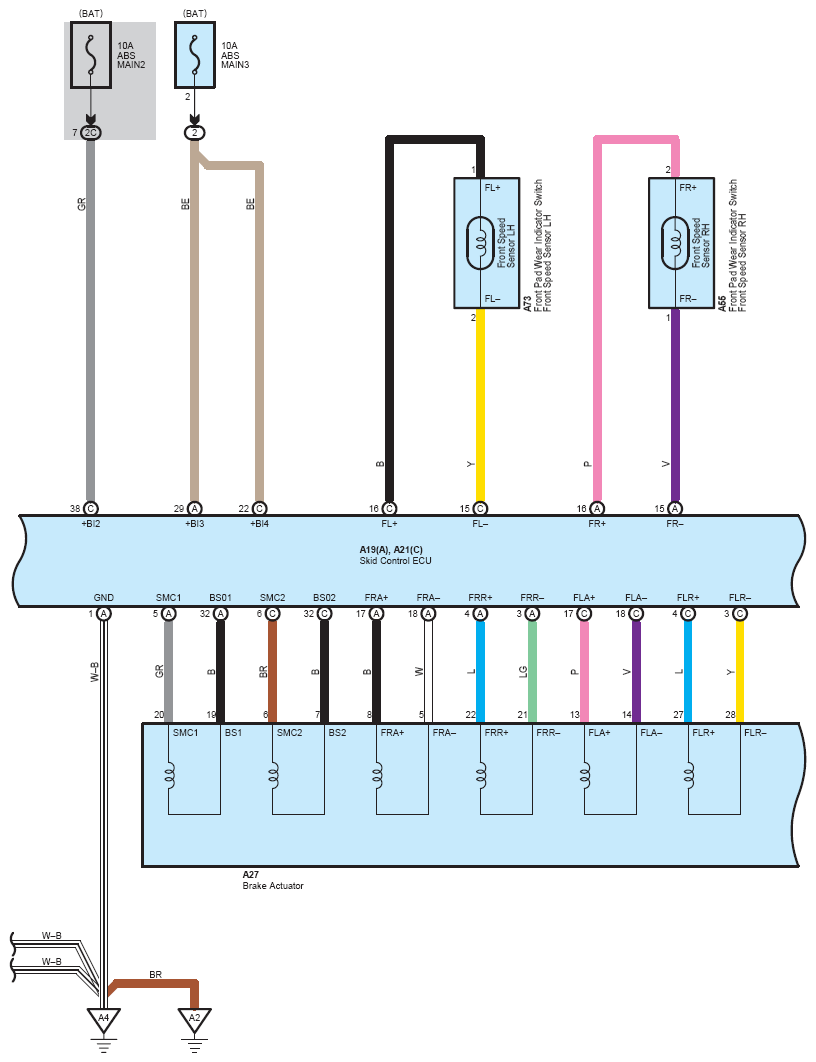

Fig 4: Brake Hold System - Circuit Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

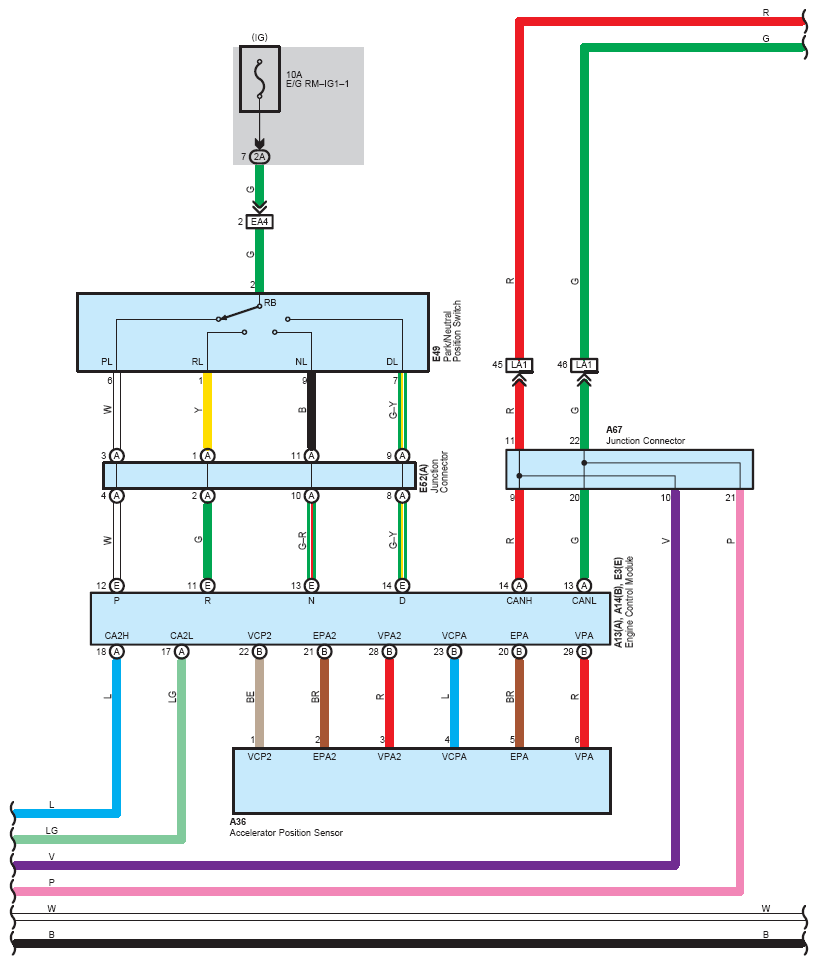

Fig 5: Brake Hold System - Circuit Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

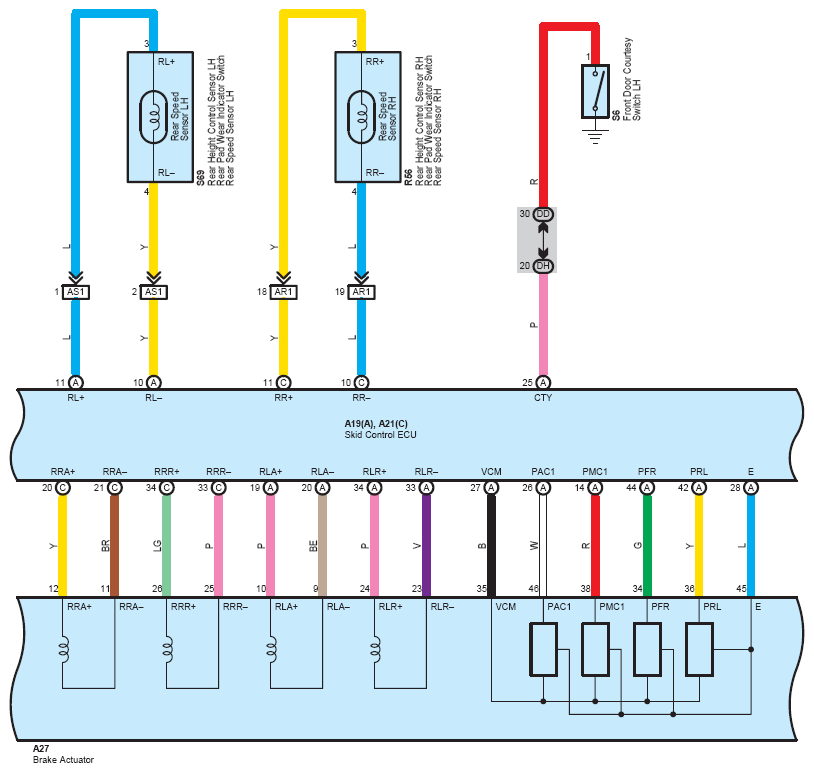

Fig 6: Brake Hold System - Circuit Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

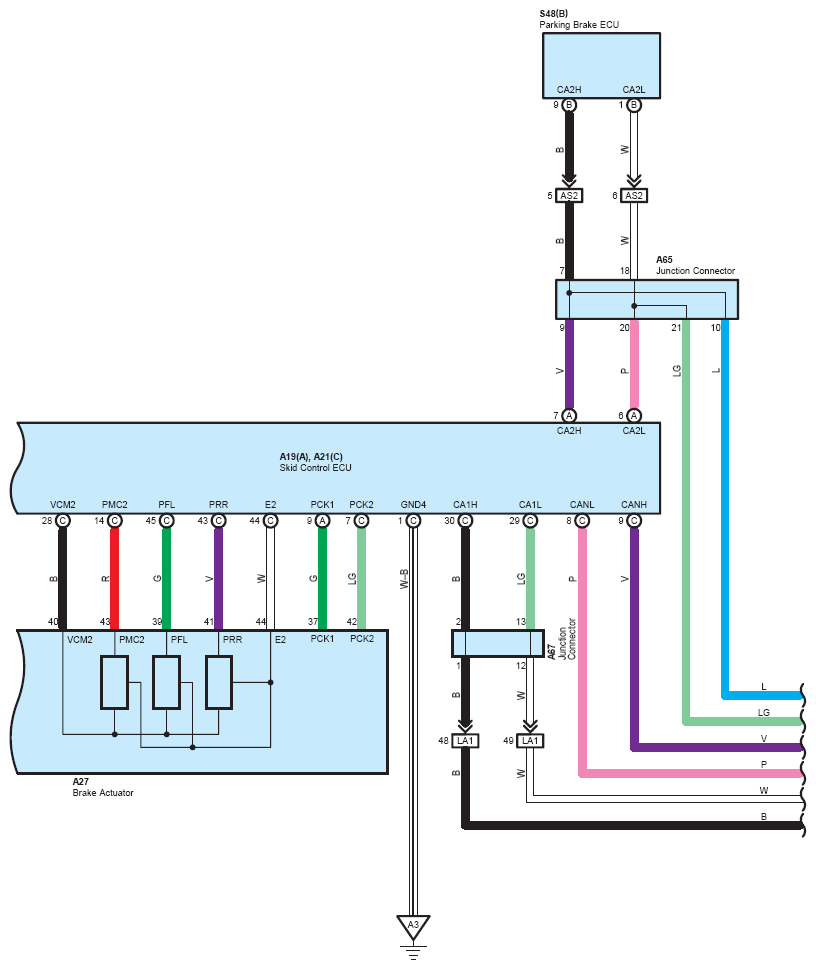

Fig 7: Brake Hold System - Circuit Diagram (7 Of 10)

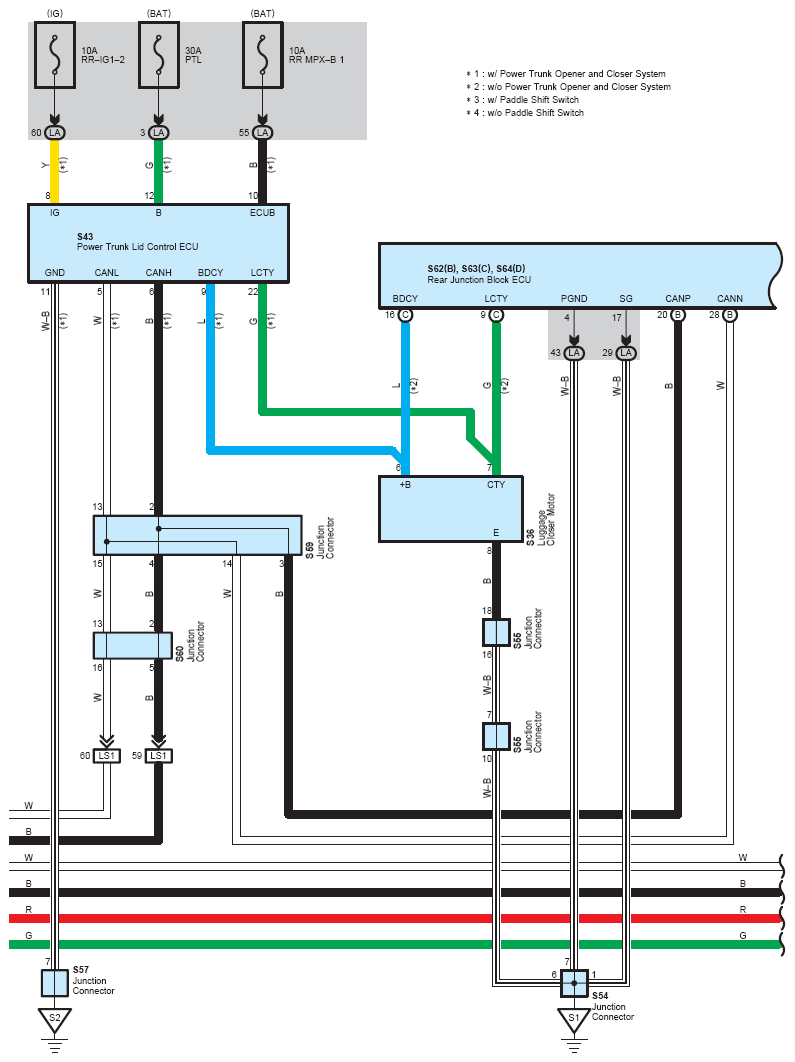

Fig 8: Brake Hold System - Circuit Diagram (8 Of 10)

Fig 9: Brake Hold System - Circuit Diagram (9 Of 10)

Fig 10: Brake Hold System - Circuit Diagram (10 Of 10)
