Multiplex Communication System (CAN): Notes

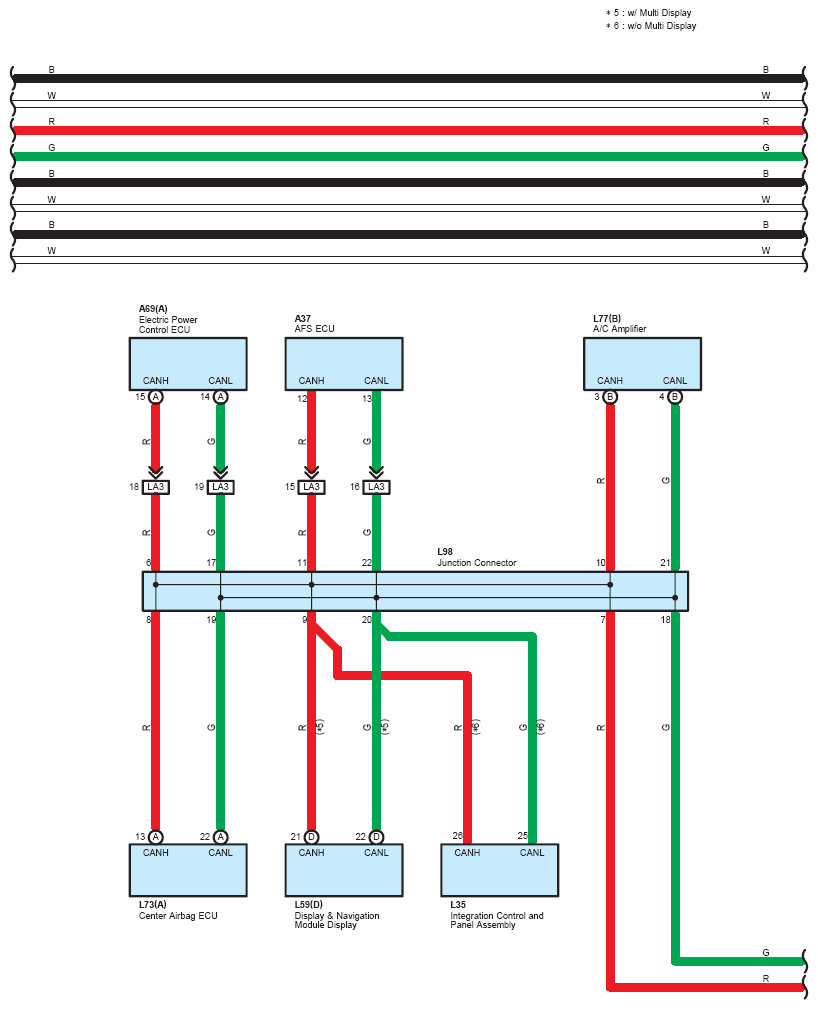

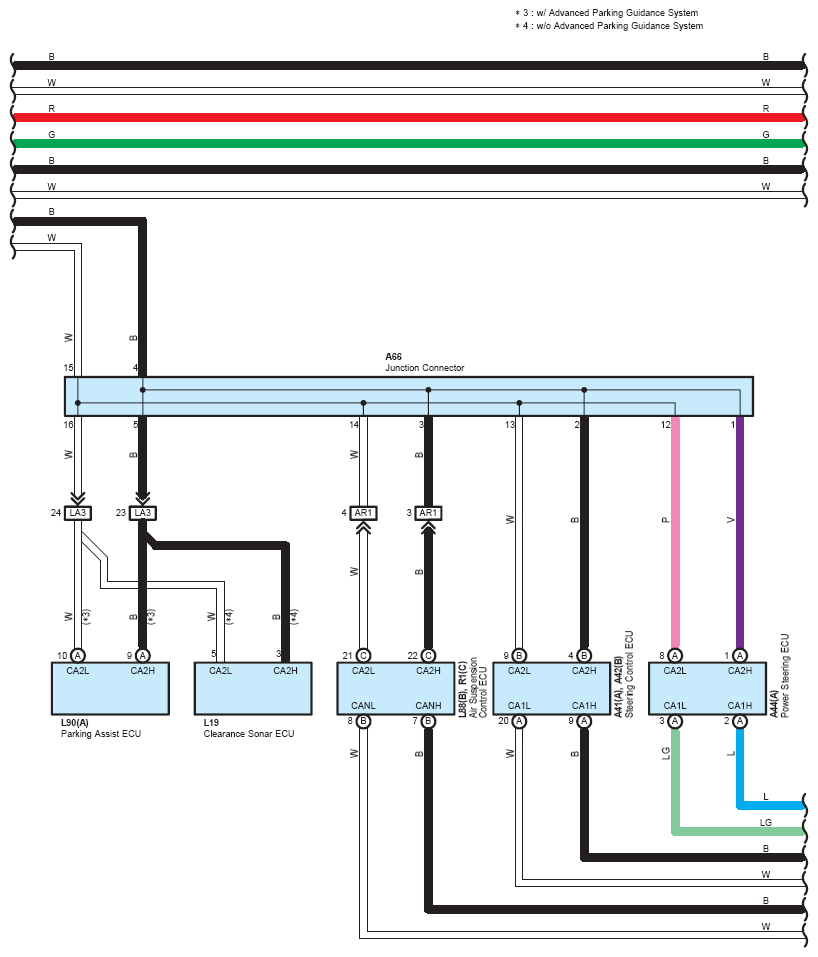

Fig 1: Multiplex Communication System (CAN) - Circuit Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

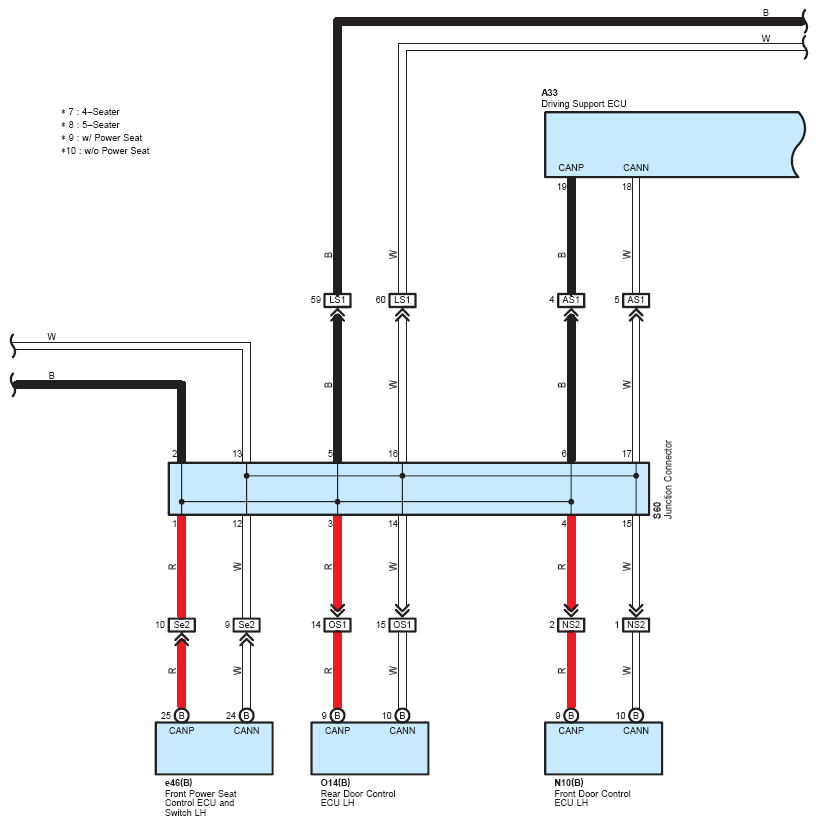

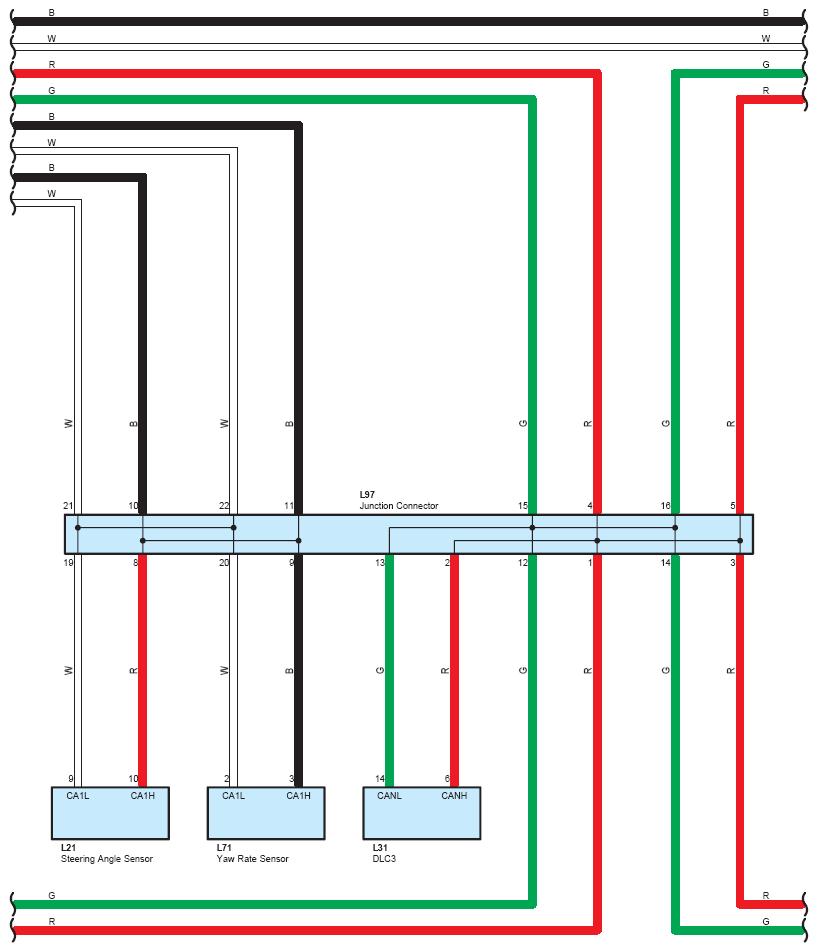

Fig 2: Multiplex Communication System (CAN) - Circuit Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

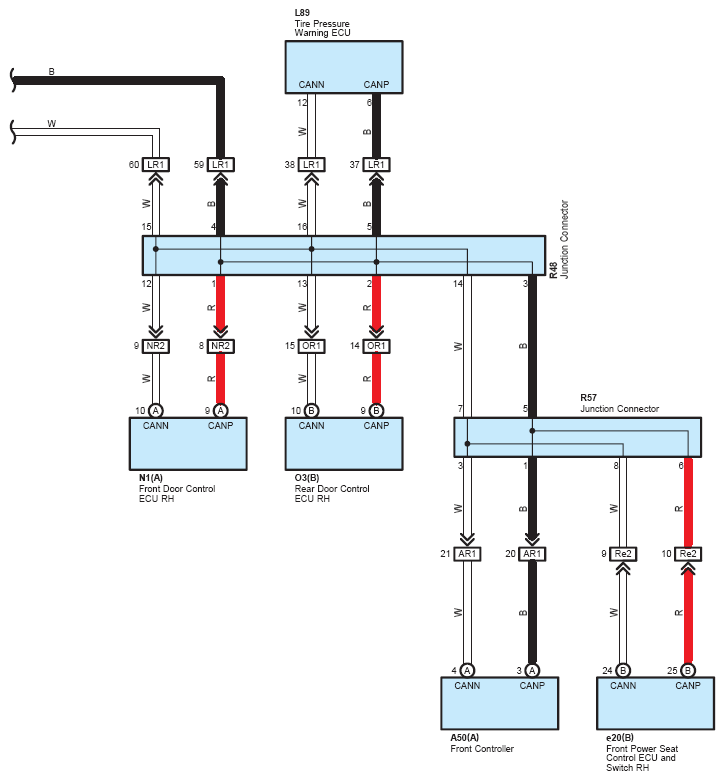

Fig 3: Multiplex Communication System (CAN) - Circuit Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

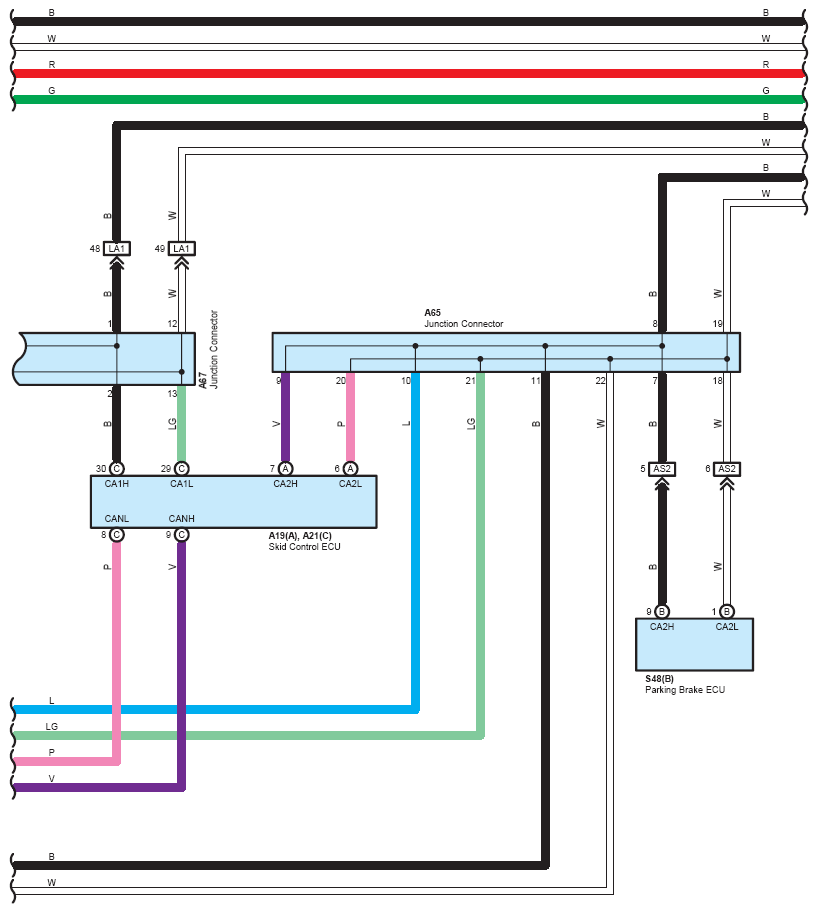

Fig 4: Multiplex Communication System (CAN) - Circuit Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

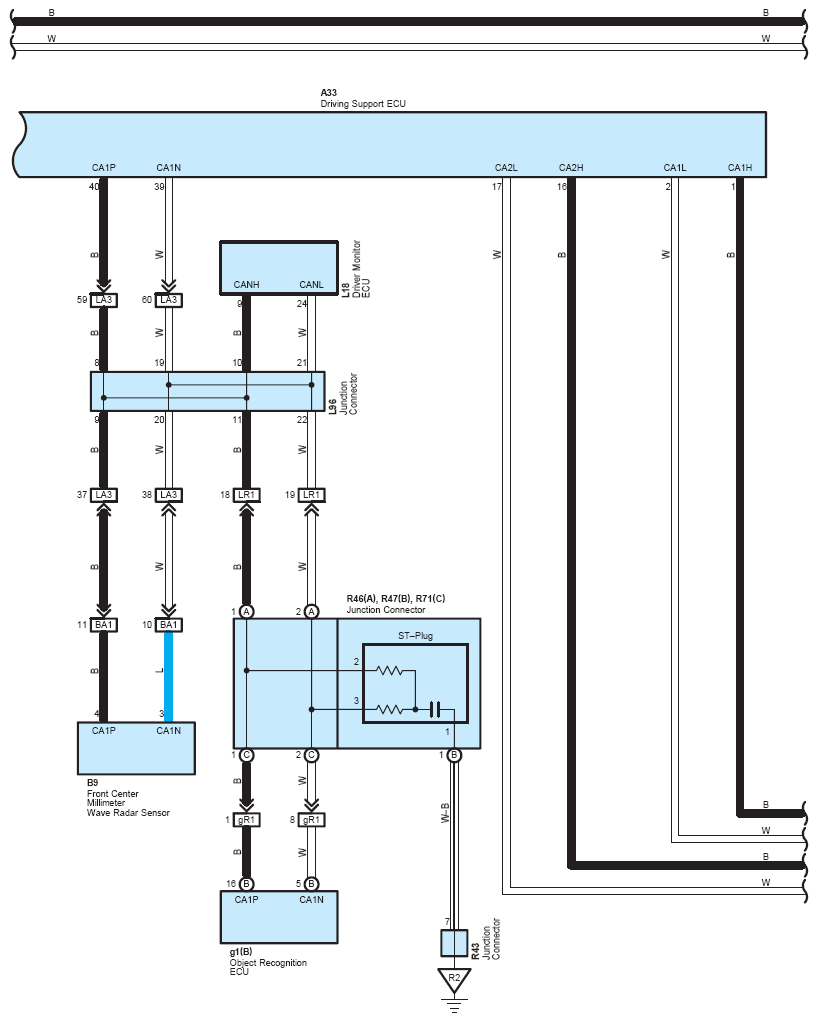

Fig 5: Multiplex Communication System (CAN) - Circuit Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

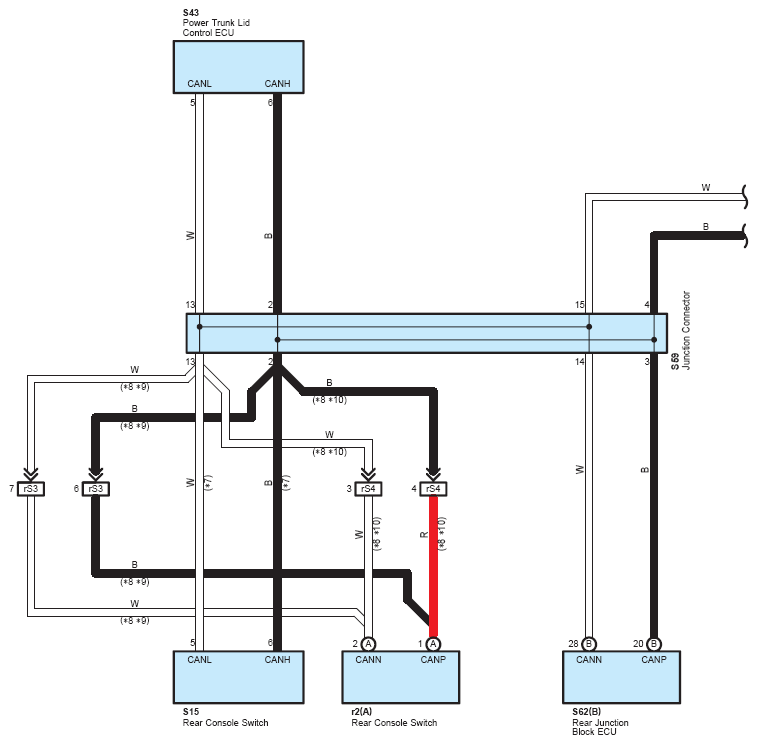

Fig 6: Multiplex Communication System (CAN) - Circuit Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

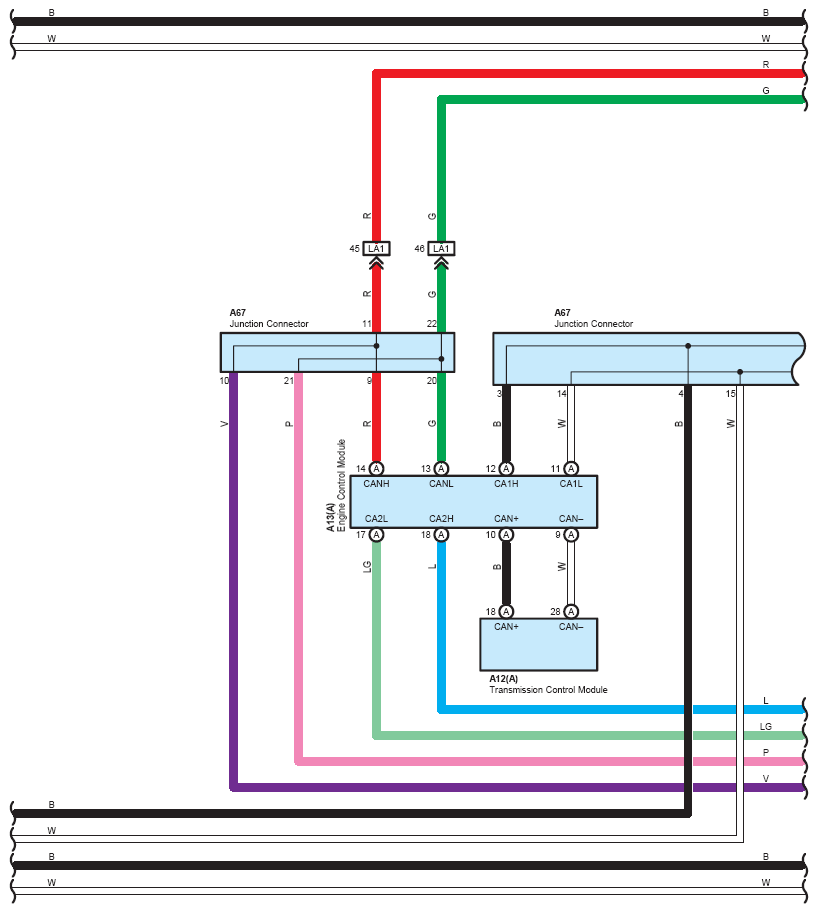

Fig 7: Multiplex Communication System (CAN) - Circuit Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

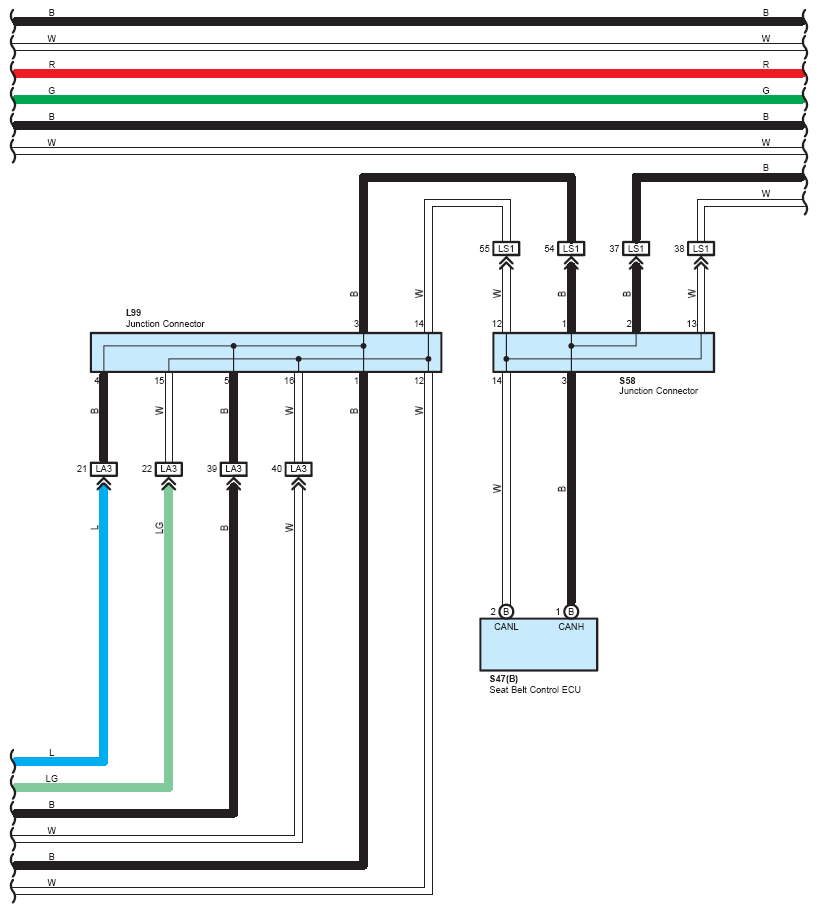

Fig 8: Multiplex Communication System (CAN) - Circuit Diagram (8 Of 11)

Fig 9: Multiplex Communication System (CAN) - Circuit Diagram (9 Of 11)

Fig 10: Multiplex Communication System (CAN) - Circuit Diagram (10 Of 11)

Fig 11: Multiplex Communication System (CAN) - Circuit Diagram (11 Of 11)
