Sliding Roof: Notes

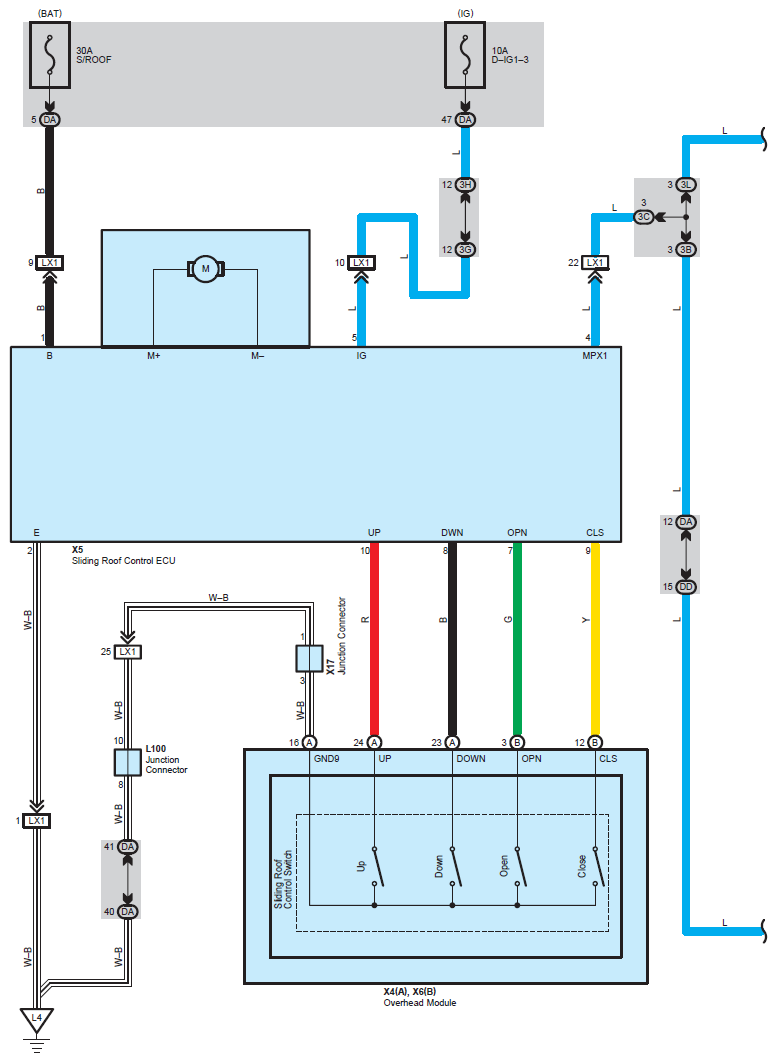

Fig 1: Sliding Roof - Circuit Diagram (1 Of 4)
G07565066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

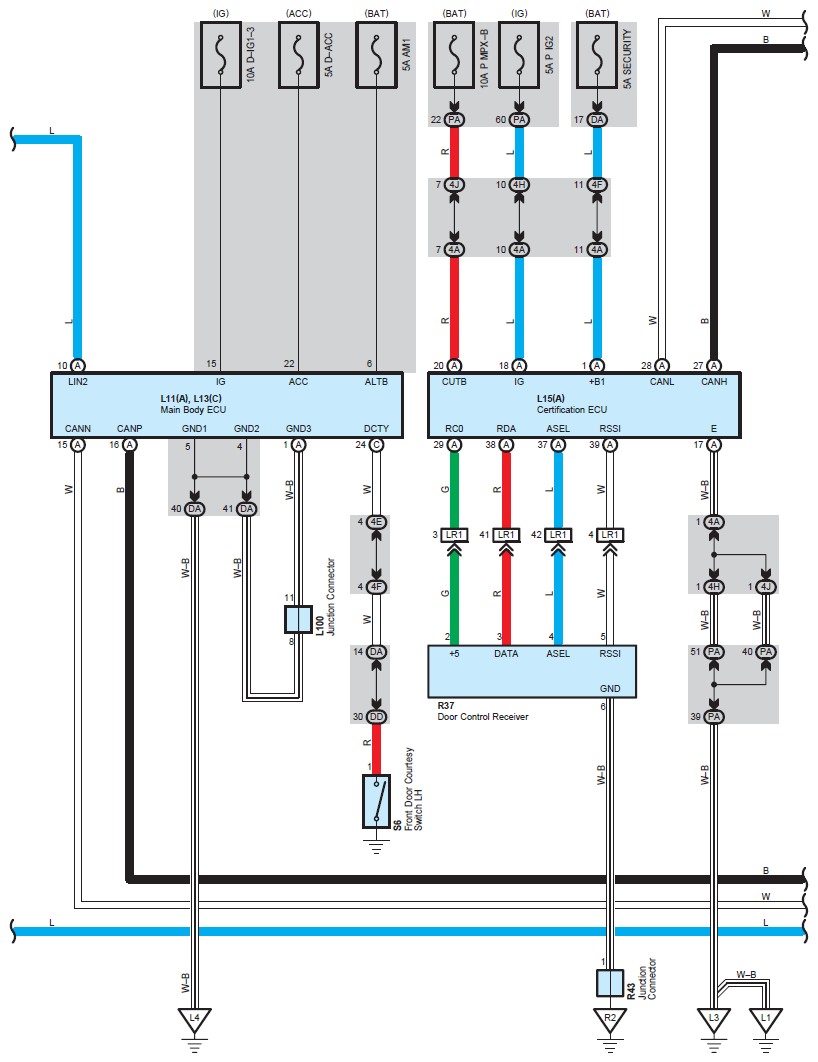

Fig 2: Sliding Roof - Circuit Diagram (2 Of 4)
G07565067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

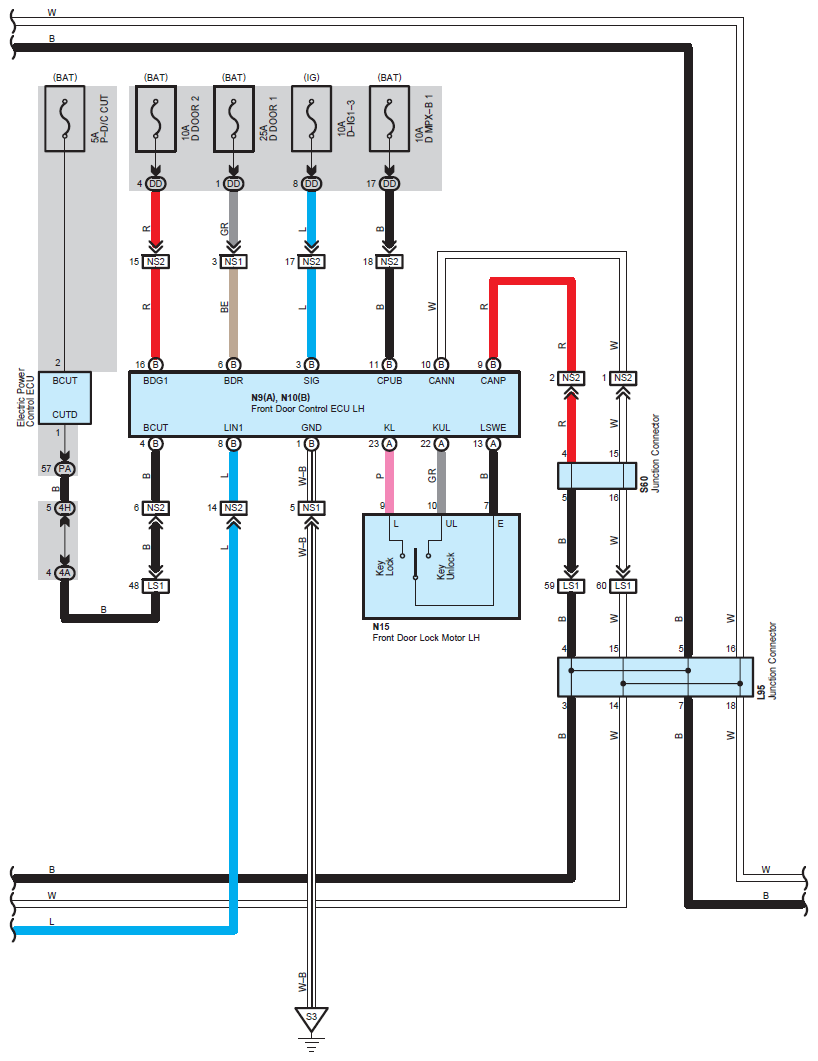

Fig 3: Sliding Roof - Circuit Diagram (3 Of 4)
G07565068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

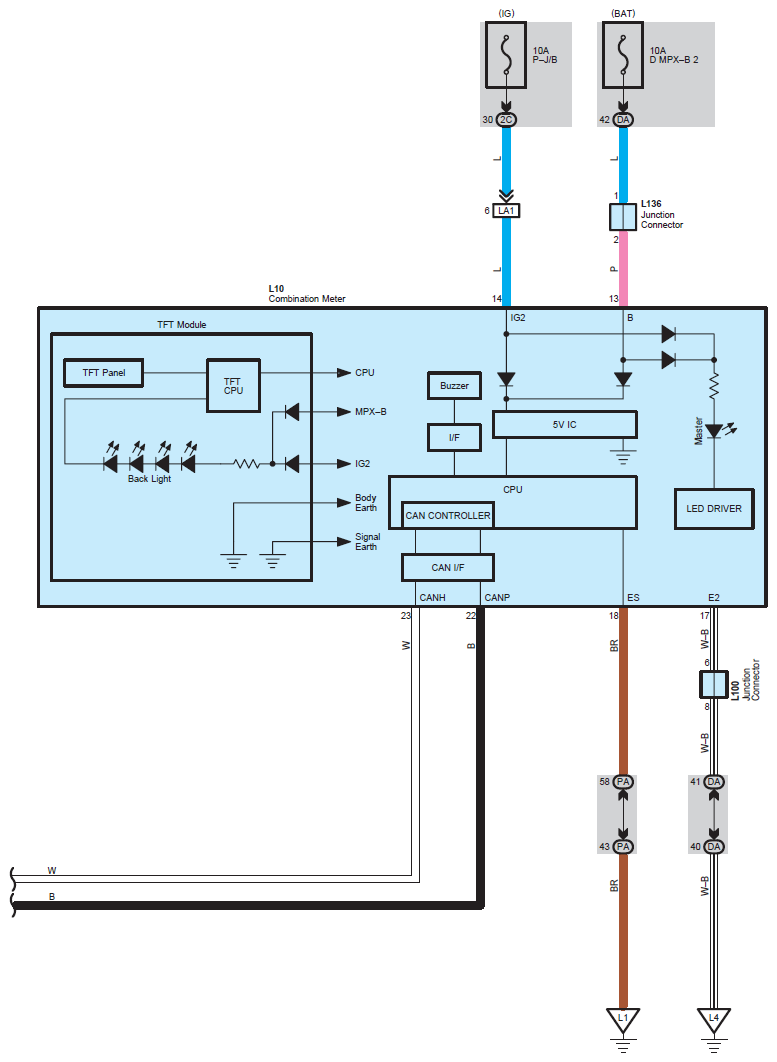

Fig 4: Sliding Roof - Circuit Diagram (4 Of 4)
G07565069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
