VGRS System: Notes

Fig 1: VGRS System - Circuit Diagram (1 Of 5)
G07565019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

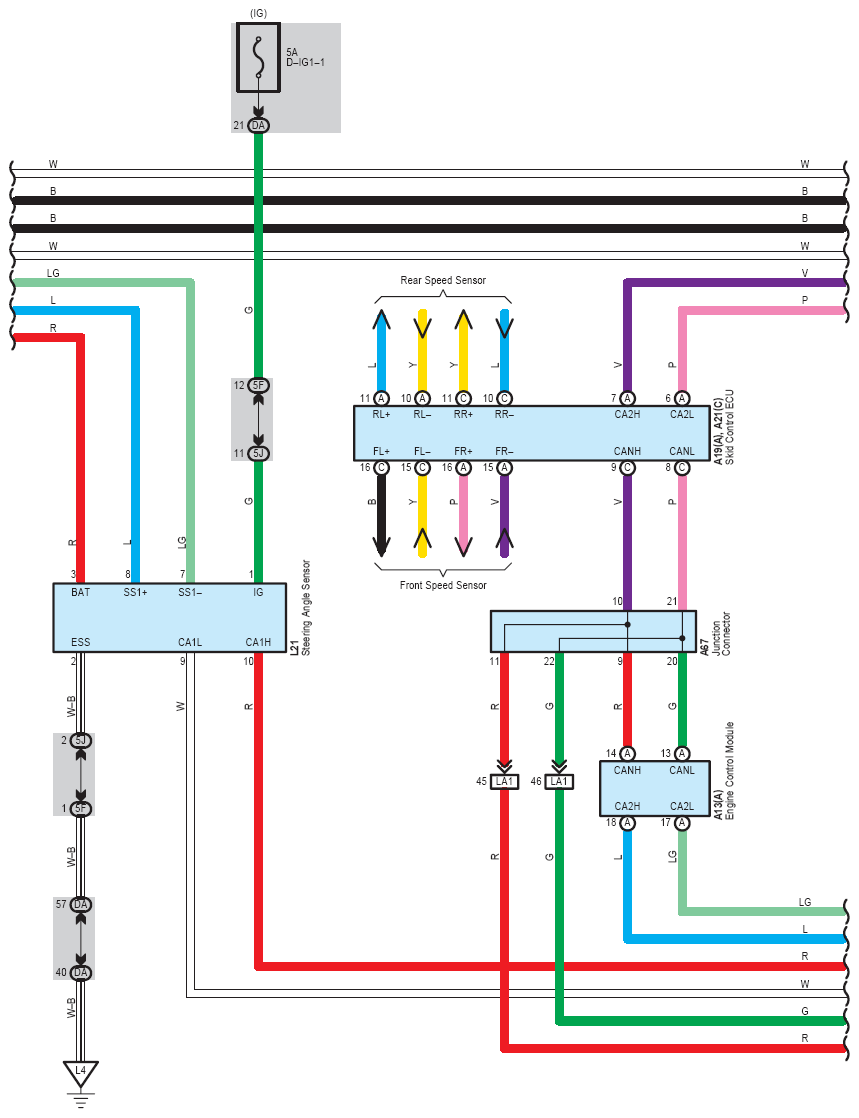

Fig 2: VGRS System - Circuit Diagram (2 Of 5)
G07565020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

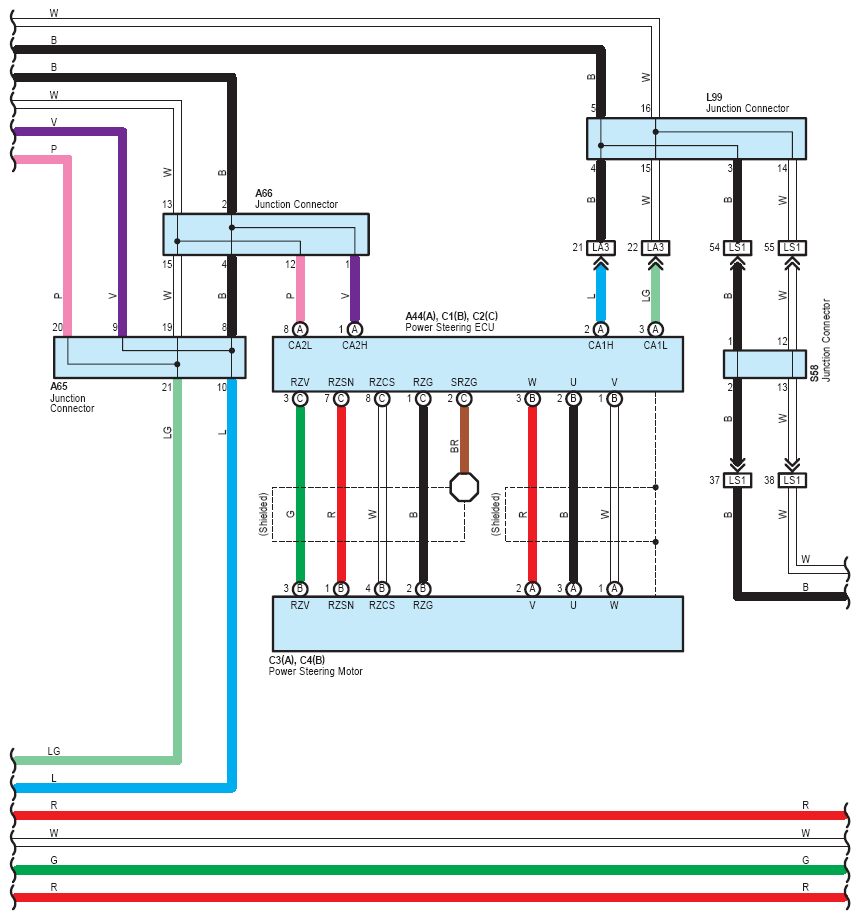

Fig 3: VGRS System - Circuit Diagram (3 Of 5)
G07565021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

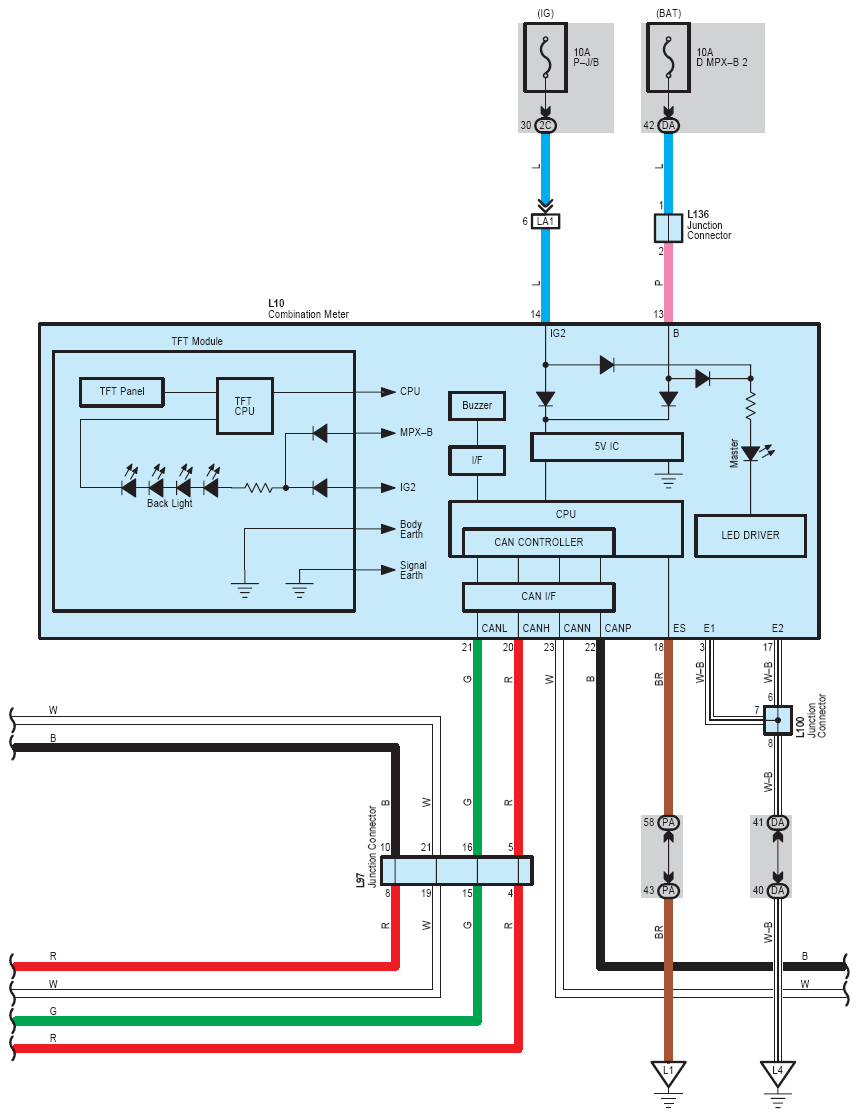

Fig 4: VGRS System - Circuit Diagram (4 Of 5)
G07565022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

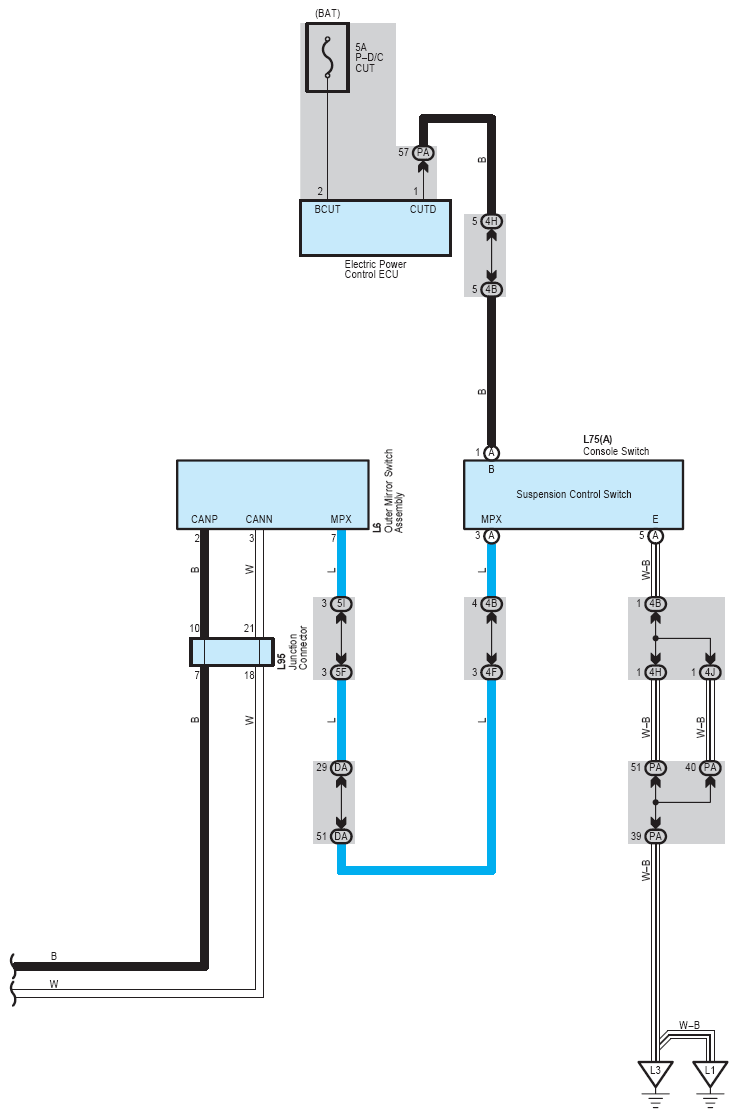

Fig 5: VGRS System - Circuit Diagram (5 Of 5)
G07565023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
