Crankshaft Position Sensor: Removal: Removal

  1. REMOVE NO. 2 ENGINE UNDER COVER (for 2WD)  . Refer to REMOVAL - Step 10
  2. REMOVE NO. 2 ENGINE UNDER COVER (for AWD)  . Refer to REMOVAL - Step 12
  3. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.

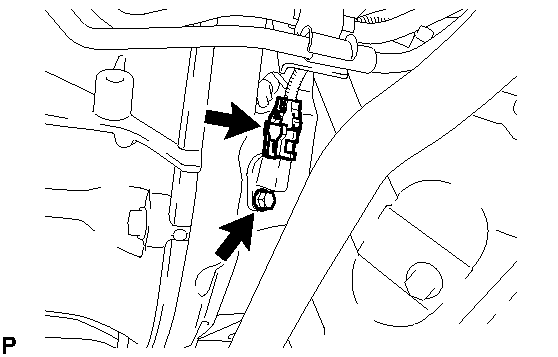

      Fig 1: Locating Crankshaft Position Sensor Connector And Bolt
      GTY264789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor.
