Knock Sensor: Inspection: Inspection

INSPECT KNOCK SENSOR

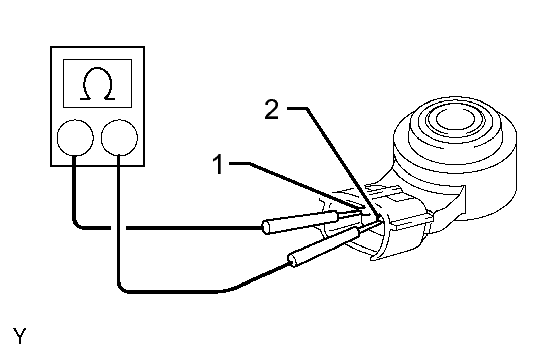

Fig 1: Inspecting Knock Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard resistance

Tester Connection	Condition	Specified Condition
1 - 2	20°C (68°F)	120 to 280 kΩ

If the result is not as specified, replace the knock sensor.
