Throttle Body: Removal: Removal

  1. REMOVE COWL TOP VENTILATOR LOUVER RH  . Refer to REMOVAL - Step 1
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

    NOTE:

    After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

  3. REMOVE V-BANK COVER SUB-ASSEMBLY
    1. Using both hands, lift the rear side of the cover upwards to detach the 4 clips labeled B. Then slide the cover toward the front of the vehicle to detach the 2 clips labeled A and remove the V-bank cover.

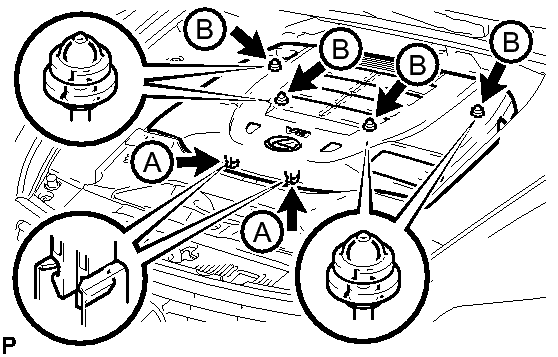

      Fig 1: Locating V-Bank Cover Clip
      GTY280924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • The V-bank cover may be damaged if its front and rear are lifted at the same time.
      • When detaching the clips labeled A, be sure to slide the cover toward the front of the vehicle.
  4. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY
    1. Remove the 5 clips A.

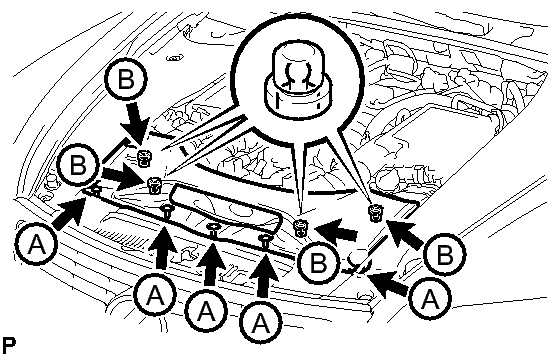

      Fig 2: Locating Air Cleaner Inlet Cover Clips
      GTY267523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift up the air cleaner inlet cover to detach the 4 clips B, and remove the air cleaner inlet cover.
  5. REMOVE NO. 1 AIR CLEANER INLET
    1. Remove the 2 bolts.

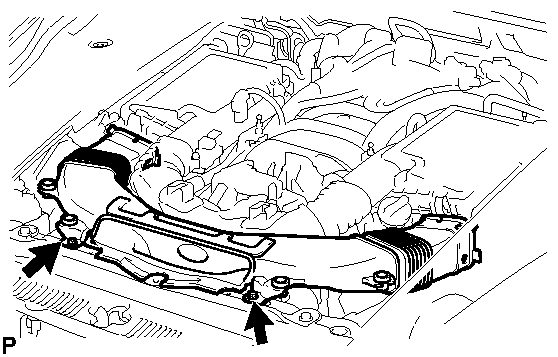

      Fig 3: Locating No. 1 Air Cleaner Inlet Bolts
      GTY269514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Hold the air cleaner inlet by the protrusions A and B, and detach the connections.

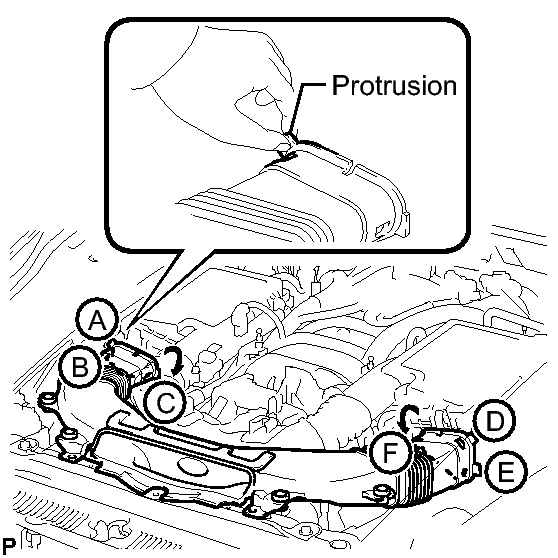

      Fig 4: Holding Air Cleaner Inlet By Protrusions A And B
      GTY263731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Rotate the No. 1 air cleaner inlet as shown in the illustration to detach the protrusion C.
    4. Hold the air cleaner inlet by the protrusions D and E, and detach the connections.
    5. Rotate the No. 1 air cleaner inlet as shown in the illustration to detach the protrusion F.
  6. REMOVE NO. 1 ENGINE UNDER COVER  . Refer to REPLACEMENT - Step 4
  7. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 5
  8. REMOVE INTAKE AIR CONNECTOR PIPE
    1. Disconnect the No. 1 and No. 2 ventilation hoses from the intake air connector pipe.

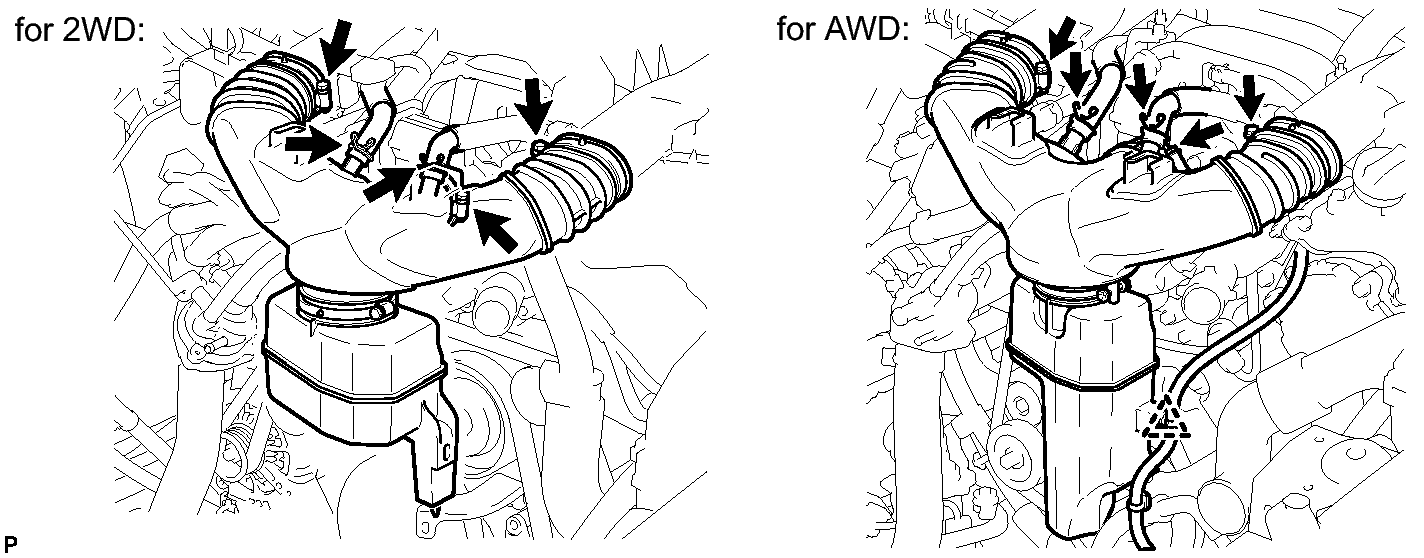

      Fig 5: Locating No. 1 And No. 2 Ventilation Hoses
      GTY288382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for AWD:

      Using a clip remover, detach the wire harness clamp.

    3. Loosen the 3 hose clamps, and remove the intake air connector pipe.
  9. REMOVE THROTTLE BODY ASSEMBLY
    1. Disconnect the throttle motor connector.

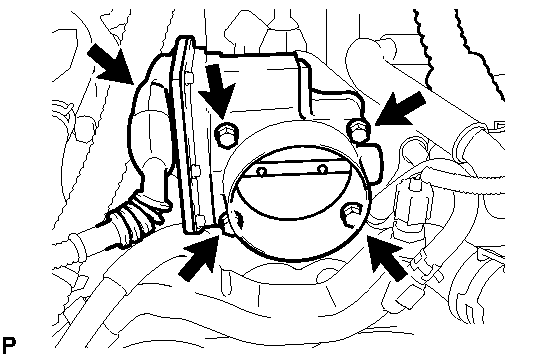

      Fig 6: Locating Throttle Motor Connector And Bolts
      GTY147486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and throttle body.
    3. Disconnect the No. 4 and No. 5 water by-pass hoses from the throttle body.

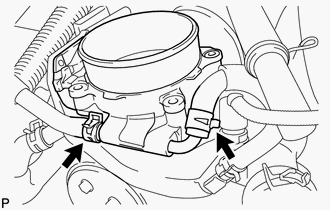

      Fig 7: Locating No. 4 And No. 5 Water By-Pass Hoses
      GTY288136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the gasket from the intake manifold.
