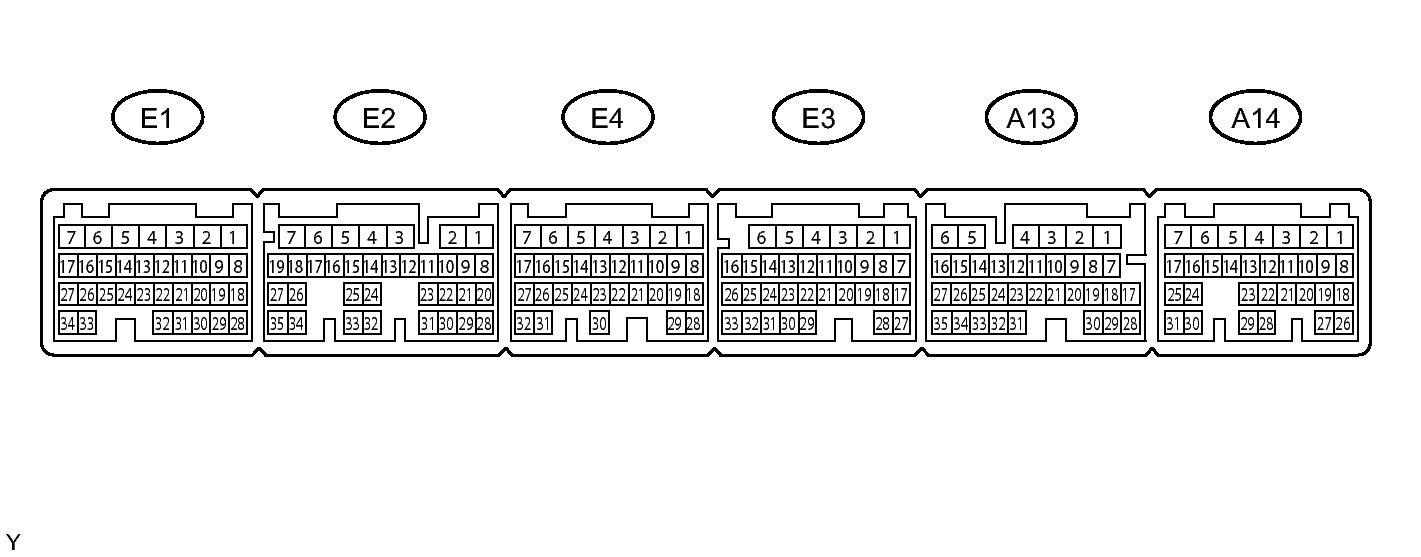

Terminals Of ECM

Fig 1: Identifying Terminals Of ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The standard normal voltage between each pair of the ECM terminals is shown in the table below. The appropriate conditions for checking each pair of the terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of terminals, displayed in the Specified Condition column. The illustration above can be used as a reference to identify the ECM terminal locations.

HINT:

*: The ECM terminal voltage is constant regardless of the output voltage from the sensor.

1. WAVEFORM 1
   Fig 2: Identifying Waveform 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

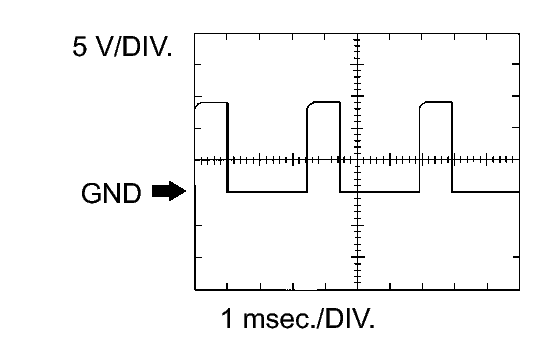

   CAMSHAFT TIMING OIL CONTROL VALVE (OCV) (EXHAUST SIDE):



   ECM Terminal Name	Between OE1+ and OE1- or OE2+ and OE2-
   Tester Range	5 V/DIV., 1 msec./DIV.
   Condition	Idling with warm engine

2. WAVEFORM 2
   Fig 3: Identifying Waveform 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

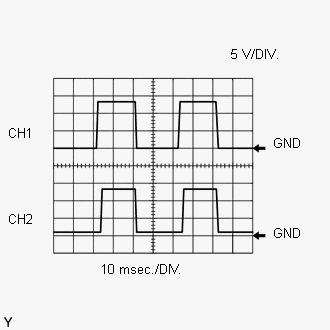

   A/F SENSOR HEATER:



   ECM Terminal Name	CH1: Between HA1A and E1 CH2: Between HA2A and E1
   Tester Range	5 V/DIV., 10 msec./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

3. WAVEFORM 3
   Fig 4: Identifying Waveform 3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

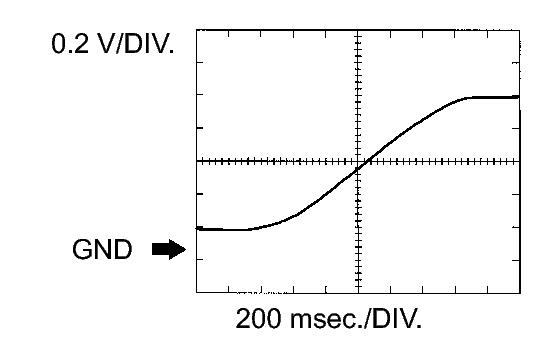

   HEATED OXYGEN SENSOR:



   ECM Terminal Name	Between OX1B and E2 or OX2B and E2
   Tester Range	0.2 V/DIV., 200 msec./DIV.
   Condition	Engine speed maintained at 2500 rpm for 2 minutes after warming up

   HINT:

   In Data List, item O2S B1 S2 or O2S B2 S2 shows the ECM input values from the heated oxygen sensor.

4. WAVEFORM 4
   Fig 5: Identifying Waveform 4

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

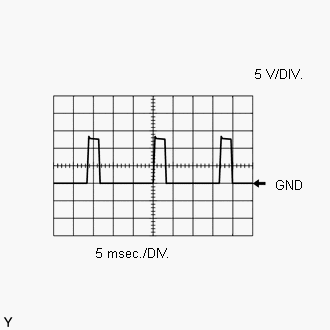

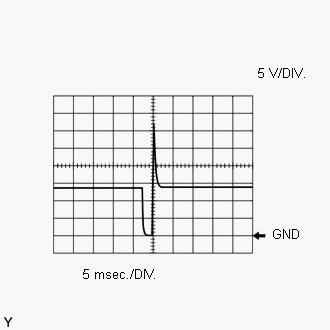

   INJECTOR FOR PORT INJECTION NO. 1 (TO NO. 8) INJECTION SIGNAL:



   ECM Terminal Name	Between #10 (to #80) and E1
   Tester Range	5 V/DIV., 5 msec./DIV.
   Condition	Idling and engine coolant temperature 60°C (140°F) or less

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

5. WAVEFORM 5
   Fig 6: Identifying Waveform 5

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

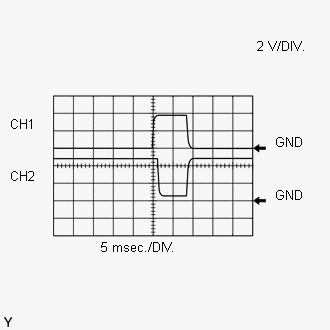

   INJECTOR FOR DIRECT INJECTION NO. 1 (TO NO. 8) INJECTION SIGNAL AND INJECTION CONFIRMATION SIGNAL:



   ECM Terminal Name	CH1: Between #1 or #6 and E1 CH2: Between INJF1 and E1
   	CH1: Between #4 or #7 and E1 CH2: Between INJF2 and E1
   	CH1: Between #5 or #8 and E1 CH2: Between INJF3 and E1
   	CH1: Between #2 or #3 and E1 CH2: Between INJF4 and E1
   Tester Range	2 V/DIV., 20 msec./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

6. WAVEFORM 6
   Fig 7: Identifying Waveform 6

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   KNOCK SENSOR:

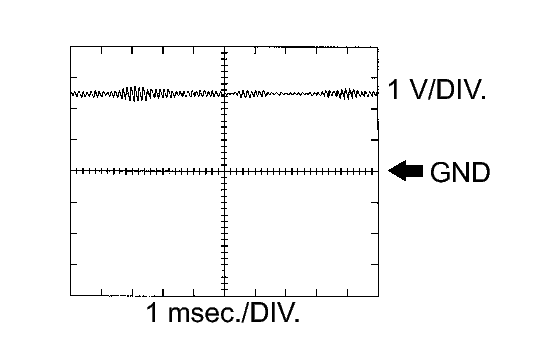

   ECM Terminal Name	Between KNK1 and EKNK Between KNK2 and EKN2 Between KNK3 and ENK3 Between KNK4 and ENK4
   Tester Range	0.01 to 10 V/DIV., 0.01 to 10 msec./DIV.
   Condition	Engine speed maintained at 4000 rpm after warming up engine

   HINT:

   • The wavelength becomes shorter as the engine rpm increases.
   • The waveforms and amplitudes displayed differ slightly depending on the vehicle.
7. WAVEFORM 7
   Fig 8: Identifying Waveform 7

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

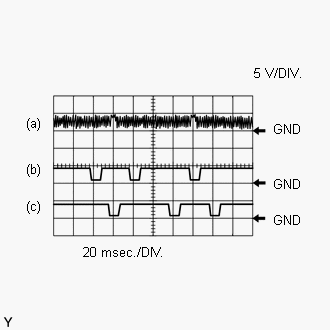

   CRANKSHAFT POSITION SENSOR AND VVT SENSOR FOR INTAKE SIDE:

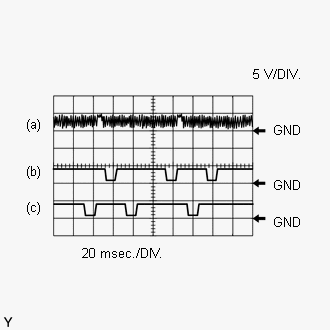

   ECM Terminal Name	(a) Between NE+ and NE- (b) Between VV1+ and VV1- (c) Between VV2+ and VV2-
   Tester Range	5 V/DIV., 20 msec./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

8. WAVEFORM 8
   Fig 9: Identifying Waveform 8

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CRANKSHAFT POSITION SENSOR AND VVT SENSOR FOR EXHAUST SIDE:



   ECM Terminal Name	(a) Between NE+ and NE- (b) Between EV1+ and EV1- (c) Between EV2+ and EV2-
   Tester Range	5 V/DIV., 20 msec./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

9. WAVEFORM 9
   Fig 10: Identifying Waveform 9

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

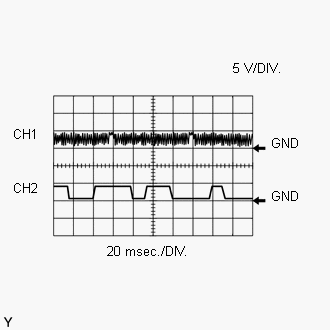

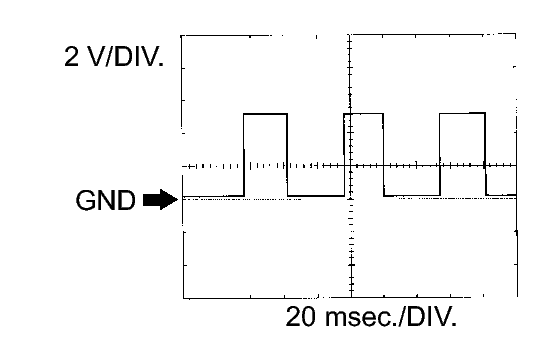

   CRANKSHAFT POSITION SENSOR AND CAMSHAFT POSITION SENSOR:



   ECM Terminal Name	CH1: Between NE+ and NE- CH2: Between G2+ and G2-
   Tester Range	5 V/DIV., 20 msec./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

10. WAVEFORM 10
    Fig 11: Identifying Waveform 10

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

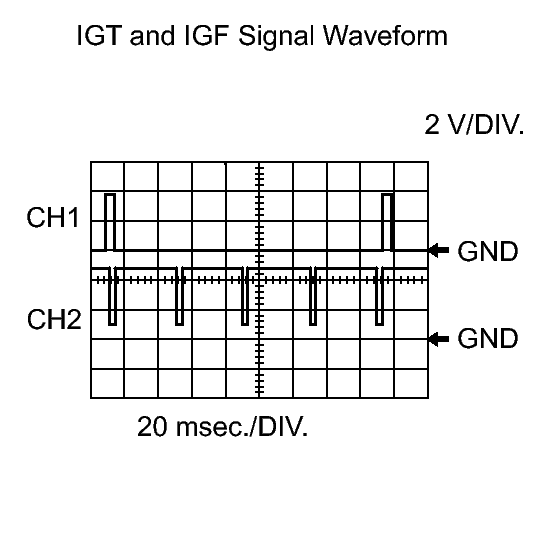

    IGNITER IGT SIGNAL (FROM ECM TO IGNITER) AND IGNITER IGF SIGNAL (FROM IGNITER TO ECM):



    ECM Terminal Name	CH1: Between IGT (1 to 8) and E1 CH2: Between IGF1 and E1 or IGF2 and E1
    Tester Range	2 V/DIV., 20 msec./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine rpm increases.

11. WAVEFORM 11
    Fig 12: Identifying Waveform 11

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

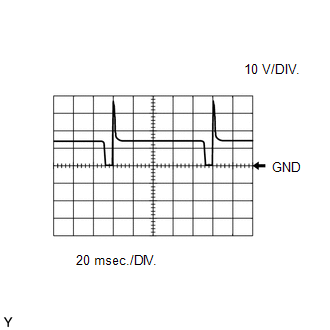

    PURGE VSV:



    ECM Terminal Name	Between PRG and E1
    Tester Range	10 V/DIV., 20 msec./DIV.
    Condition	Idling with warm engine

    HINT:

    If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

12. WAVEFORM 12
    Fig 13: Identifying Waveform 12

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    VEHICLE SPEED SIGNAL:



    ECM Terminal Name	Between SPD and E1
    Tester Range	2 V/DIV., 20 msec./DIV.
    Condition	Driving at 12 mph (20 km/h)

    HINT:

    The wavelength becomes shorter as the vehicle speed increases.

13. WAVEFORM 13
    Fig 14: Identifying Waveform 13

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR NEGATIVE TERMINAL:



    ECM Terminal Name	Between M- and ME01
    Tester Range	5 V/DIV., 1 msec./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

14. WAVEFORM 14
    Fig 15: Identifying Waveform 14

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR POSITIVE TERMINAL:



    ECM Terminal Name	Between M+ and ME01
    Tester Range	5 V/DIV., 1 msec./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

15. WAVEFORM 15
    Fig 16: Identifying Waveform 15

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

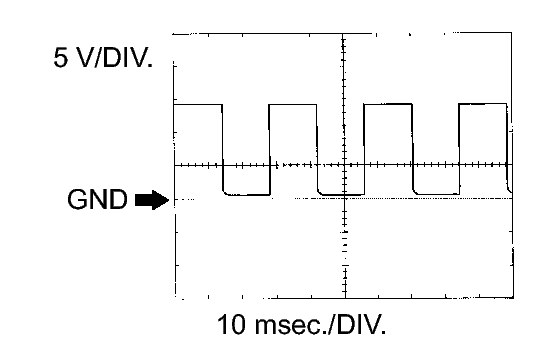

    ENGINE SPEED SIGNAL:



    ECM Terminal Name	Between TACH and E1
    Tester Range	5 V/DIV., 10 msec./DIV.
    Condition	Idling

    HINT:

    The wavelength becomes shorter as the engine rpm increases.

16. WAVEFORM 16
    Fig 17: Identifying Waveform 16

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    FUEL PUMP FOR HIGH PRESSURE (SPILL CONTROL VALVE) (BANK 1):

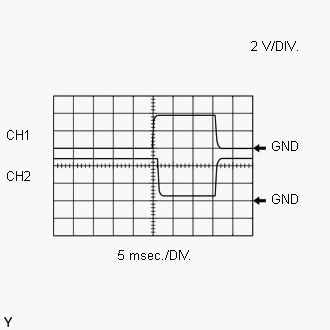

    ECM Terminal Name	CH1: Between FPD and E1 CH2: Between FPF1 and E1
    Tester Range	2 V/DIV., 5 msec./DIV.
    Condition	Idling with warm engine

17. WAVEFORM 17
    Fig 18: Identifying Waveform 17

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    FUEL PUMP FOR HIGH PRESSURE (SPILL CONTROL VALVE) (BANK 2):



    ECM Terminal Name	CH1: Between FPD2 and E1 CH2: Between FPF2 and E1
    Tester Range	2 V/DIV., 5 msec./DIV.
    Condition	1200 rpm with warm engine

18. WAVEFORM 18
    Fig 19: Identifying Waveform 18

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

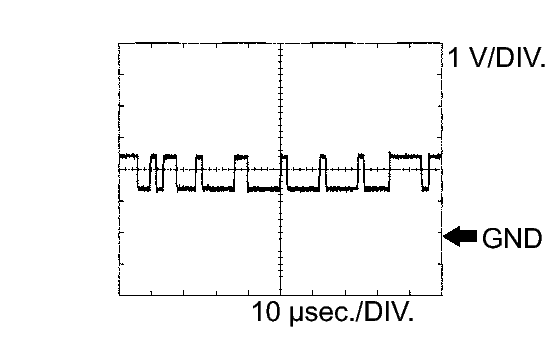

    CAN COMMUNICATION SIGNAL:



    ECM Terminal Name	Between CANH and E1
    Tester Range	1 V/DIV., 10 μsec./DIV.
    Condition	Stop engine and engine switch on (IG)

    HINT:

    The waveform varies depending on the CAN communication signal.

19. WAVEFORM 19
    Fig 20: Identifying Waveform 19

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

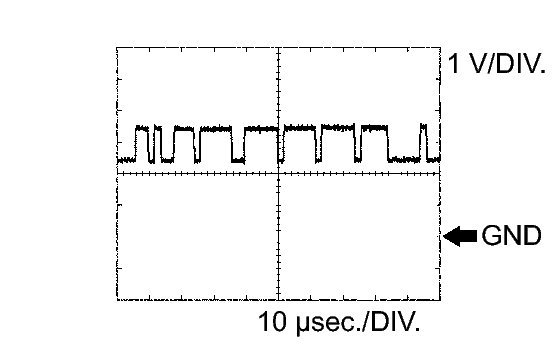

    CAN COMMUNICATION SIGNAL:



    ECM Terminal Name	Between CANL and E1
    Tester Range	1 V/DIV., 10 μsec./DIV.
    Condition	Stop engine and engine switch on (IG)

    HINT:

    The waveform varies depending on the CAN communication signal.

20. WAVEFORM 20
    Fig 21: Identifying Waveform 20

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    RECHARGING CONTROL SIGNAL:



    ECM Terminal Name	Between RLO and E1

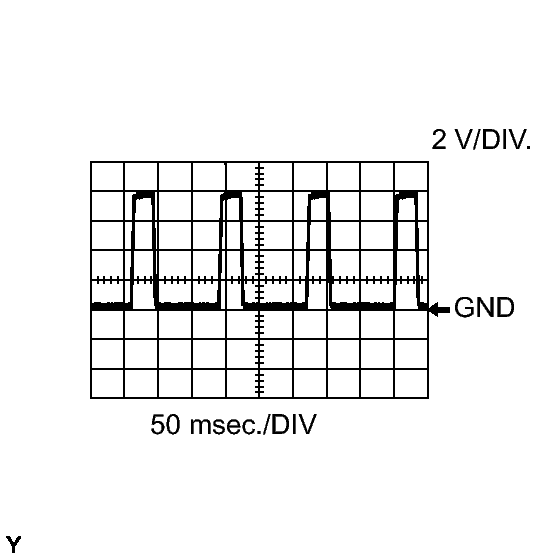

    Tester Range	2 V/DIV., 50 msec./DIV.
    Condition	Idling

21. WAVEFORM 21
    Fig 22: Identifying Waveform 21

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

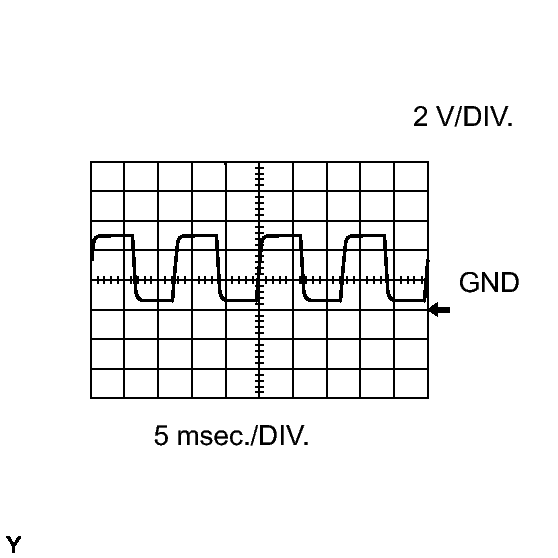

    INTAKE AIR CONTROL VALVE SIGNAL:



    ECM Terminal Name	Between ASM+ and ASM-
    Tester Range	5 V/DIV., 5 msec./DIV.
    Condition	Warm engine and 3000 rpm

22. WAVEFORM 22
    Fig 23: Identifying Waveform 22

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAMSHAFT TIMING CONTROL MOTOR EMD SIGNAL:



    ECM Terminal Name	Between EMD1 and E1 or EMD2 and E1
    Tester Range	2 V/DIV., 100 msec./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine rpm increases.

23. WAVEFORM 23
    Fig 24: Identifying Waveform 23

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAMSHAFT TIMING CONTROL MOTOR EMR SIGNAL:



    ECM Terminal Name	Between EMR1 and E1 or EMR2 and E1
    Tester Range	2 V/DIV., 5 msec./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine rpm increases.

24. WAVEFORM 24
    Fig 25: Identifying Waveform 24

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAMSHAFT TIMING CONTROL MOTOR EDT SIGNAL:



    ECM Terminal Name	Between EDT1 and E1 or EDT2 and E1

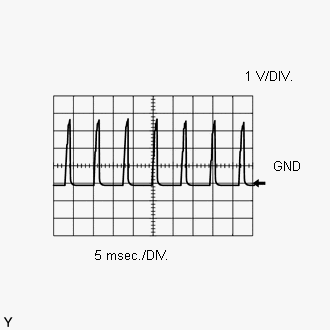

    Tester Range	1 V/DIV., 5 msec./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine rpm increases.
