VVT Sensor: Removal: Removal

REMOVE V-BANK COVER SUB-ASSEMBLY . See step 3
REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY . See step 4
REMOVE NO. 1 AIR CLEANER INLET . See step 5
REMOVE AIR CLEANER ASSEMBLY LH
1. Disconnect the MAF meter connector.

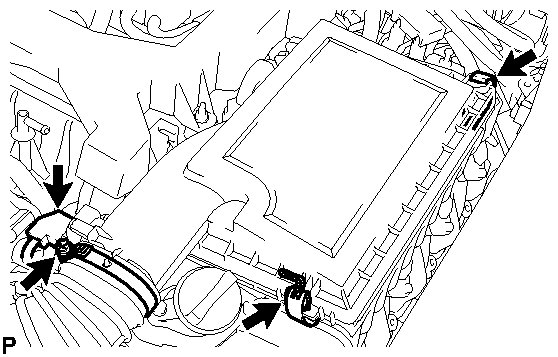

  Fig 1: Locating MAF Meter Connector And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 clamps, loosen the hose clamp and remove the air cleaner cap LH.
3. Remove the element from the air cleaner case.
4. Remove the 2 nuts, clip and air cleaner case.

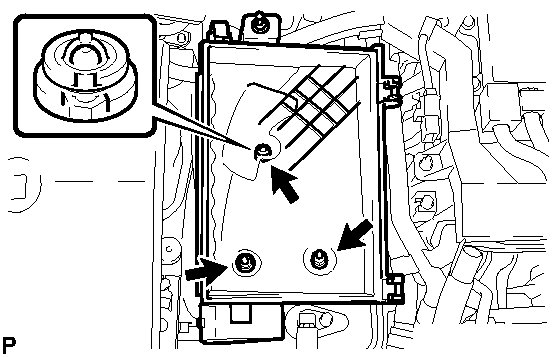

  Fig 2: Locating Air Cleaner Case Nuts And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CLEANER ASSEMBLY RH
1. Disconnect the MAF meter connector.

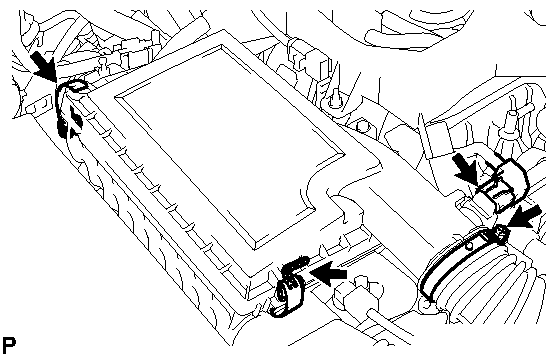

  Fig 3: Locating MAF Meter Connector And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 clamps, loosen the hose clamp and remove the air cleaner cap RH.
3. Remove the element from the air cleaner case.
4. Remove the 2 nuts, clip and air cleaner case.

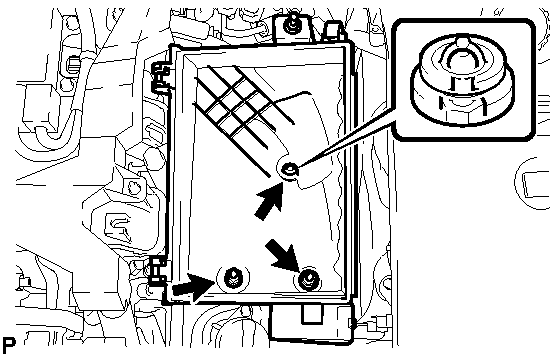

  Fig 4: Locating Air Cleaner Case Nuts And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VVT SENSOR
1. Disconnect the 4 VVT sensor connectors.

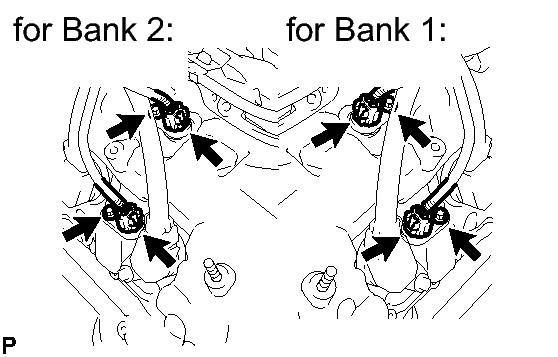

  Fig 5: Locating VVT Sensor Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 bolts and 4 VVT sensors.
