Engine Control: Notes

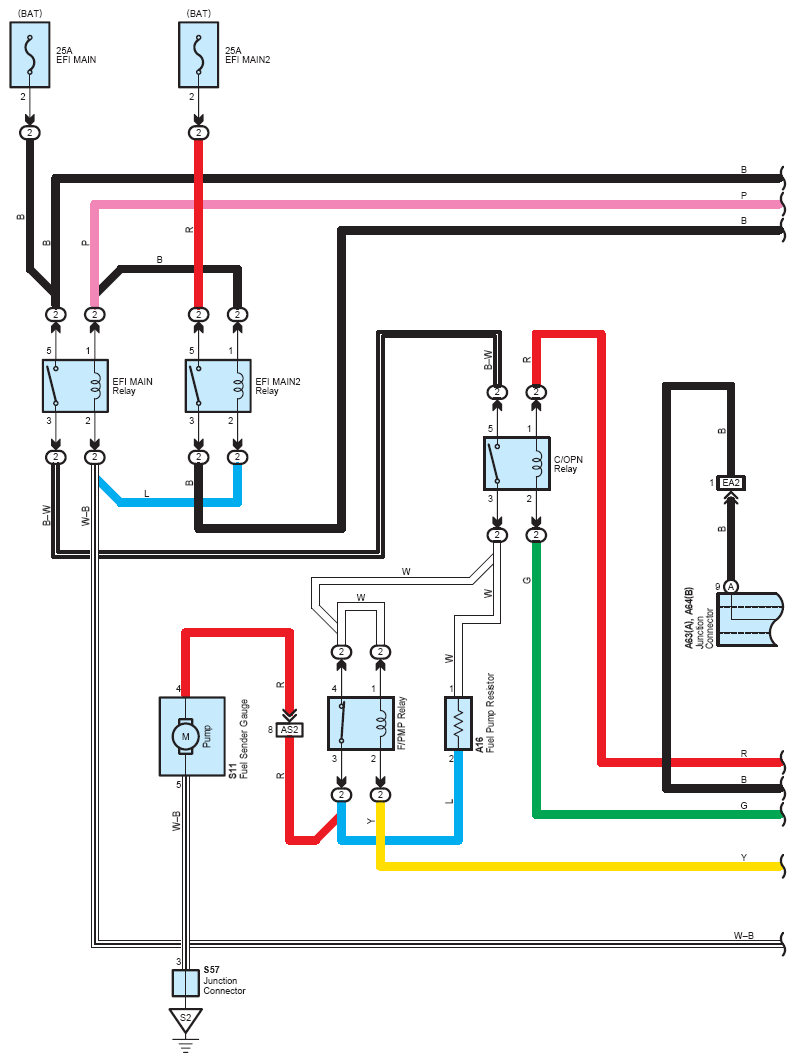

Fig 1: Engine Control - Circuit Diagram (1 Of 25)

G07564794

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

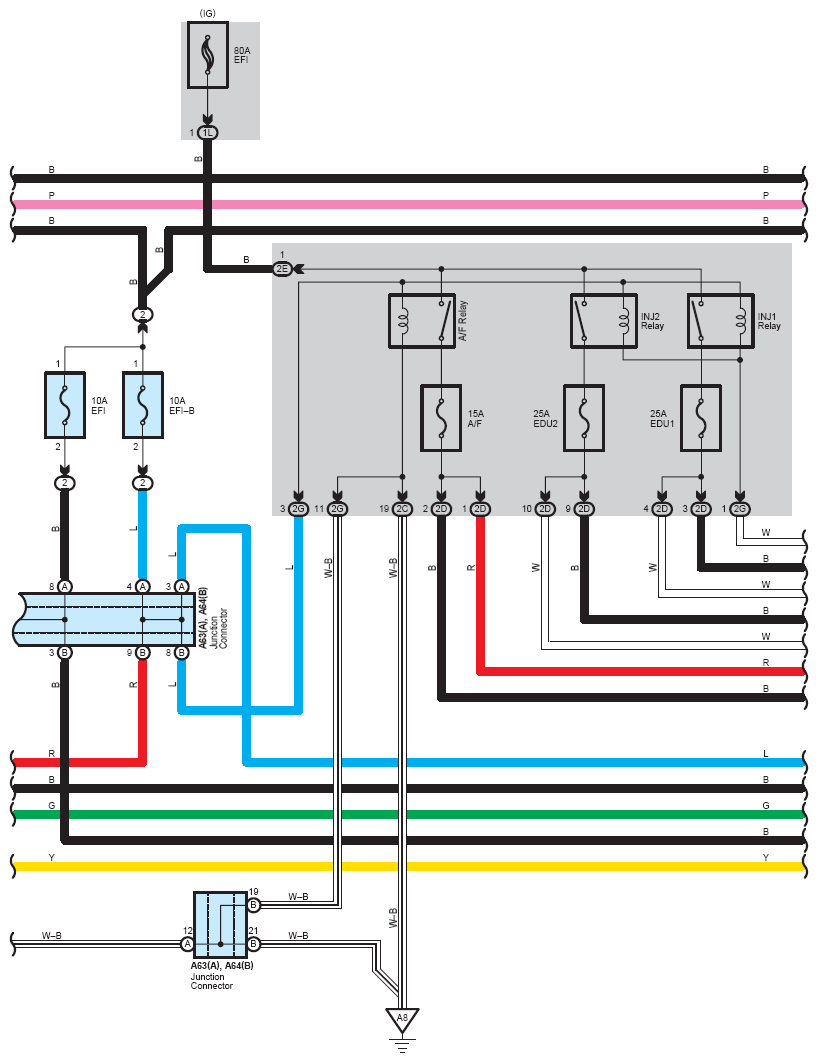

Fig 2: Engine Control - Circuit Diagram (2 Of 25)

G07564795

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

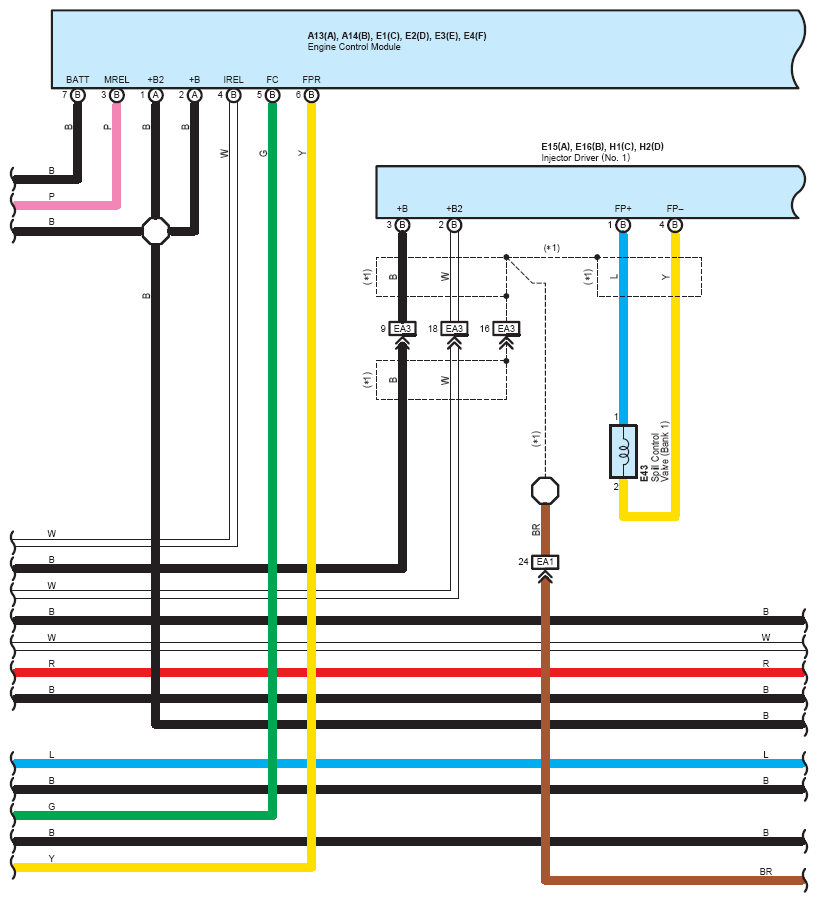

Fig 3: Engine Control - Circuit Diagram (3 Of 25)

G07564796

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

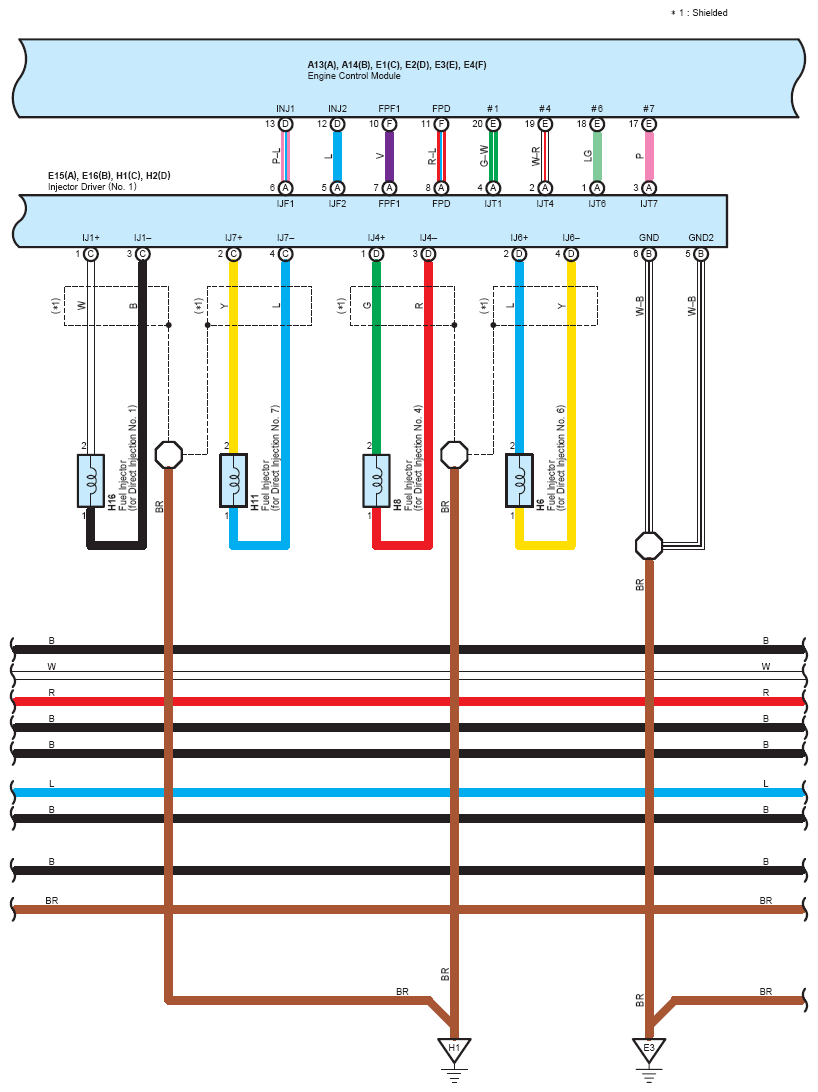

Fig 4: Engine Control - Circuit Diagram (4 Of 25)

G07564797

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

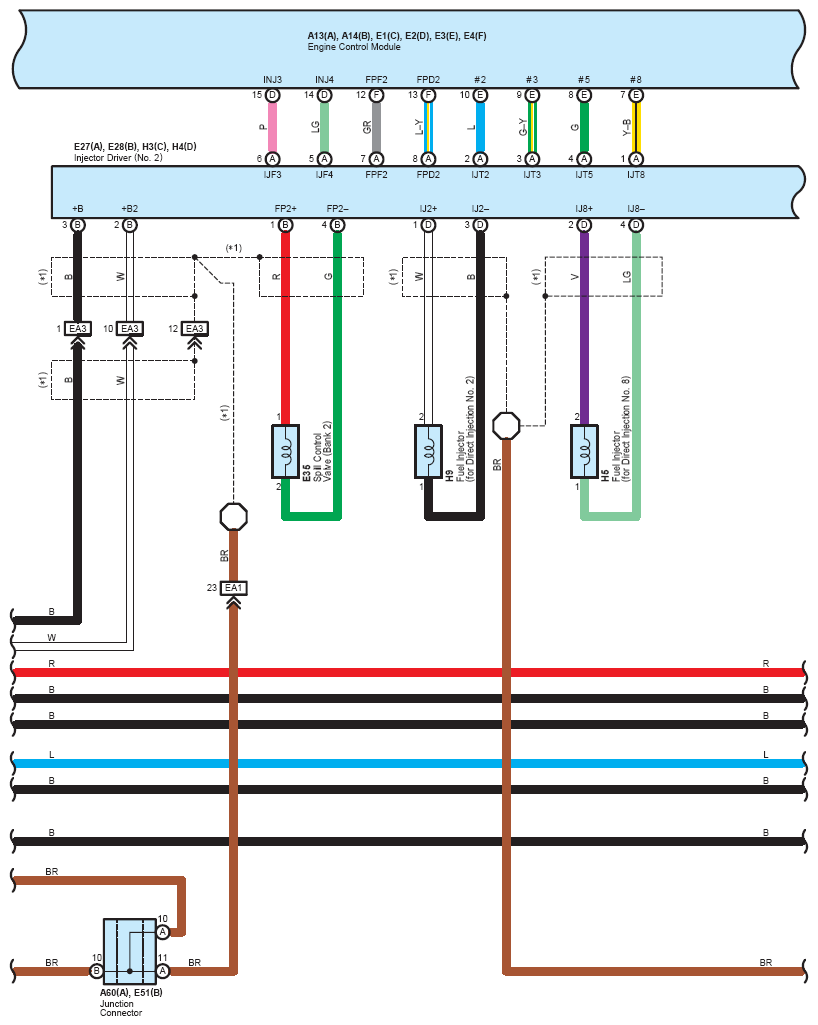

Fig 5: Engine Control - Circuit Diagram (5 Of 25)

G07564798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

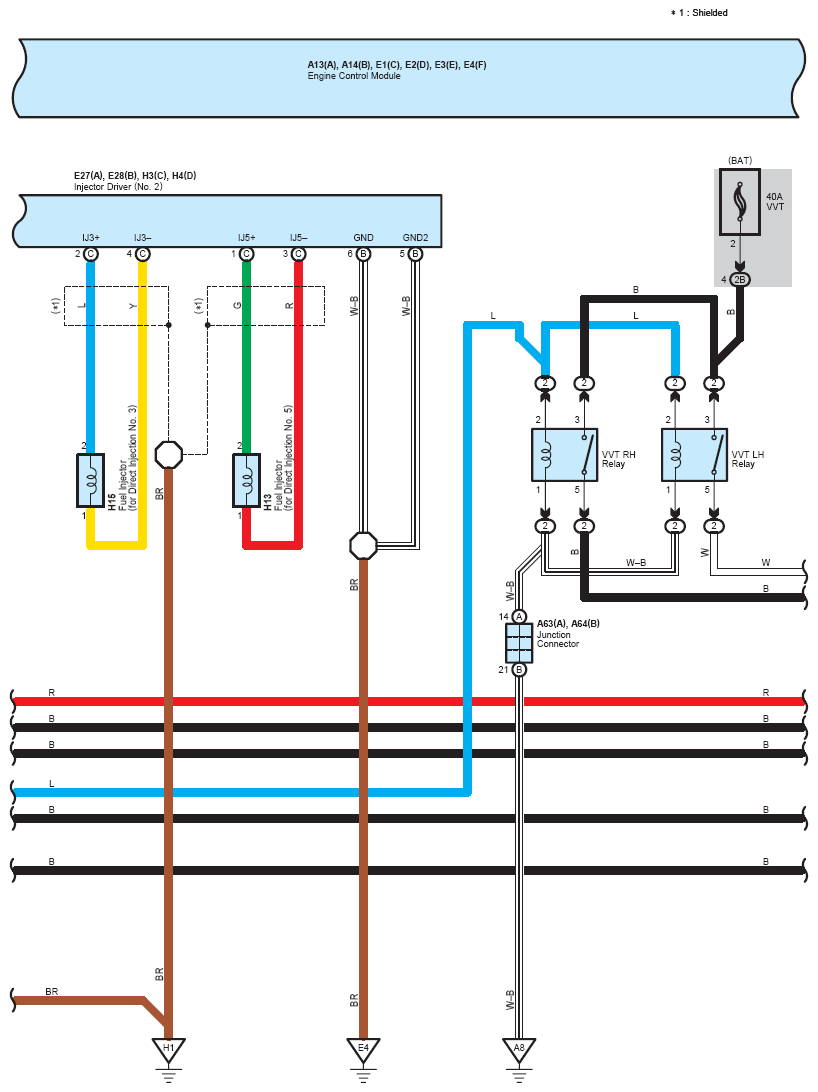

Fig 6: Engine Control - Circuit Diagram (6 Of 25)

G07564799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

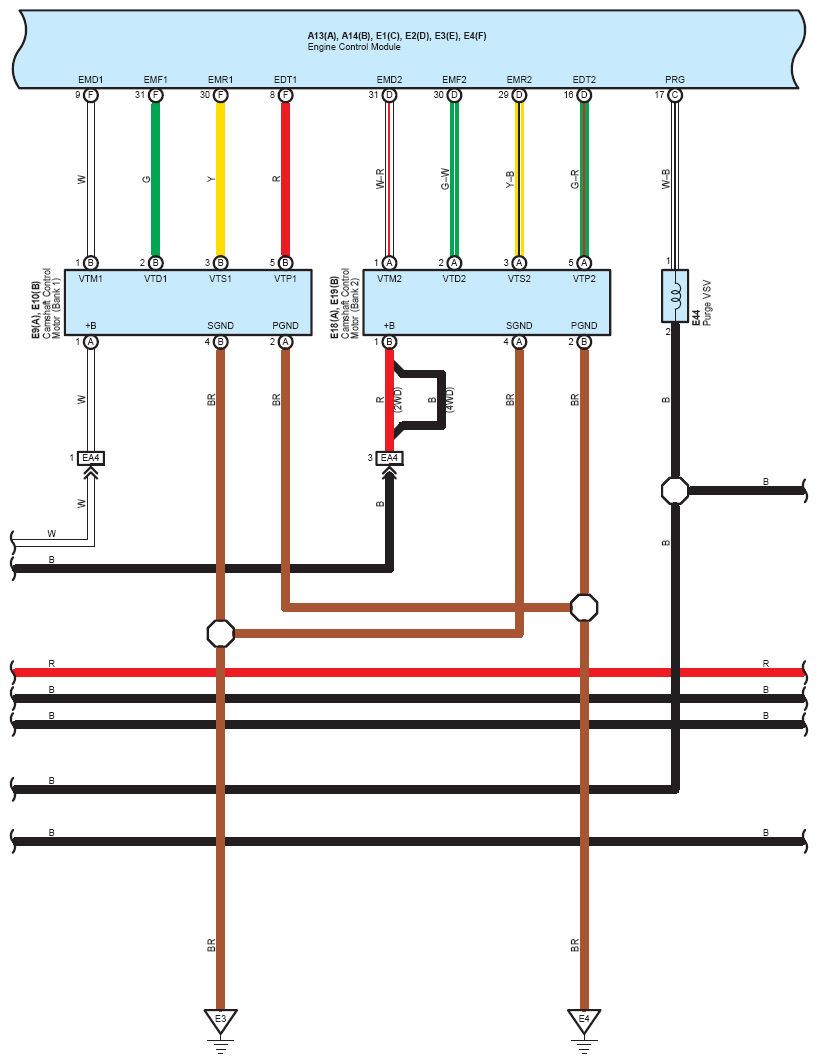

Fig 7: Engine Control - Circuit Diagram (7 Of 25)

G07564800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

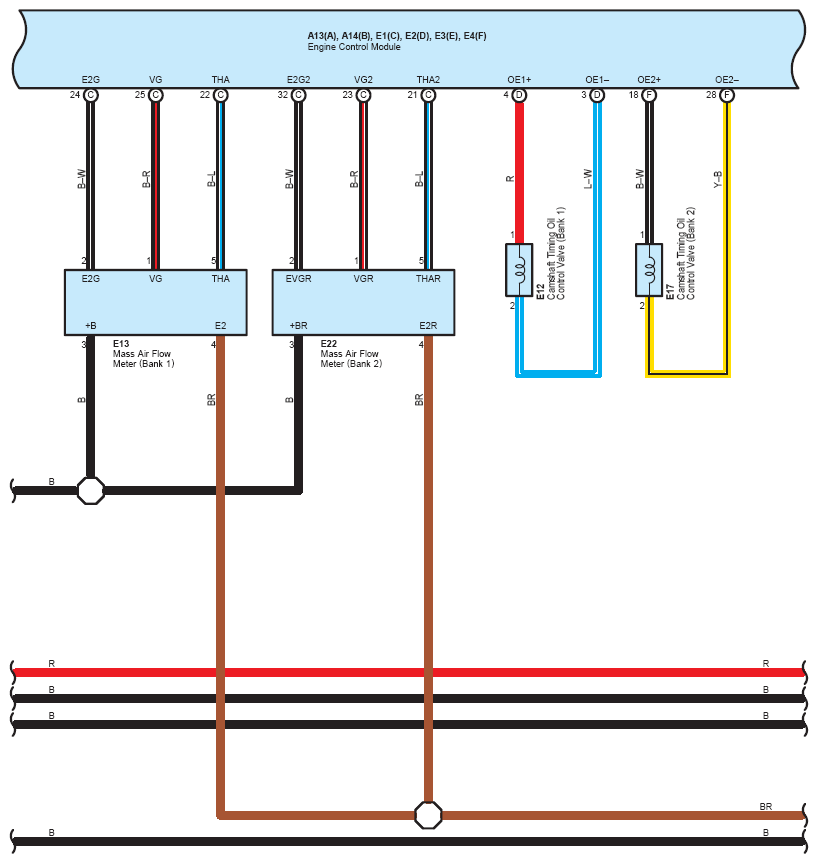

Fig 8: Engine Control - Circuit Diagram (8 Of 25)

G07564801

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

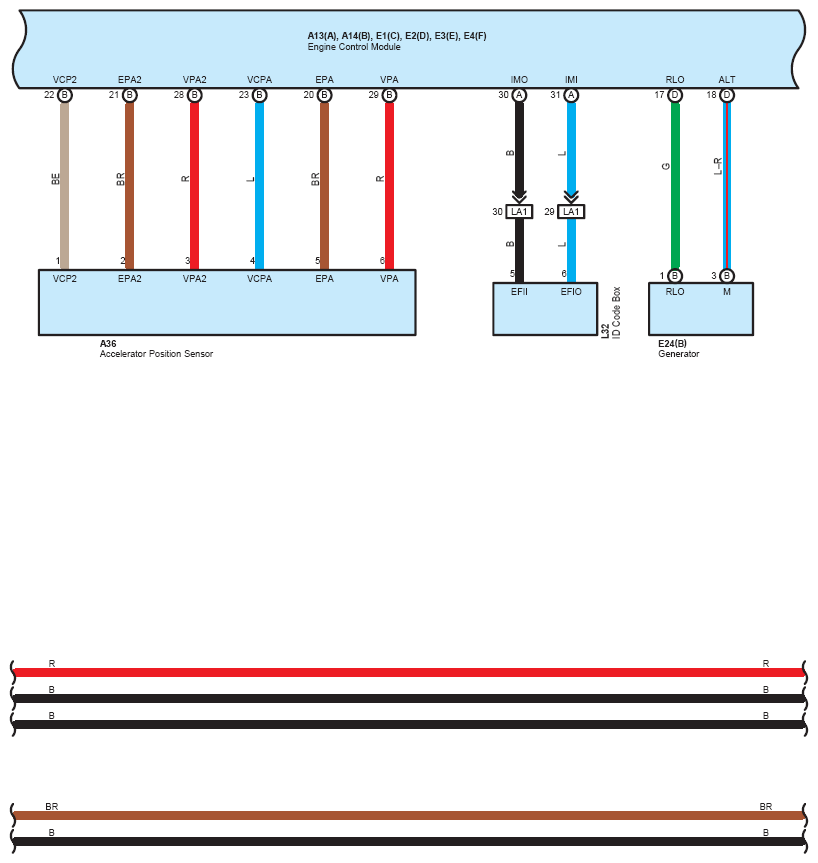

Fig 9: Engine Control - Circuit Diagram (9 Of 25)

G07564802

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

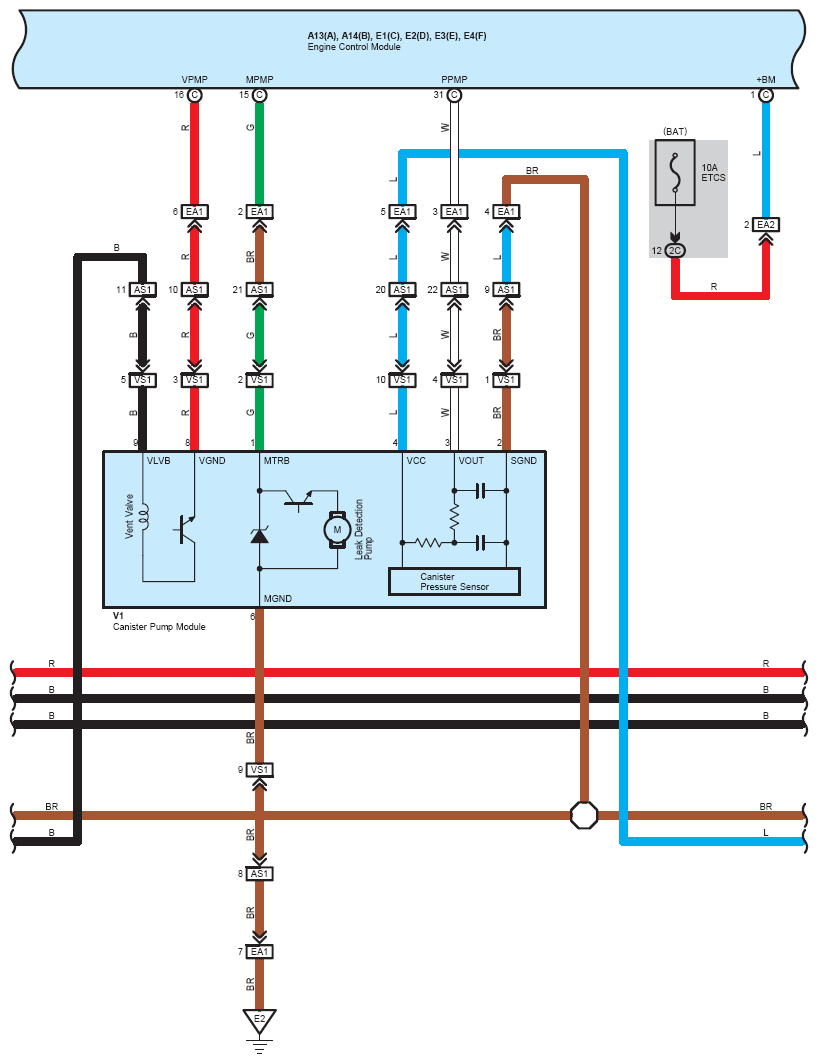

Fig 10: Engine Control - Circuit Diagram (10 Of 25)

G07564803

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

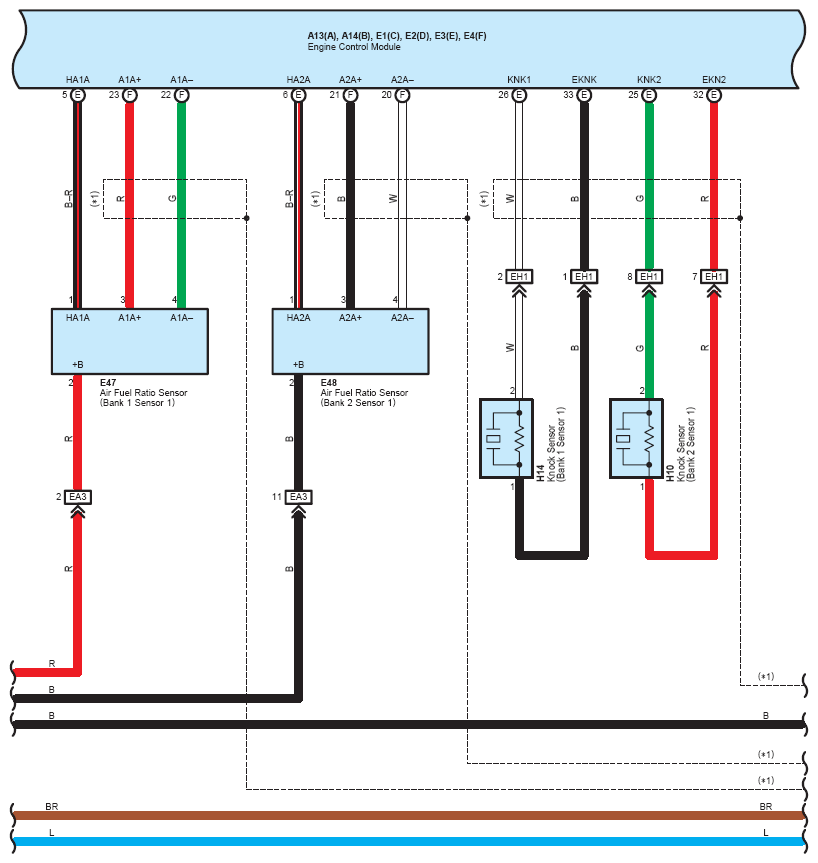

Fig 11: Engine Control - Circuit Diagram (11 Of 25)

G07564804

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

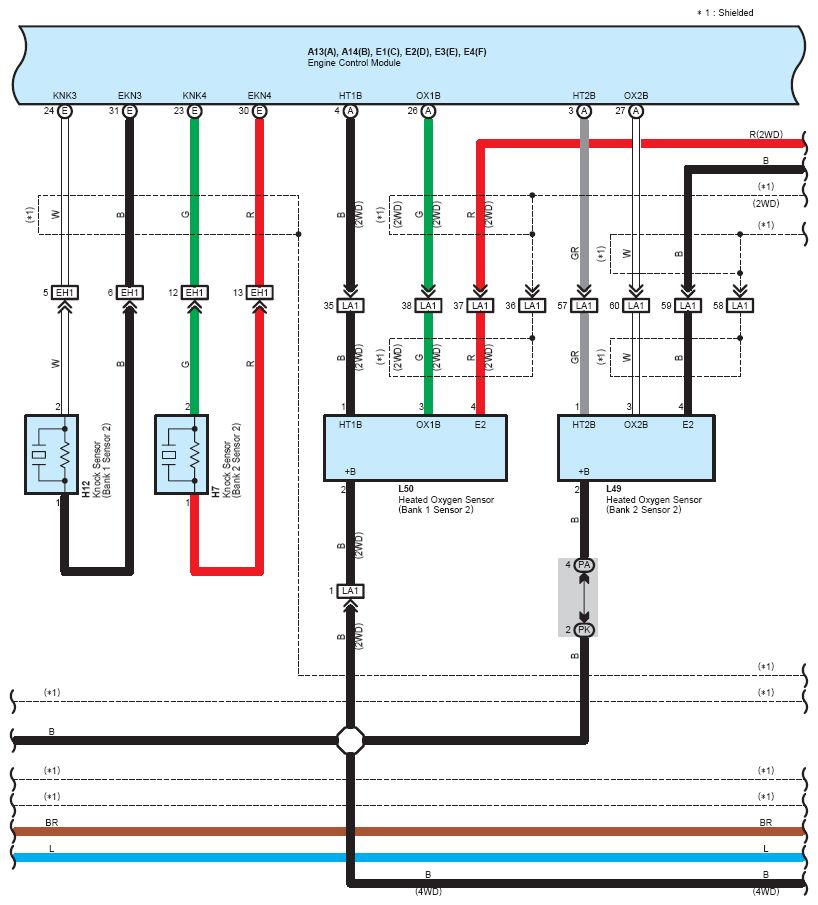

Fig 12: Engine Control - Circuit Diagram (12 Of 25)

G07564805

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

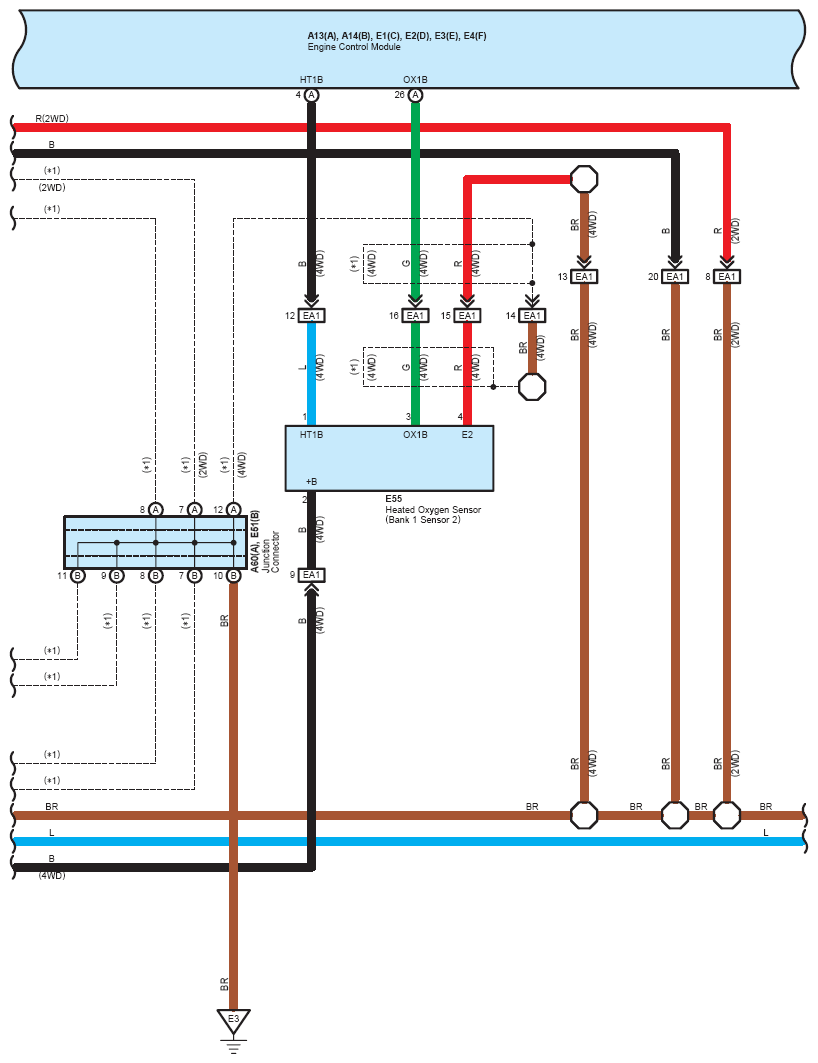

Fig 13: Engine Control - Circuit Diagram (13 Of 25)

G07564806

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

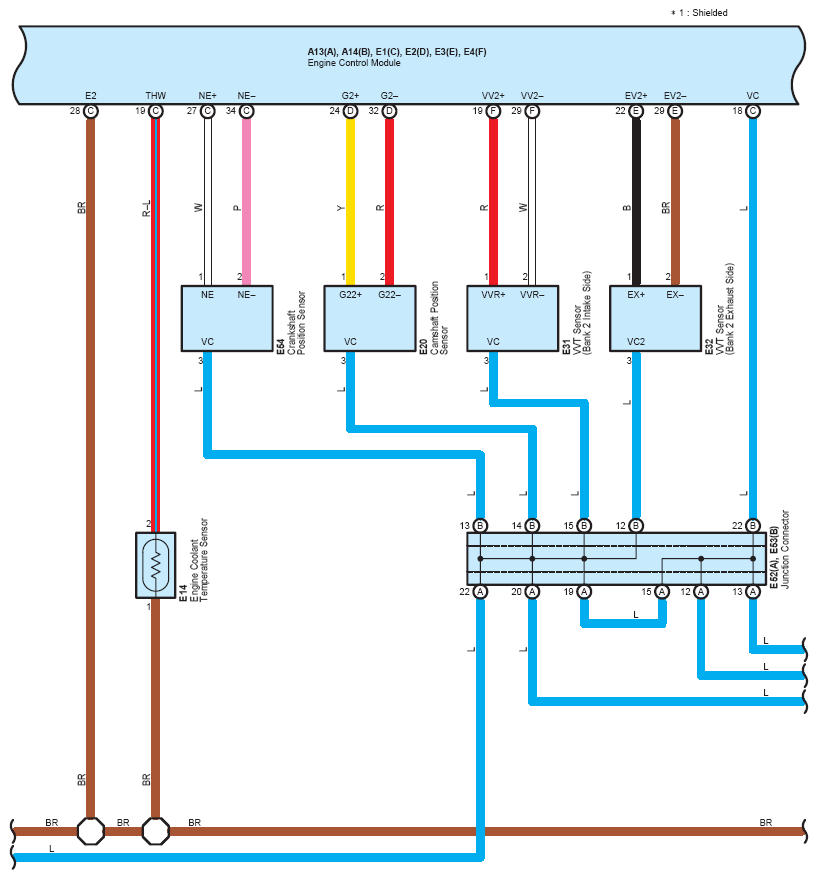

Fig 14: Engine Control - Circuit Diagram (14 Of 25)

G07564807

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

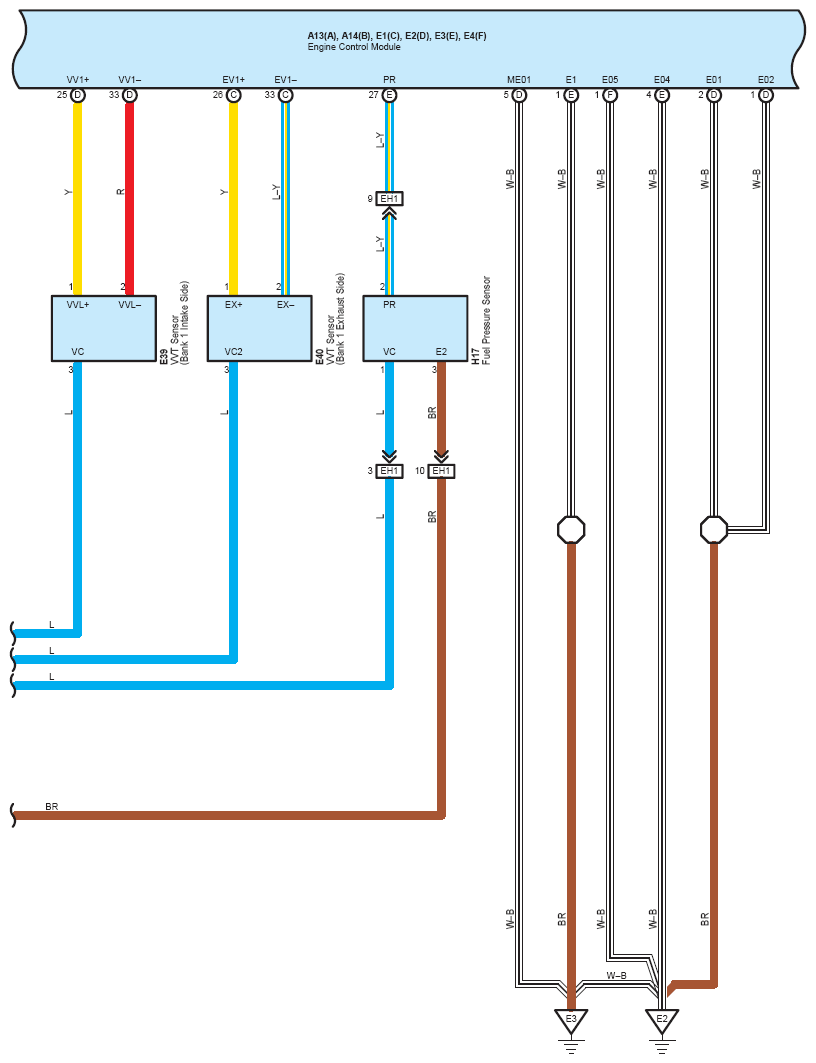

Fig 15: Engine Control - Circuit Diagram (15 Of 25)

G07564808

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

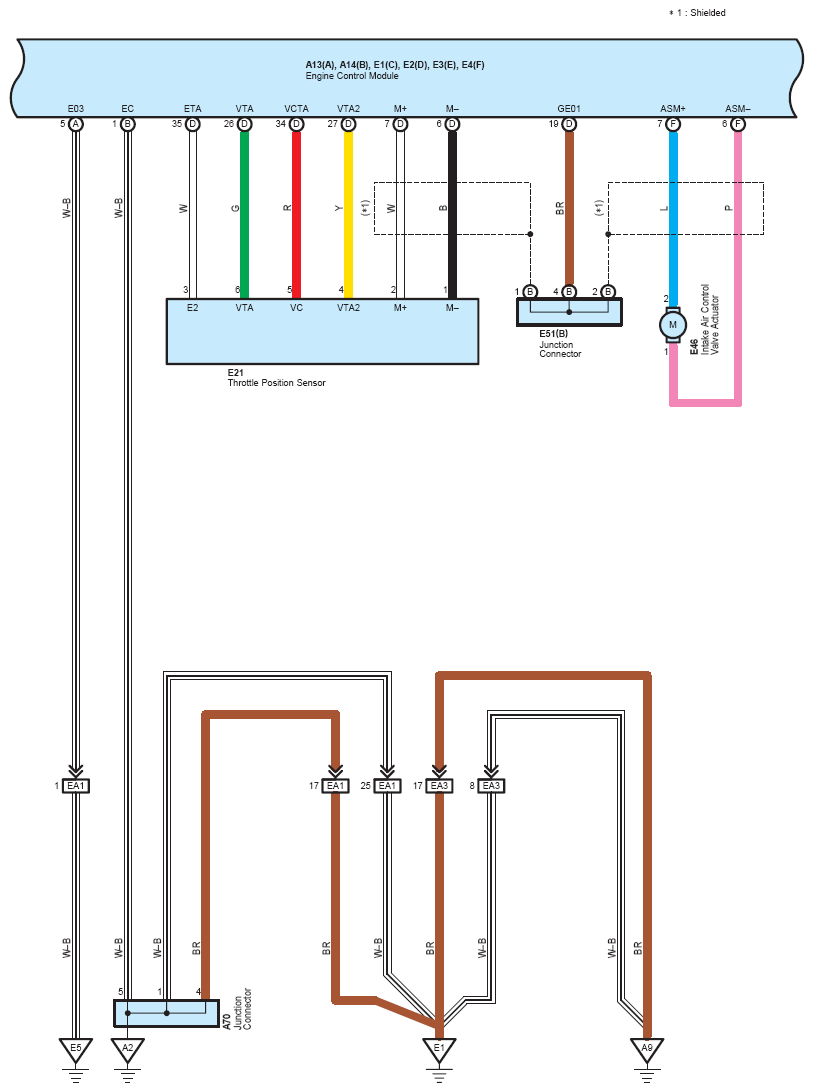

Fig 16: Engine Control - Circuit Diagram (16 Of 25)

G07564809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

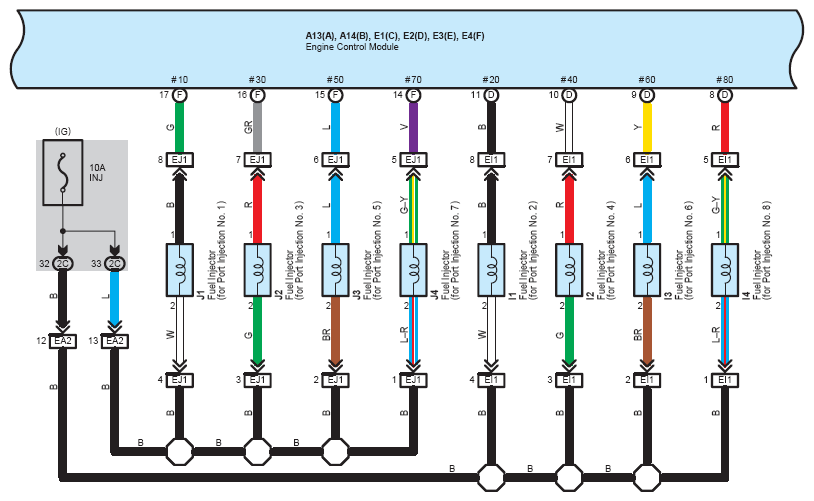

Fig 17: Engine Control - Circuit Diagram (17 Of 25)

G07564810

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

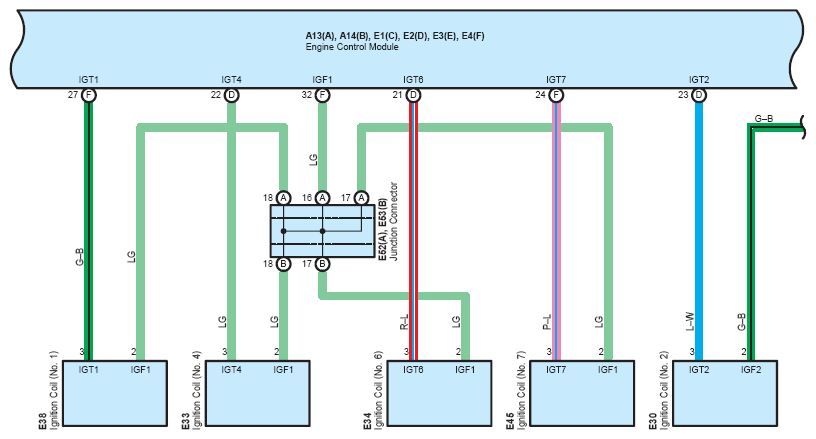

Fig 18: Engine Control - Circuit Diagram (18 Of 25)

G07564811

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

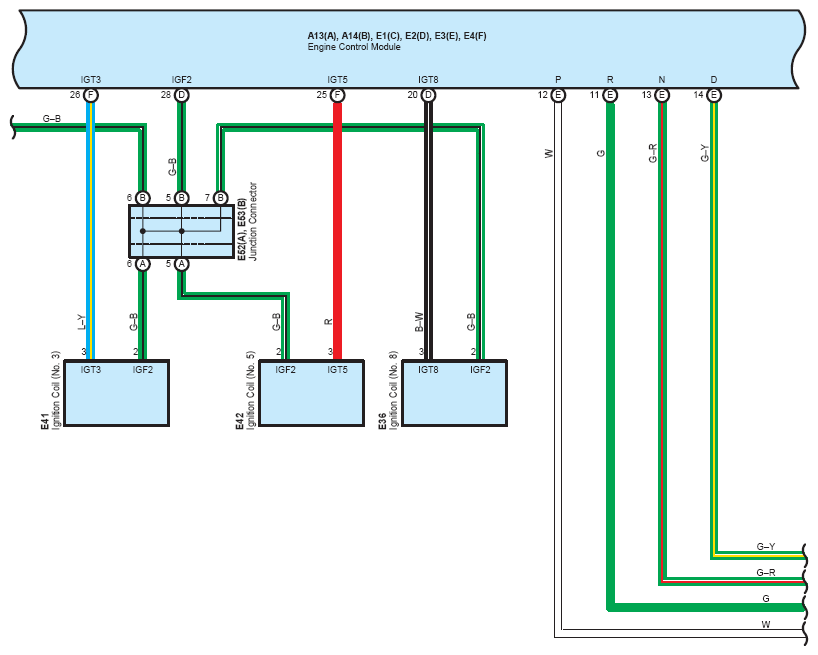

Fig 19: Engine Control - Circuit Diagram (19 Of 25)

G07564812

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

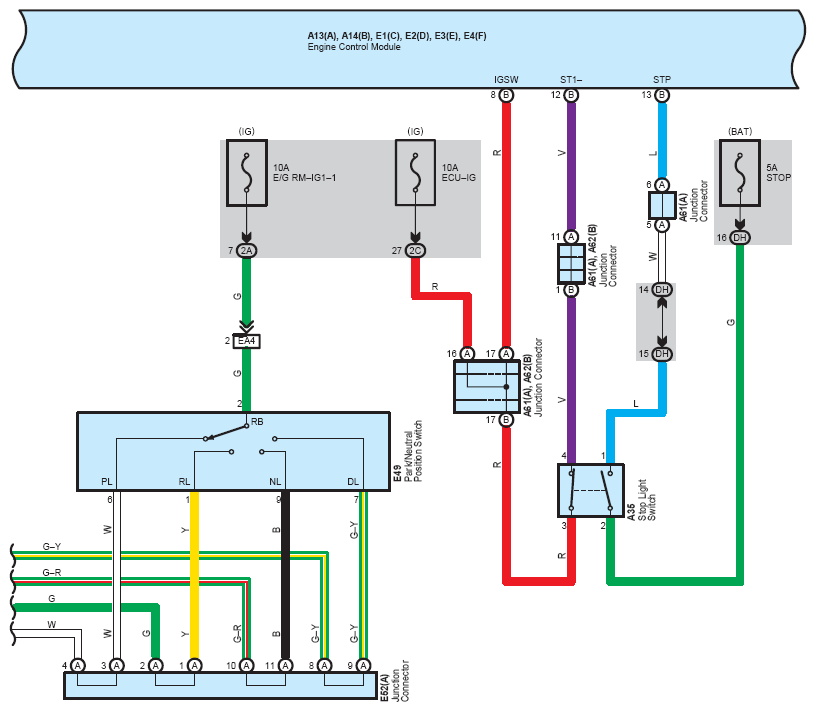

Fig 20: Engine Control - Circuit Diagram (20 Of 25)

G07564813

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

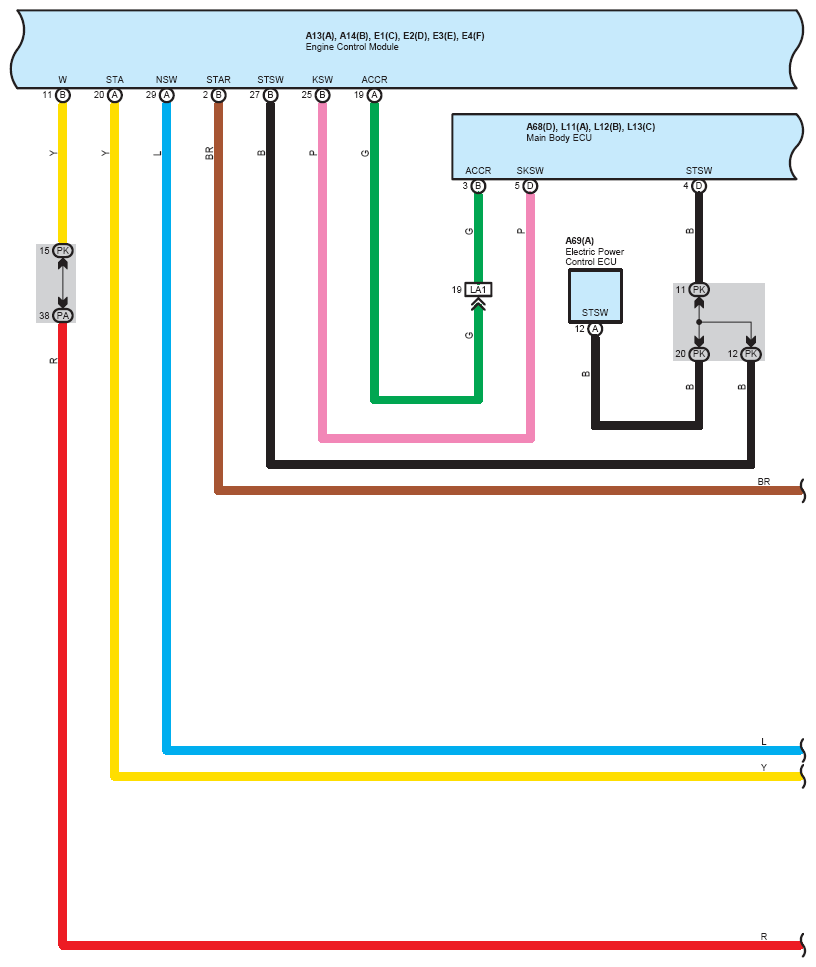

Fig 21: Engine Control - Circuit Diagram (21 Of 25)

G07564814

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

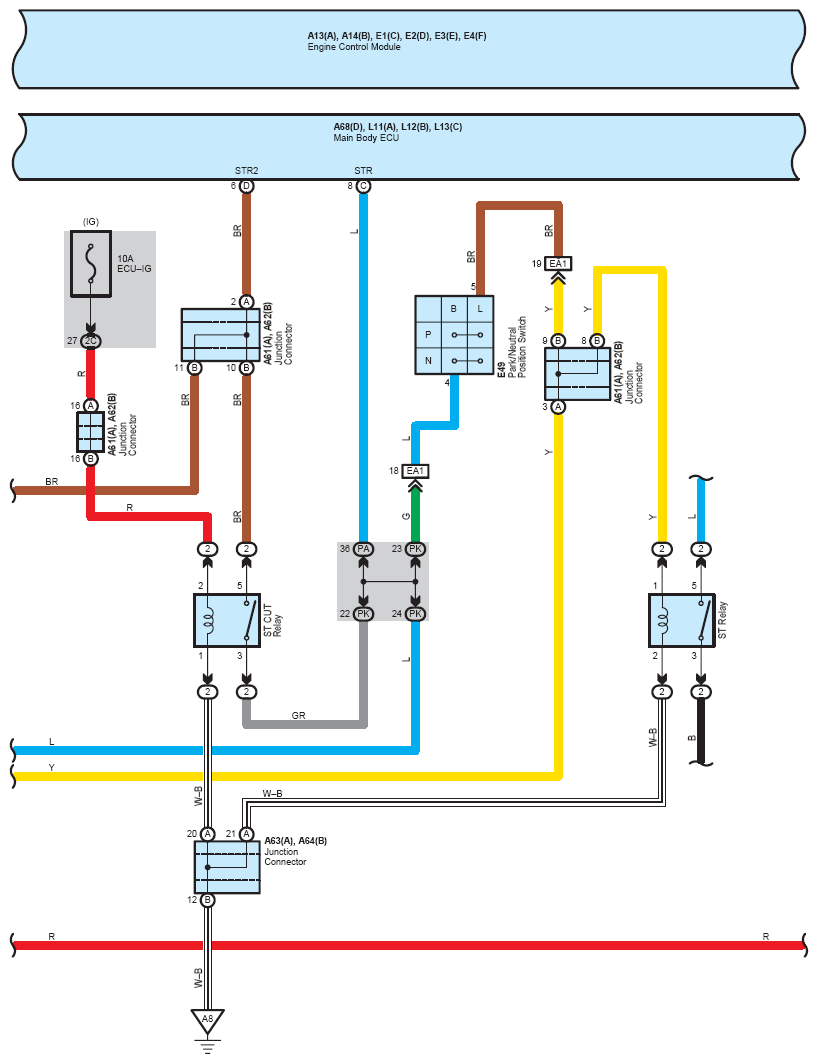

Fig 22: Engine Control - Circuit Diagram (22 Of 25)

G07564815

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

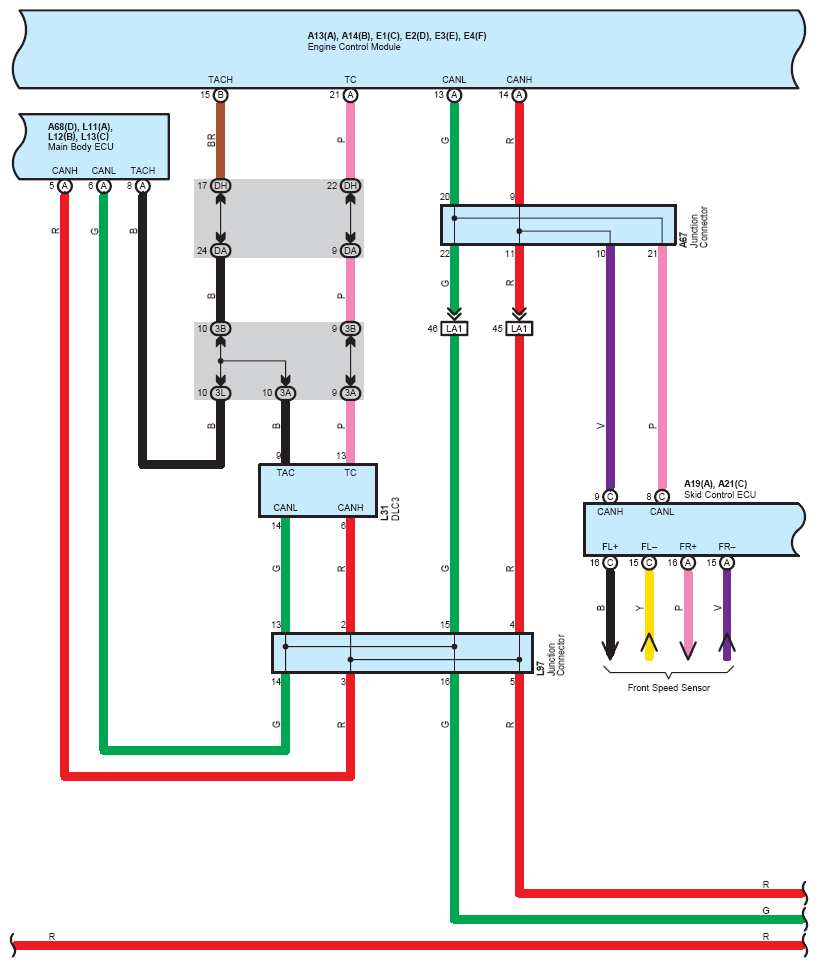

Fig 23: Engine Control - Circuit Diagram (23 Of 25)

G07564816

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

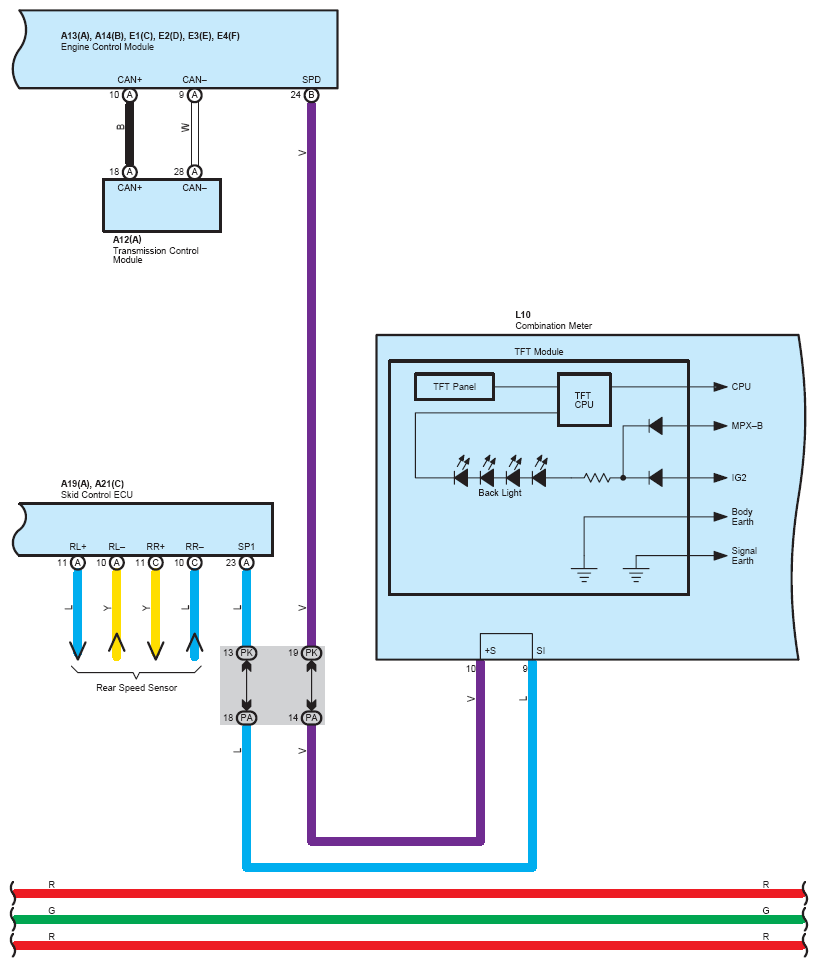

Fig 24: Engine Control - Circuit Diagram (24 Of 25)

G07564817

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

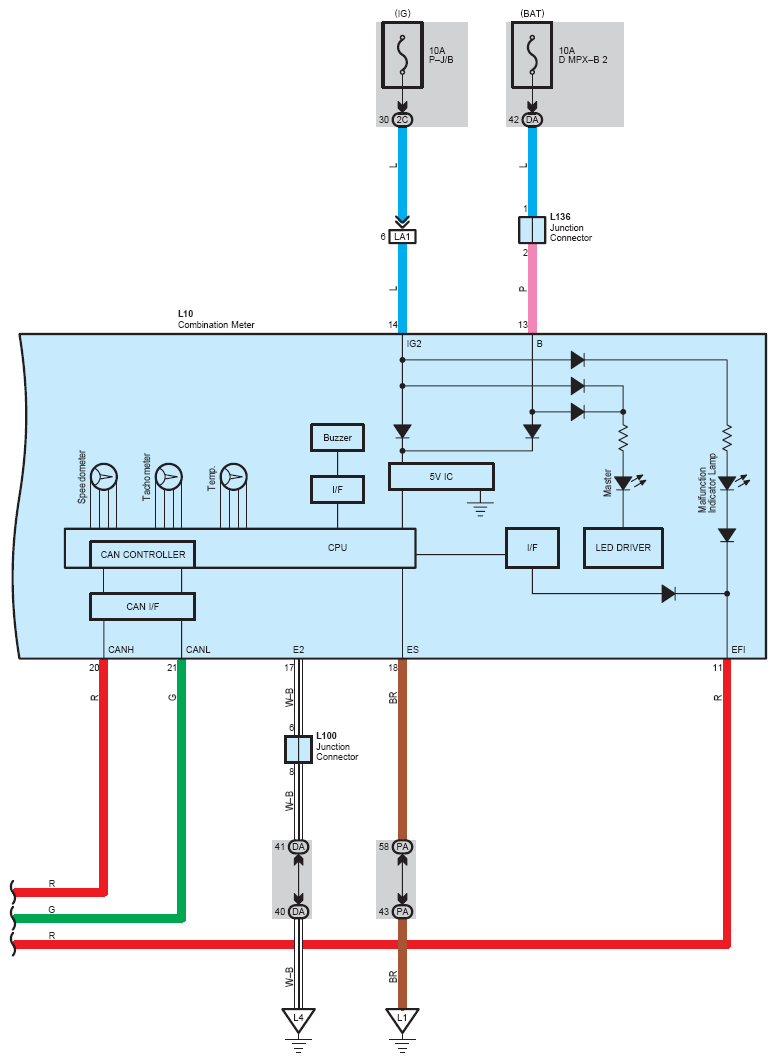

Fig 25: Engine Control - Circuit Diagram (25 Of 25)

G07564818

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
