Parts Location: Illustration

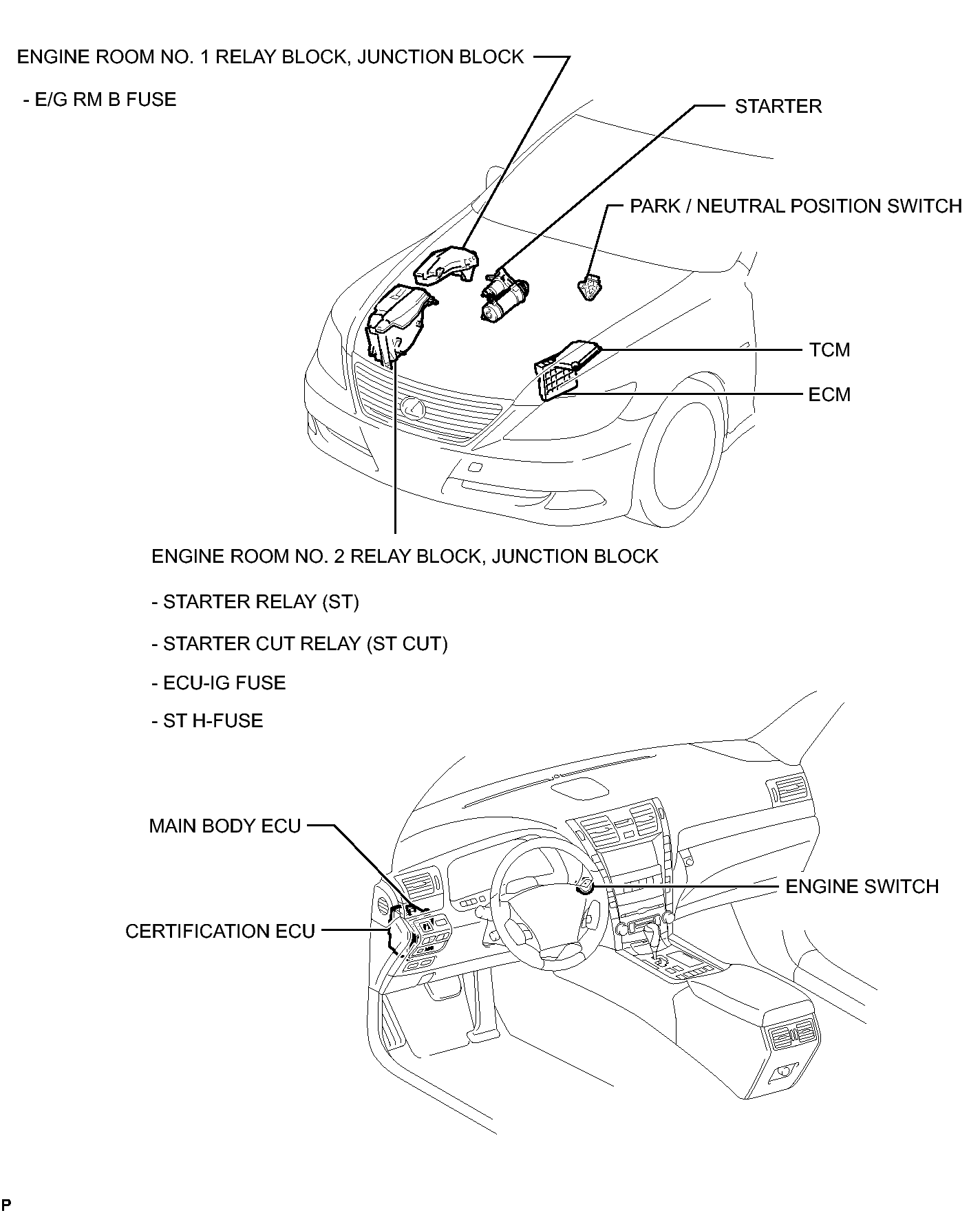

Fig 1: Identifying Starting System Components Location

GTY278734

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
