Audio System and LEXUS Navigation System: Notes

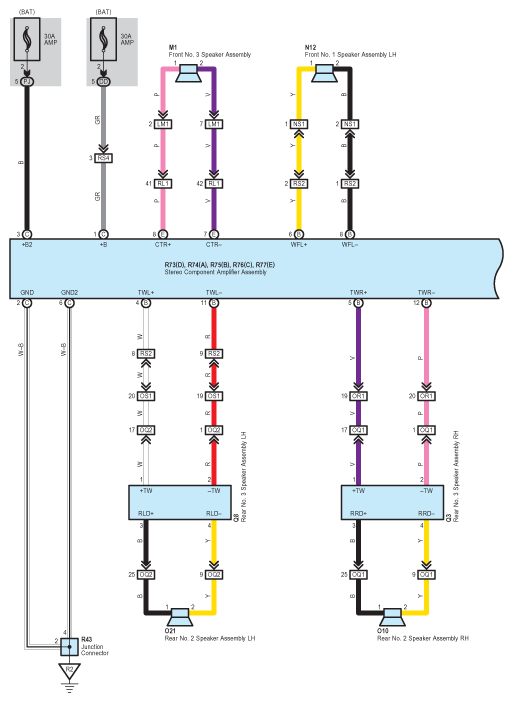

Fig 1: Audio System And Lexus Navigation System - Circuit Diagram (1 Of 24)

G07566283

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

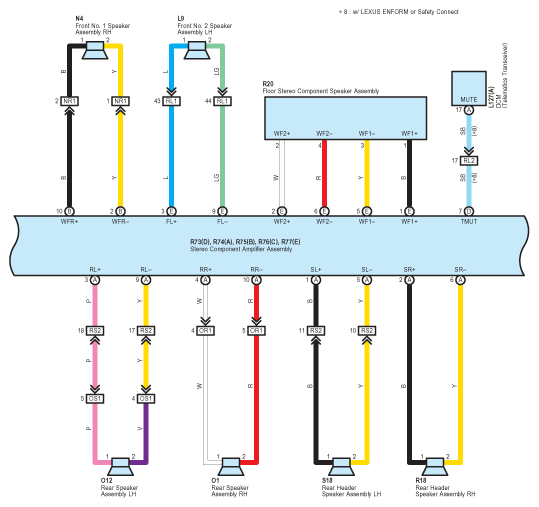

Fig 2: Audio System And Lexus Navigation System - Circuit Diagram (2 Of 24)

G07566284

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

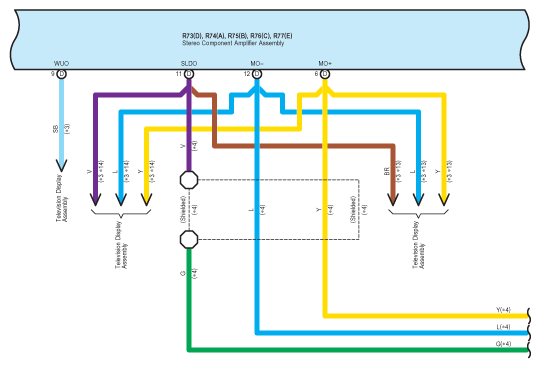

Fig 3: Audio System And Lexus Navigation System - Circuit Diagram (3 Of 24)

G07566285

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

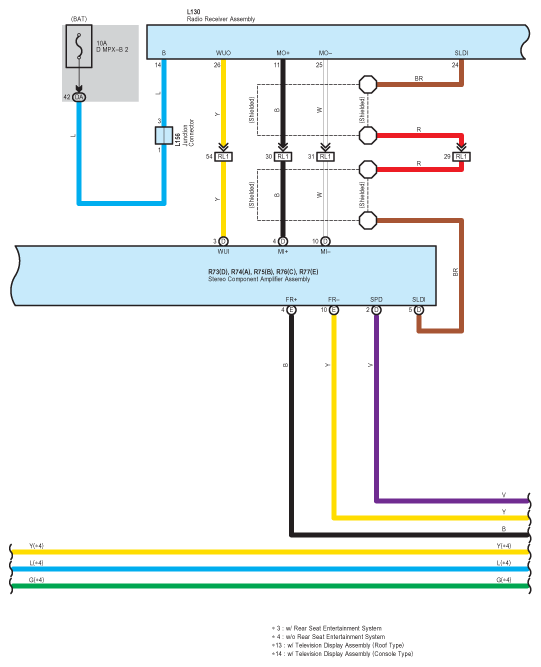

Fig 4: Audio System And Lexus Navigation System - Circuit Diagram (4 Of 24)

G07566286

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

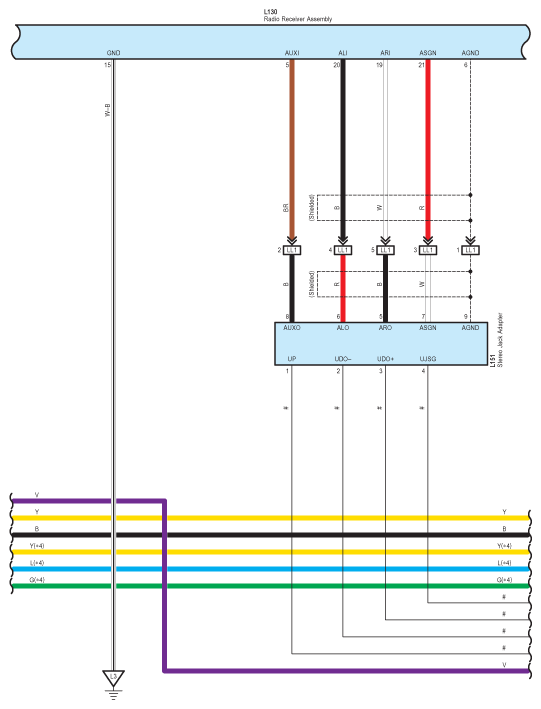

Fig 5: Audio System And Lexus Navigation System - Circuit Diagram (5 Of 24)

G07566287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

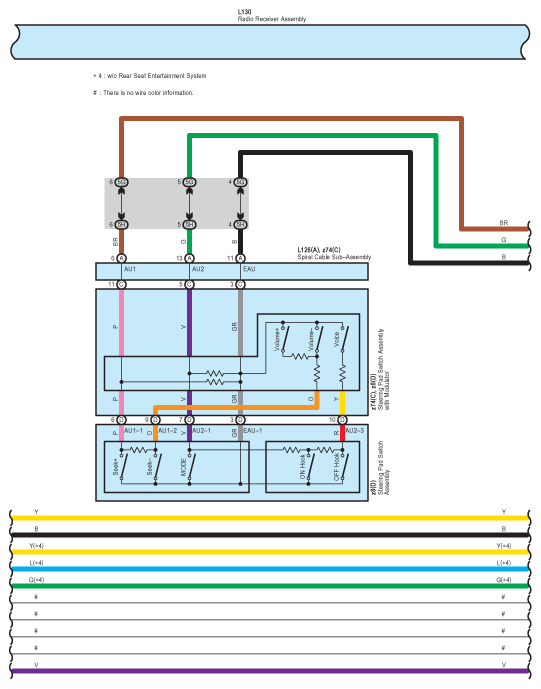

Fig 6: Audio System And Lexus Navigation System - Circuit Diagram (6 Of 24)

G07566288

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

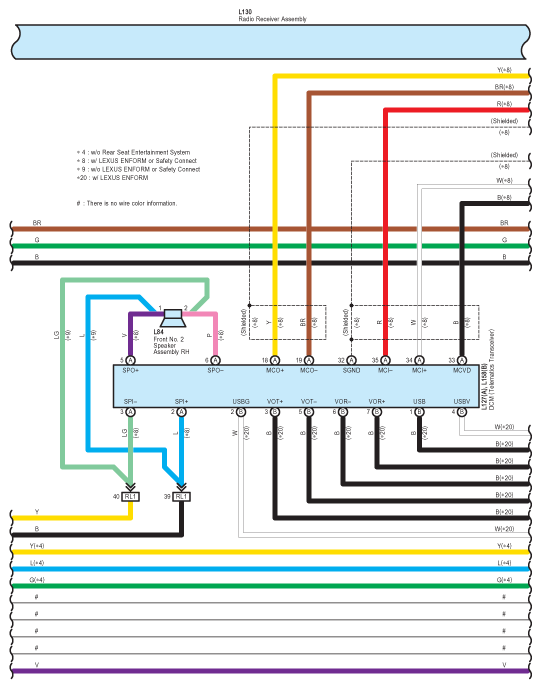

Fig 7: Audio System And Lexus Navigation System - Circuit Diagram (7 Of 24)

G07566289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

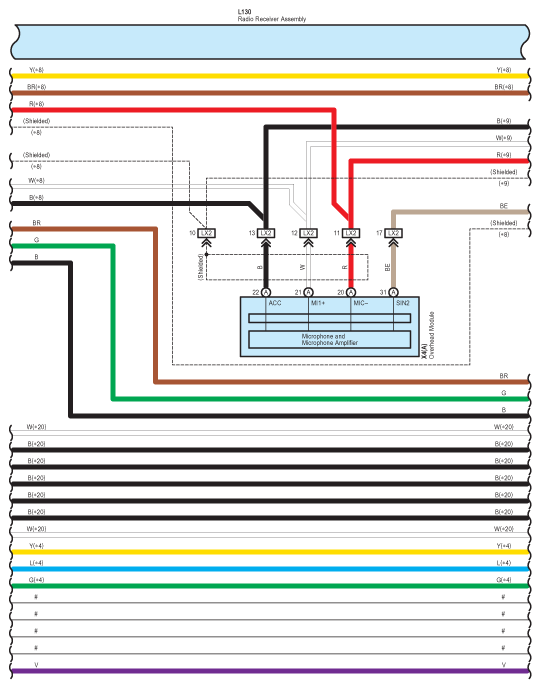

Fig 8: Audio System And Lexus Navigation System - Circuit Diagram (8 Of 24)

G07566290

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

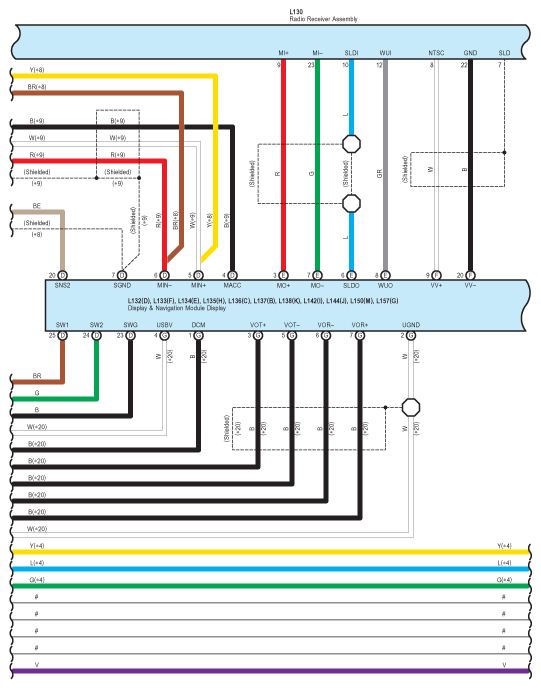

Fig 9: Audio System And Lexus Navigation System - Circuit Diagram (9 Of 24)

G07566291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

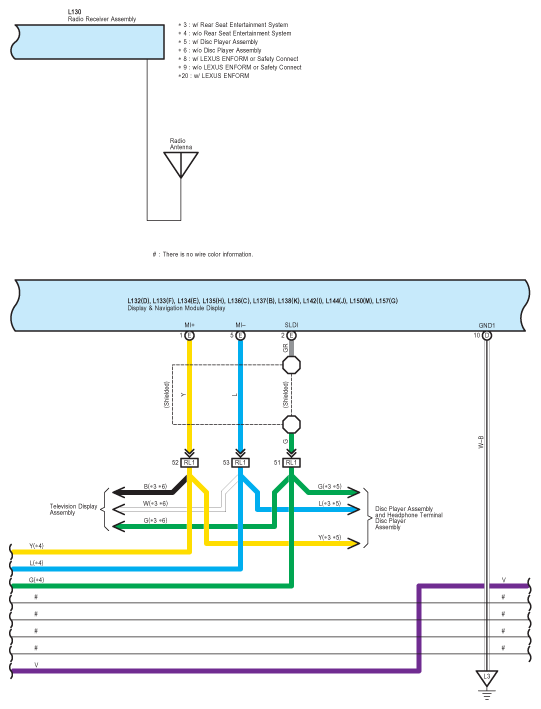

Fig 10: Audio System And Lexus Navigation System - Circuit Diagram (10 Of 24)

G07566292

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

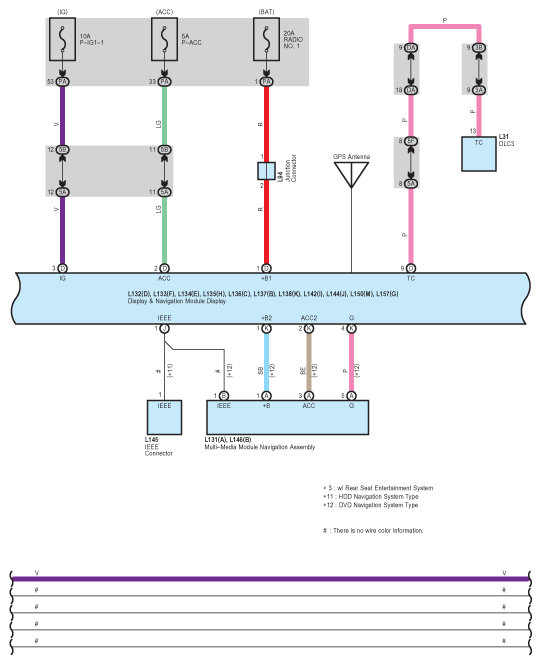

Fig 11: Audio System And Lexus Navigation System - Circuit Diagram (11 Of 24)

G07566293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

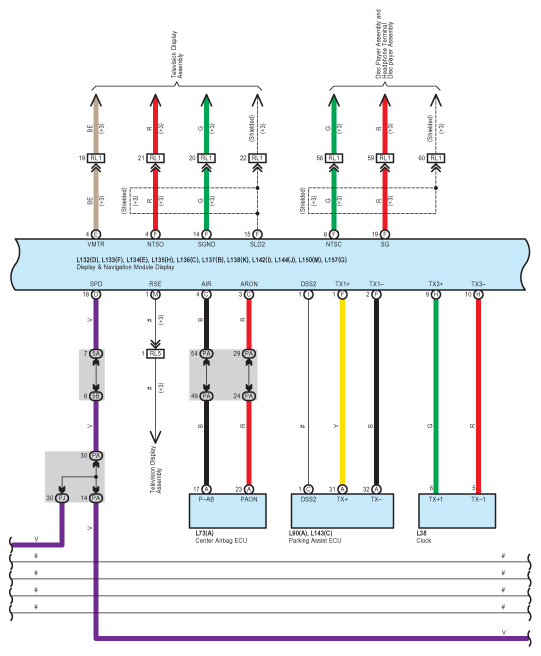

Fig 12: Audio System And Lexus Navigation System - Circuit Diagram (12 Of 24)

G07566294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

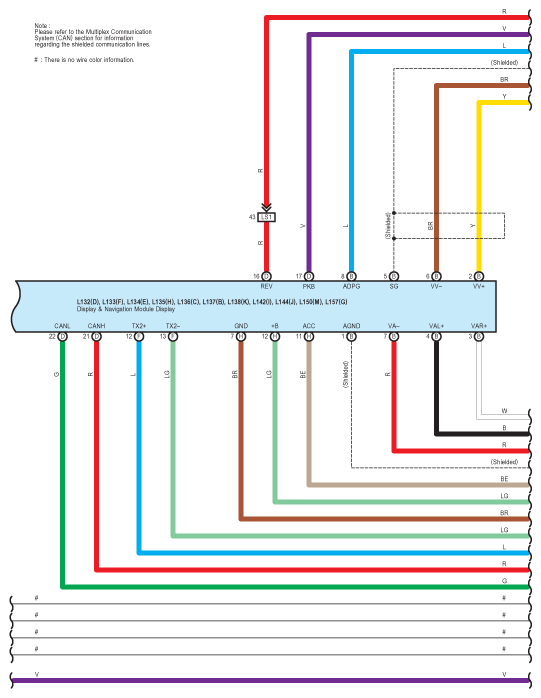

Fig 13: Audio System And Lexus Navigation System - Circuit Diagram (13 Of 24)

G07566295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

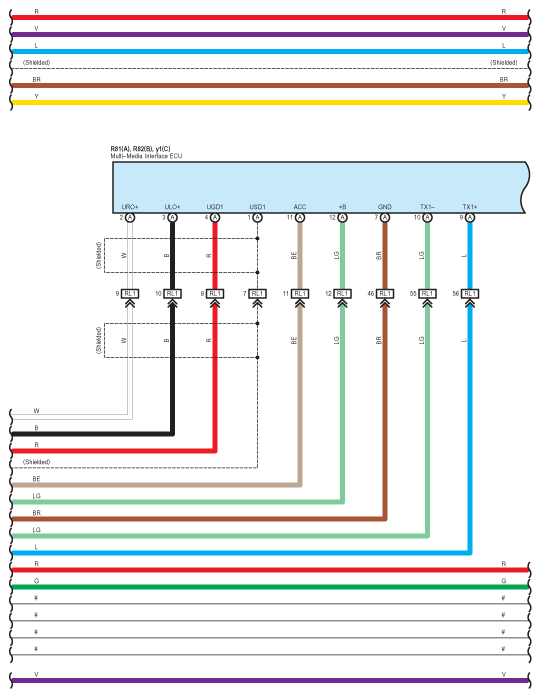

Fig 14: Audio System And Lexus Navigation System - Circuit Diagram (14 Of 24)

G07566296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

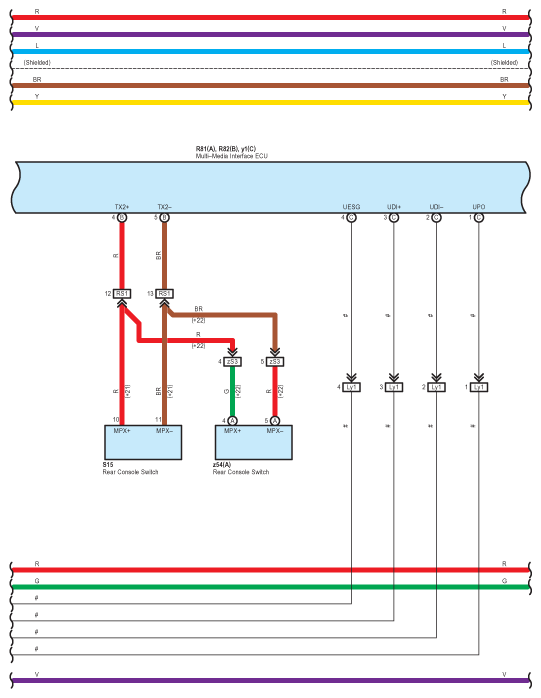

Fig 15: Audio System And Lexus Navigation System - Circuit Diagram (15 Of 24)

G07566297

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

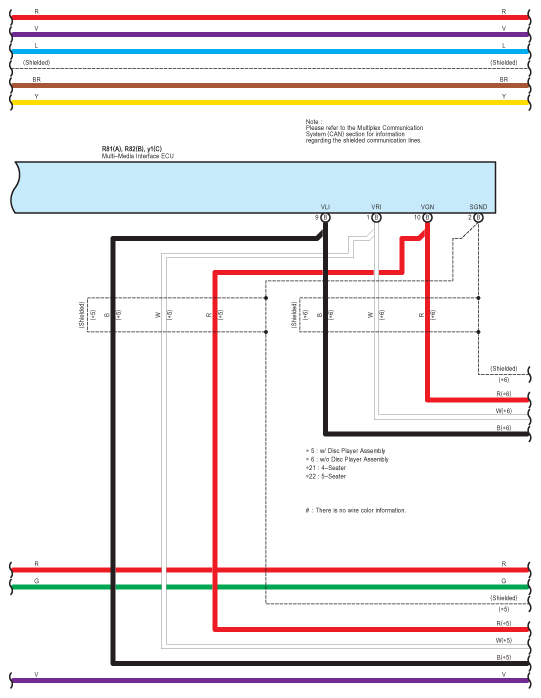

Fig 16: Audio System And Lexus Navigation System - Circuit Diagram (16 Of 24)

G07566298

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

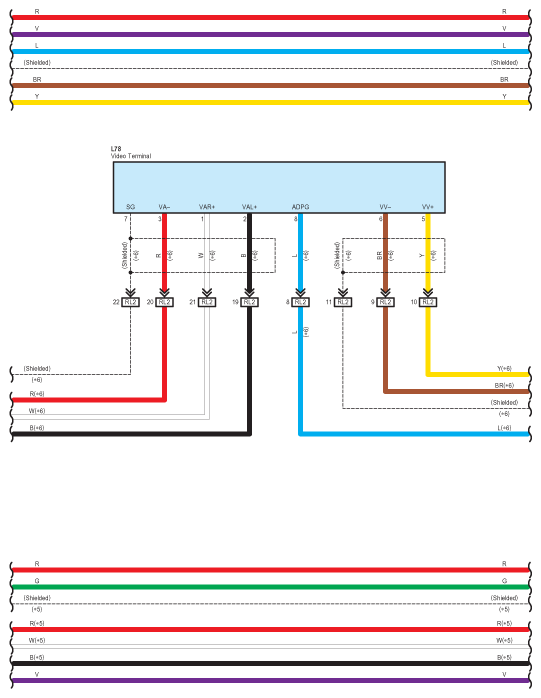

Fig 17: Audio System And Lexus Navigation System - Circuit Diagram (17 Of 24)

G07566299

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

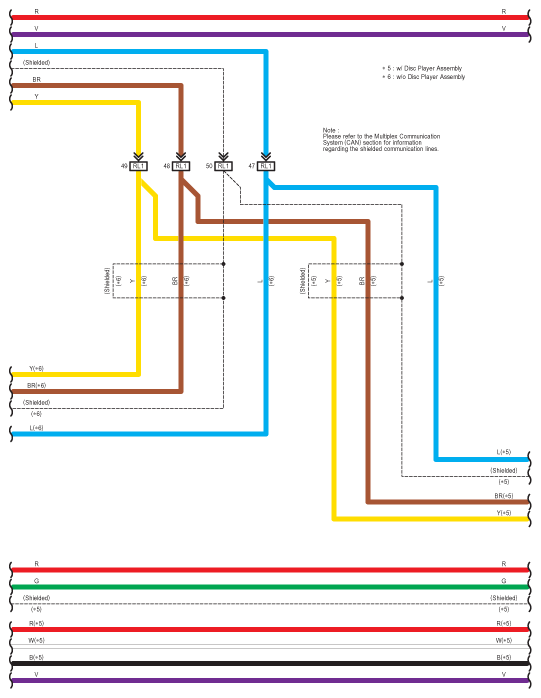

Fig 18: Audio System And Lexus Navigation System - Circuit Diagram (18 Of 24)

G07566300

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

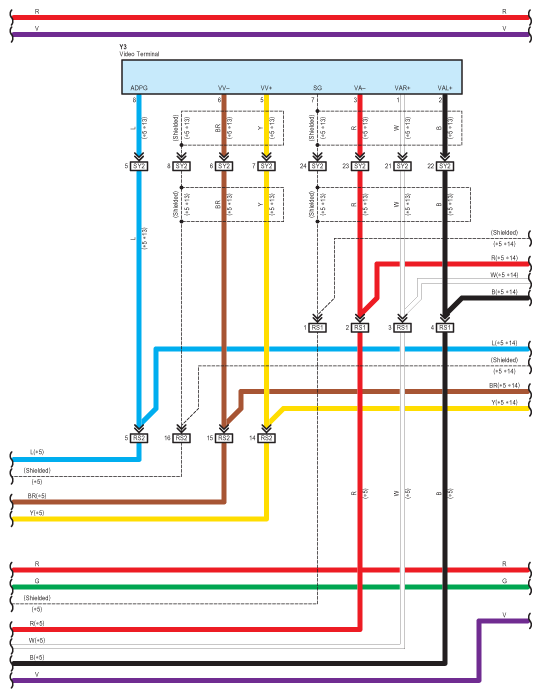

Fig 19: Audio System And Lexus Navigation System - Circuit Diagram (19 Of 24)

G07566301

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Audio System And Lexus Navigation System - Circuit Diagram (20 Of 24)

G07566302

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

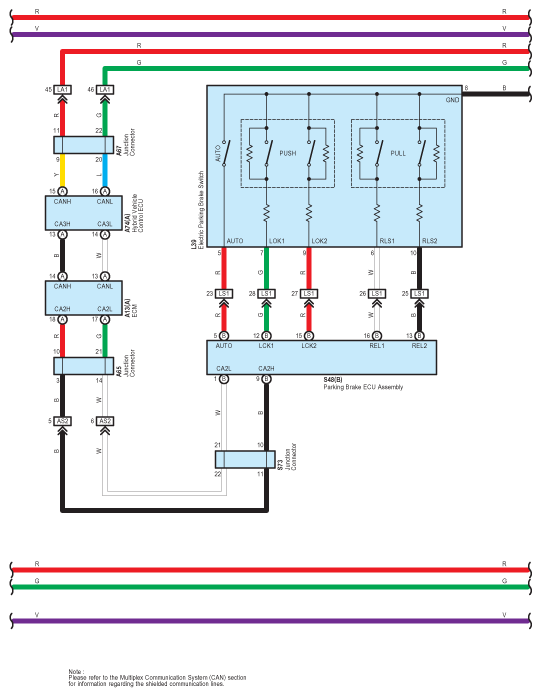

Fig 21: Audio System And Lexus Navigation System - Circuit Diagram (21 Of 24)

G07566303

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

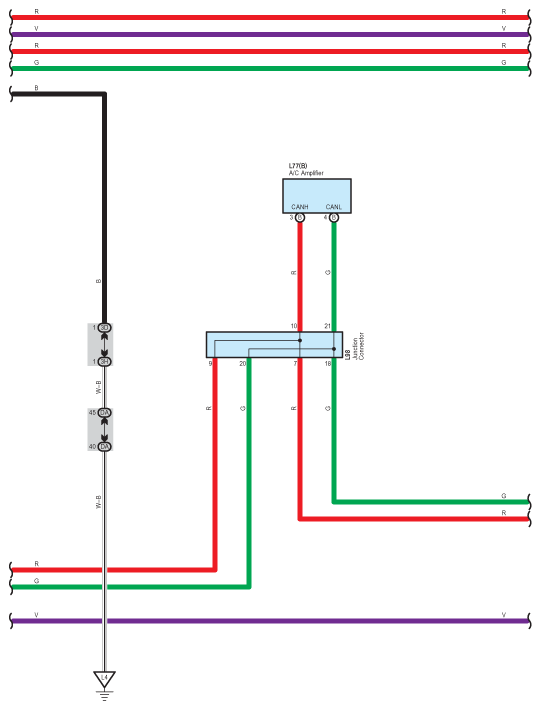

Fig 22: Audio System And Lexus Navigation System - Circuit Diagram (22 Of 24)

G07566304

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

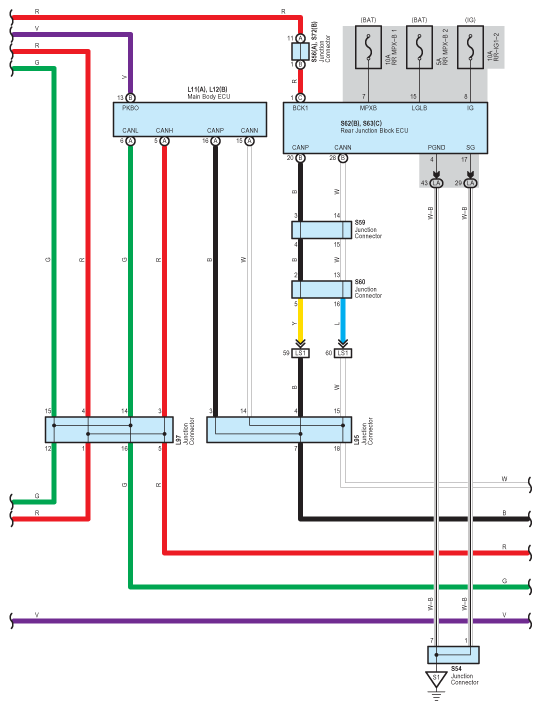

Fig 23: Audio System And Lexus Navigation System - Circuit Diagram (23 Of 24)

G07566305

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Audio System And Lexus Navigation System - Circuit Diagram (24 Of 24)

G07566306

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
