Dynamic Radar Cruise Control: Notes

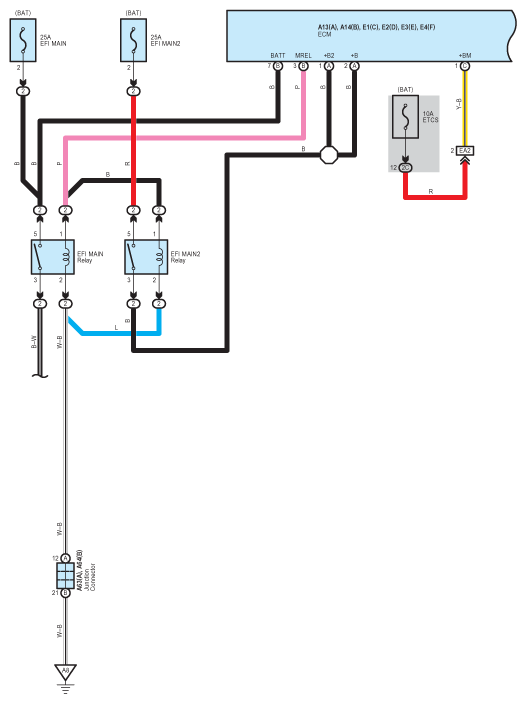

Fig 1: Dynamic Radar Cruise Control - Circuit Diagram (1 Of 22)

G07566051

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

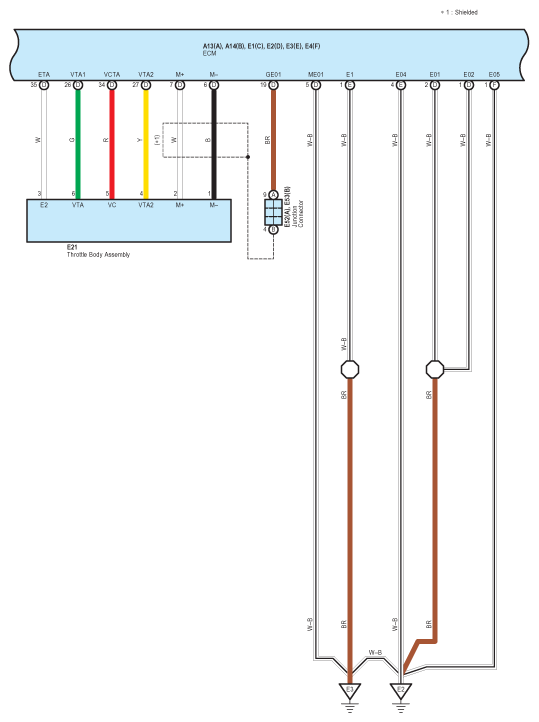

Fig 2: Dynamic Radar Cruise Control - Circuit Diagram (2 Of 22)

G07566052

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

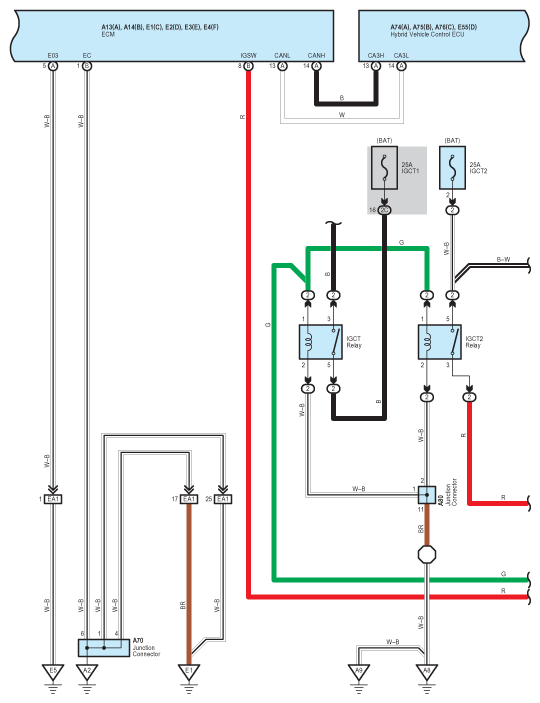

Fig 3: Dynamic Radar Cruise Control - Circuit Diagram (3 Of 22)

G07566053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

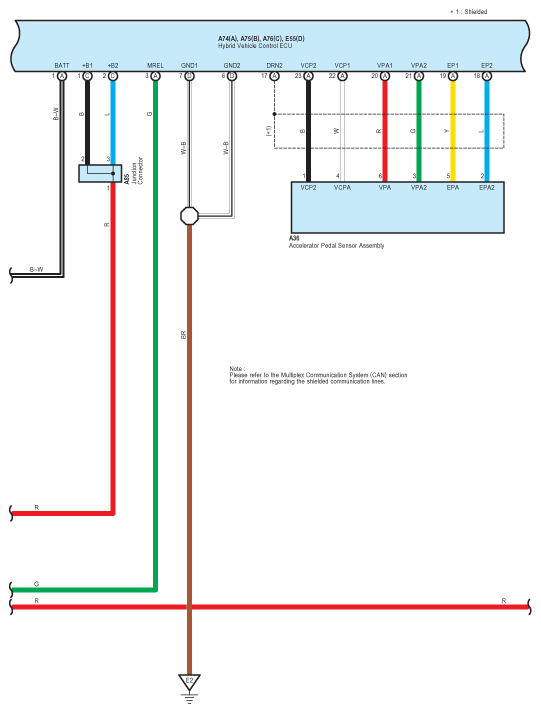

Fig 4: Dynamic Radar Cruise Control - Circuit Diagram (4 Of 22)

G07566054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

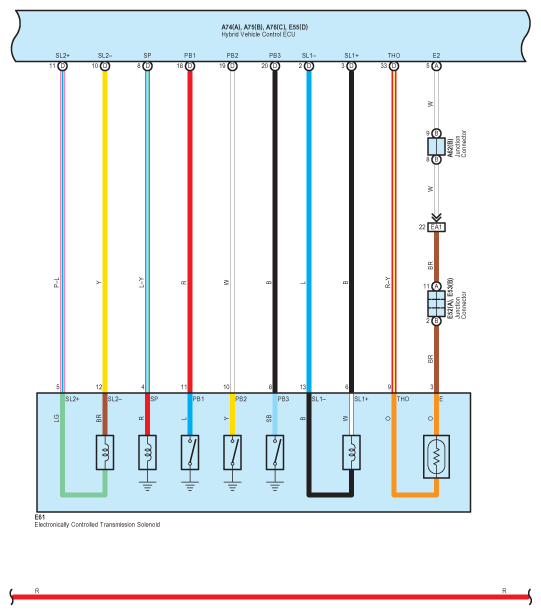

Fig 5: Dynamic Radar Cruise Control - Circuit Diagram (5 Of 22)

G07566055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

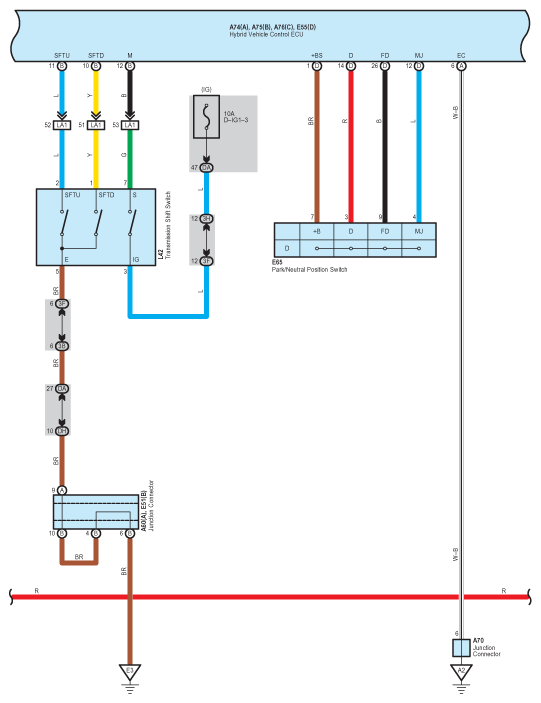

Fig 6: Dynamic Radar Cruise Control - Circuit Diagram (6 Of 22)

G07566056

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

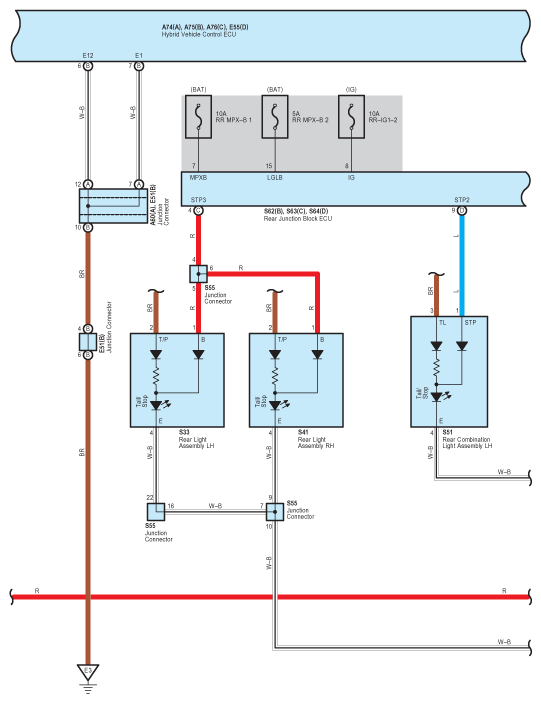

Fig 7: Dynamic Radar Cruise Control - Circuit Diagram (7 Of 22)

G07566057

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

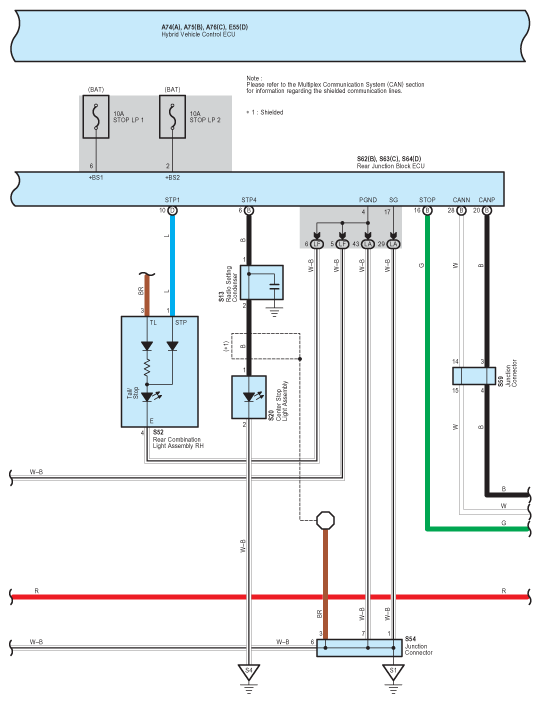

Fig 8: Dynamic Radar Cruise Control - Circuit Diagram (8 Of 22)

G07566058

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

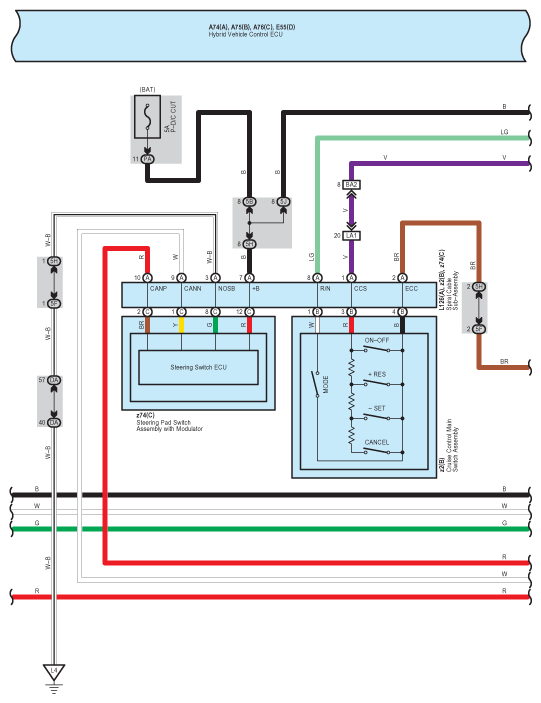

Fig 9: Dynamic Radar Cruise Control - Circuit Diagram (9 Of 22)

G07566059

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

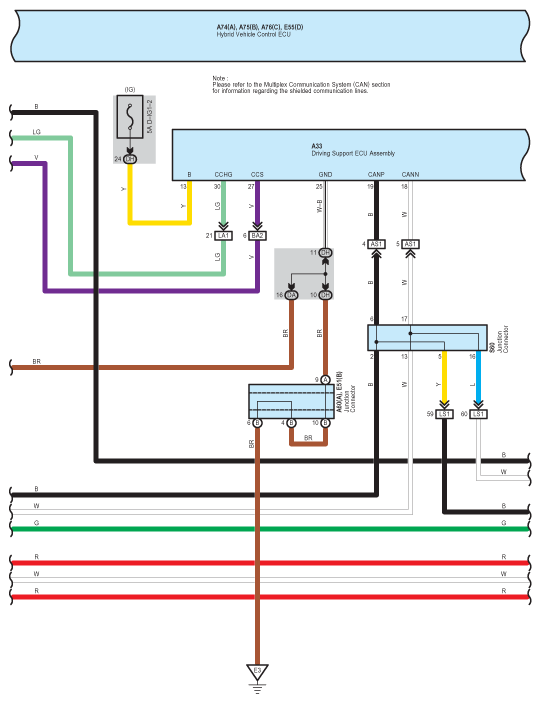

Fig 10: Dynamic Radar Cruise Control - Circuit Diagram (10 Of 22)

G07566060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

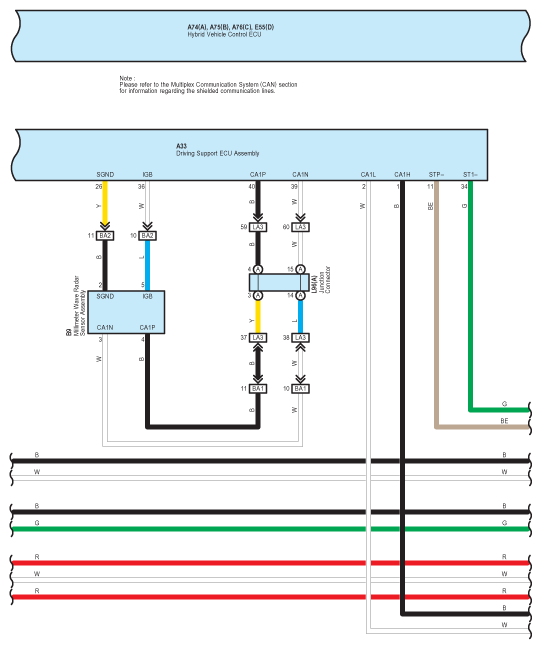

Fig 11: Dynamic Radar Cruise Control - Circuit Diagram (11 Of 22)

G07566061

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

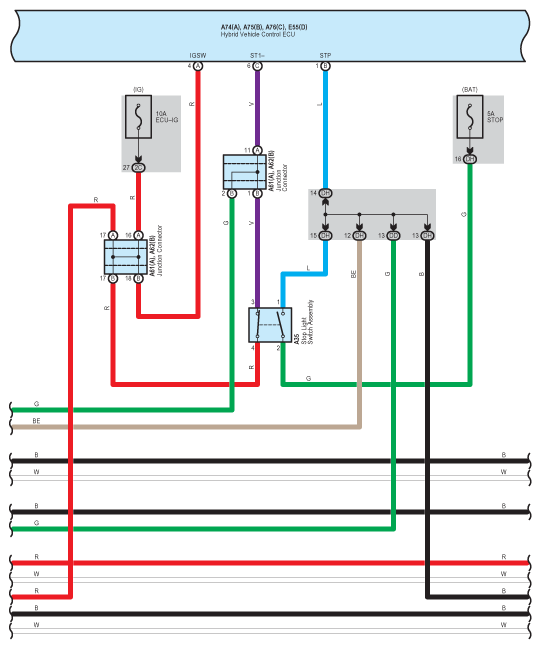

Fig 12: Dynamic Radar Cruise Control - Circuit Diagram (12 Of 22)

G07566062

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dynamic Radar Cruise Control - Circuit Diagram (13 Of 22)

G07566063

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

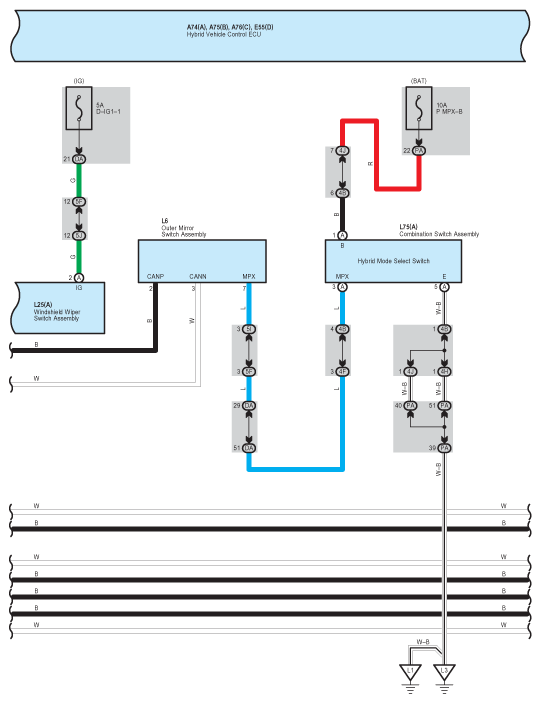

Fig 14: Dynamic Radar Cruise Control - Circuit Diagram (14 Of 22)

G07566064

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

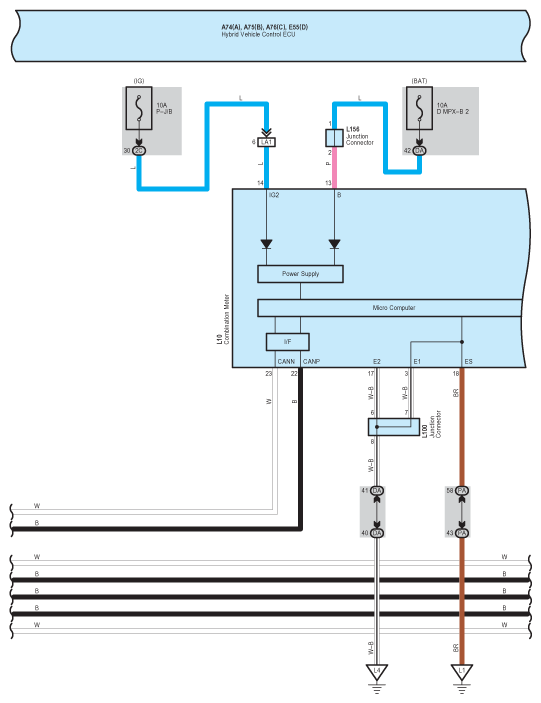

Fig 15: Dynamic Radar Cruise Control - Circuit Diagram (15 Of 22)

G07566065

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

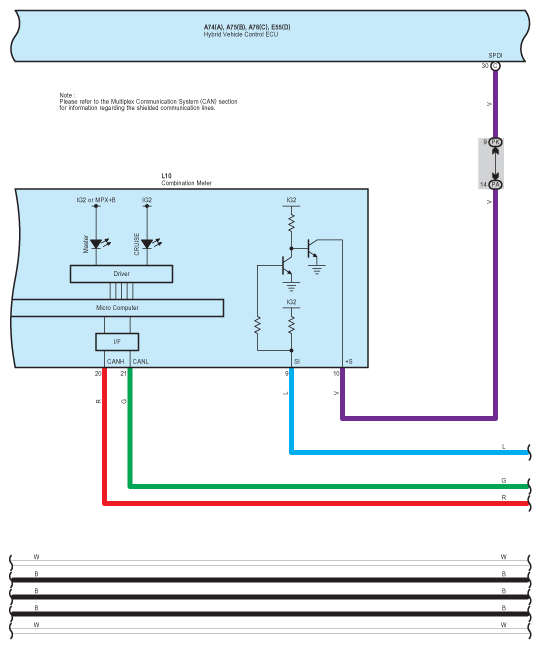

Fig 16: Dynamic Radar Cruise Control - Circuit Diagram (16 Of 22)

G07566066

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

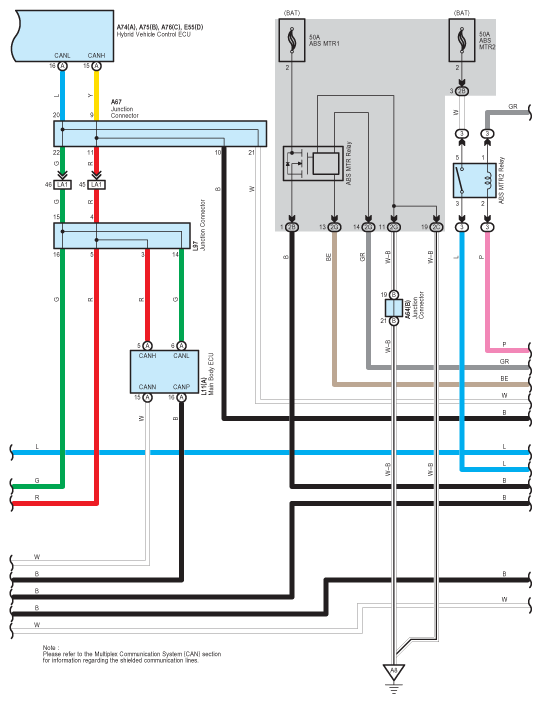

Fig 17: Dynamic Radar Cruise Control - Circuit Diagram (17 Of 22)

G07566067

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

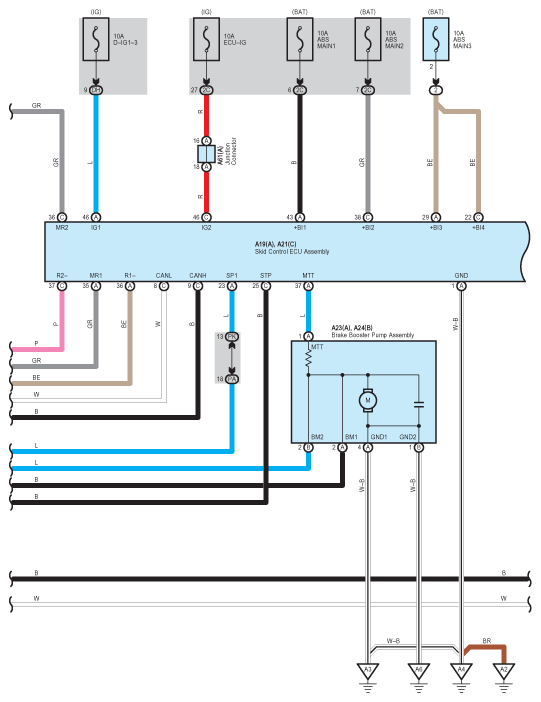

Fig 18: Dynamic Radar Cruise Control - Circuit Diagram (18 Of 22)

G07566068

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

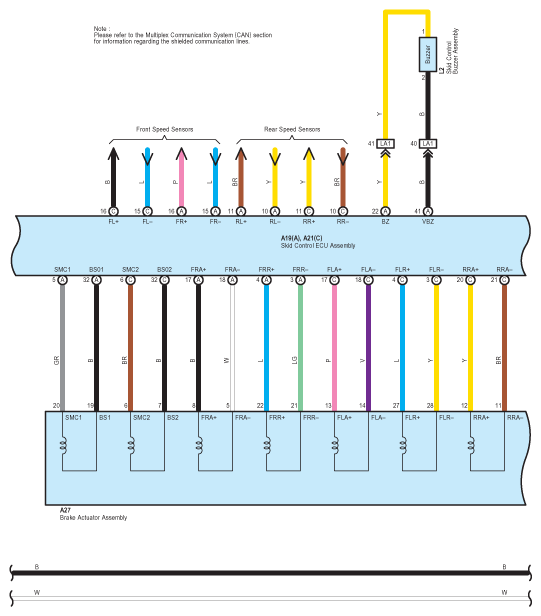

Fig 19: Dynamic Radar Cruise Control - Circuit Diagram (19 Of 22)

G07566069

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

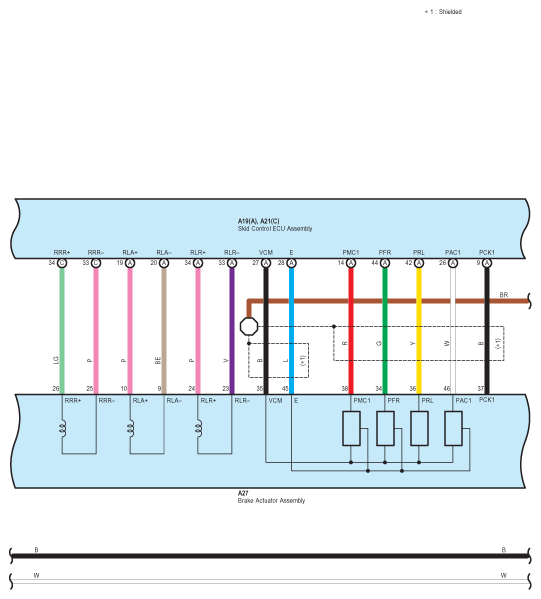

Fig 20: Dynamic Radar Cruise Control - Circuit Diagram (20 Of 22)

G07566070

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

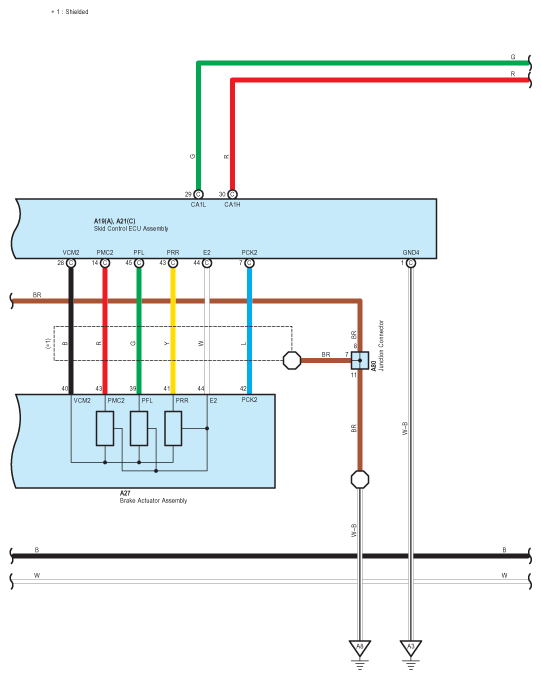

Fig 21: Dynamic Radar Cruise Control - Circuit Diagram (21 Of 22)

G07566071

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

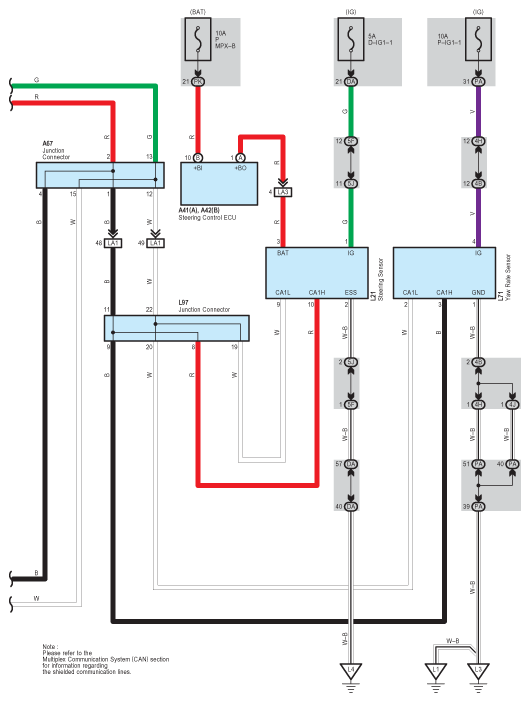

Fig 22: Dynamic Radar Cruise Control - Circuit Diagram (22 Of 22)

G07566072

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
