OEM System Circuits: Headlight: Notes

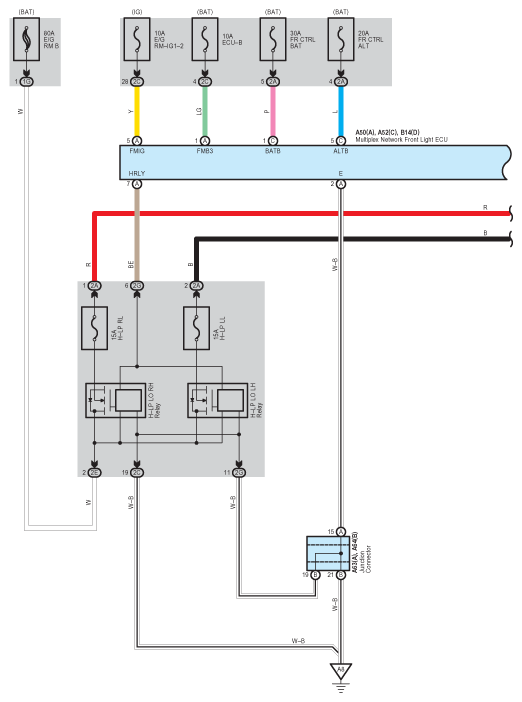

Fig 1: Headlight - Circuit Diagram (1 Of 9)

G07565953

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

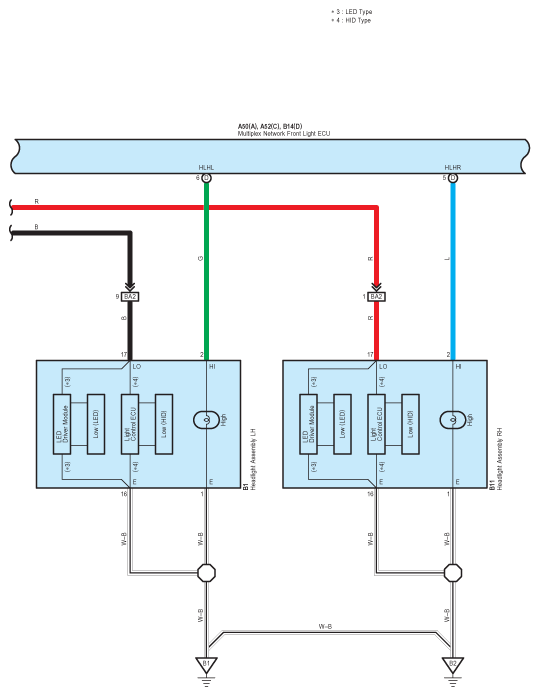

Fig 2: Headlight - Circuit Diagram (2 Of 9)

G07565954

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

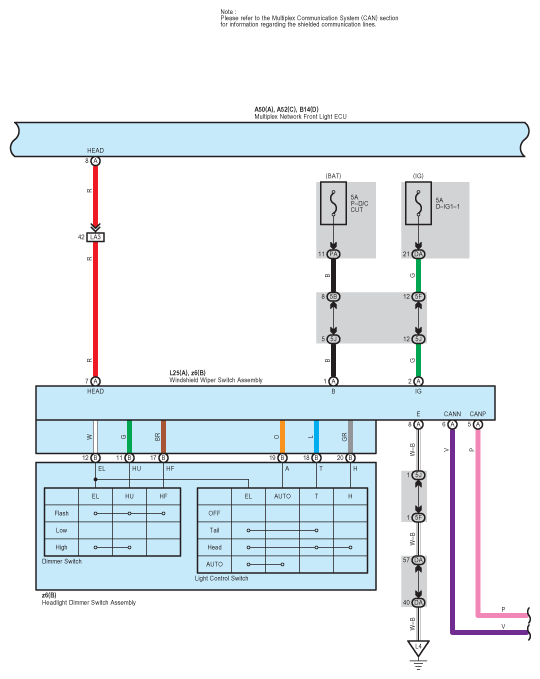

Fig 3: Headlight - Circuit Diagram (3 Of 9)

G07565955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

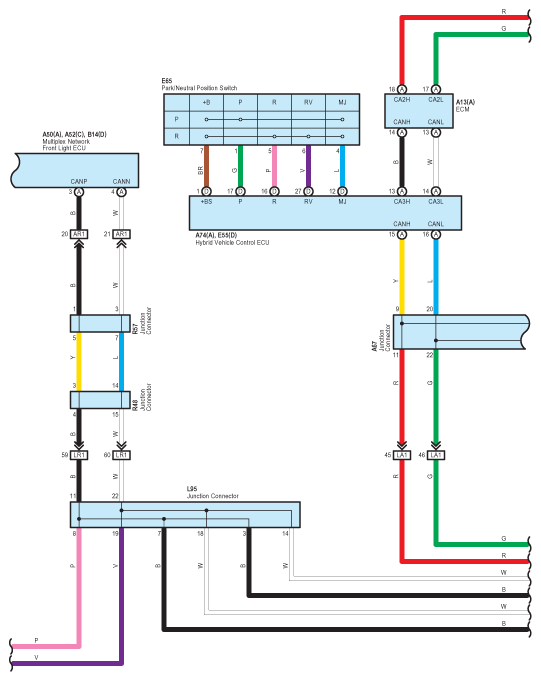

Fig 4: Headlight - Circuit Diagram (4 Of 9)

G07565956

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

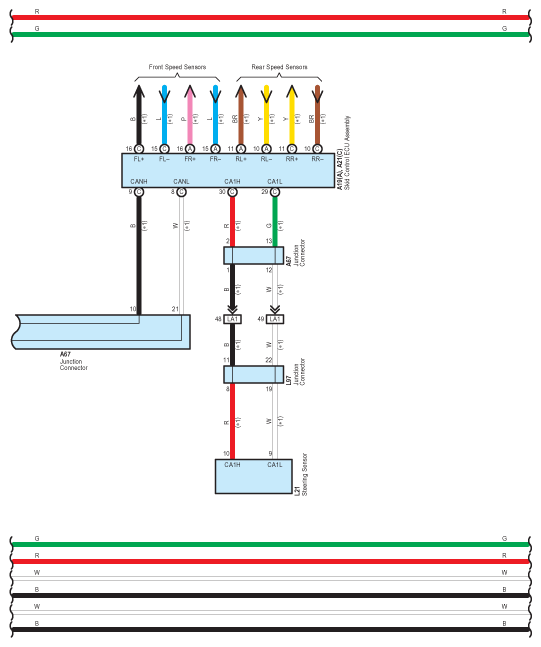

Fig 5: Headlight - Circuit Diagram (5 Of 9)

G07565957

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

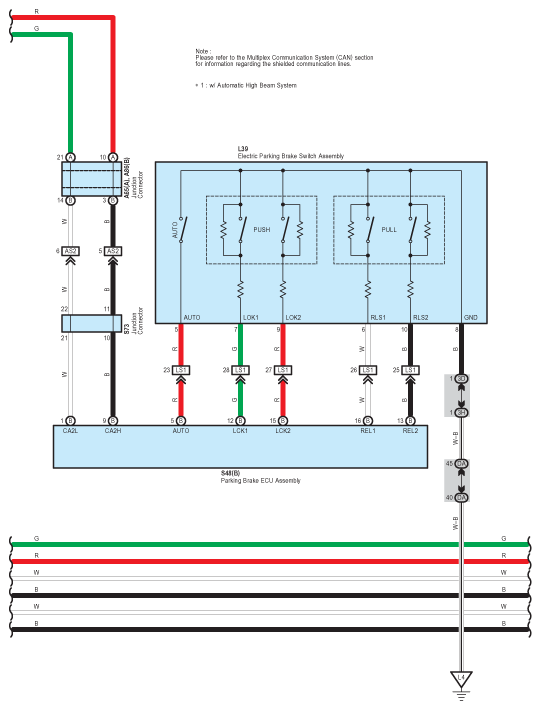

Fig 6: Headlight - Circuit Diagram (6 Of 9)

G07565958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

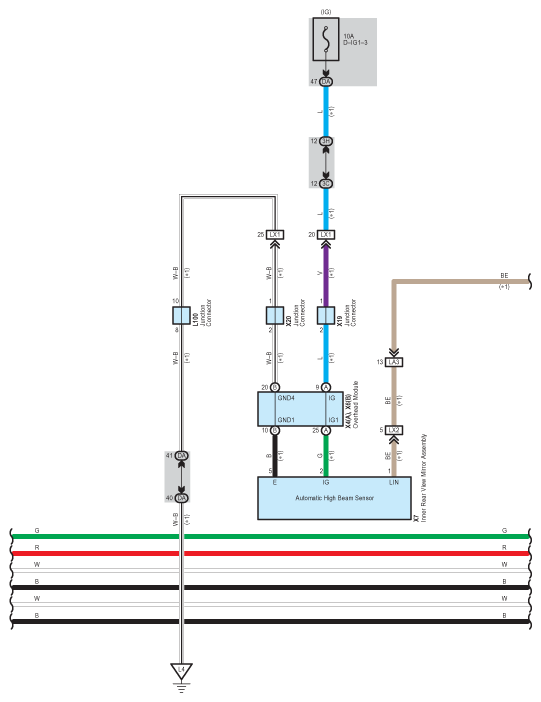

Fig 7: Headlight - Circuit Diagram (7 Of 9)

G07565959

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

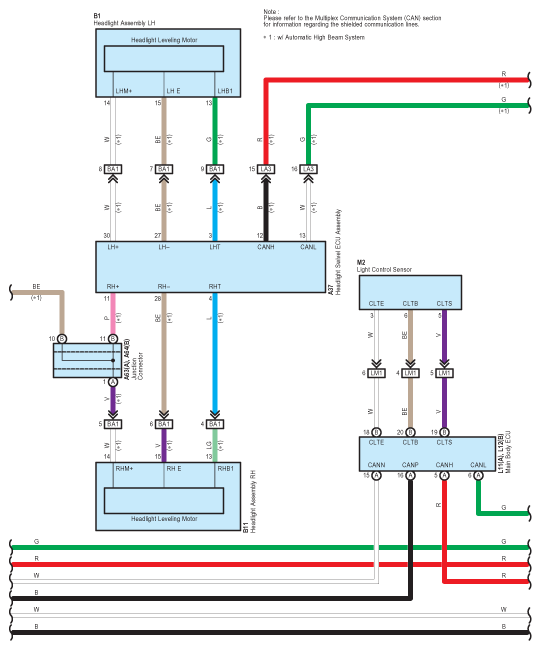

Fig 8: Headlight - Circuit Diagram (8 Of 9)

G07565960

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

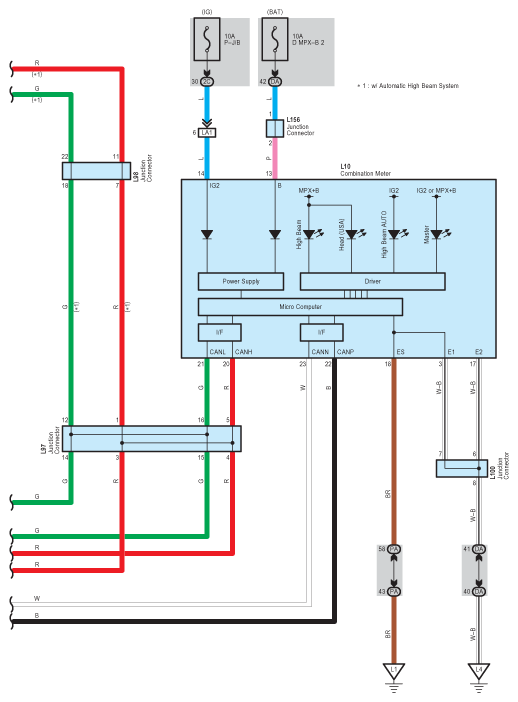

Fig 9: Headlight - Circuit Diagram (9 Of 9)

G07565961

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
