Hybrid System and Shift Control System: Notes

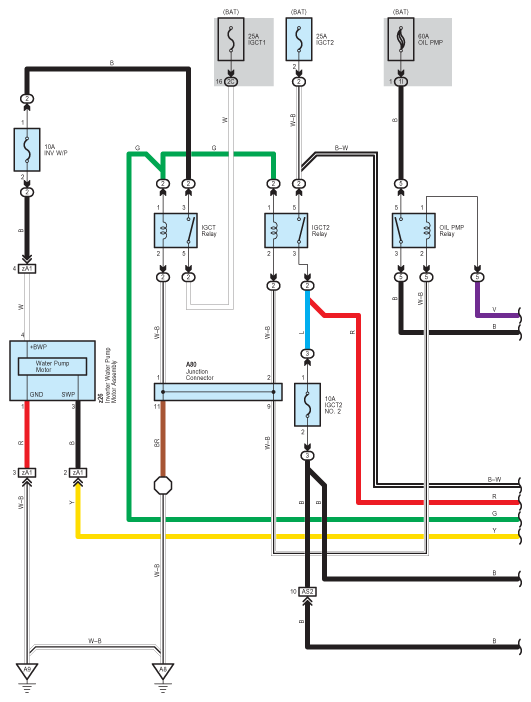

Fig 1: Hybrid System And Shift Control System - Circuit Diagram (1 Of 33)

G07565875

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

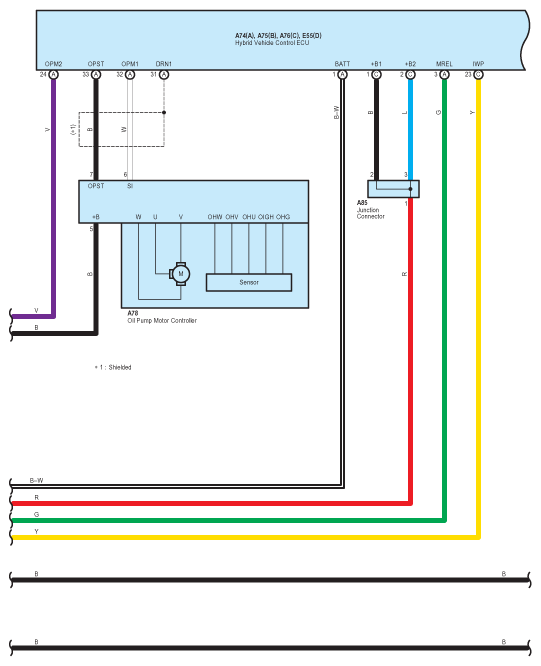

Fig 2: Hybrid System And Shift Control System - Circuit Diagram (2 Of 33)

G07565876

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

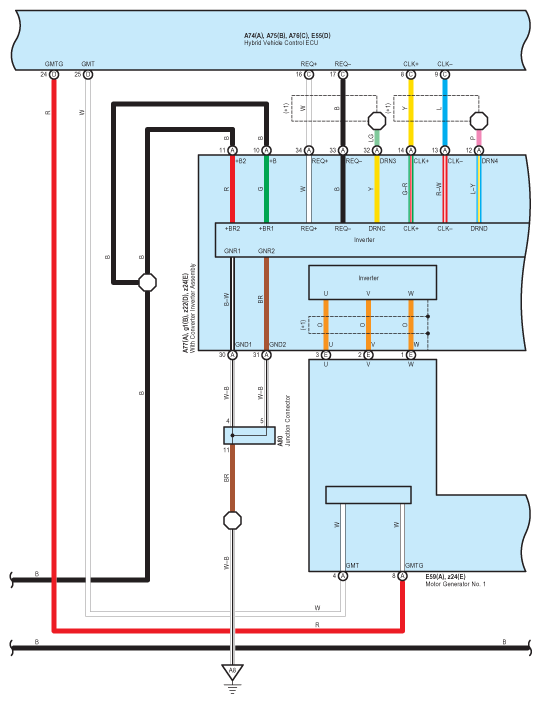

Fig 3: Hybrid System And Shift Control System - Circuit Diagram (3 Of 33)

G07565877

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

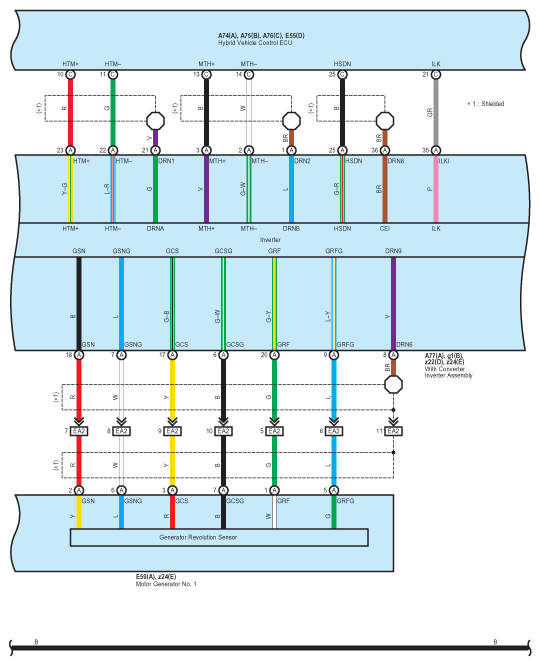

Fig 4: Hybrid System And Shift Control System - Circuit Diagram (4 Of 33)

G07565878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

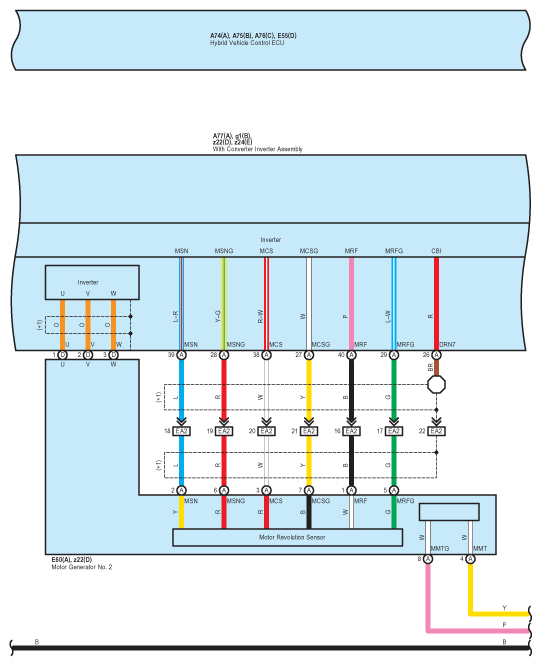

Fig 5: Hybrid System And Shift Control System - Circuit Diagram (5 Of 33)

G07565879

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

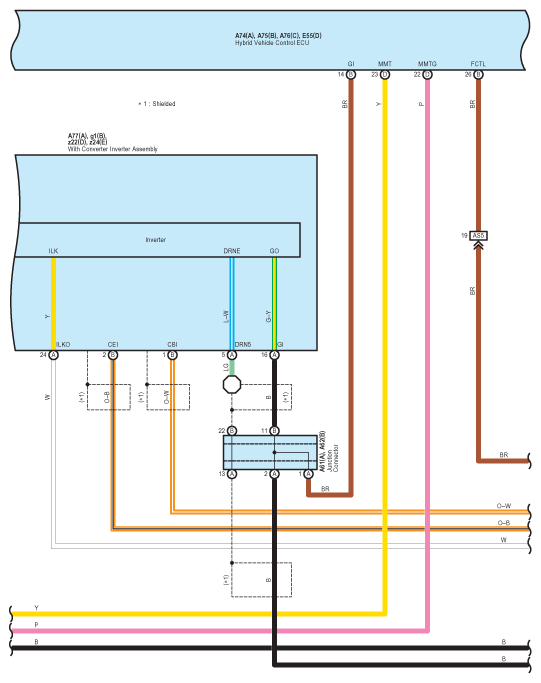

Fig 6: Hybrid System And Shift Control System - Circuit Diagram (6 Of 33)

G07565880

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

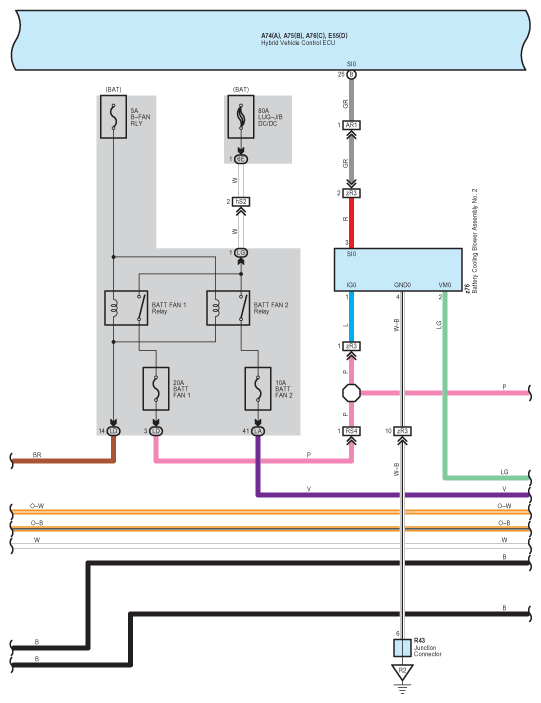

Fig 7: Hybrid System And Shift Control System - Circuit Diagram (7 Of 33)

G07565881

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

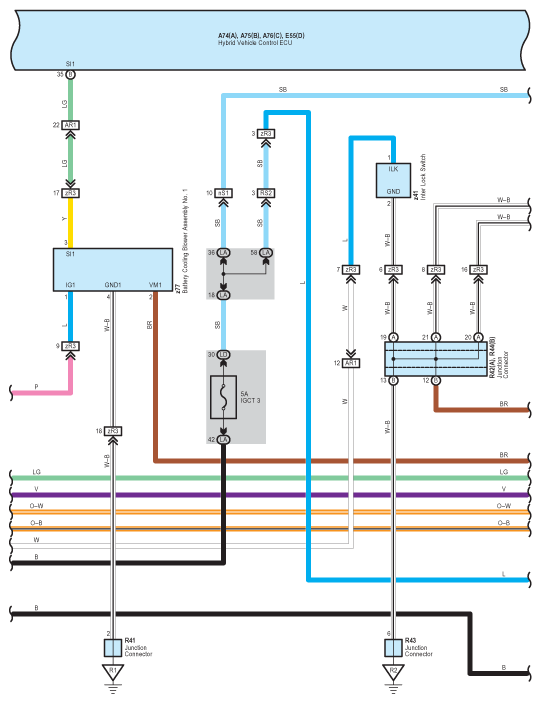

Fig 8: Hybrid System And Shift Control System - Circuit Diagram (8 Of 33)

G07565882

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

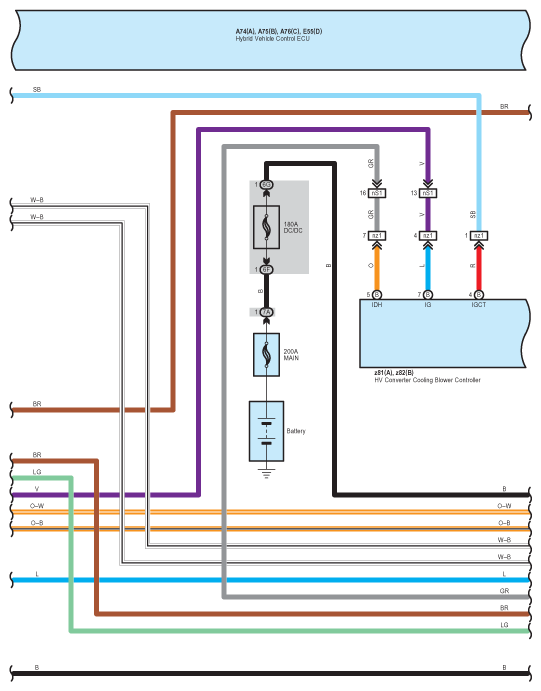

Fig 9: Hybrid System And Shift Control System - Circuit Diagram (9 Of 33)

G07565883

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

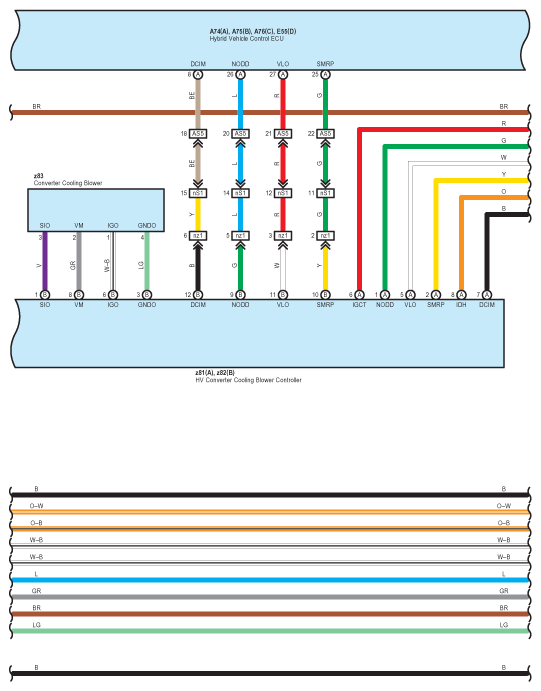

Fig 10: Hybrid System And Shift Control System - Circuit Diagram (10 Of 33)

G07565884

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

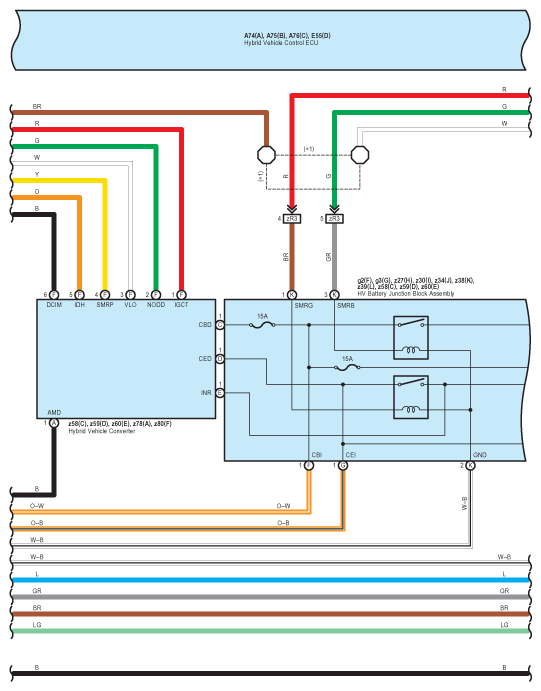

Fig 11: Hybrid System And Shift Control System - Circuit Diagram (11 Of 33)

G07565885

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

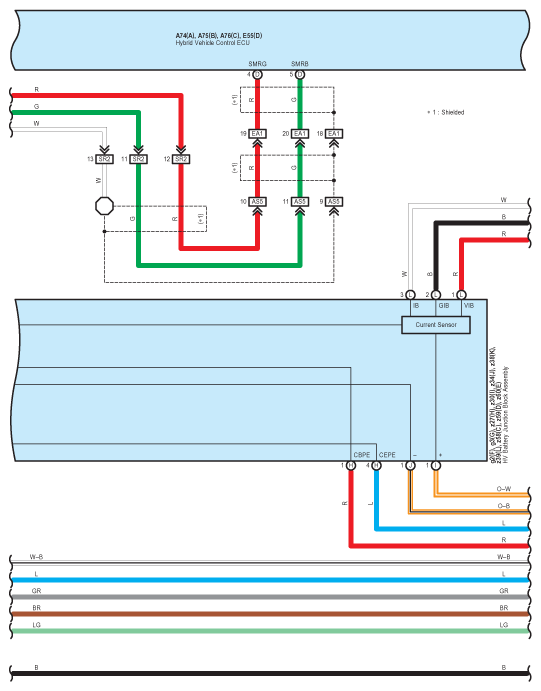

Fig 12: Hybrid System And Shift Control System - Circuit Diagram (12 Of 33)

G07565886

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

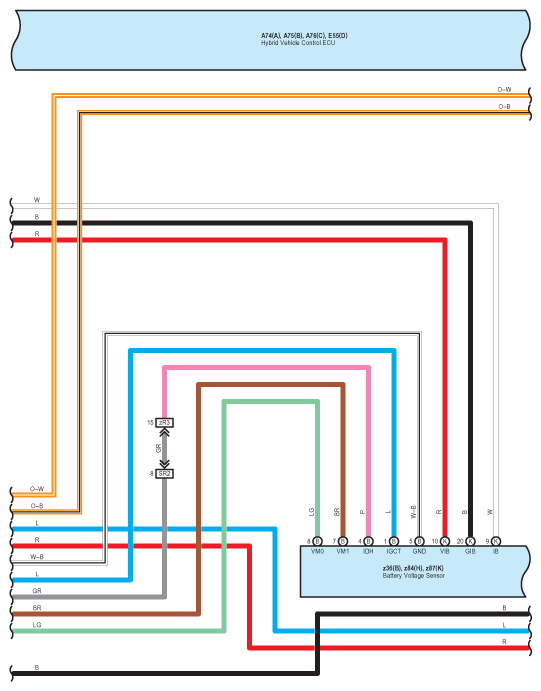

Fig 13: Hybrid System And Shift Control System - Circuit Diagram (13 Of 33)

G07565887

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

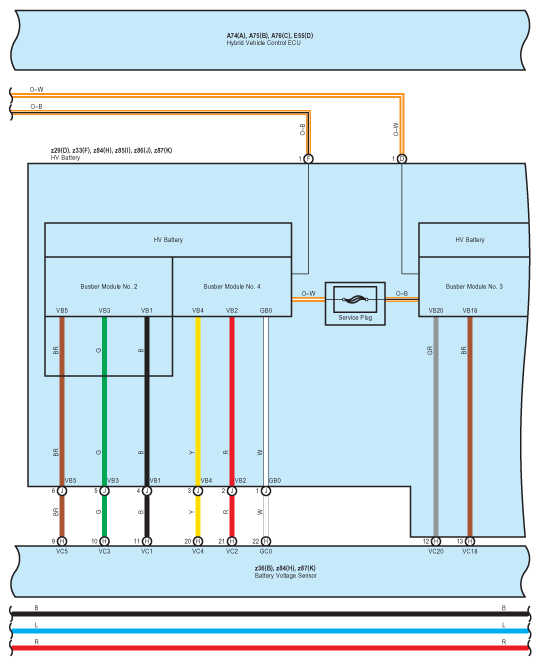

Fig 14: Hybrid System And Shift Control System - Circuit Diagram (14 Of 33)

G07565888

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

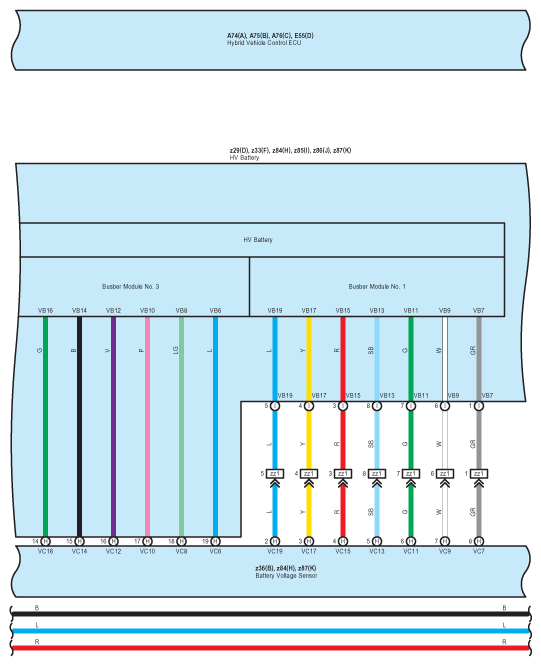

Fig 15: Hybrid System And Shift Control System - Circuit Diagram (15 Of 33)

G07565889

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

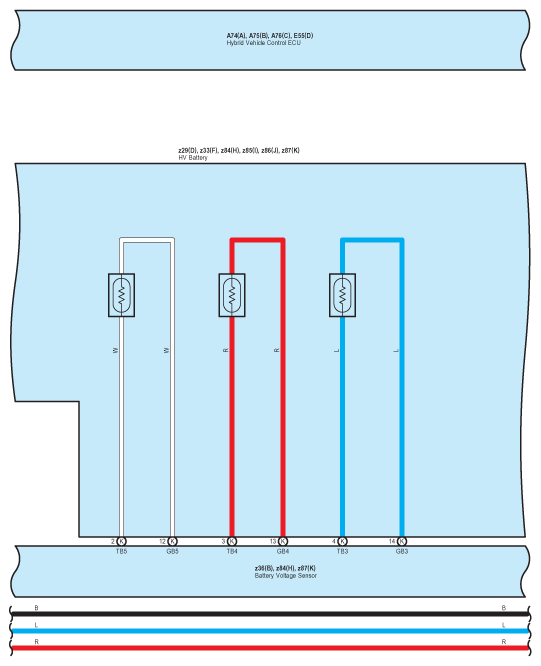

Fig 16: Hybrid System And Shift Control System - Circuit Diagram (16 Of 33)

G07565890

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

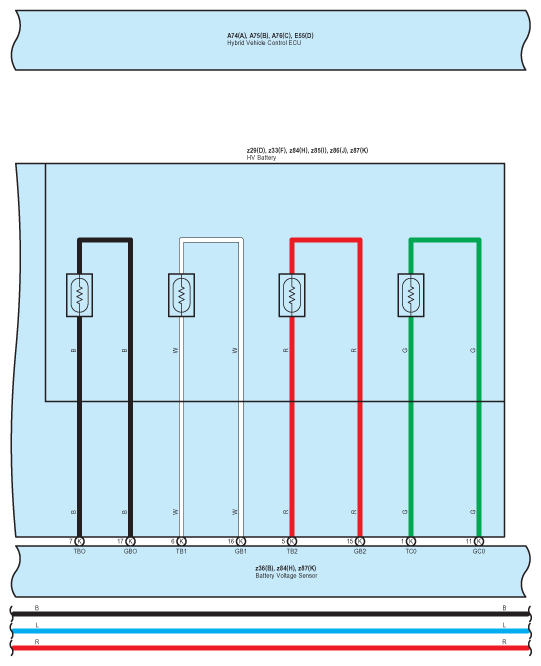

Fig 17: Hybrid System And Shift Control System - Circuit Diagram (17 Of 33)

G07565891

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

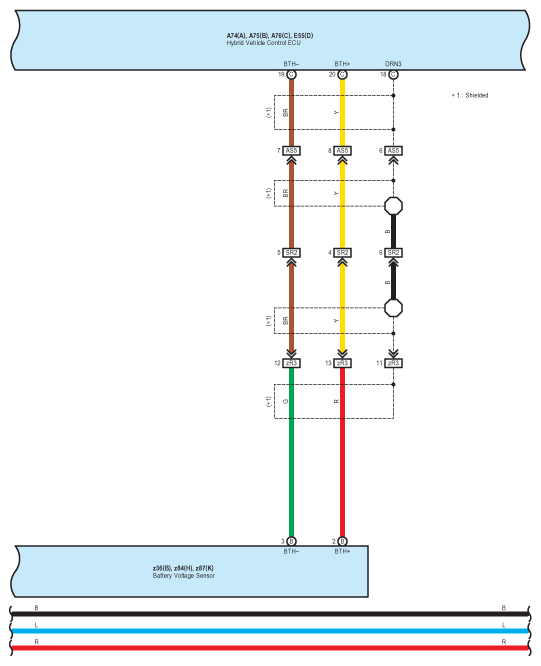

Fig 18: Hybrid System And Shift Control System - Circuit Diagram (18 Of 33)

G07565892

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

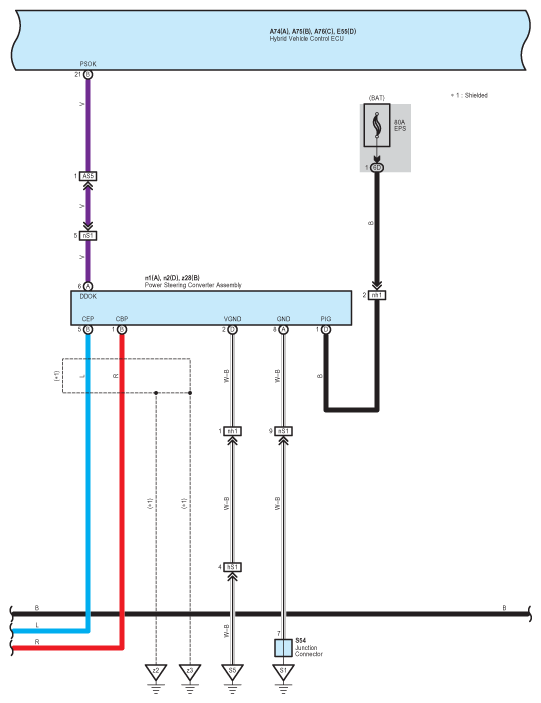

Fig 19: Hybrid System And Shift Control System - Circuit Diagram (19 Of 33)

G07565893

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

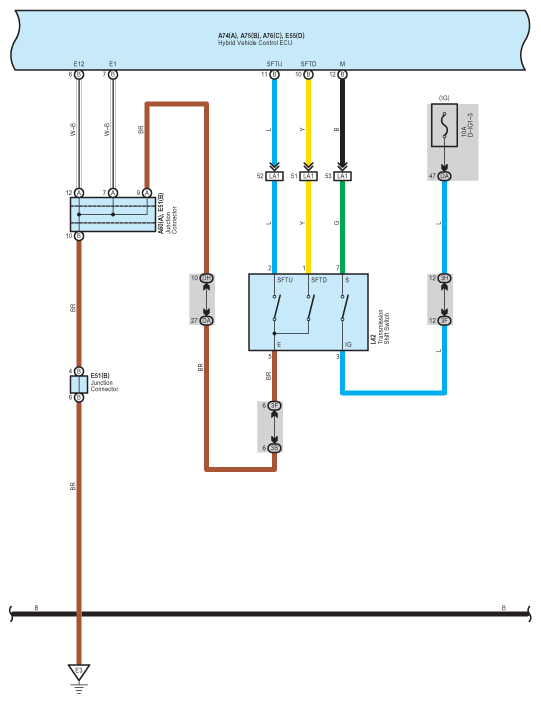

Fig 20: Hybrid System And Shift Control System - Circuit Diagram (20 Of 33)

G07565894

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

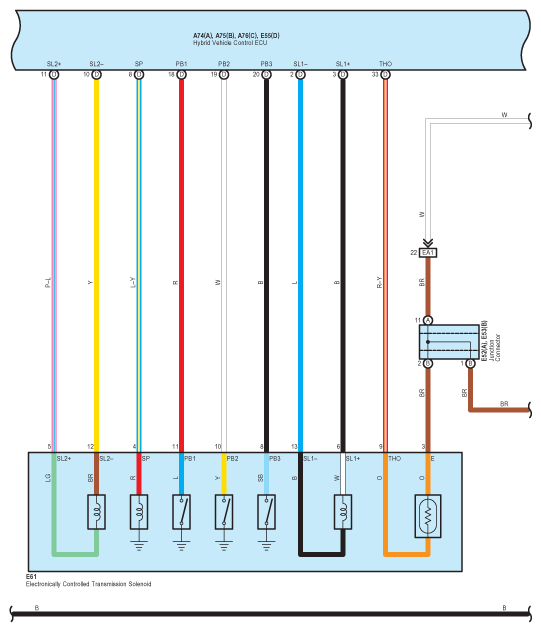

Fig 21: Hybrid System And Shift Control System - Circuit Diagram (21 Of 33)

G07565895

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

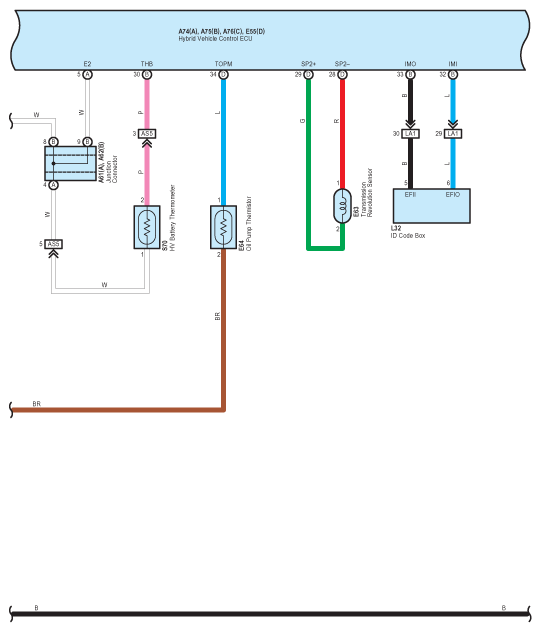

Fig 22: Hybrid System And Shift Control System - Circuit Diagram (22 Of 33)

G07565896

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

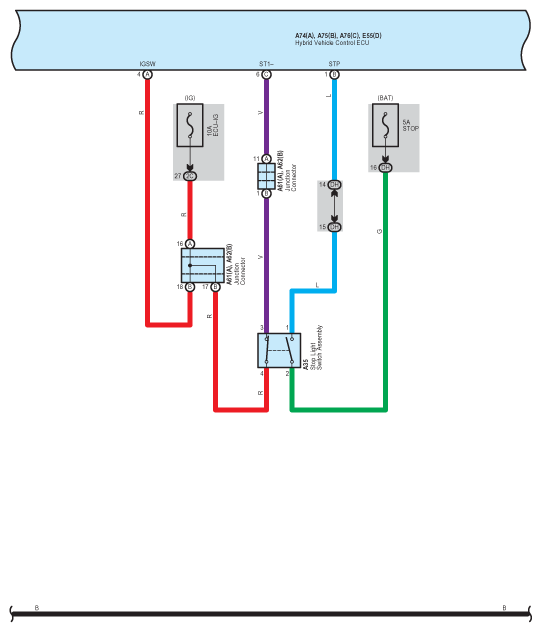

Fig 23: Hybrid System And Shift Control System - Circuit Diagram (23 Of 33)

G07565897

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

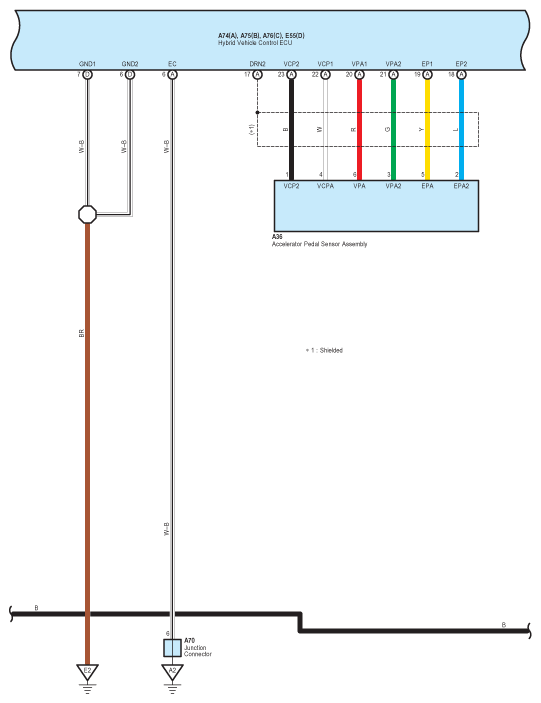

Fig 24: Hybrid System And Shift Control System - Circuit Diagram (24 Of 33)

G07565898

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

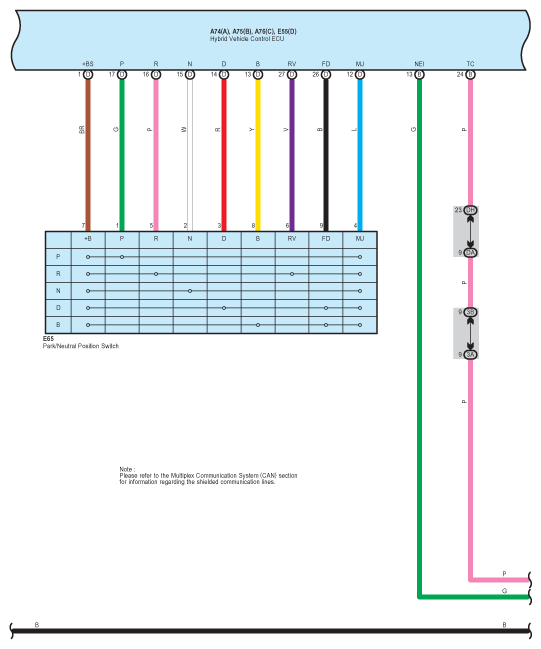

Fig 25: Hybrid System And Shift Control System - Circuit Diagram (25 Of 33)

G07565899

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

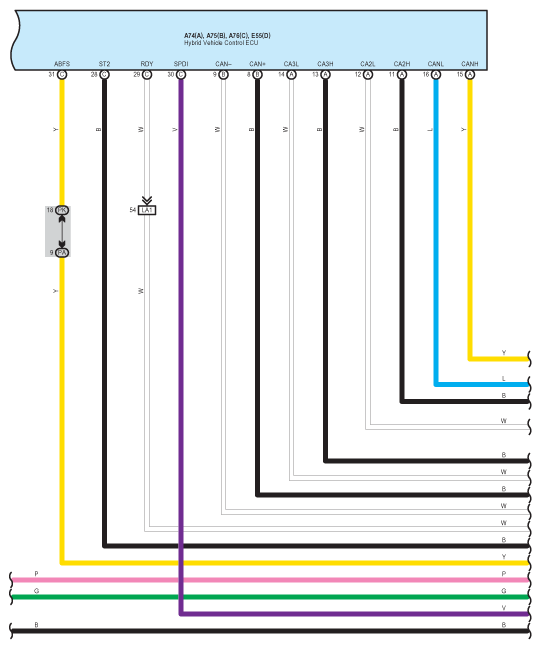

Fig 26: Hybrid System And Shift Control System - Circuit Diagram (26 Of 33)

G07565900

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

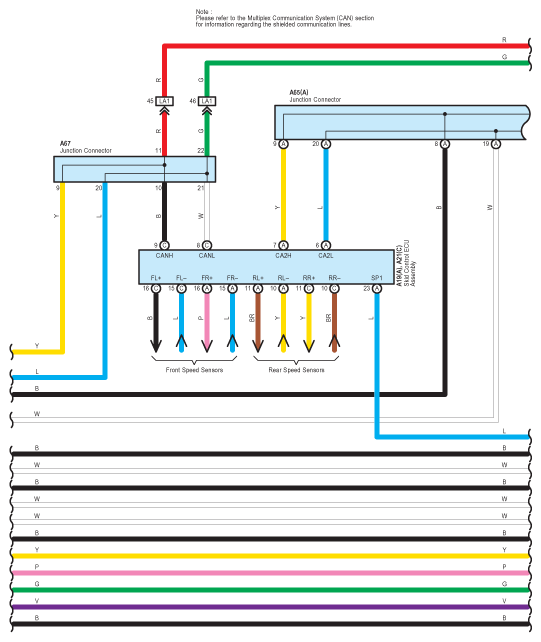

Fig 27: Hybrid System And Shift Control System - Circuit Diagram (27 Of 33)

G07565901

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

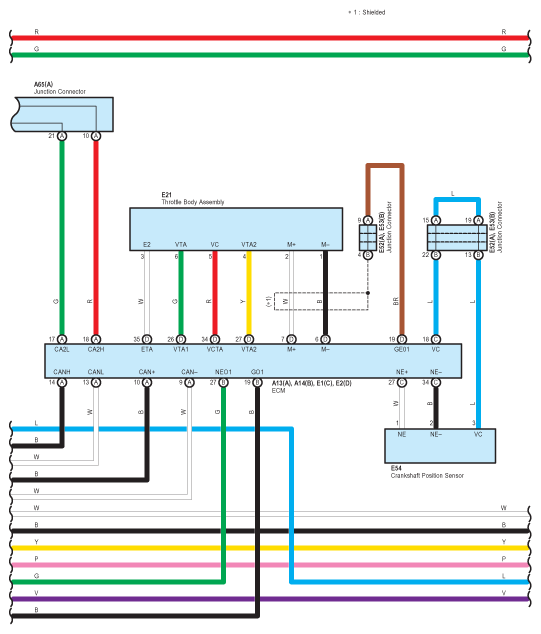

Fig 28: Hybrid System And Shift Control System - Circuit Diagram (28 Of 33)

G07565902

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

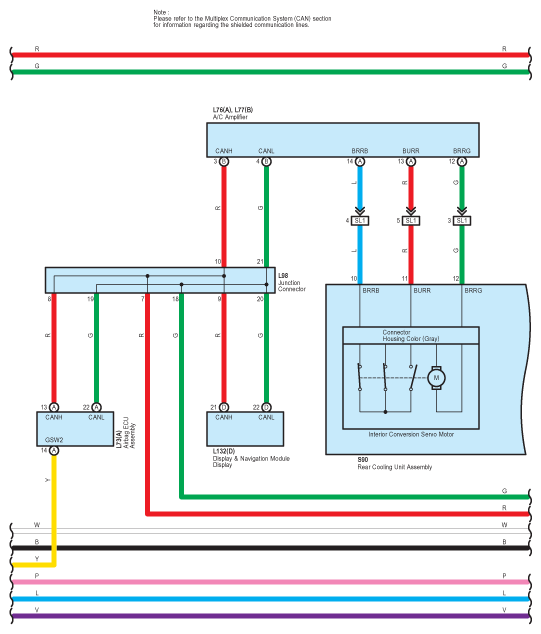

Fig 29: Hybrid System And Shift Control System - Circuit Diagram (29 Of 33)

G07565903

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

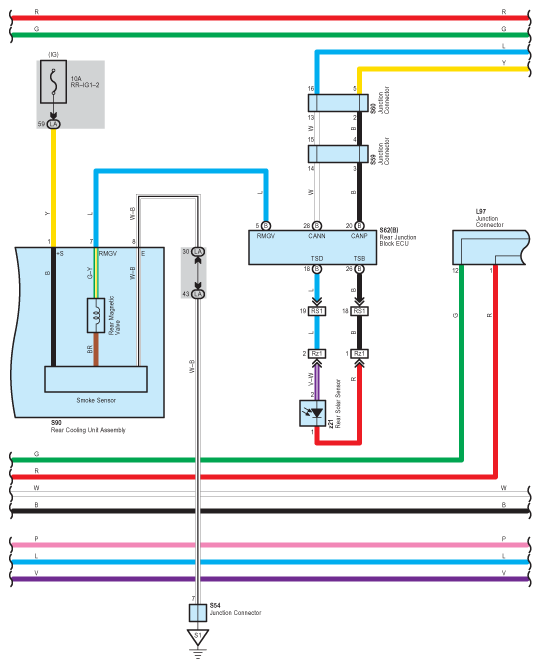

Fig 30: Hybrid System And Shift Control System - Circuit Diagram (30 Of 33)

G07565904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

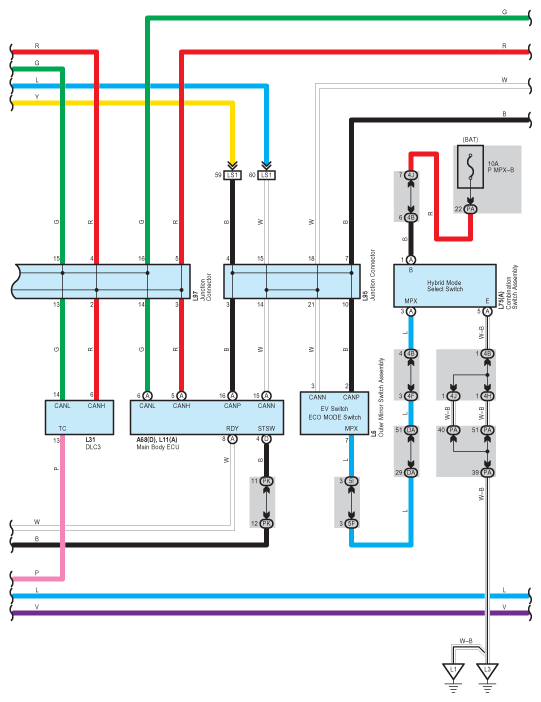

Fig 31: Hybrid System And Shift Control System - Circuit Diagram (31 Of 33)

G07565905

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

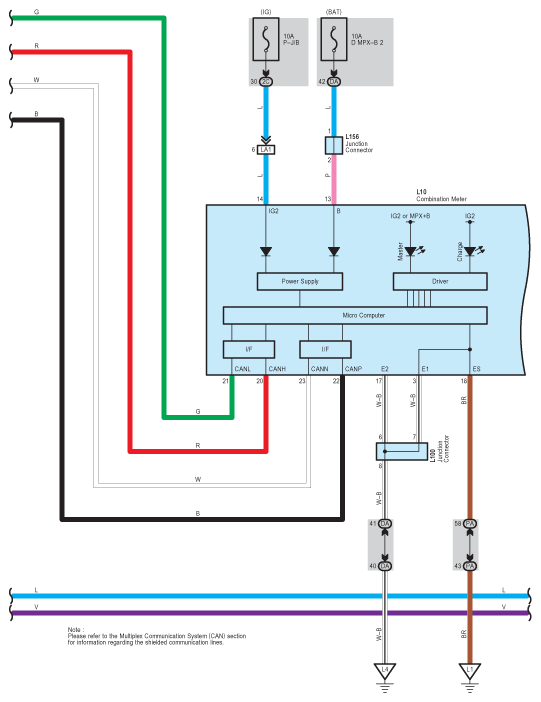

Fig 32: Hybrid System And Shift Control System - Circuit Diagram (32 Of 33)

G07565906

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

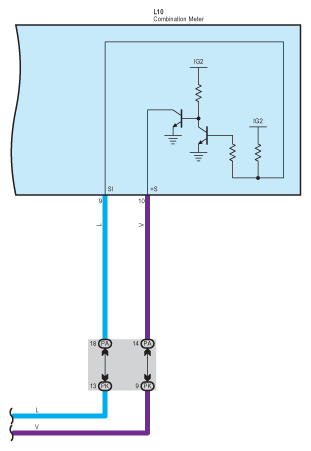

Fig 33: Hybrid System And Shift Control System - Circuit Diagram (33 Of 33)

G07565907

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
