Power Source: Notes

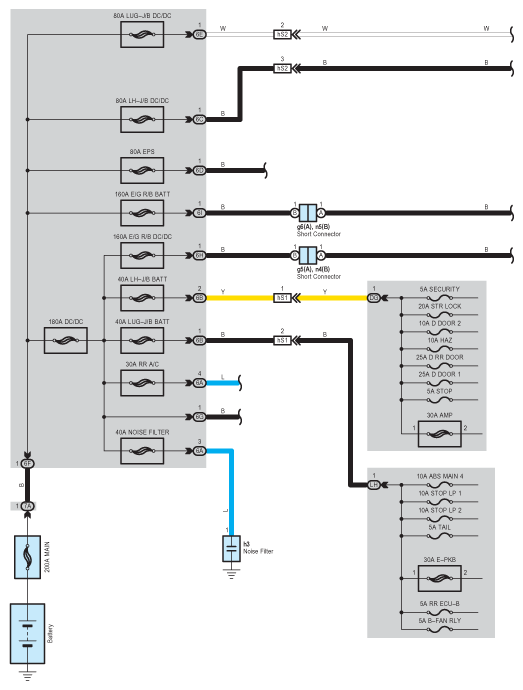

Fig 1: Power Source - Circuit Diagram (1 Of 9)

G07565840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

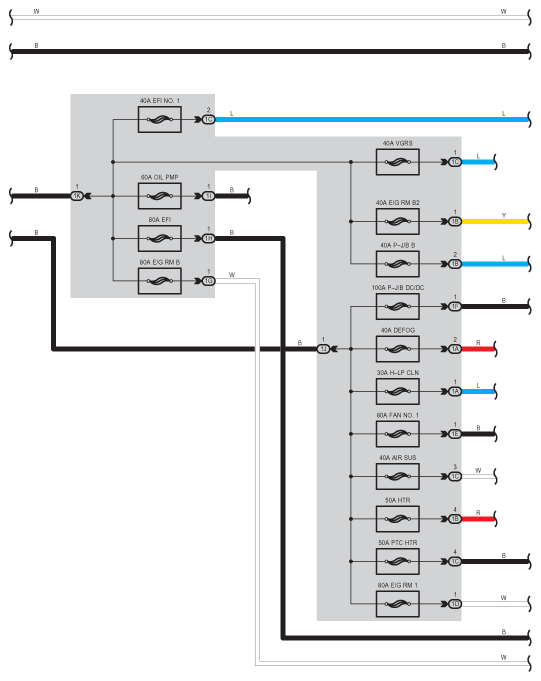

Fig 2: Power Source - Circuit Diagram (2 Of 9)

G07565841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

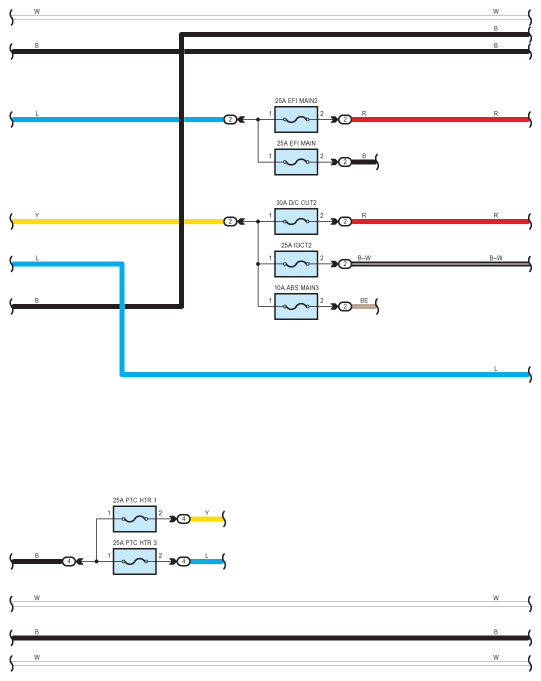

Fig 3: Power Source - Circuit Diagram (3 Of 9)

G07565842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

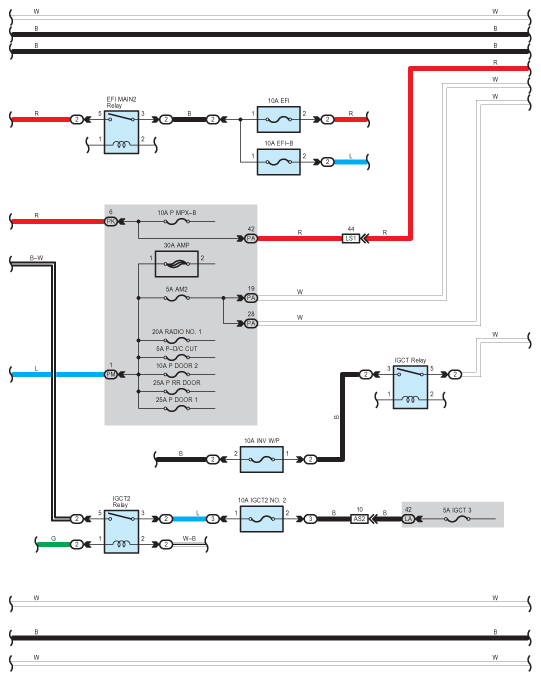

Fig 4: Power Source - Circuit Diagram (4 Of 9)

G07565843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

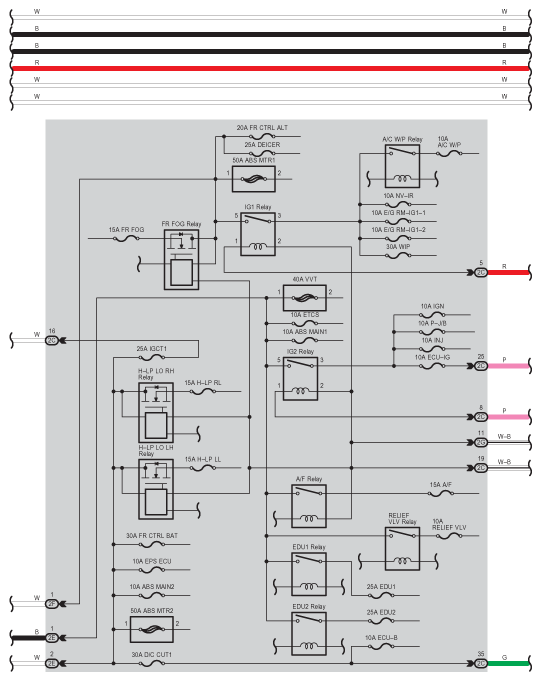

Fig 5: Power Source - Circuit Diagram (5 Of 9)

G07565844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

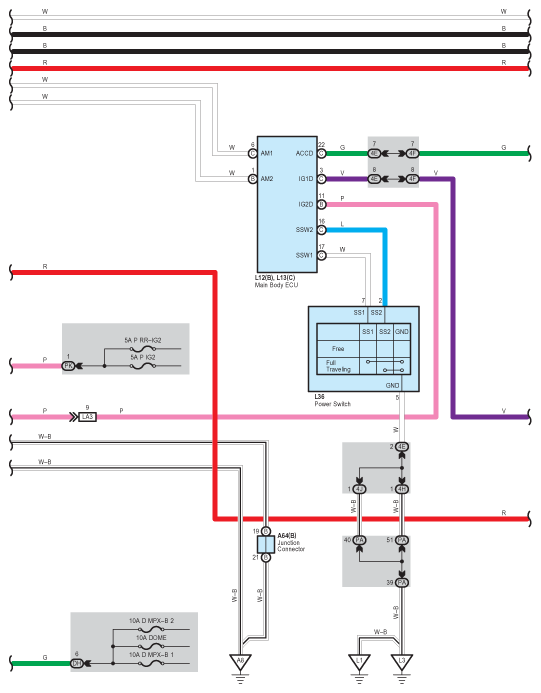

Fig 6: Power Source - Circuit Diagram (6 Of 9)

G07565845

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

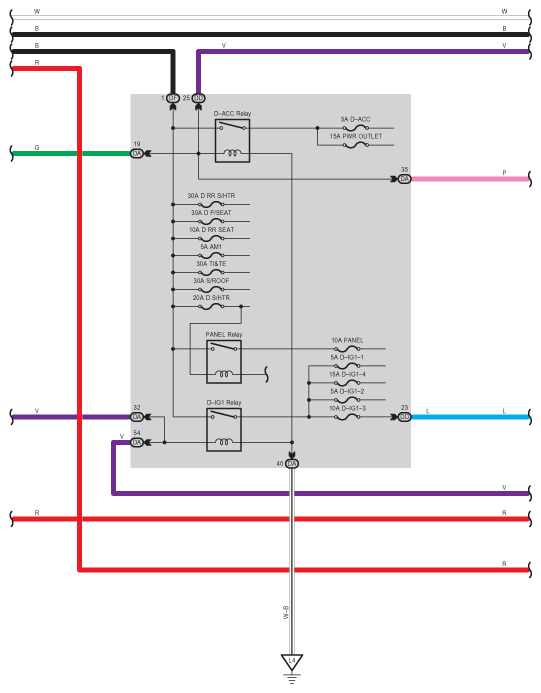

Fig 7: Power Source - Circuit Diagram (7 Of 9)

G07565846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

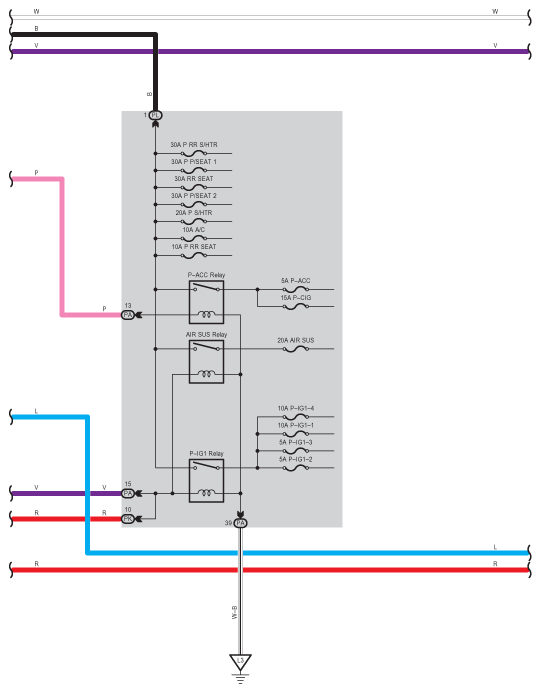

Fig 8: Power Source - Circuit Diagram (8 Of 9)

G07565847

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

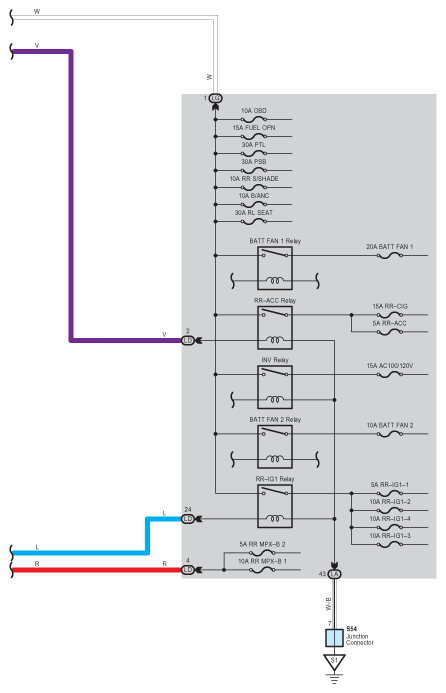

Fig 9: Power Source - Circuit Diagram (9 Of 9)

G07565848

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
