Smart Access System with Push-Button Start: Notes

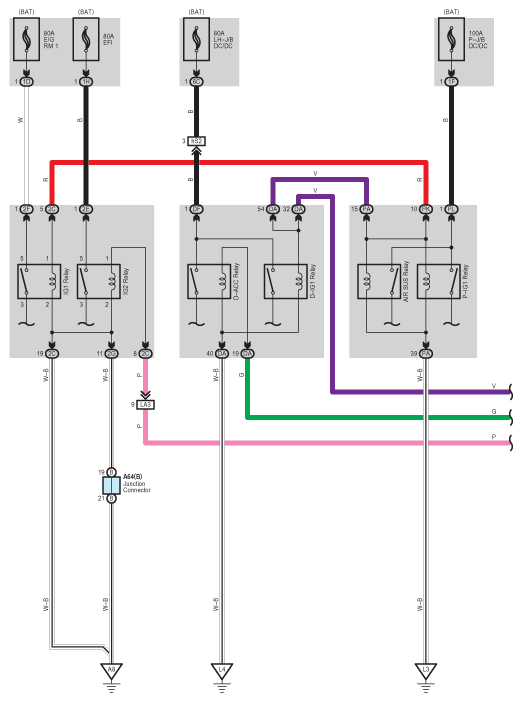

Fig 1: Smart Access System With Push-Button Start - Circuit Diagram (1 Of 24)

G07565849

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

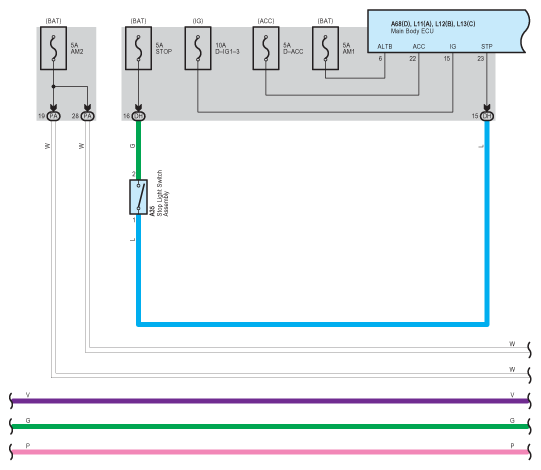

Fig 2: Smart Access System With Push-Button Start - Circuit Diagram (2 Of 24)

G07565850

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

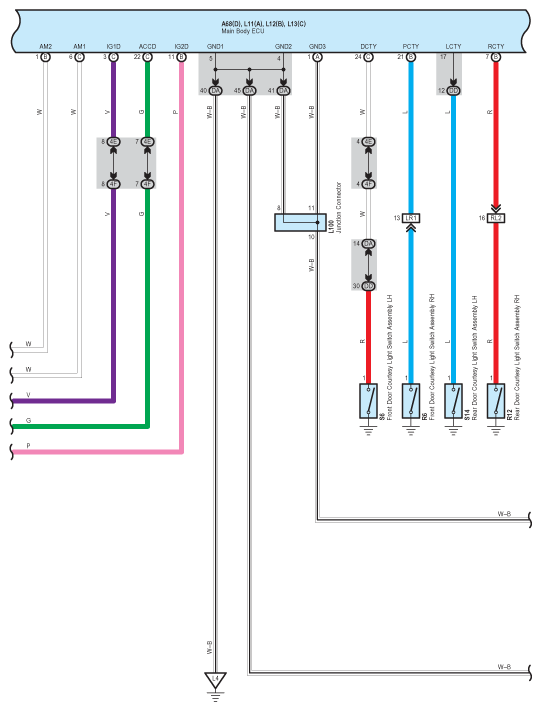

Fig 3: Smart Access System With Push-Button Start - Circuit Diagram (3 Of 24)

G07565851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

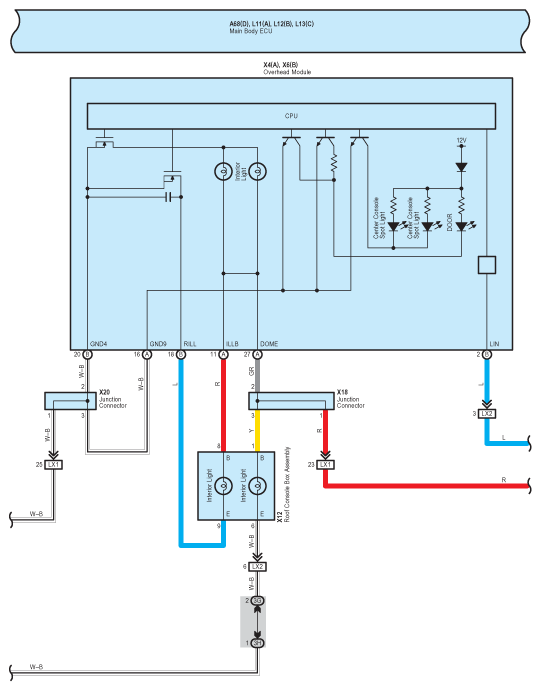

Fig 4: Smart Access System With Push-Button Start - Circuit Diagram (4 Of 24)

G07565852

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

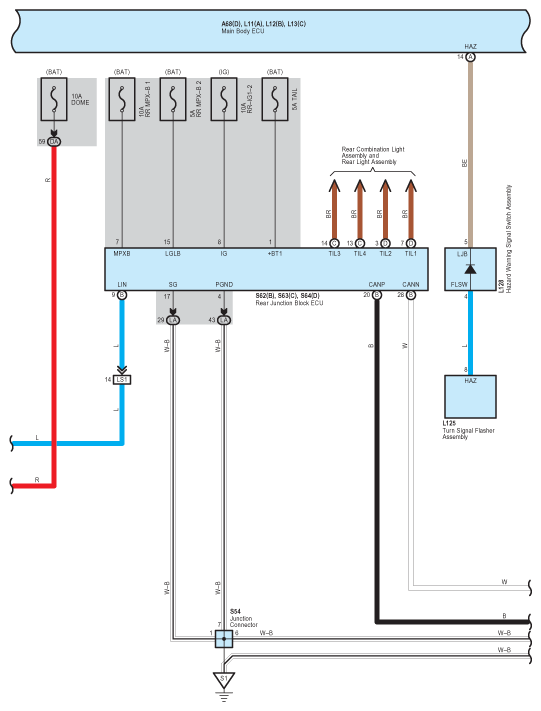

Fig 5: Smart Access System With Push-Button Start - Circuit Diagram (5 Of 24)

G07565853

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

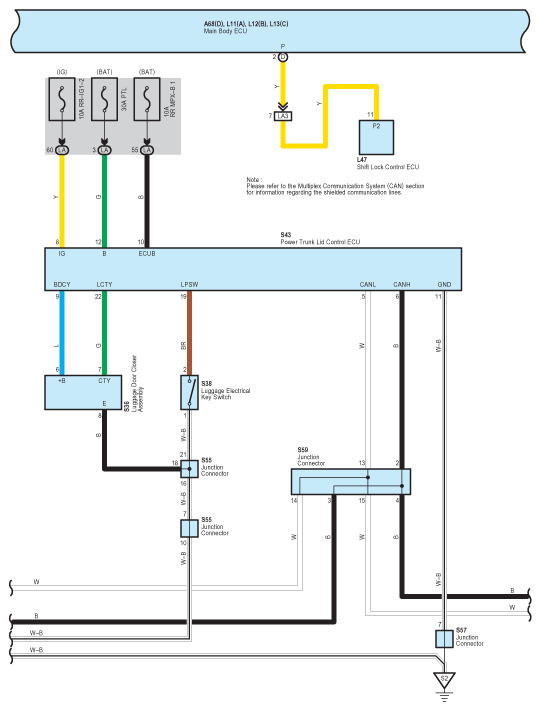

Fig 6: Smart Access System With Push-Button Start - Circuit Diagram (6 Of 24)

G07565854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

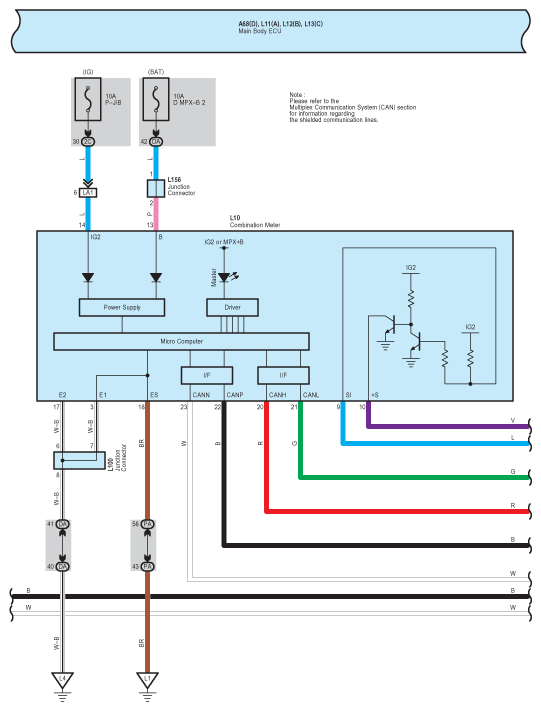

Fig 7: Smart Access System With Push-Button Start - Circuit Diagram (7 Of 24)

G07565855

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

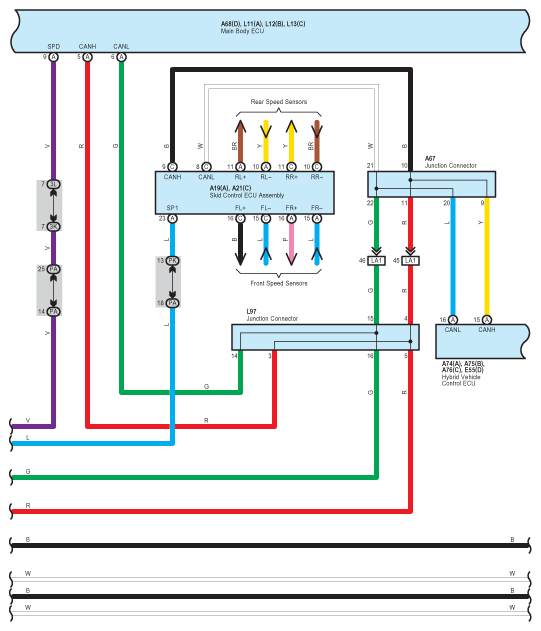

Fig 8: Smart Access System With Push-Button Start - Circuit Diagram (8 Of 24)

G07565856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

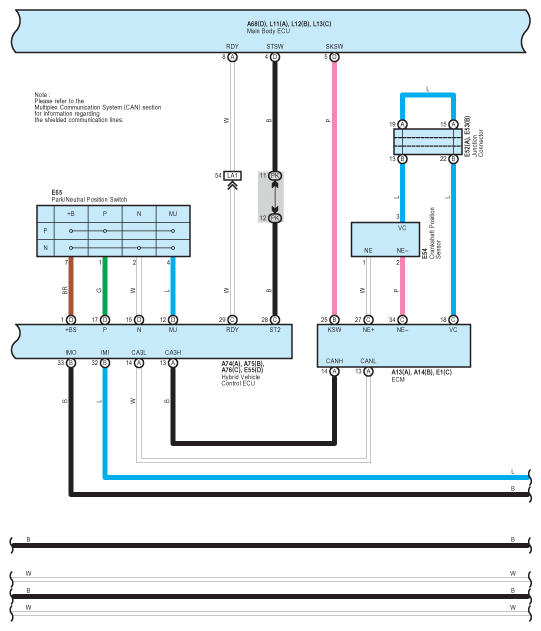

Fig 9: Smart Access System With Push-Button Start - Circuit Diagram (9 Of 24)

G07565857

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

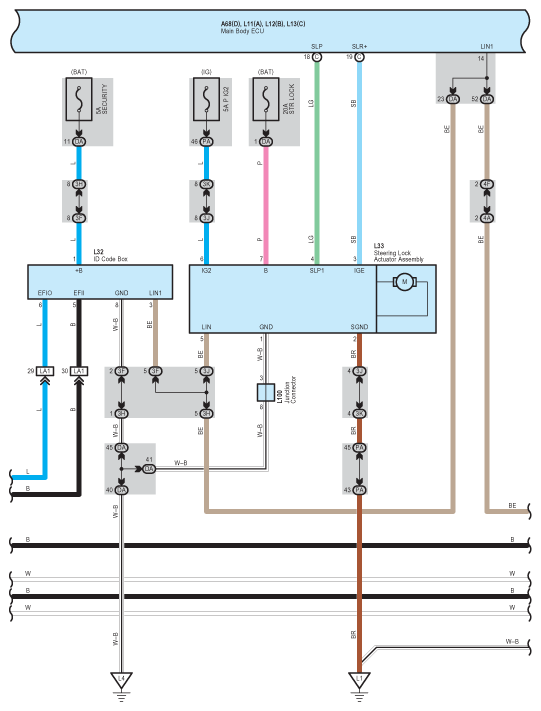

Fig 10: Smart Access System With Push-Button Start - Circuit Diagram (10 Of 24)

G07565858

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

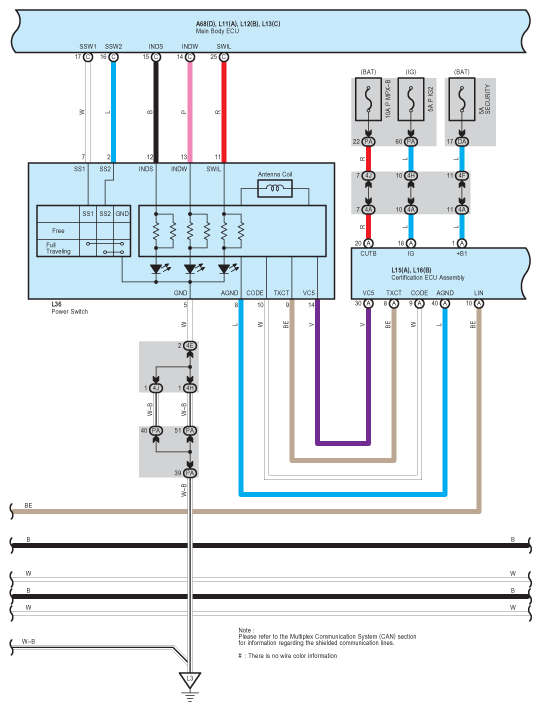

Fig 11: Smart Access System With Push-Button Start - Circuit Diagram (11 Of 24)

G07565859

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

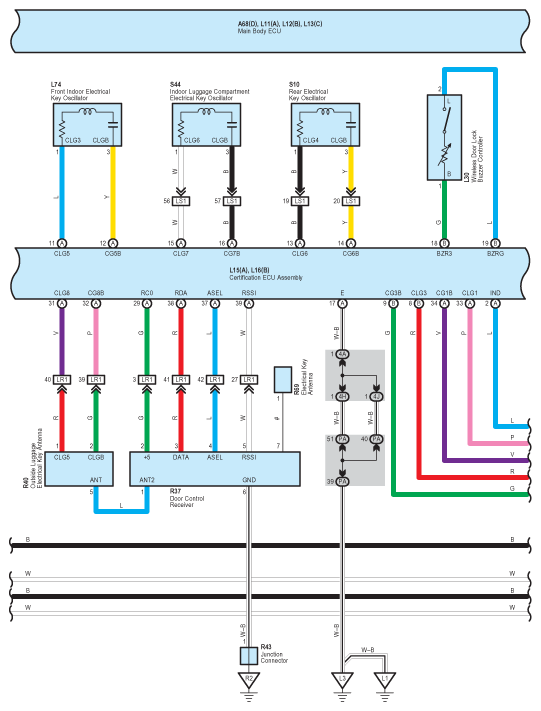

Fig 12: Smart Access System With Push-Button Start - Circuit Diagram (12 Of 24)

G07565860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

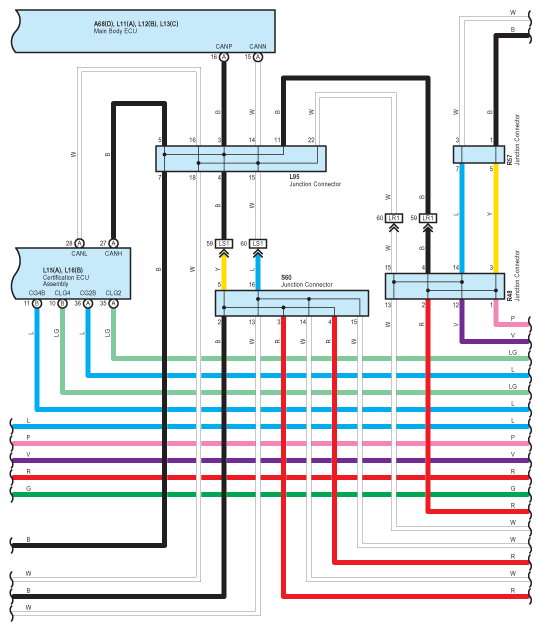

Fig 13: Smart Access System With Push-Button Start - Circuit Diagram (13 Of 24)

G07565861

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

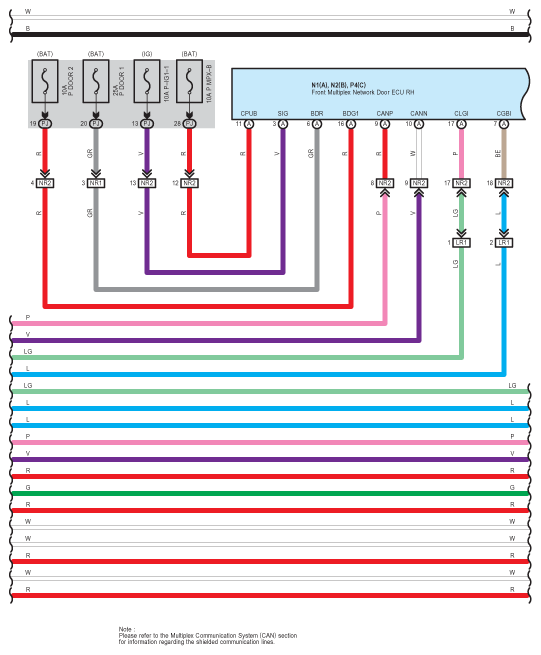

Fig 14: Smart Access System With Push-Button Start - Circuit Diagram (14 Of 24)

G07565862

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

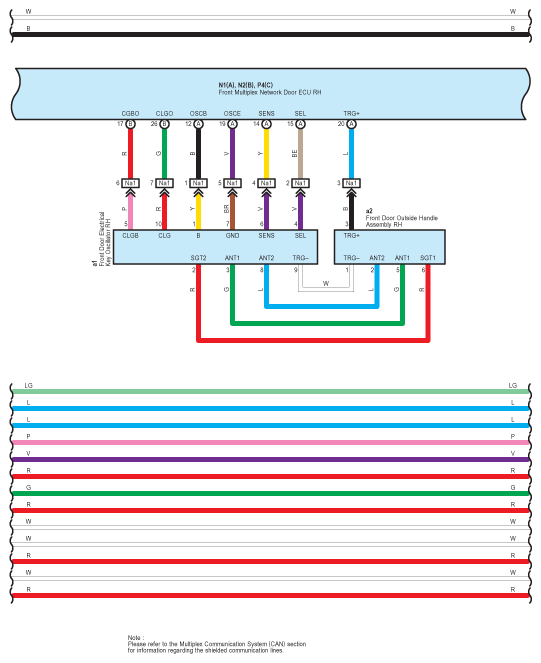

Fig 15: Smart Access System With Push-Button Start - Circuit Diagram (15 Of 24)

G07565863

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

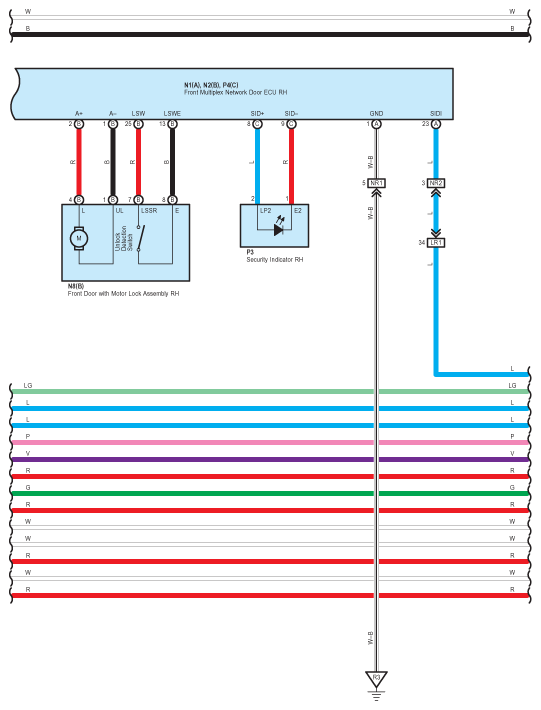

Fig 16: Smart Access System With Push-Button Start - Circuit Diagram (16 Of 24)

G07565864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

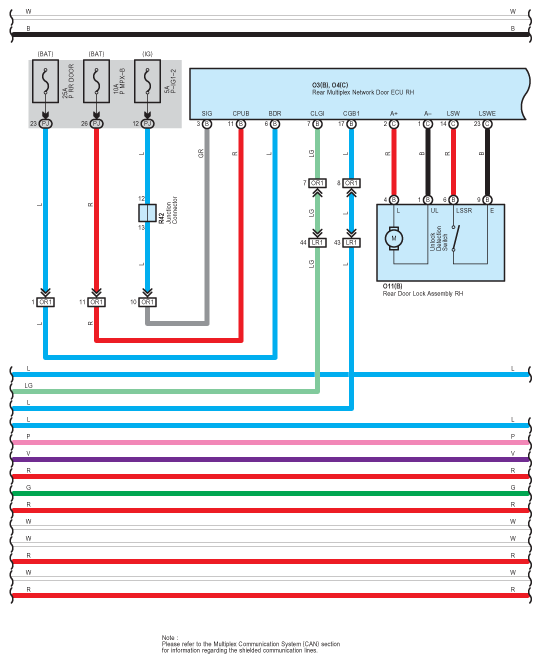

Fig 17: Smart Access System With Push-Button Start - Circuit Diagram (17 Of 24)

G07565865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

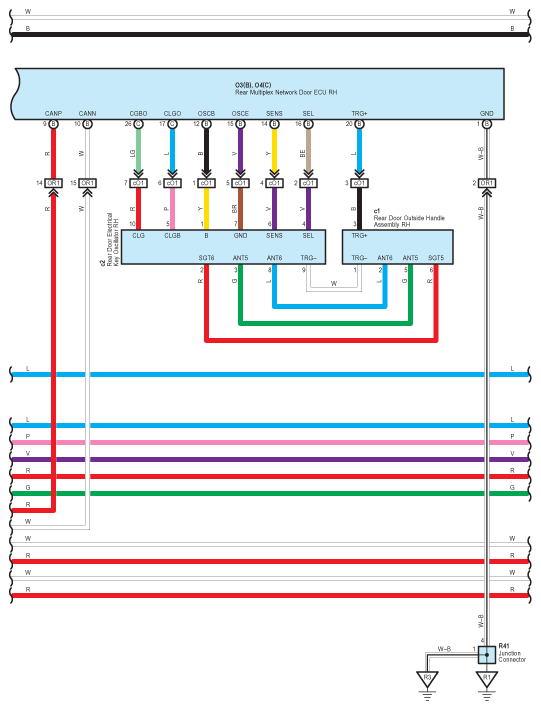

Fig 18: Smart Access System With Push-Button Start - Circuit Diagram (18 Of 24)

G07565866

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

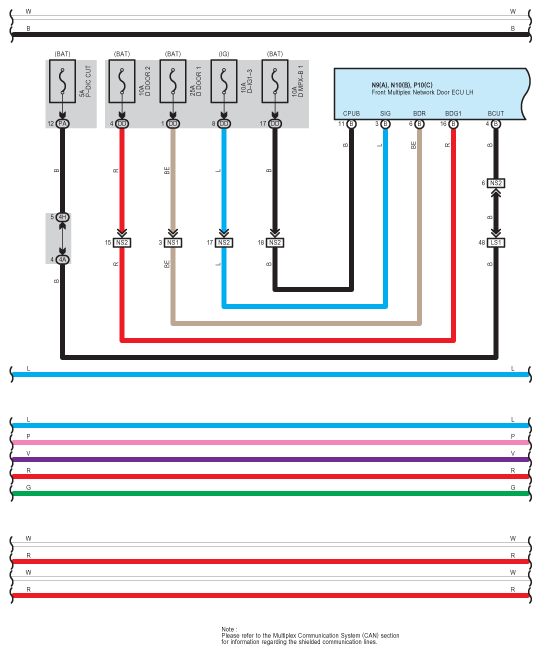

Fig 19: Smart Access System With Push-Button Start - Circuit Diagram (19 Of 24)

G07565867

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

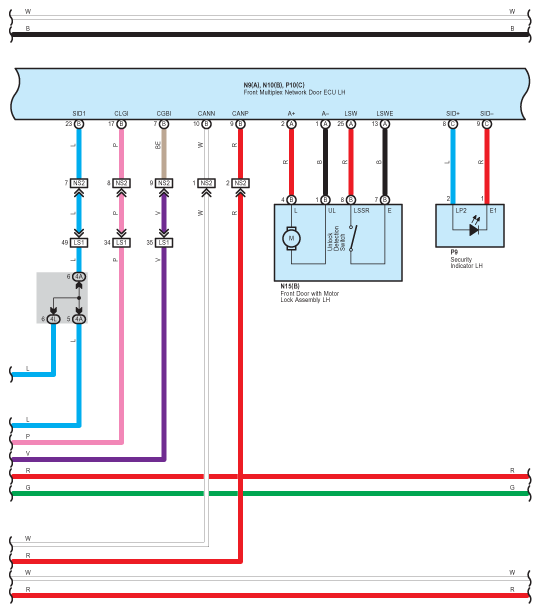

Fig 20: Smart Access System With Push-Button Start - Circuit Diagram (20 Of 24)

G07565868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

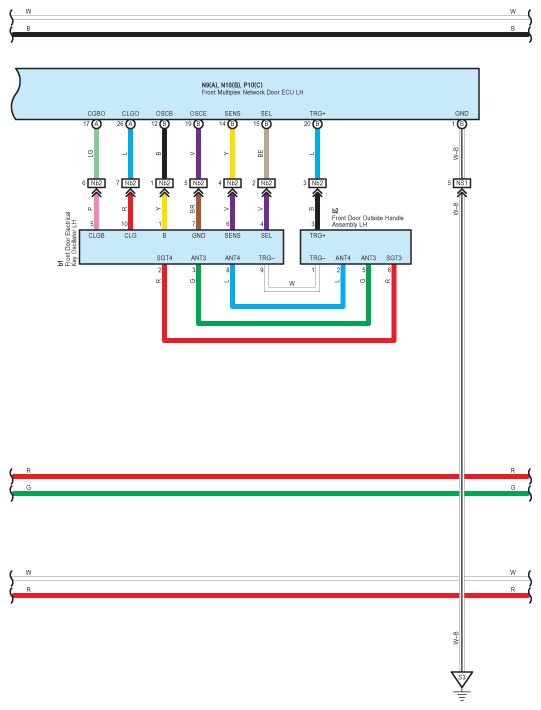

Fig 21: Smart Access System With Push-Button Start - Circuit Diagram (21 Of 24)

G07565869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

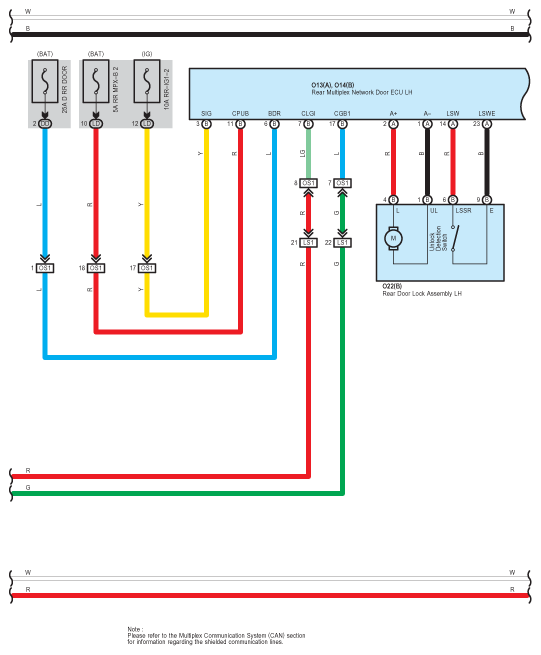

Fig 22: Smart Access System With Push-Button Start - Circuit Diagram (22 Of 24)

G07565870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

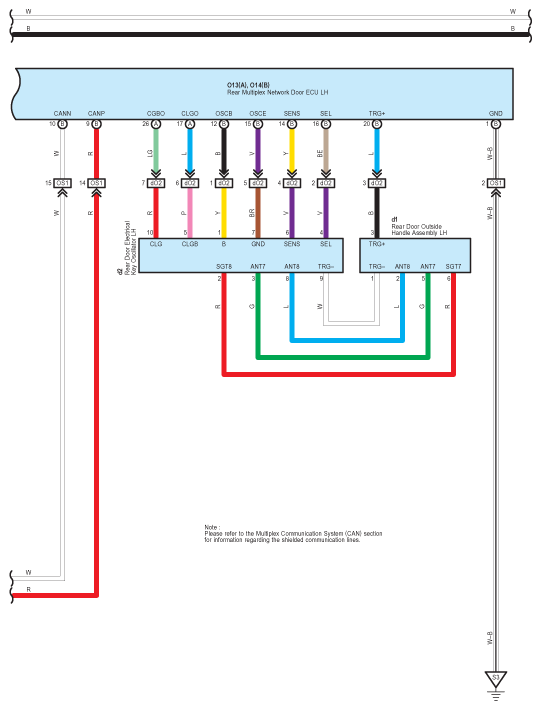

Fig 23: Smart Access System With Push-Button Start - Circuit Diagram (23 Of 24)

G07565871

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

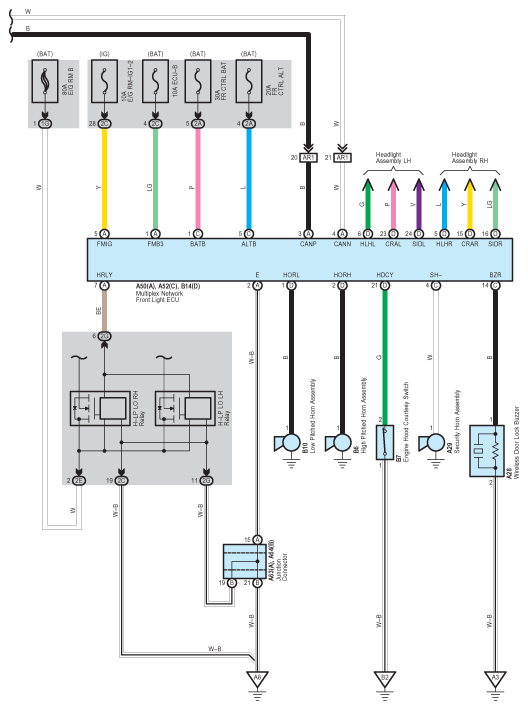

Fig 24: Smart Access System With Push-Button Start - Circuit Diagram (24 Of 24)

G07565872

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
