VGRS System: Notes

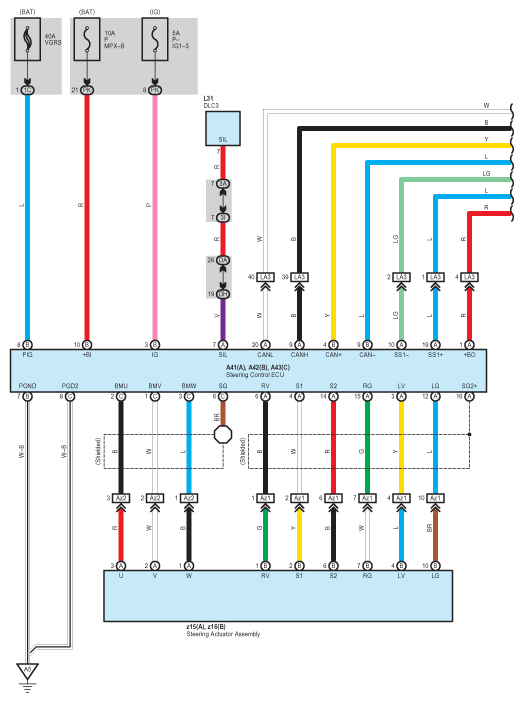

Fig 1: VGRS System - Circuit Diagram (1 Of 5)
G07566125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

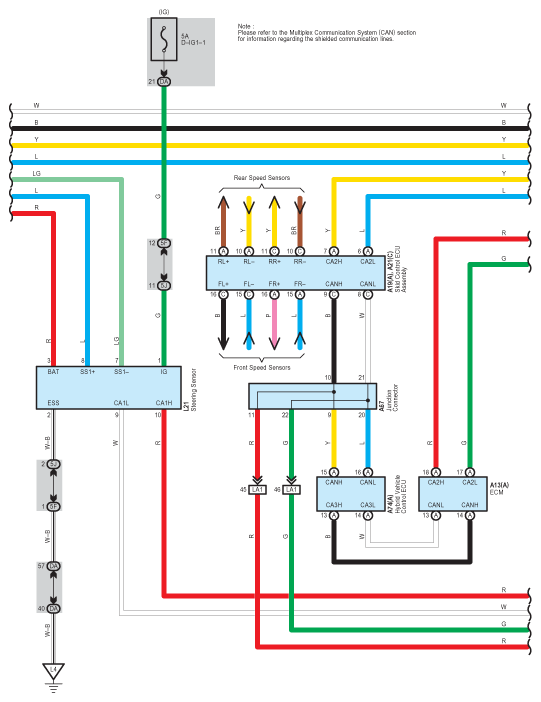

Fig 2: VGRS System - Circuit Diagram (2 Of 5)
G07566126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

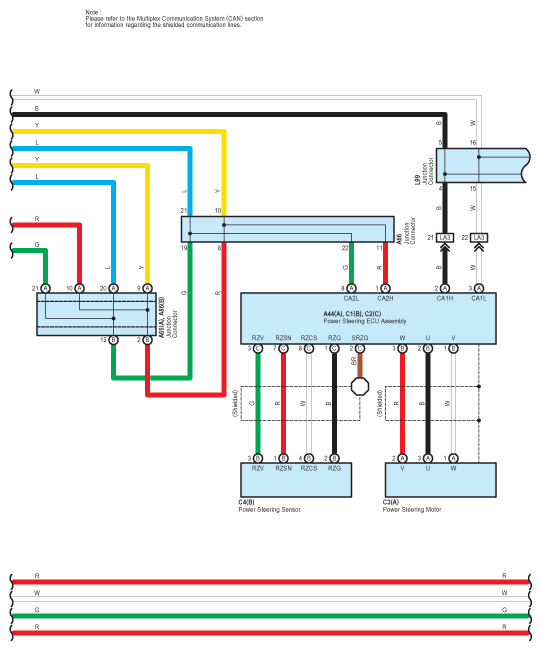

Fig 3: VGRS System - Circuit Diagram (3 Of 5)
G07566127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

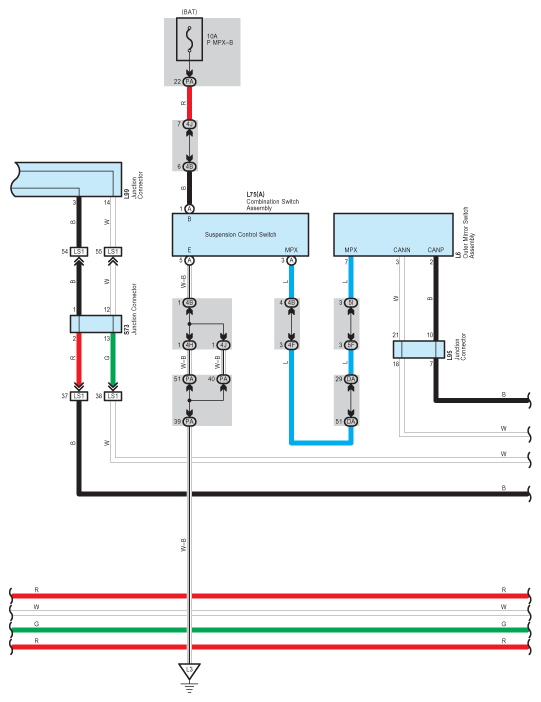

Fig 4: VGRS System - Circuit Diagram (4 Of 5)
G07566128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

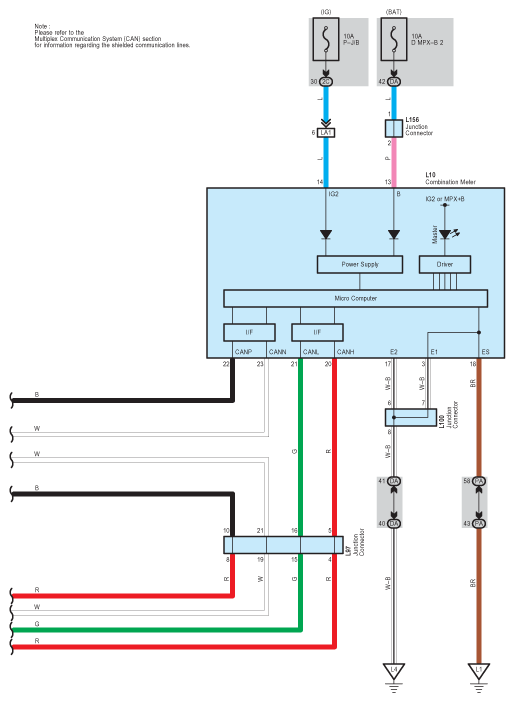

Fig 5: VGRS System - Circuit Diagram (5 Of 5)
G07566129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
