Air Fuel Ratio Sensor: Removal: Removal

HINT:

When viewed from the rear of the engine assembly, Bank 1 is on the left side and Bank 2 is on the right side.

1. REMOVE ENGINE AND TRANSMISSION
   1. Remove the engine and transmission. Refer to REMOVAL .
2. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
   1. Disconnect the sensor connector.

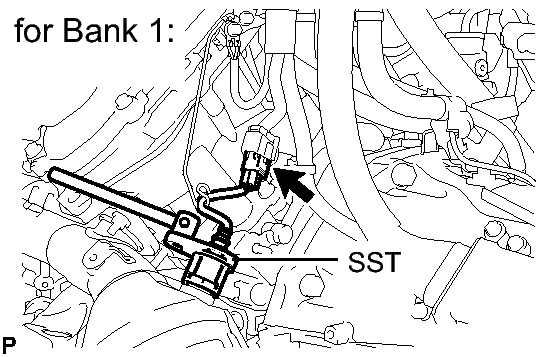

      Fig 1: Locating Sensor Connector (For Bank 1)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Using SST, remove the sensor from the exhaust manifold LH.
      • SST: 09224-00010
3. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
   1. Disconnect the sensor connector.

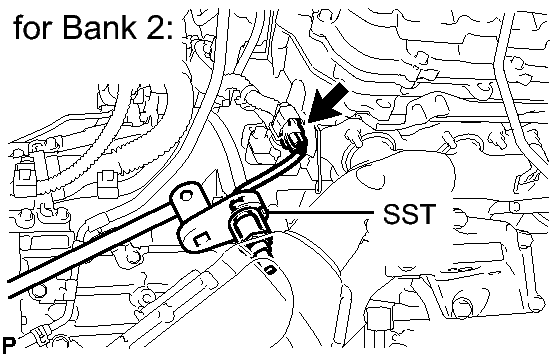

      Fig 2: Locating Sensor Connector (For Bank 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Using SST, remove the sensor from the exhaust manifold RH.
      • SST: 09224-00010
