System Diagram

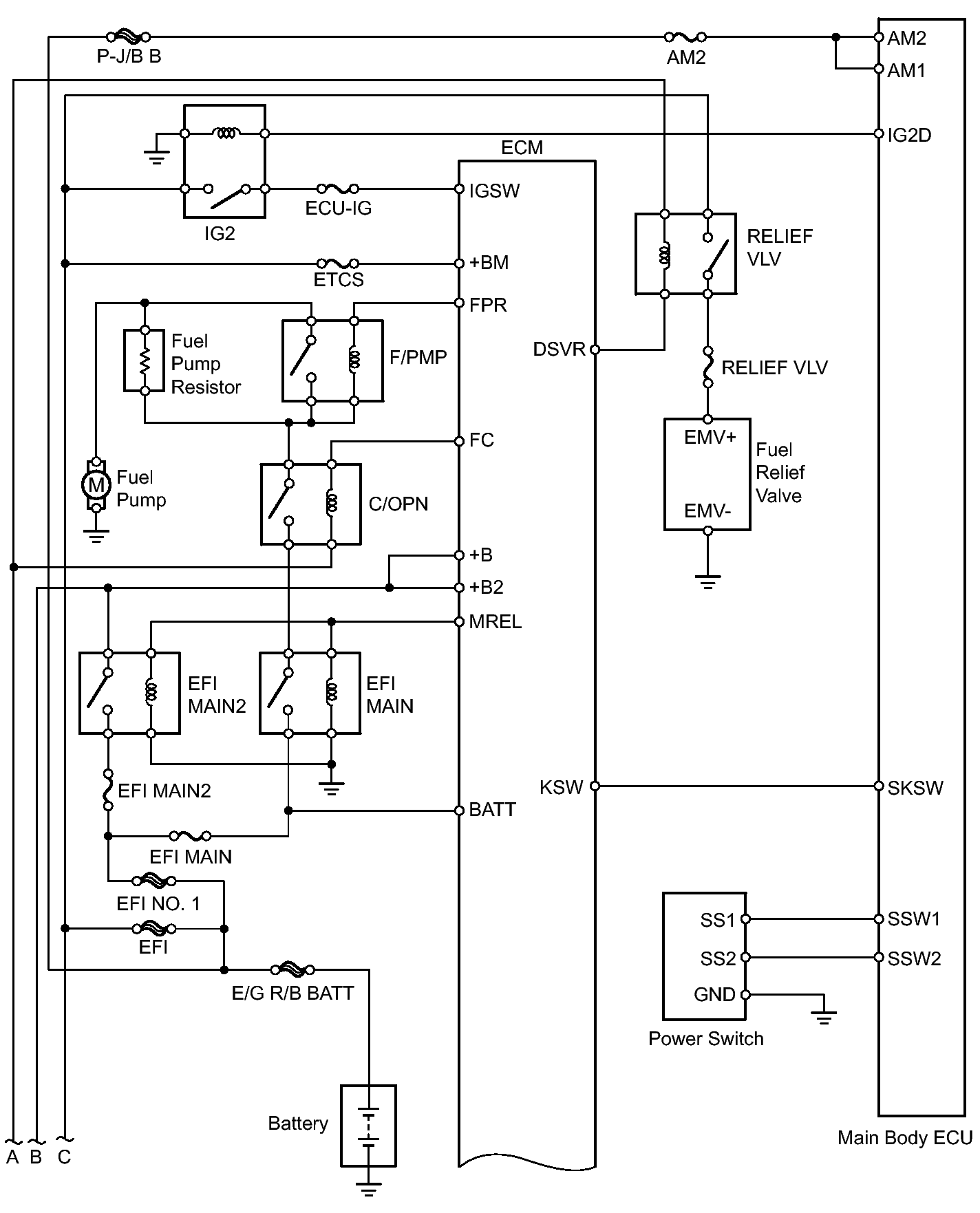

Fig 1: SFI System Wiring Diagram (1 Of 7)
GTY358532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

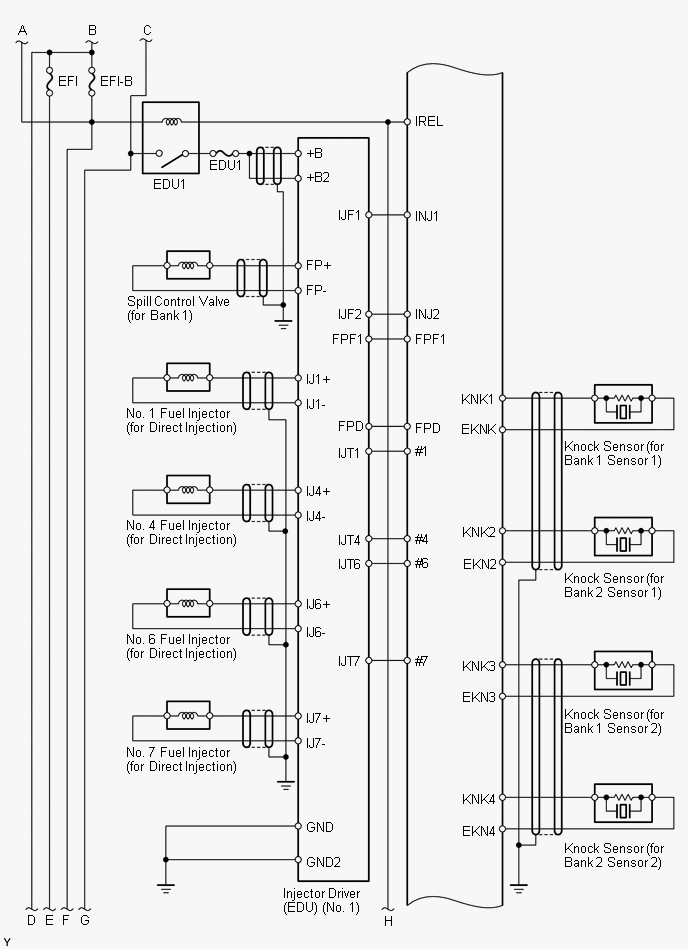

Fig 2: SFI System Wiring Diagram (2 Of 7)
GTY256143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

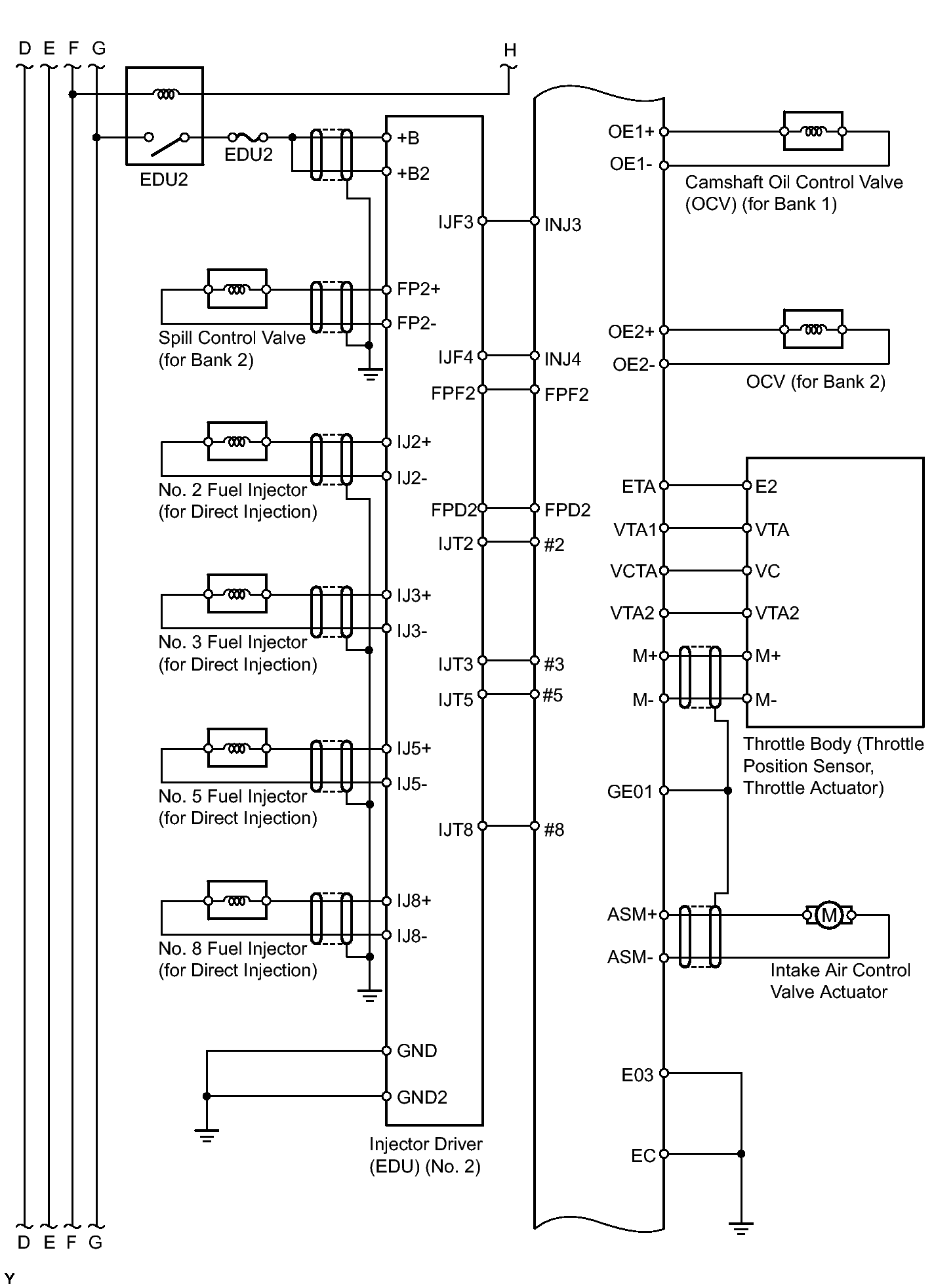

Fig 3: SFI System Wiring Diagram (3 Of 7)
GTY351689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

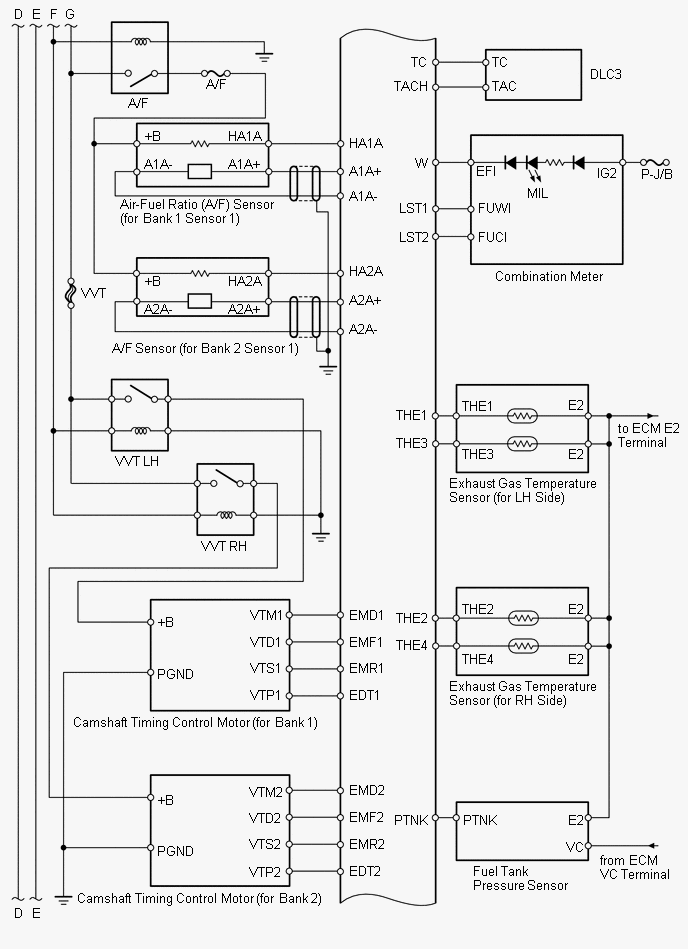

Fig 4: SFI System Wiring Diagram (4 Of 7)
GTY354405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

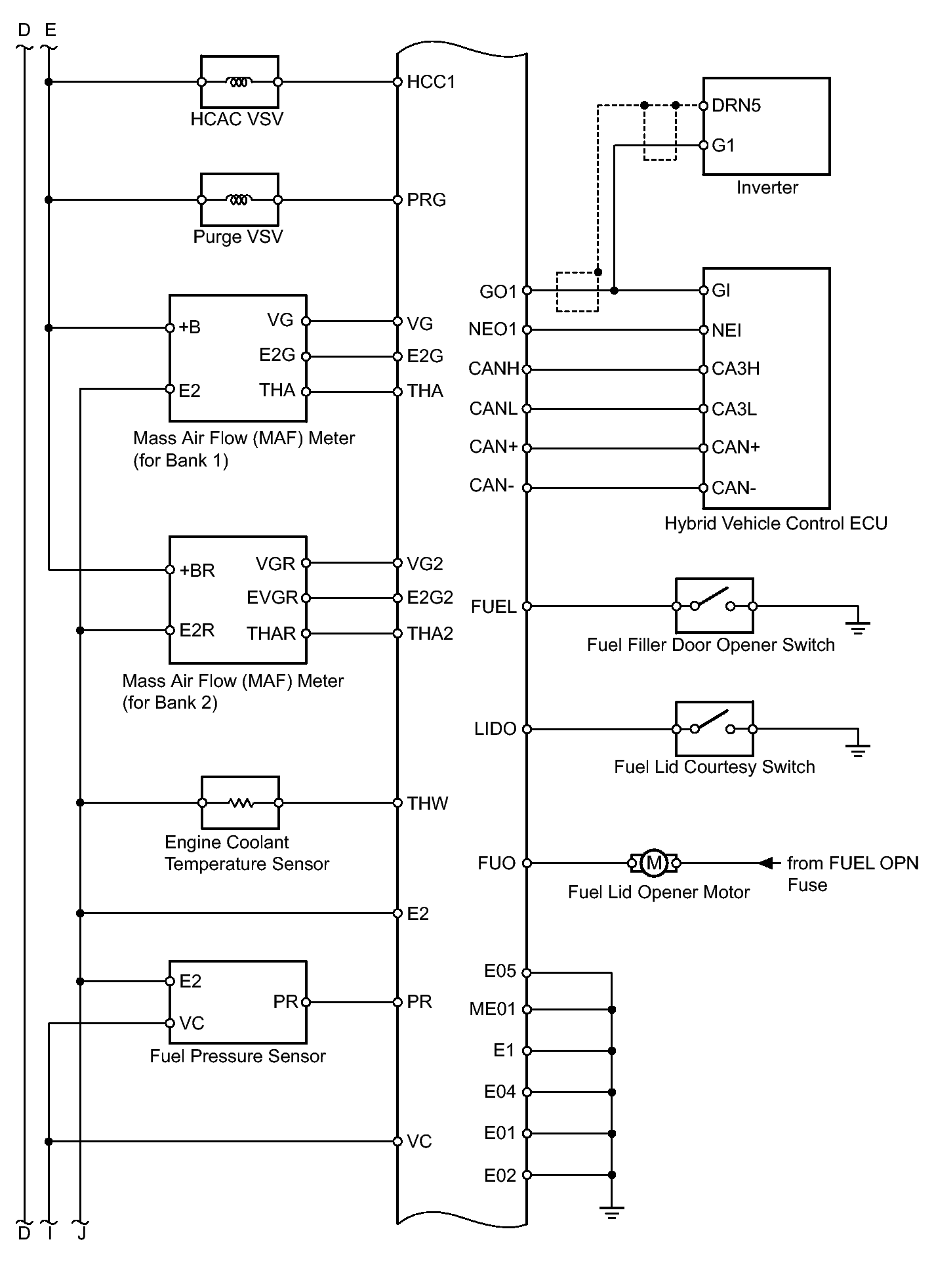

Fig 5: SFI System Wiring Diagram (5 Of 7)
GTY268736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

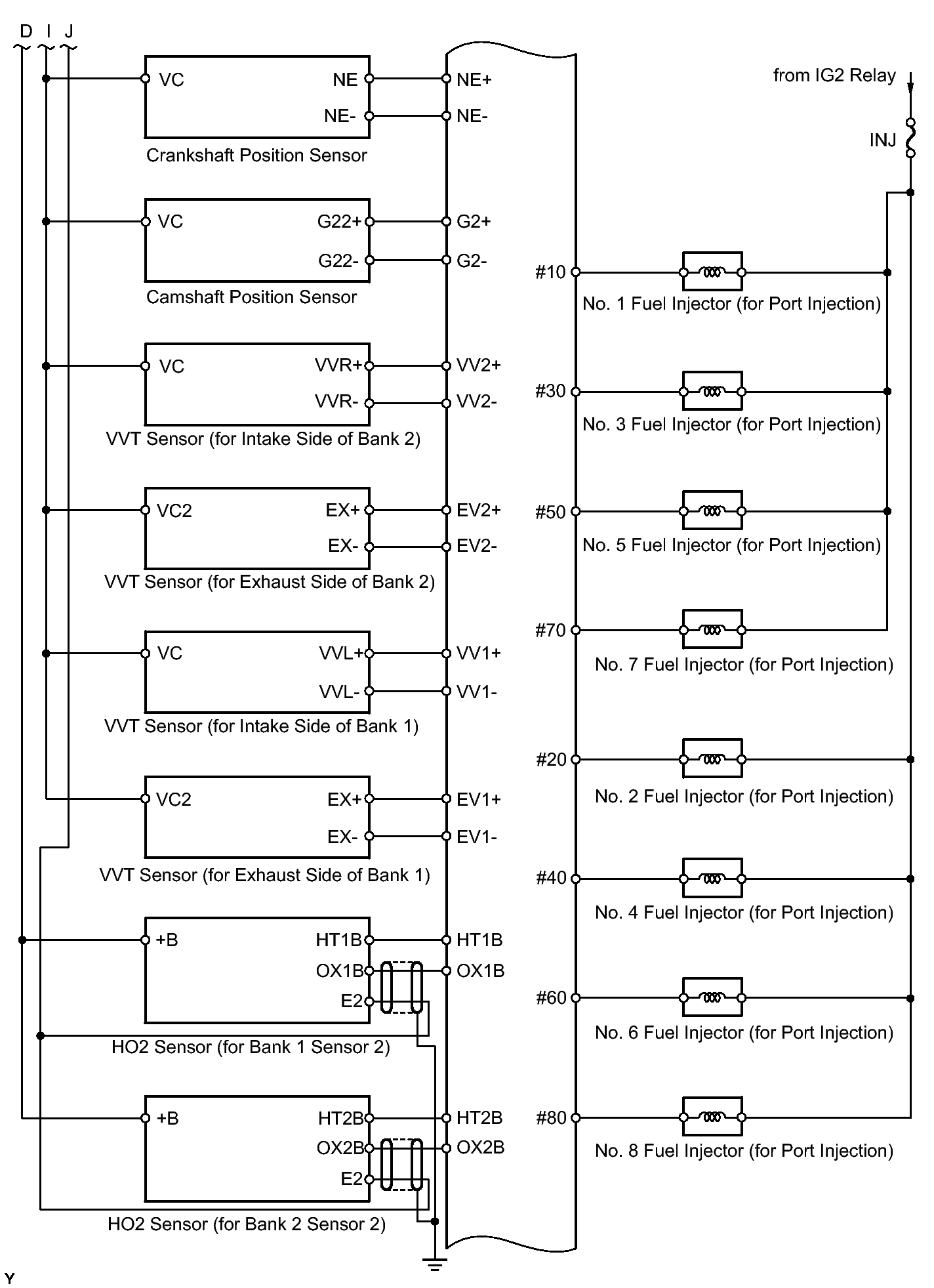

Fig 6: SFI System Wiring Diagram (6 Of 7)
GTY122265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

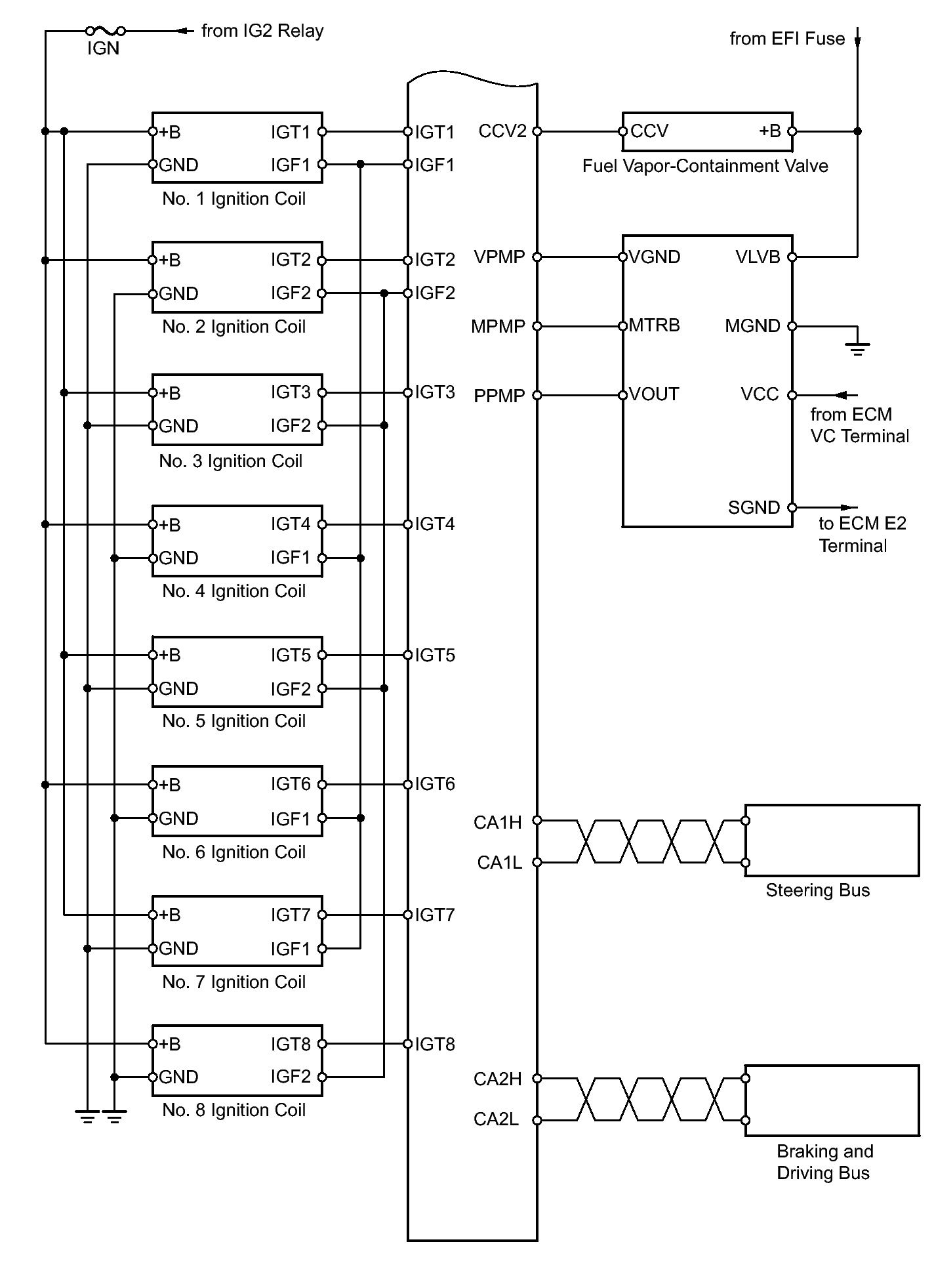

Fig 7: SFI System Wiring Diagram (7 Of 7)
GTY260865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
