Installation (08/2011 - ): Installation

INSTALL REAR SPEED SENSOR LH
1. Install the speed sensor with the nut.

  Fig 1: Locating Rear Speed Sensor Nut (LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)
  NOTE:
  - Make sure there are no pieces of iron or other foreign matter attached to the sensor tip.
  - While inserting the speed sensor into the knuckle hole, do not strike or damage the sensor tip.
  - After installing the speed sensor, make sure there is no clearance or foreign matter between the sensor stay part and the knuckle.
  - Make sure there is no foreign matter attached to the speed sensor rotor.
INSTALL REAR SPEED SENSOR RH
1. Install the speed sensor with the nut.

  Fig 2: Locating Rear Speed Sensor Nut (RH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)
  NOTE:
  - Make sure there are no pieces of iron or other foreign matter attached to the sensor tip.
  - While inserting the speed sensor into the knuckle hole, do not strike or damage the sensor tip.
  - After installing the speed sensor, make sure there is no clearance or foreign matter between the sensor stay part and the knuckle.
  - Make sure there is no foreign matter attached to the speed sensor rotor.
INSTALL SKID CONTROL SENSOR WIRE
1. Install the sensor clamp with the bolt.

  Fig 3: Identifying Sensor Clamp Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

  NOTE:
  Make sure the clamp rotation stopper touches the installation position.
2. Connect the connector.
  NOTE:
  - Securely insert the connector.
  - When connecting the connector, do not twist the wire harness.

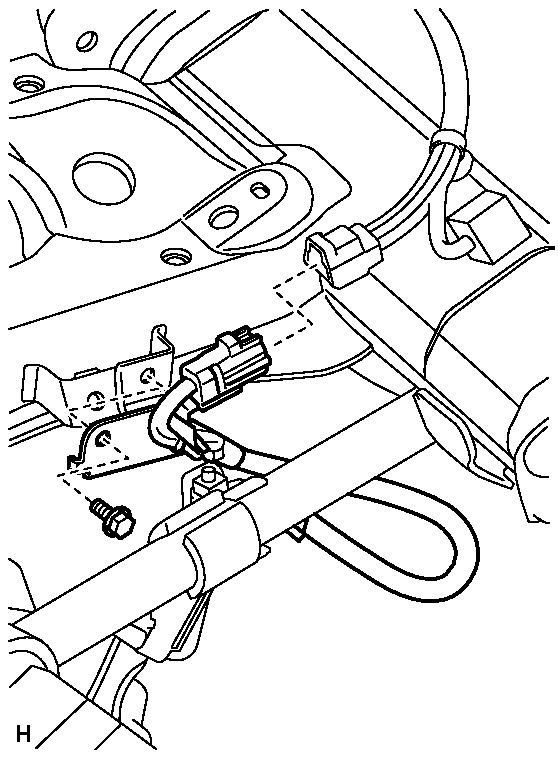

3. Install the sensor clamp with the bolt.

  Fig 4: Identifying Sensor Clamp With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

  NOTE:
  Make sure the clamp rotation stopper touches the installation position.
4. Connect the speed sensor RH connector.

  Fig 5: Locating Speed Sensor Connector (RH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Securely connect the connector.
  - When connecting the connector, do not twist the wire harness.

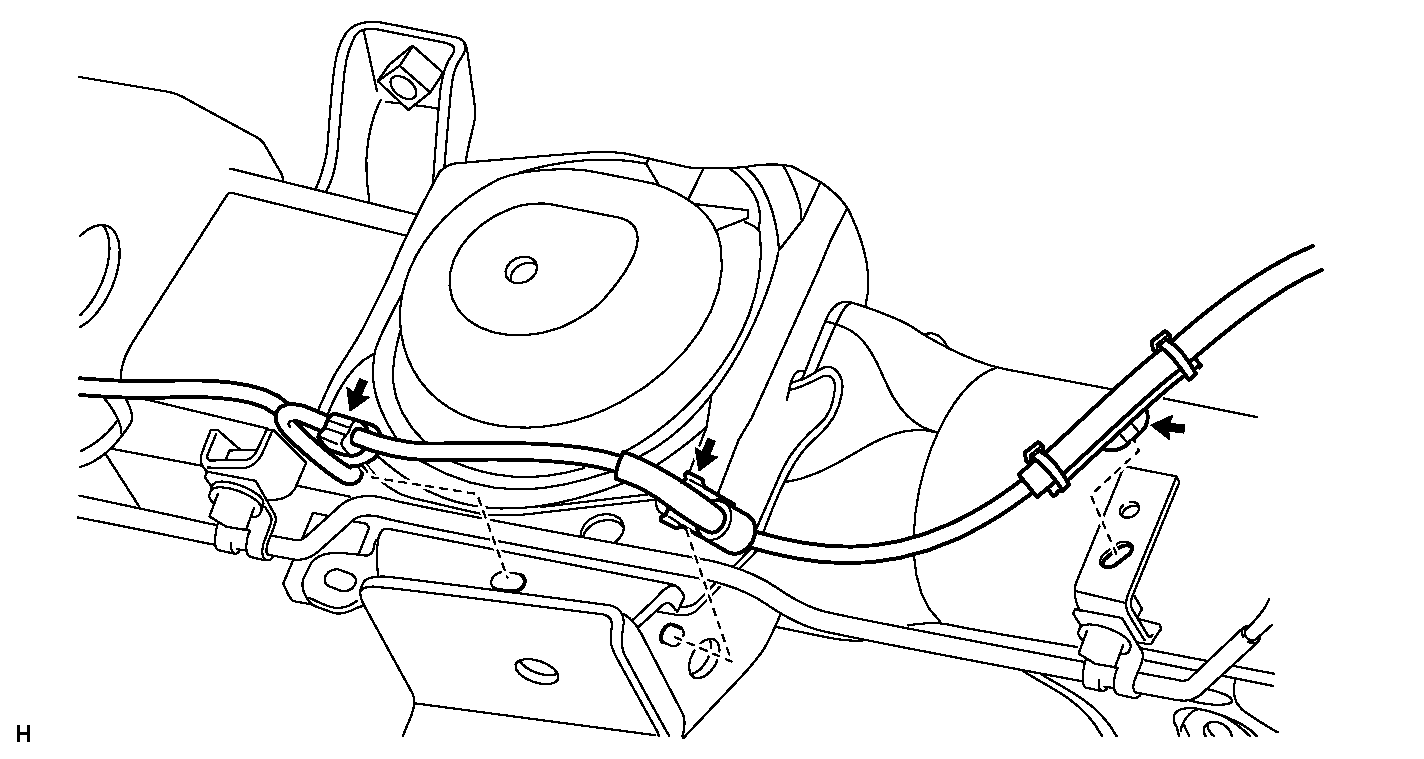

5. Attach the 3 clamps.

  Fig 6: Locating Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - When attaching the clamps, do not twist the wire harness.
  - When attaching the clamps, securely insert them as shown in the illustration.

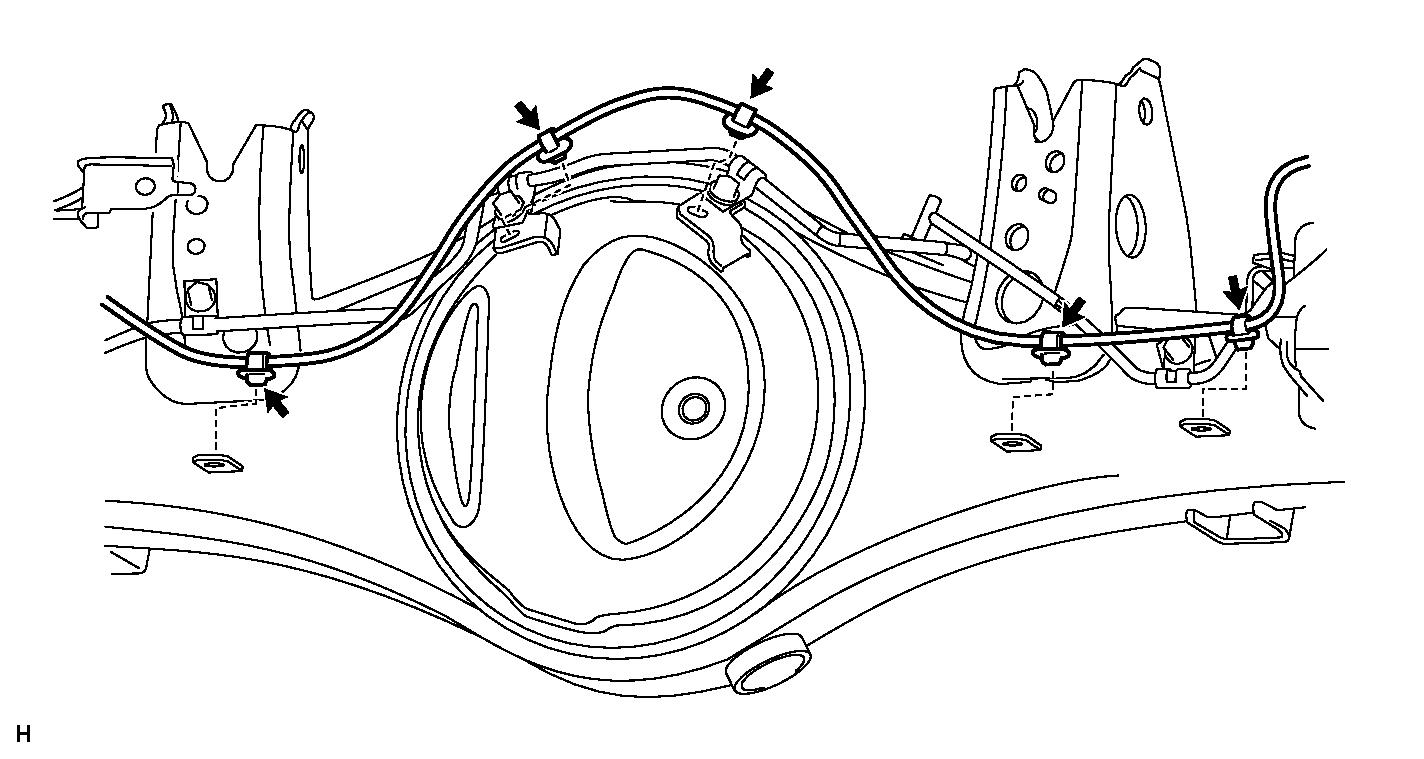

6. Attach the 5 clamps.

  Fig 7: Locating Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - When attaching the clamps, do not twist the wire harness.
  - When attaching the clamps, securely insert them as shown in the illustration.

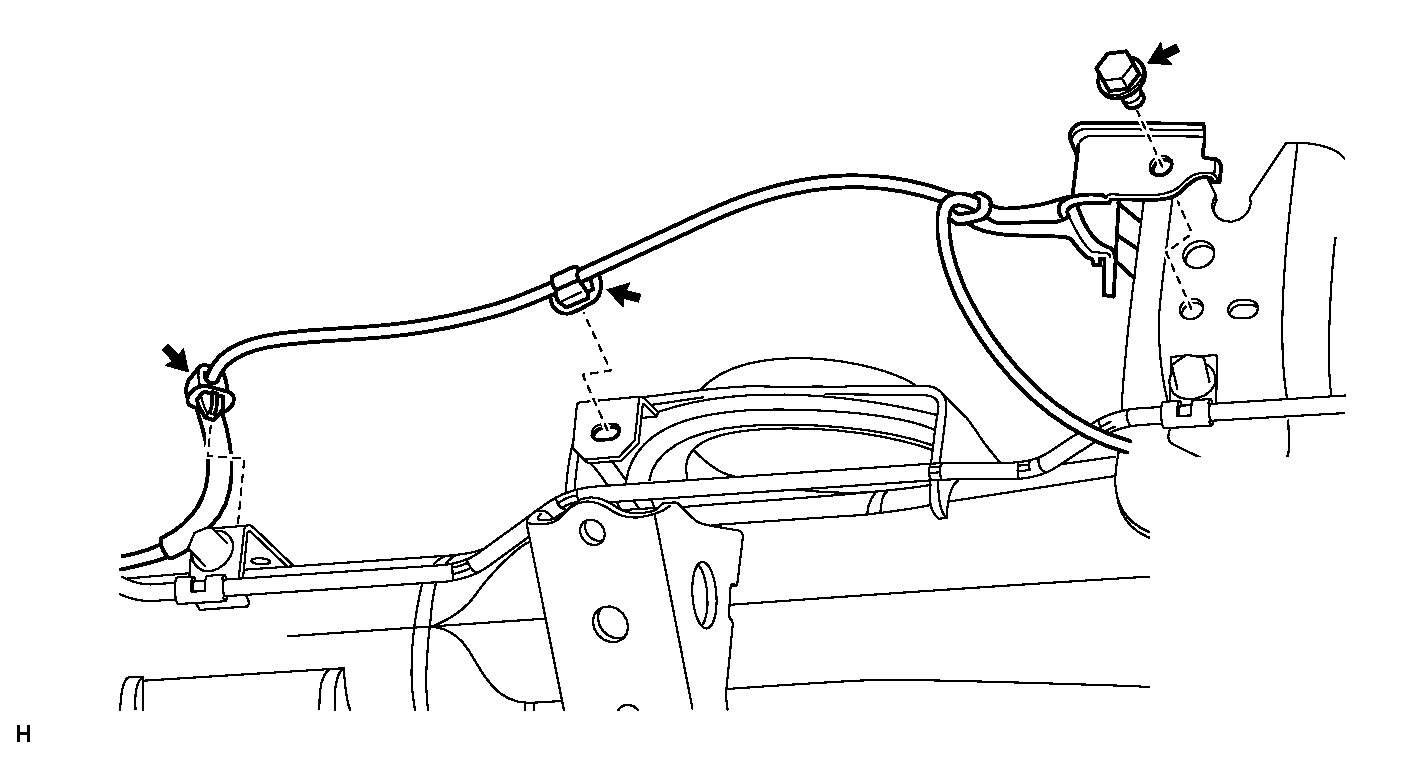

7. Attach the 2 clamps and install the sensor clamp with the bolt.
  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

  Fig 8: Locating Sensor Clamp With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Connect the speed sensor LH connector.

  Fig 9: Locating Speed Sensor Connector (LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Securely connect the connector.
  - When connecting the connector, do not twist the wire harness.
INSTALL REAR WHEEL
Torque: 131 N*m (1336 kgf*cm, 97 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
CHECK SPEED SENSOR SIGNAL
1. Check the speed sensor signal. Refer to TEST MODE PROCEDURE .
