Front Fog Light: Notes

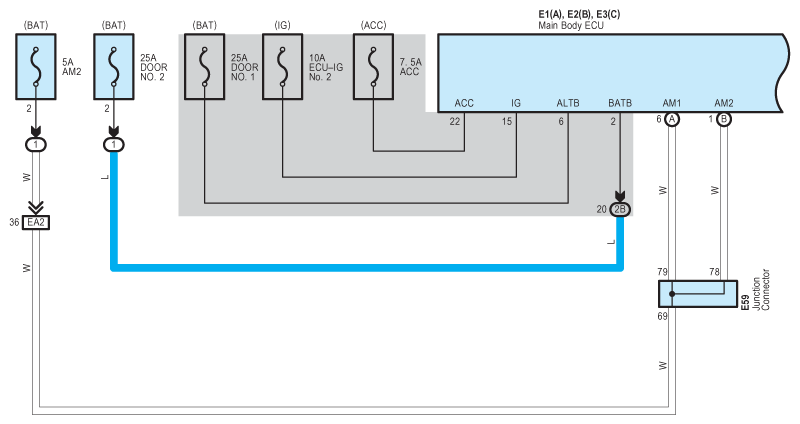

Fig 1: Front Fog Light - Circuit Diagram (1 Of 4)
G07575506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

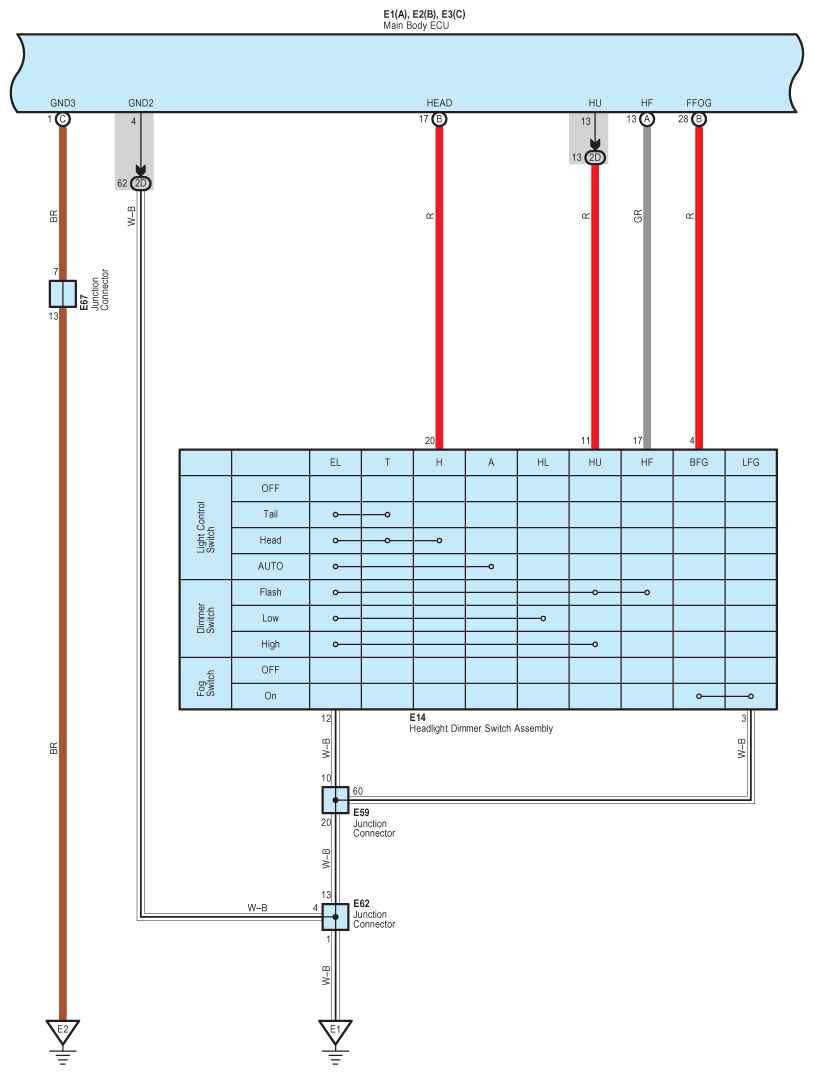

Fig 2: Front Fog Light - Circuit Diagram (2 Of 4)
G07575507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

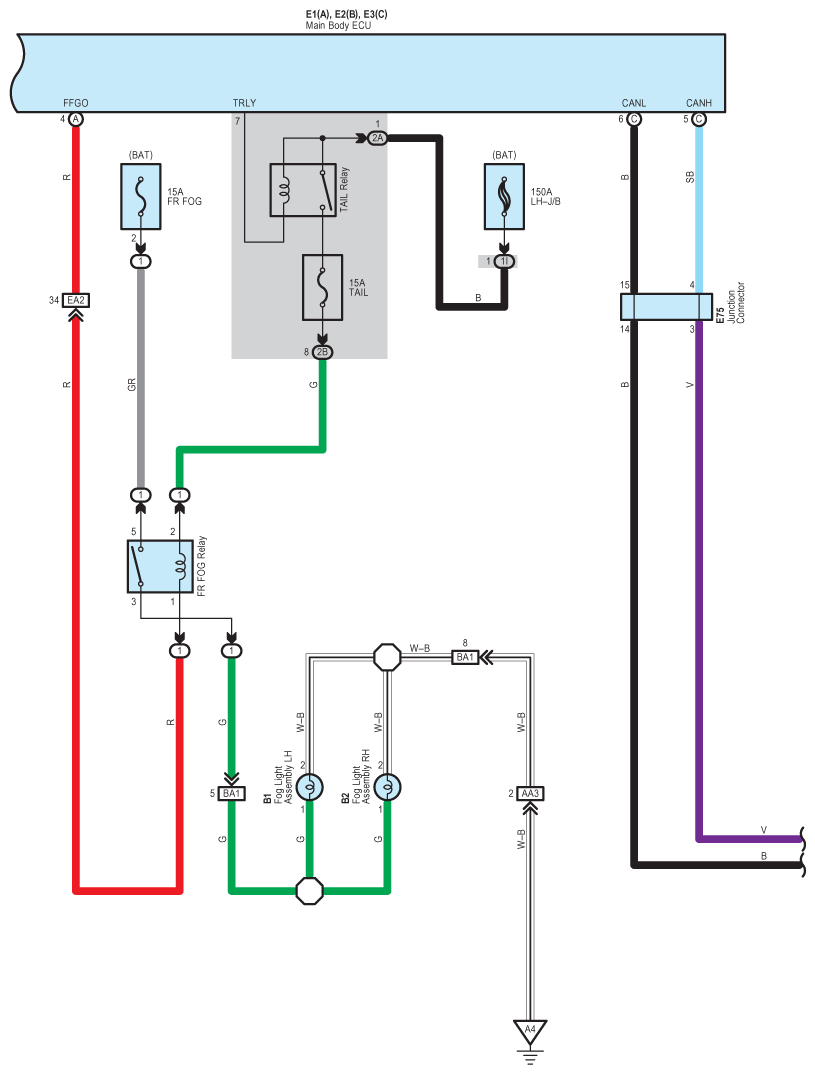

Fig 3: Front Fog Light - Circuit Diagram (3 Of 4)
G07575508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

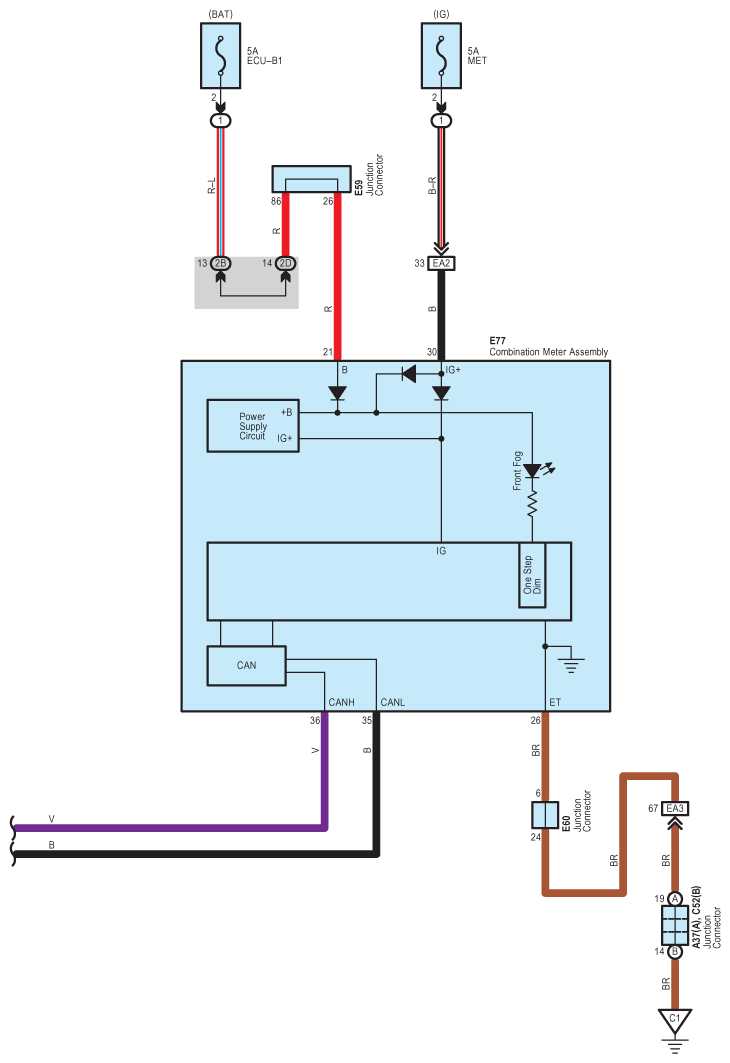

Fig 4: Front Fog Light - Circuit Diagram (4 Of 4)
G07575509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
