Interior Light: Notes

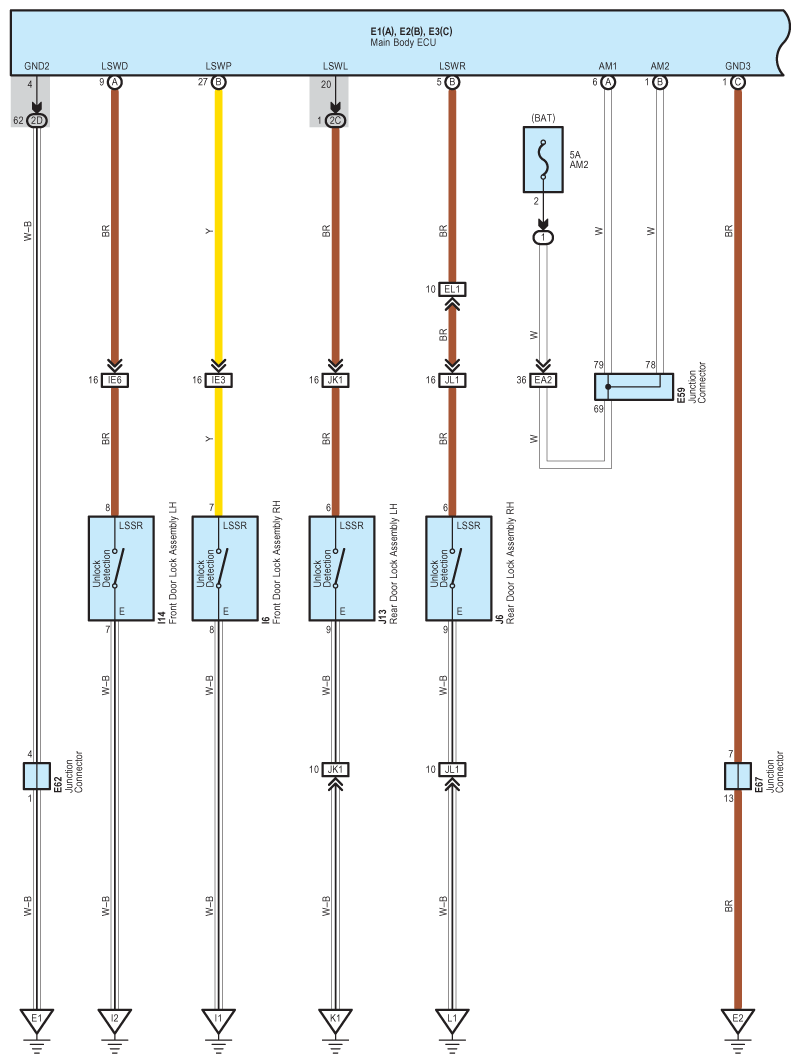

Fig 1: Interior Light - Circuit Diagram (1 Of 10)

G07575512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

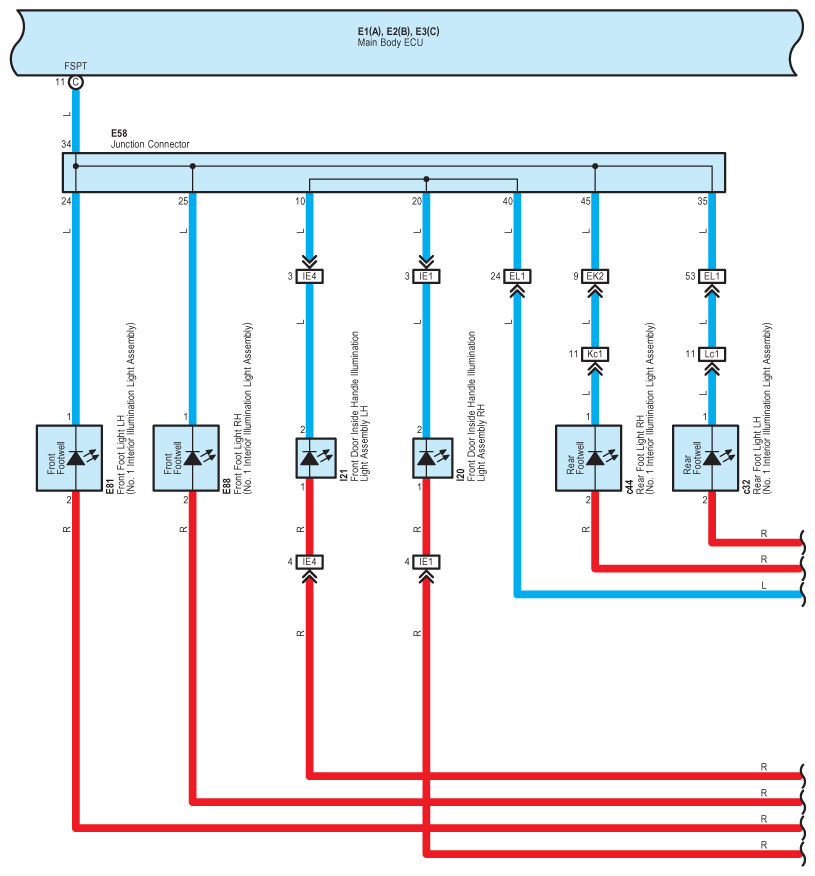

Fig 2: Interior Light - Circuit Diagram (2 Of 10)

G07575513

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Interior Light - Circuit Diagram (3 Of 10)

G07575514

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

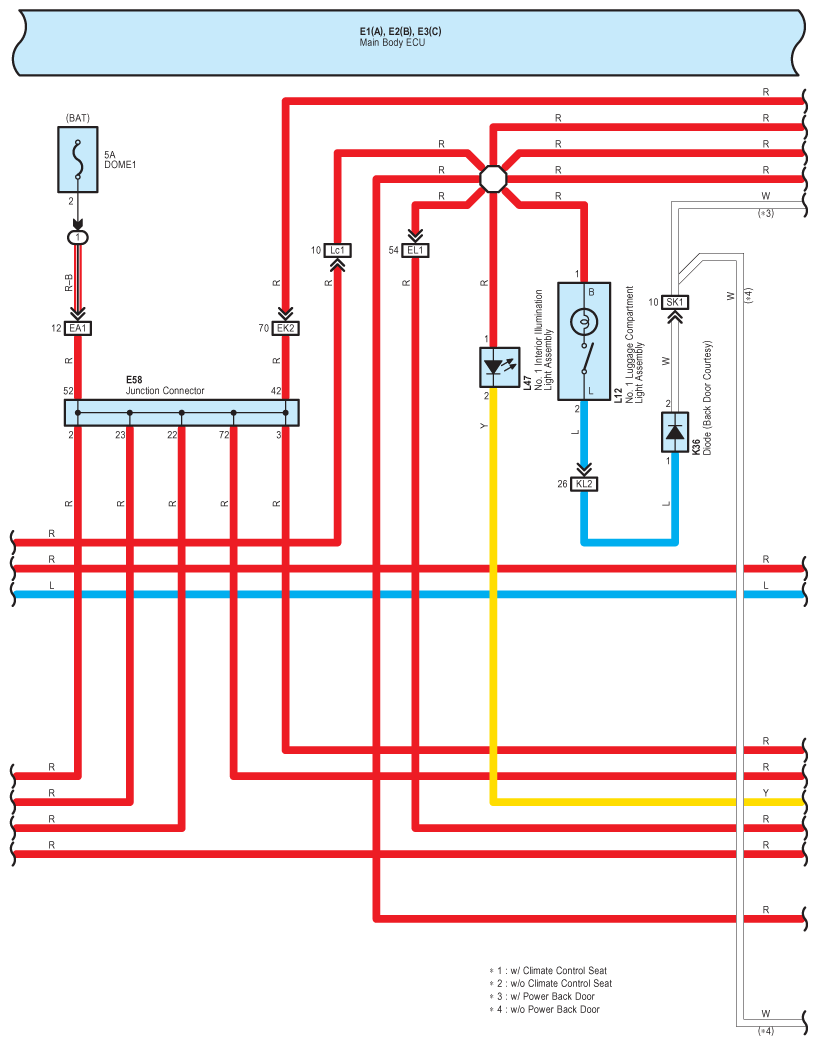

Fig 4: Interior Light - Circuit Diagram (4 Of 10)

G07575515

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

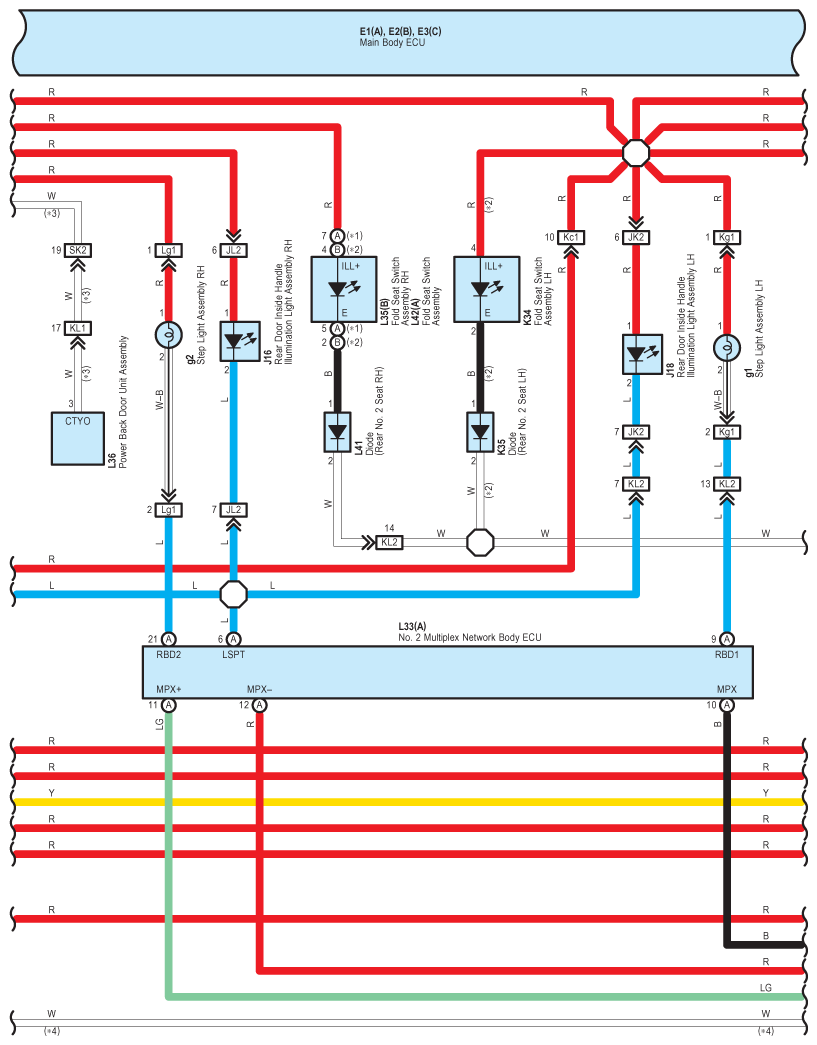

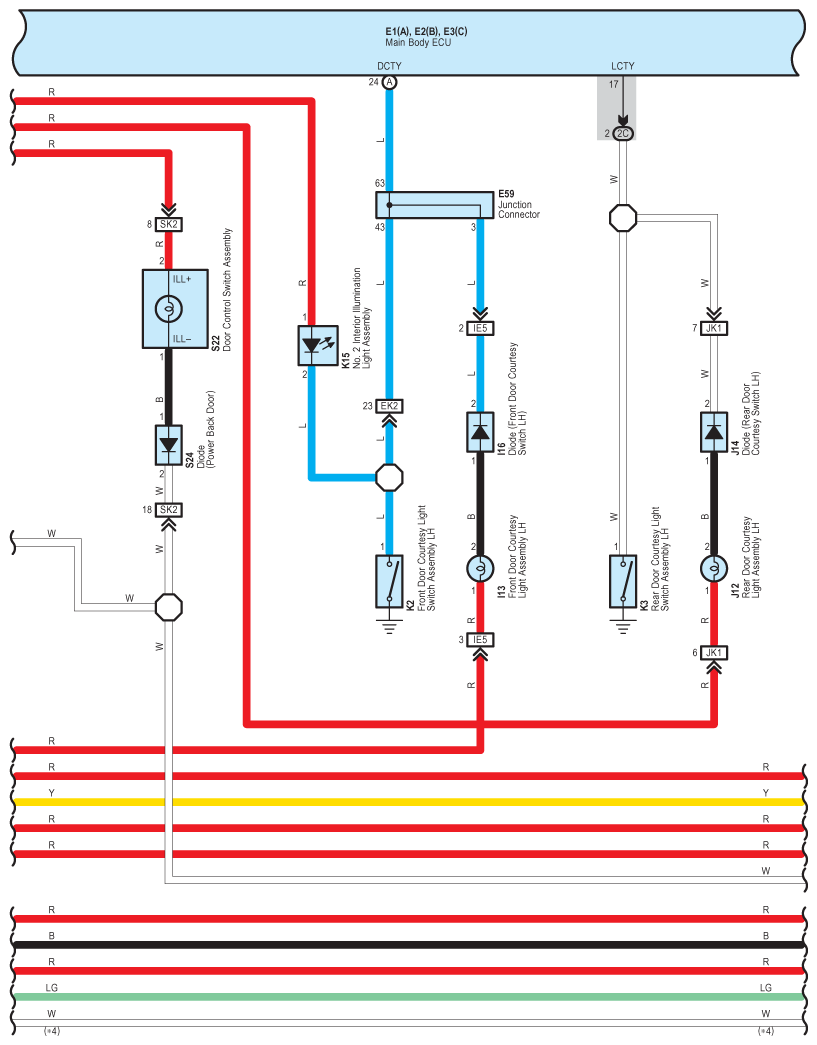

Fig 5: Interior Light - Circuit Diagram (5 Of 10)

G07575516

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

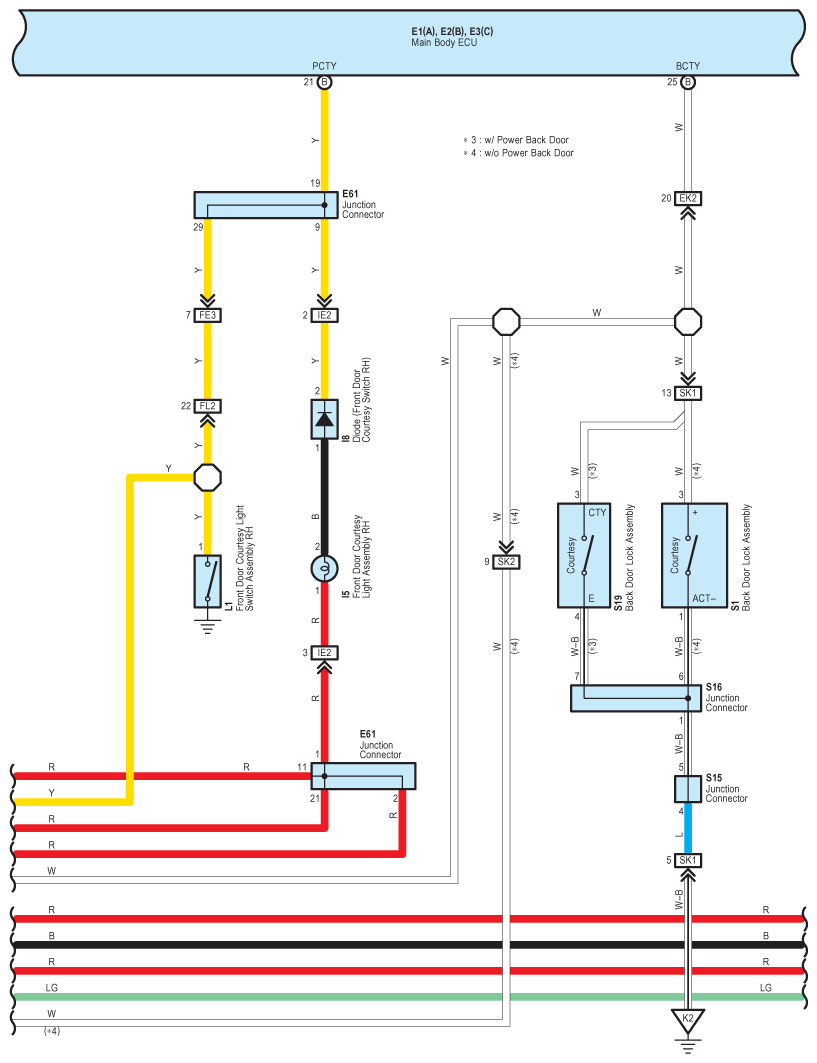

Fig 6: Interior Light - Circuit Diagram (6 Of 10)

G07575517

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

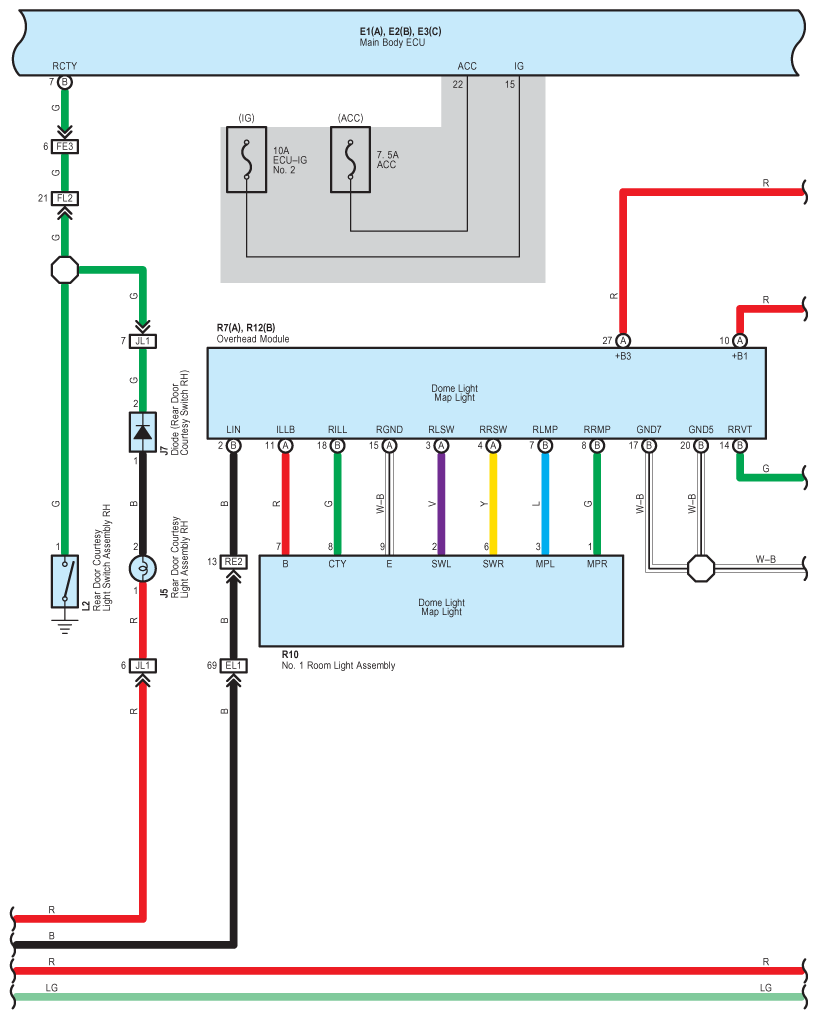

Fig 7: Interior Light - Circuit Diagram (7 Of 10)

G07575518

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

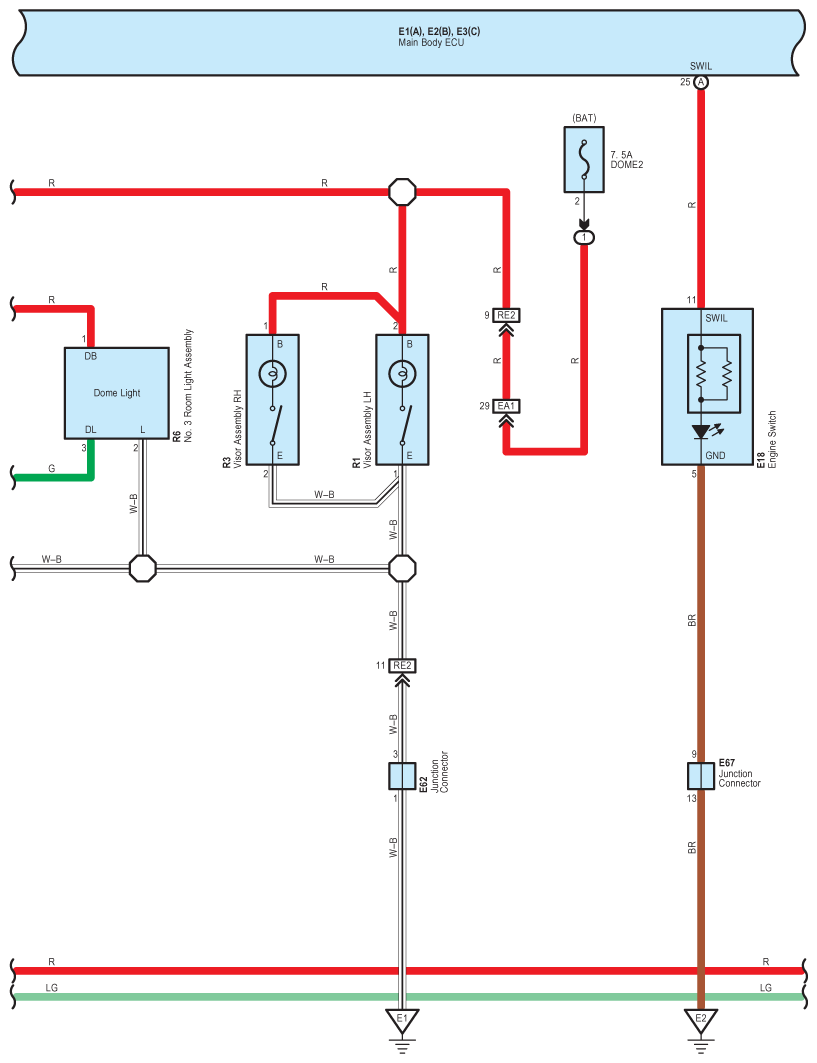

Fig 8: Interior Light - Circuit Diagram (8 Of 10)

G07575519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

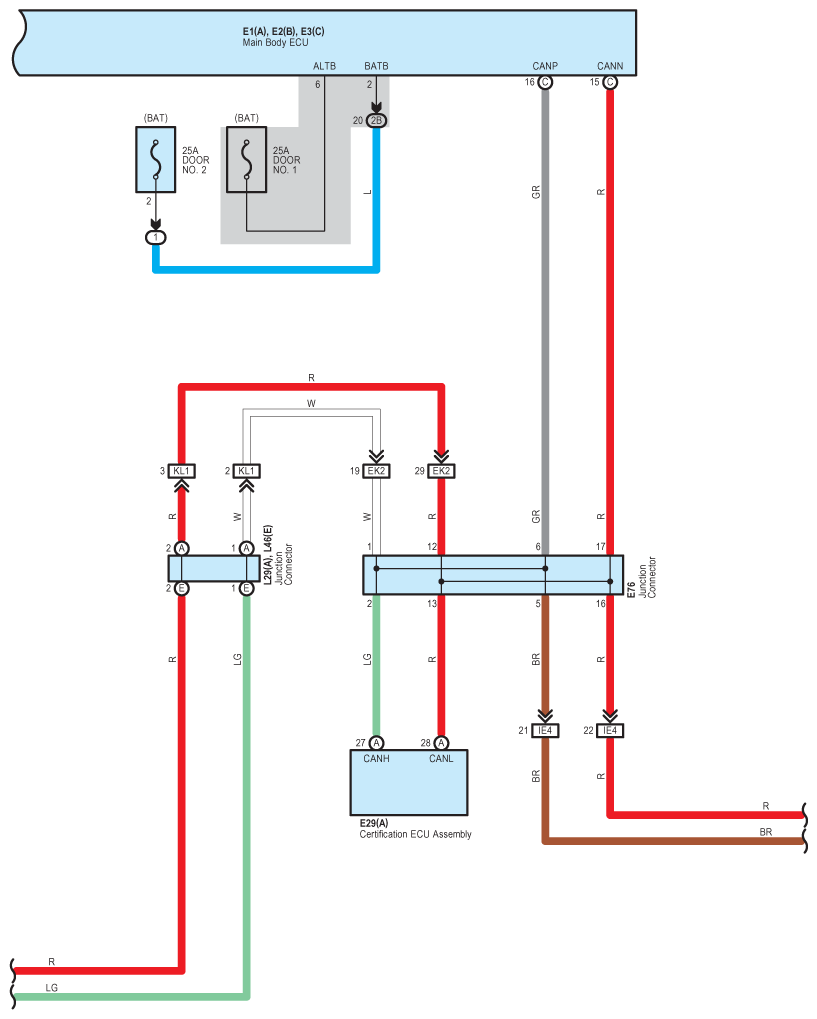

Fig 9: Interior Light - Circuit Diagram (9 Of 10)

G07575520

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

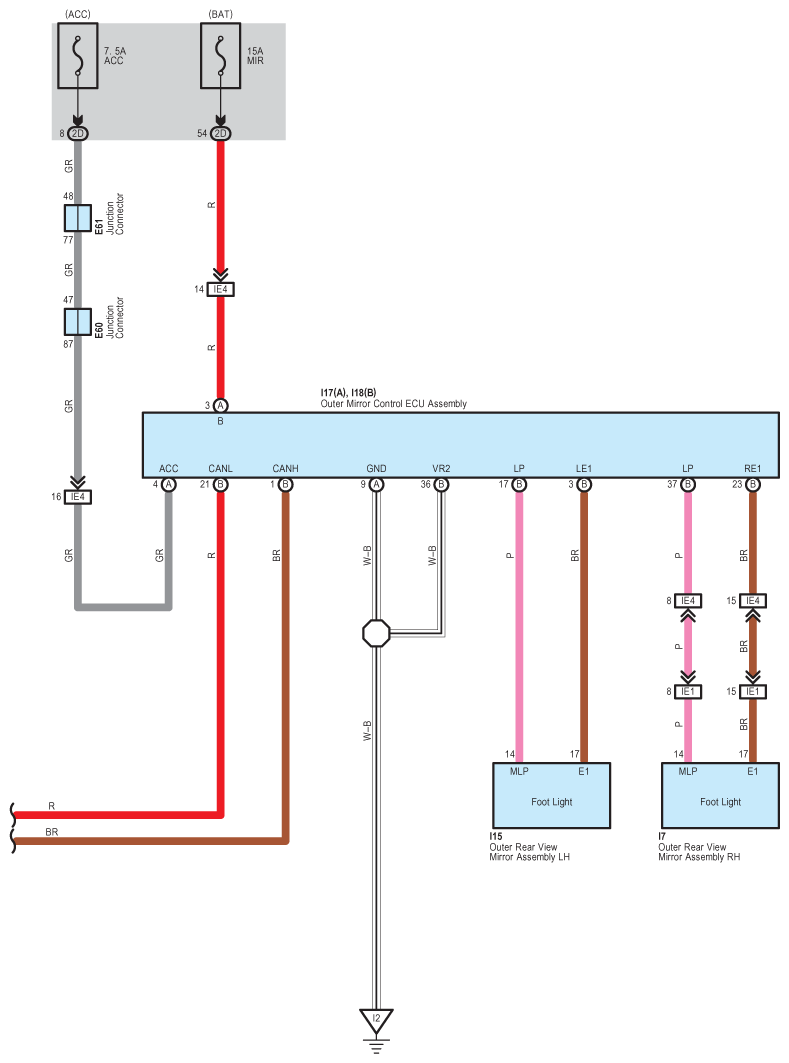

Fig 10: Interior Light - Circuit Diagram (10 Of 10)

G07575521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
