Power Back Door: Notes

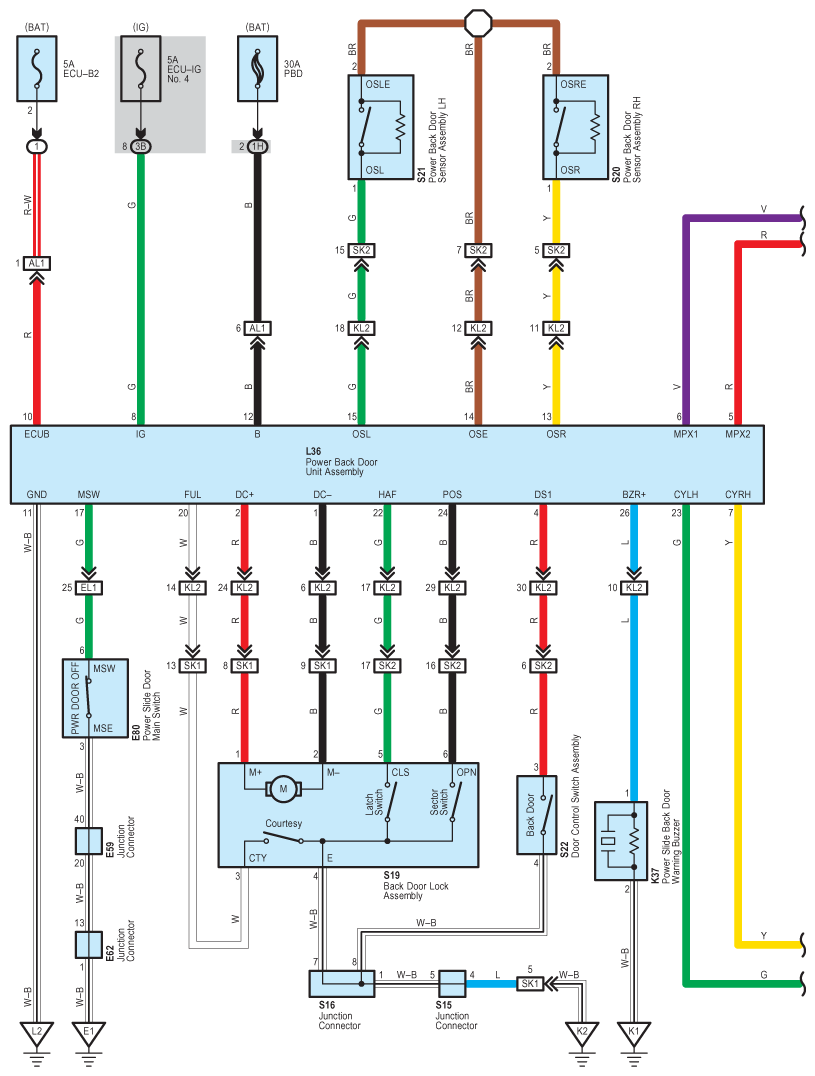

Fig 1: Power Back Door - Circuit Diagram (1 Of 5)
G07575557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

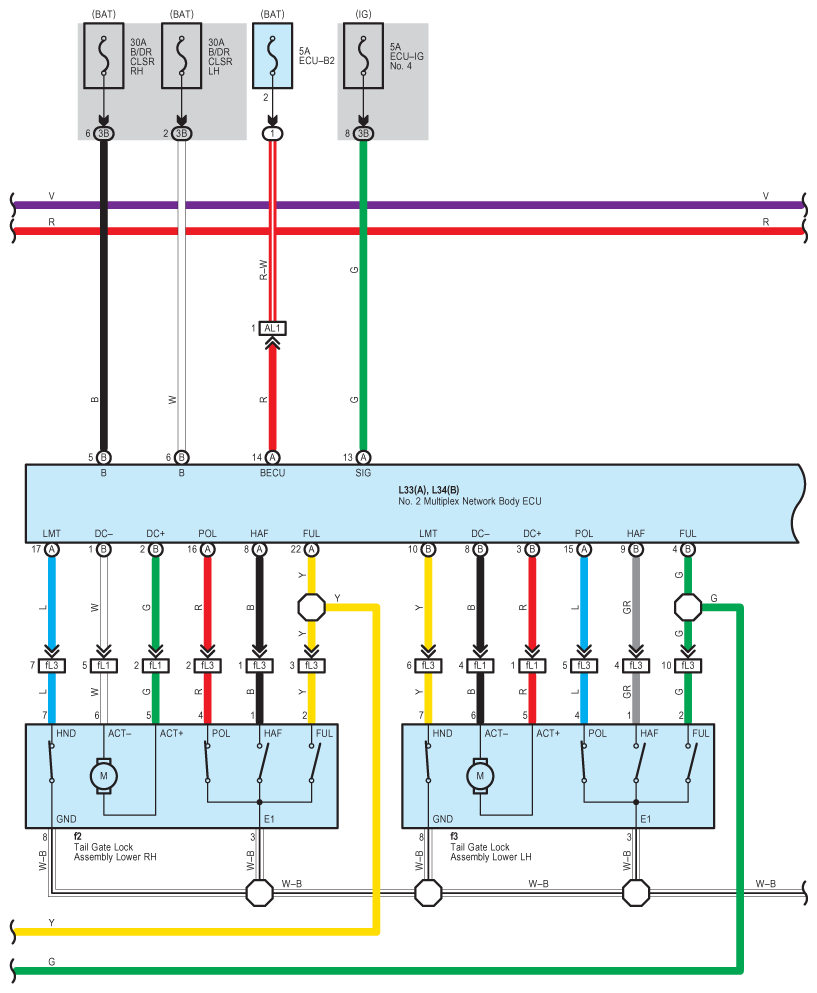

Fig 2: Power Back Door - Circuit Diagram (2 Of 5)
G07575558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

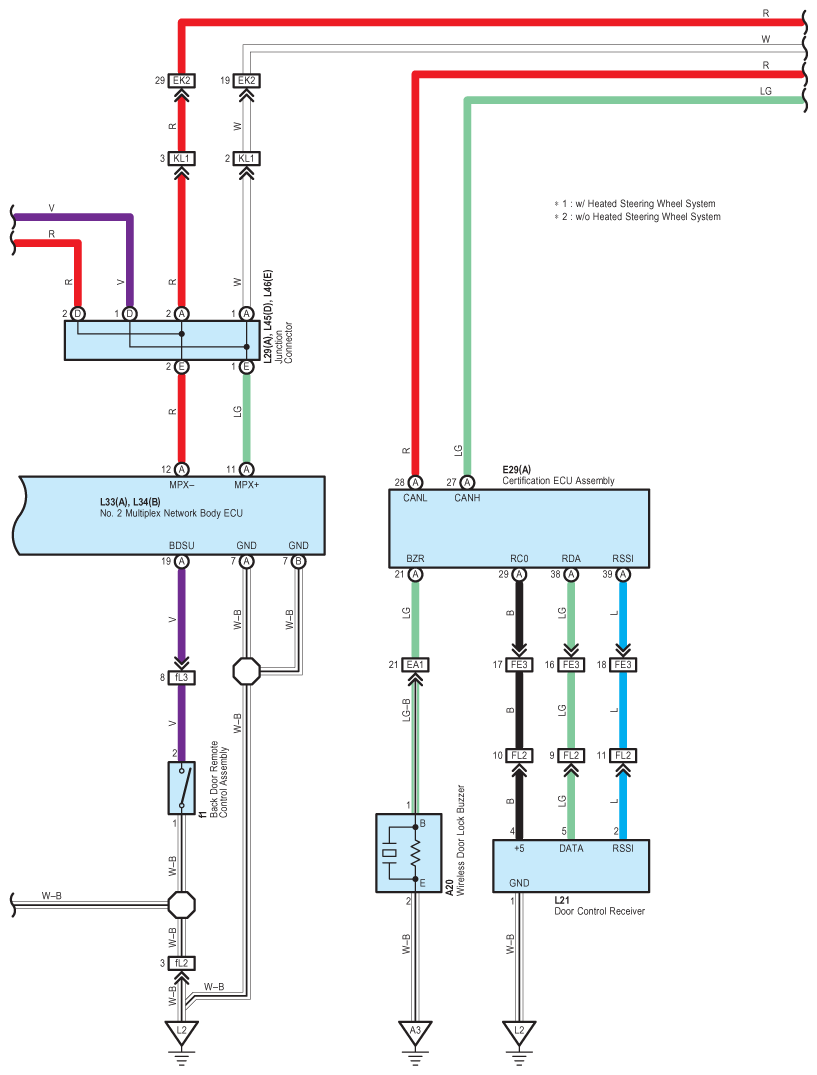

Fig 3: Power Back Door - Circuit Diagram (3 Of 5)
G07575559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

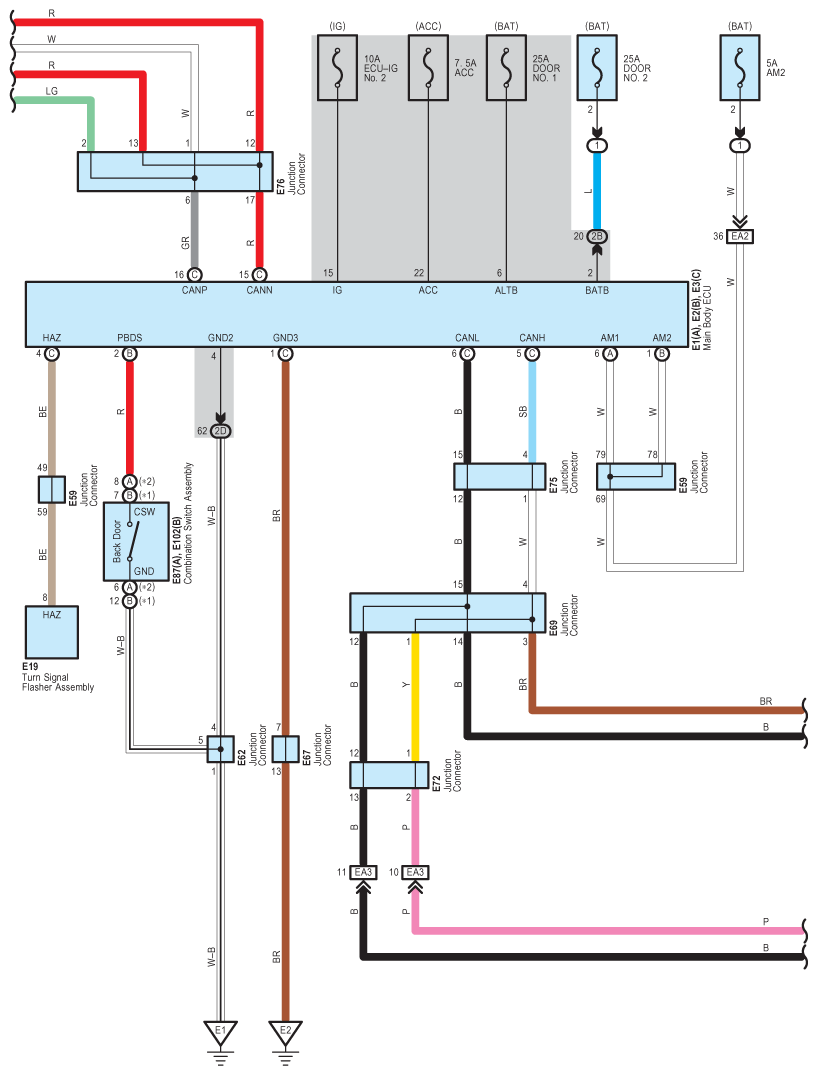

Fig 4: Power Back Door - Circuit Diagram (4 Of 5)
G07575560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

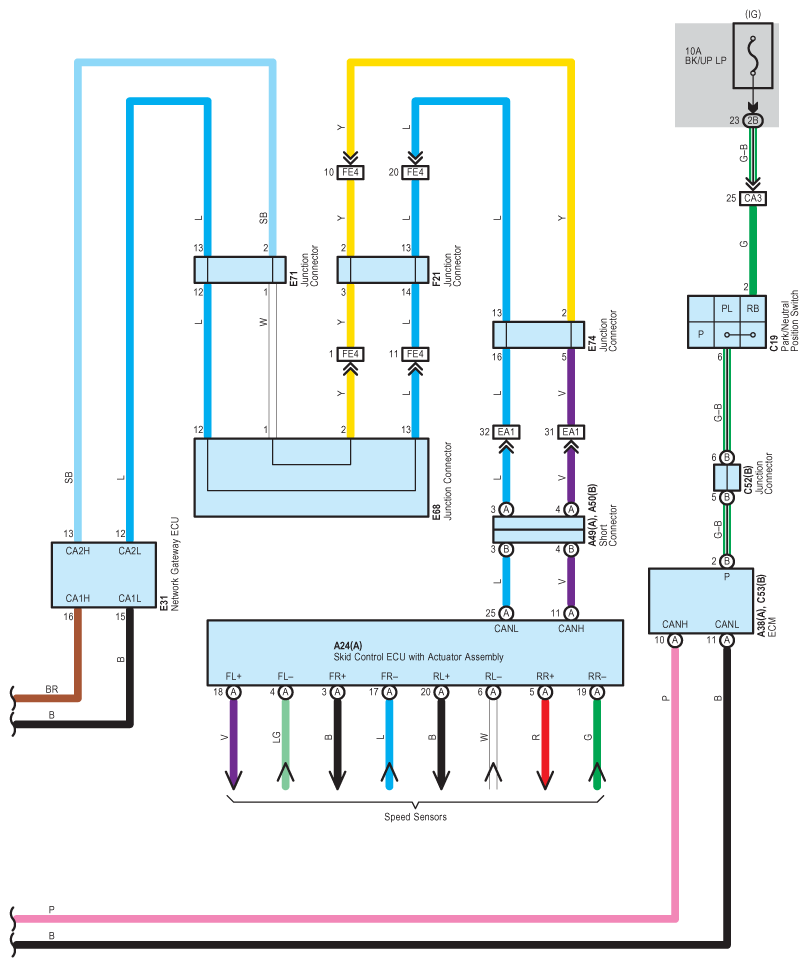

Fig 5: Power Back Door - Circuit Diagram (5 Of 5)
G07575561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
