Power Outlet: Notes

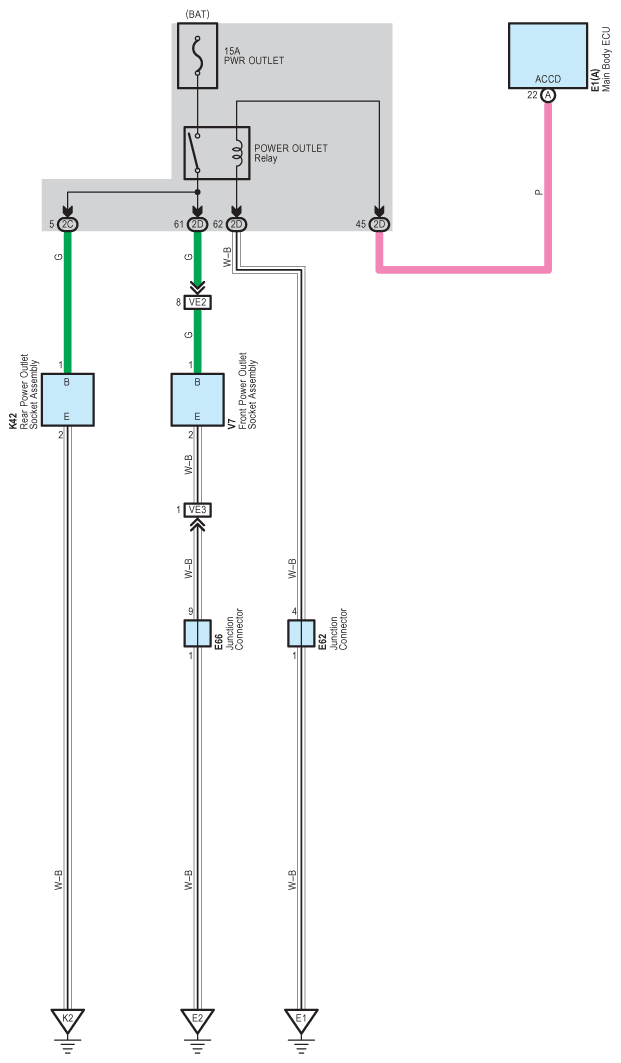

Fig 1: Power Outlet - Circuit Diagram (1 Of 2)
G07575696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

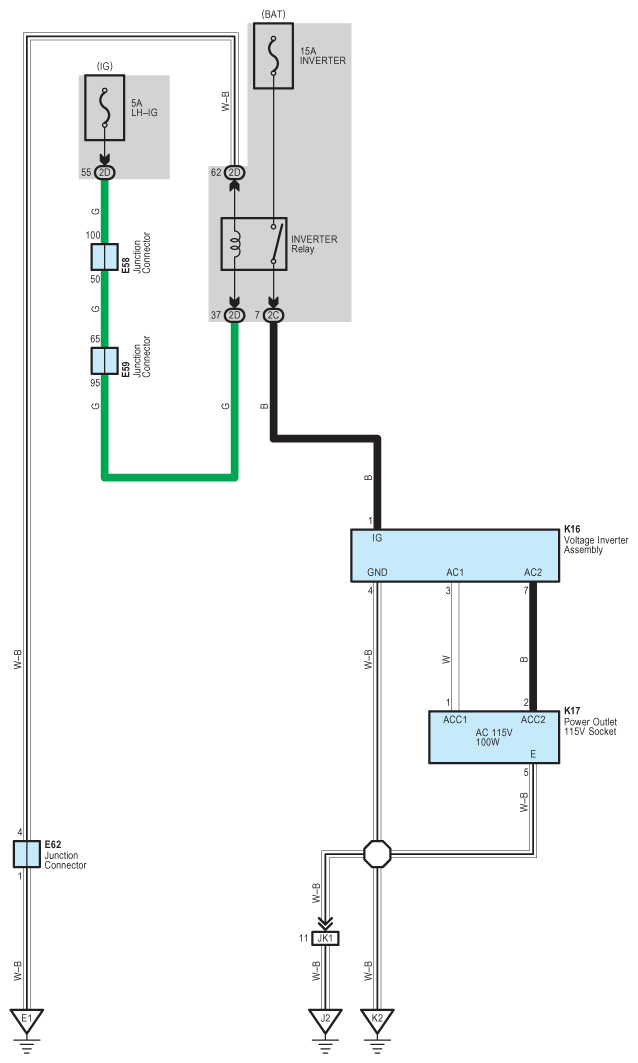

Fig 2: Power Outlet - Circuit Diagram (2 Of 2)
G07575697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
