Installation (08/2011 - ): Installation

INSTALL GASKET
1. Clean the ECM seal surface with non-residue solvent.
2. Attach a new gasket to the ECM.
INSTALL ECM
1. Install the ECM with the 4 bolts.

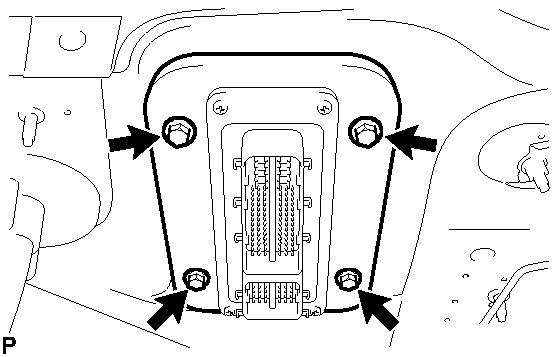

  Fig 1: Locating ECM Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
  NOTE:
  - Make sure the gasket is not folded or caught on any area of the surrounding part.
  - Make sure there is no foreign matter caught between the gasket and surrounding part.
  - Do not damage the gasket.
2. Connect the 2 ECM connectors and push each lock lever down to lock the ECM connectors.

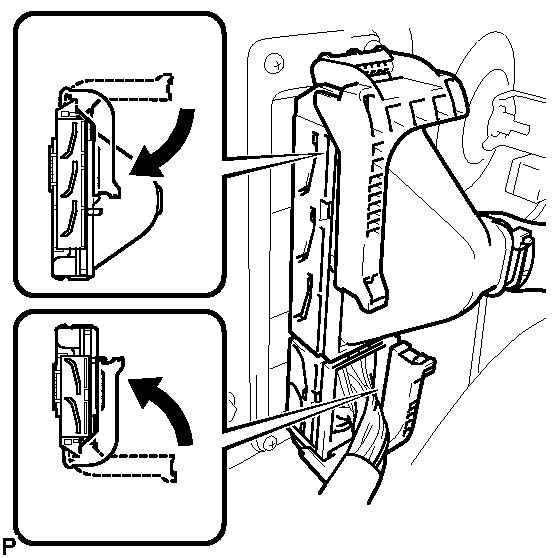

  Fig 2: Connecting ECM Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Make sure that the lock levers are raised 90° before connecting the ECM connectors. Failure to do this may cause the lock lever and terminals to break.
  - Do not twist the wire harness when connecting the ECM connectors.
INSTALL CONNECTOR HOLDER BLOCK
1. Install the connector holder block with the 3 bolts.

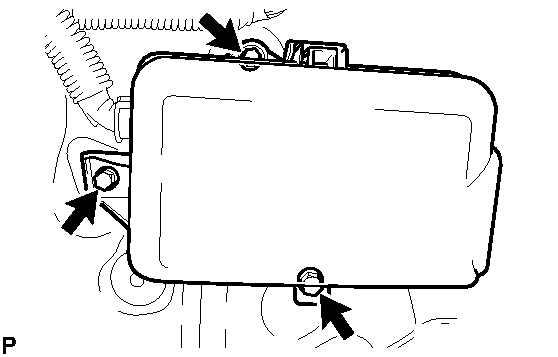

  Fig 3: Locating Connector Holder Block Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL ENGINE ROOM SIDE COVER RH . Refer to INSTALLATION - Step 4
INSTALL ENGINE ROOM SIDE COVER LH . Refer to INSTALLATION - Step 3
