Mass Air Flow Meter: Removal: Removal

  1. REMOVE ENGINE ROOM SIDE COVER RH  . Refer to REMOVAL - Step 2
  2. REMOVE MASS AIR FLOW METER

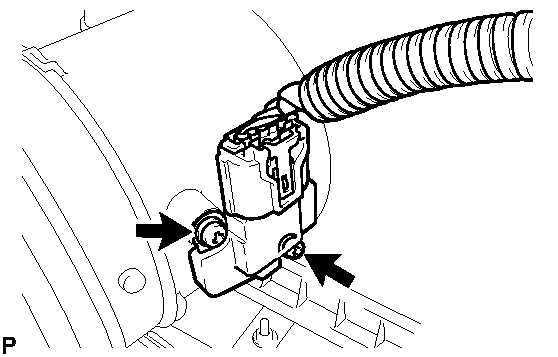

    Fig 1: Locating MAF Meter Screws
    GTY123763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the MAF connector.
    2. Remove the 2 screws and MAF meter.
