Active Control Engine Mount: Components: Illustration

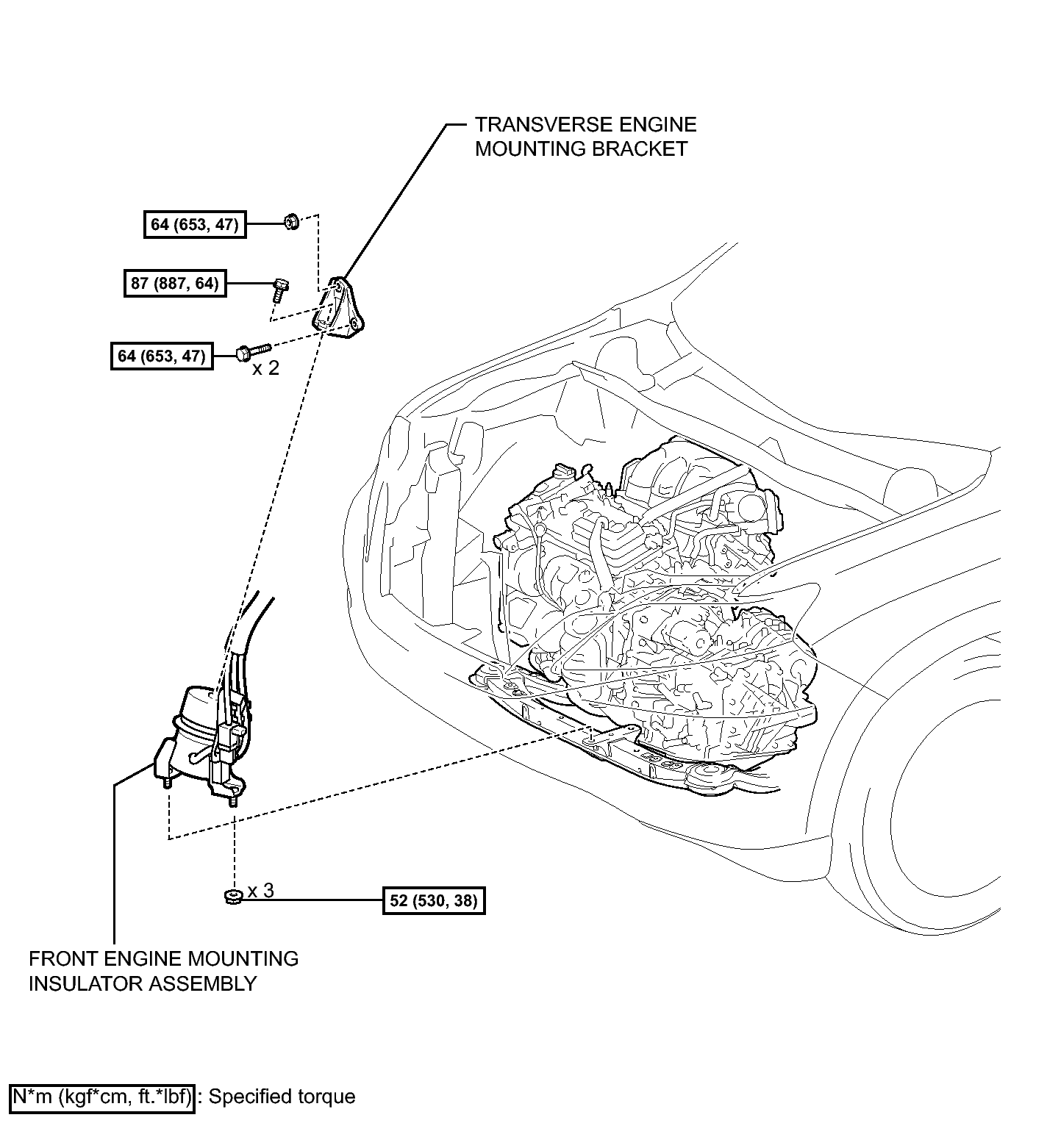

Fig 1: Identifying Active Control Engine Mount Replacement Components (1 of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Active Control Engine Mount Replacement Components (2 of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
