Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER

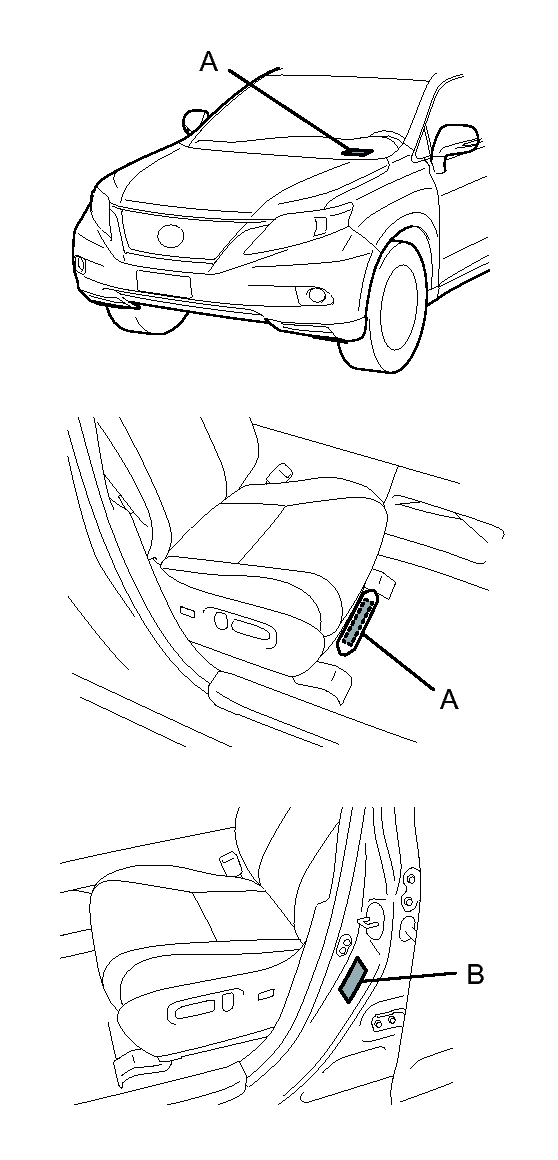

1. The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.
  A

  Vehicle Identification Number

  B

  Certification Label

  Fig 1: Identifying Vehicle Identification Number & Certification Label
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER

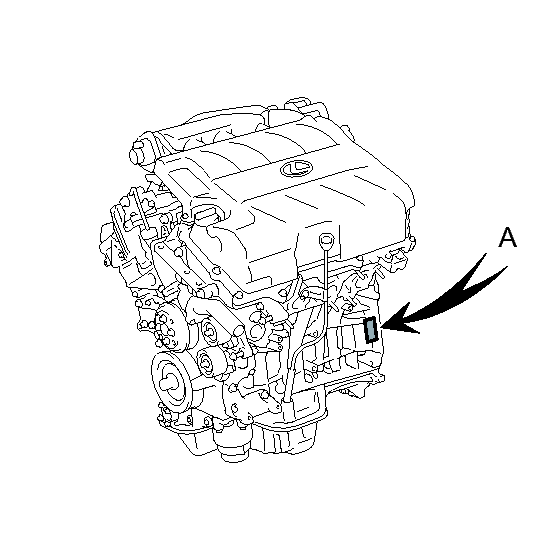

1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.
  A

  2GR-FE Engine Serial Number

  Fig 2: Identifying Engine Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

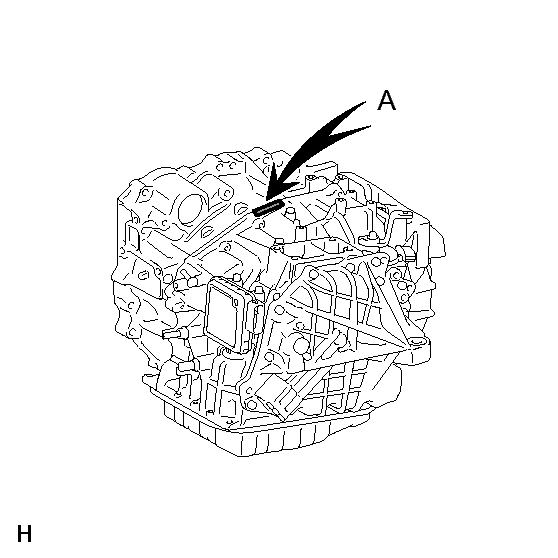

2. The transaxle serial number is stamped on the case as shown in the illustration.

  Fig 3: Identifying Transaxle Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  U660E and U660F Transaxle Serial Number
