Interior Light: Notes — 2012 Lexus CT 200h Base Service Manual ~ LEMON Manuals

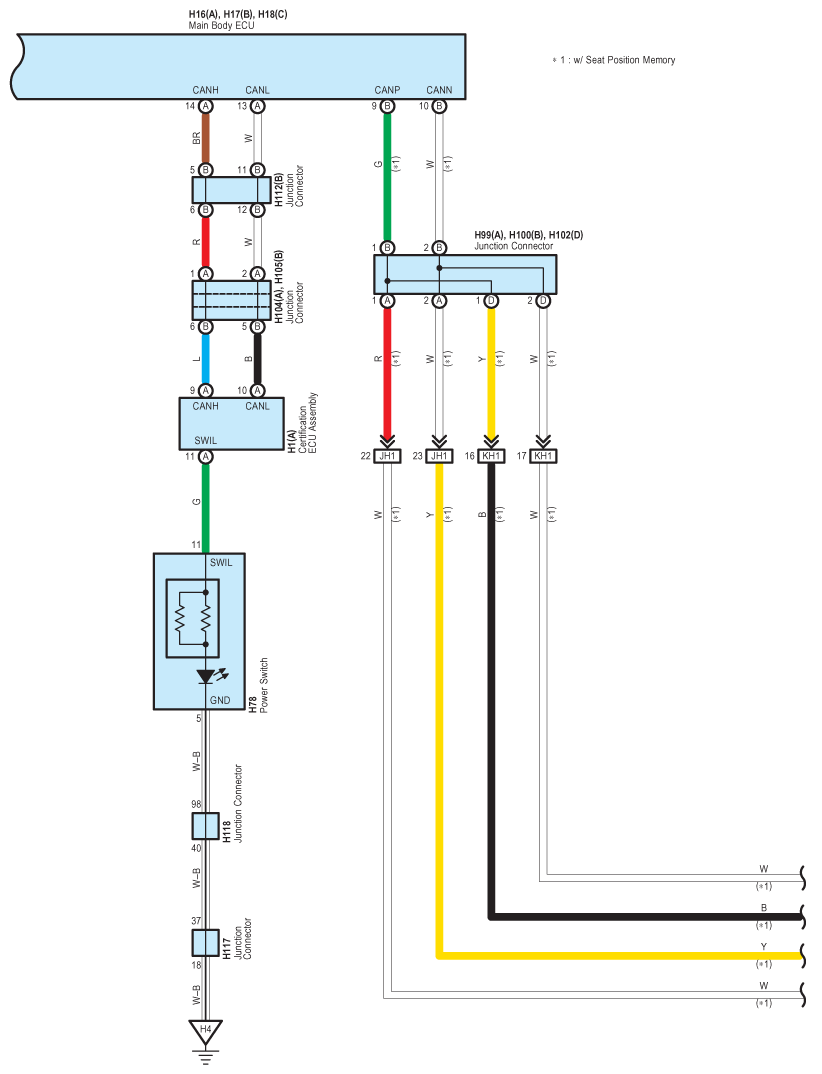

Fig 1: Interior Light - Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

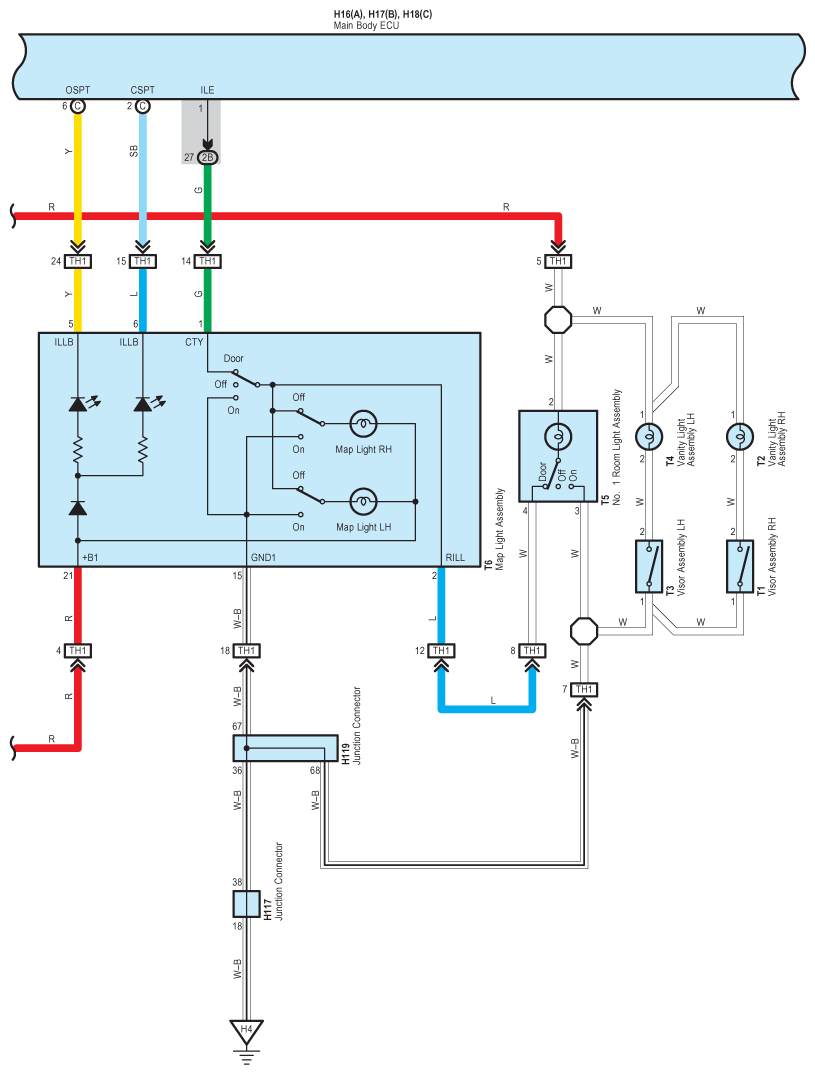

Fig 2: Interior Light - Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

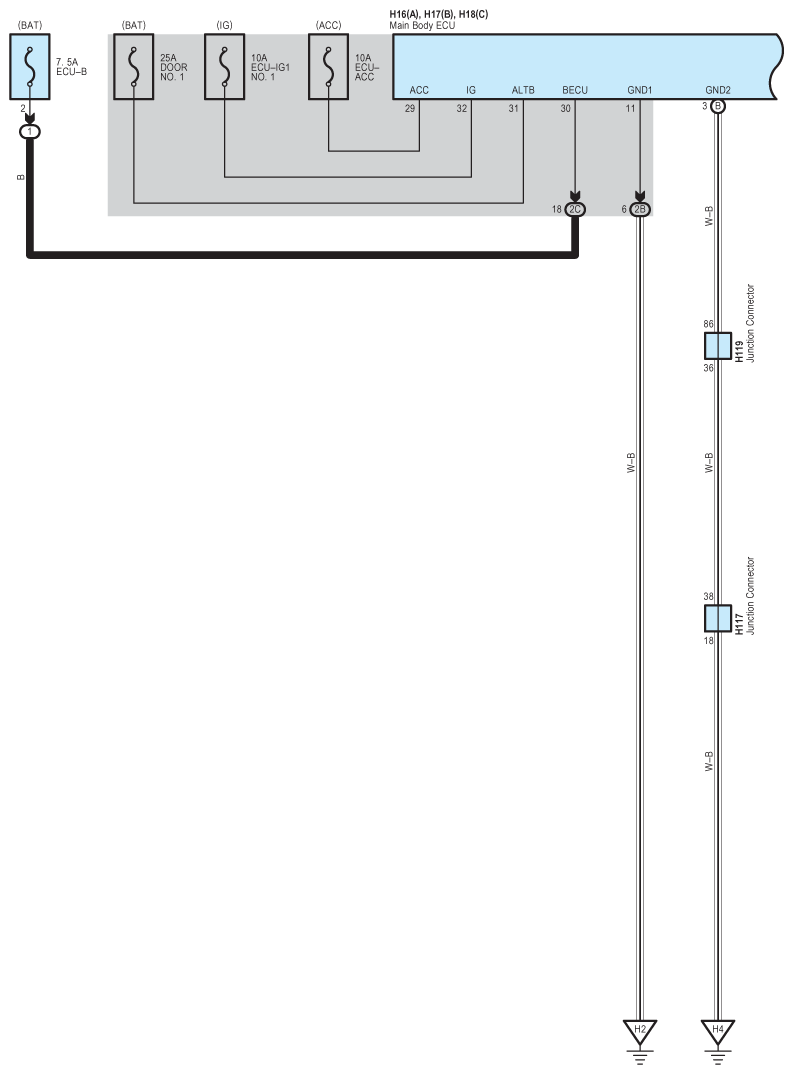

Fig 3: Interior Light - Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

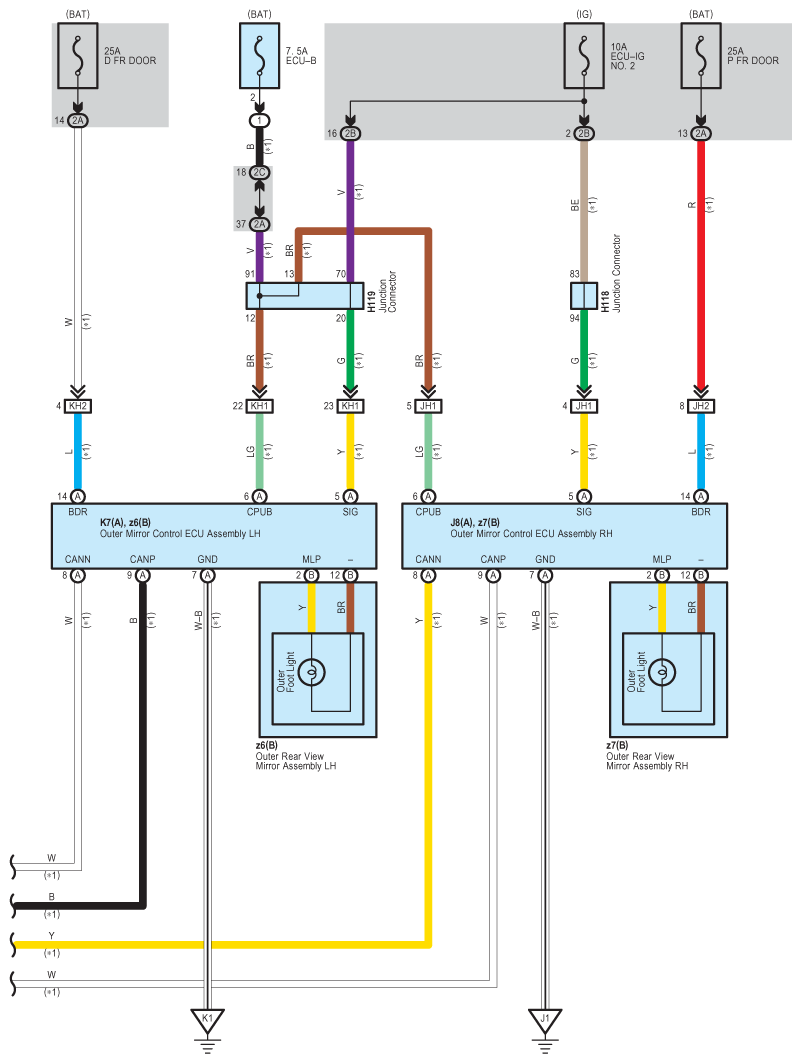

Fig 4: Interior Light - Wiring Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

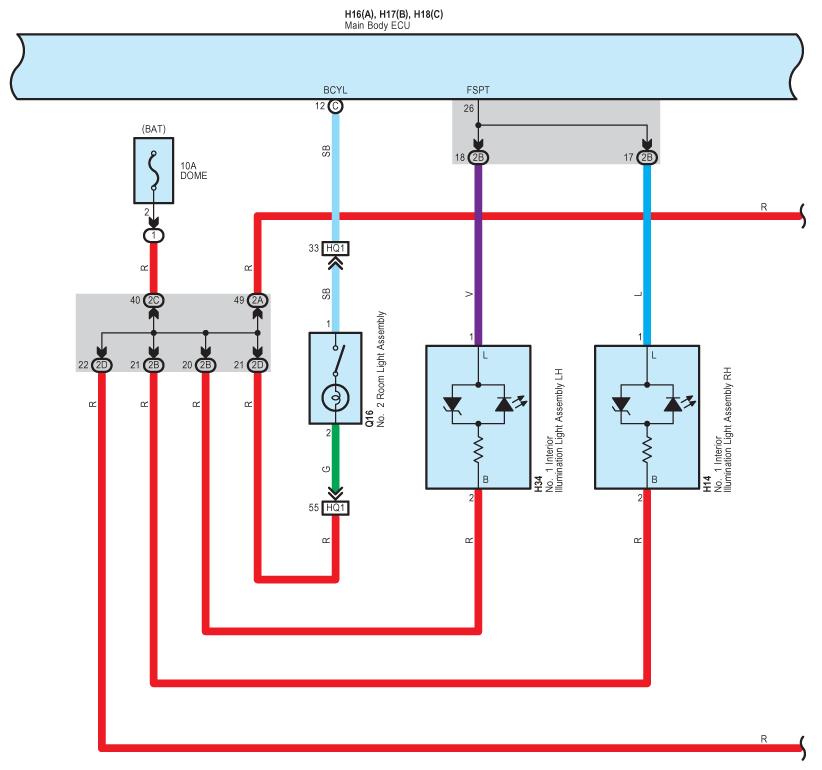

Fig 5: Interior Light - Wiring Diagram (5 Of 6)

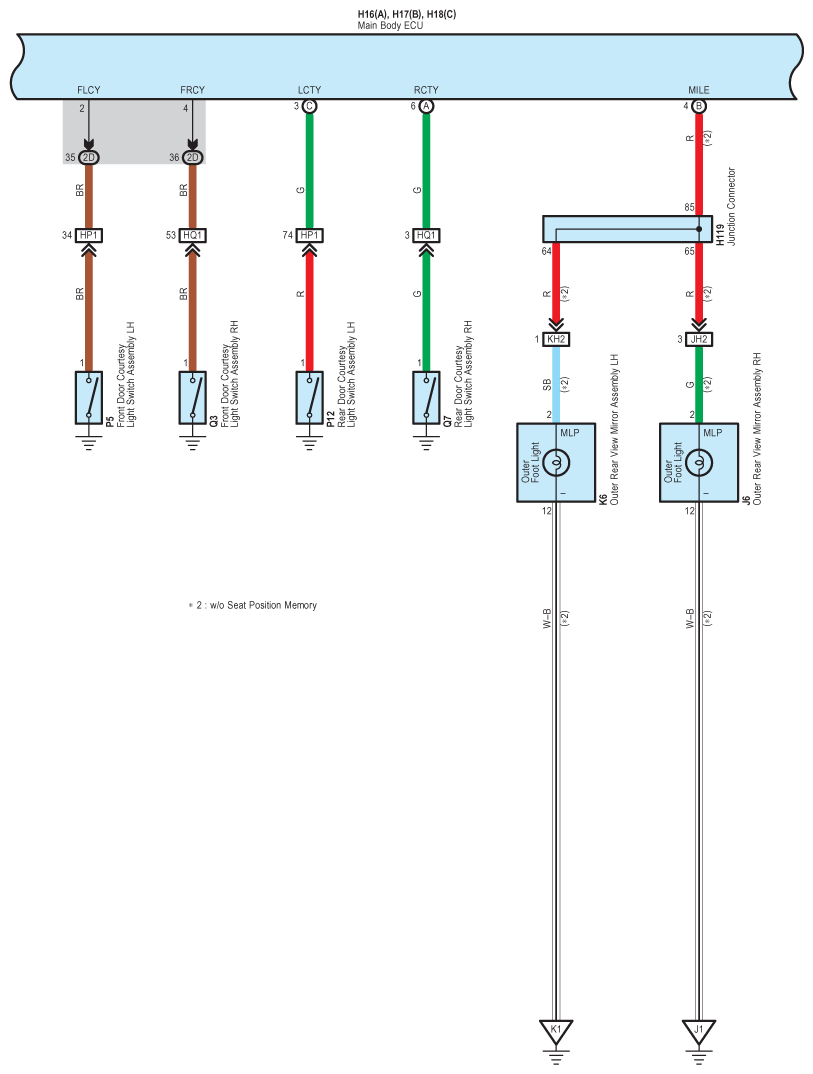

Fig 6: Interior Light - Wiring Diagram (6 Of 6)
