Pre-Collision System: Notes

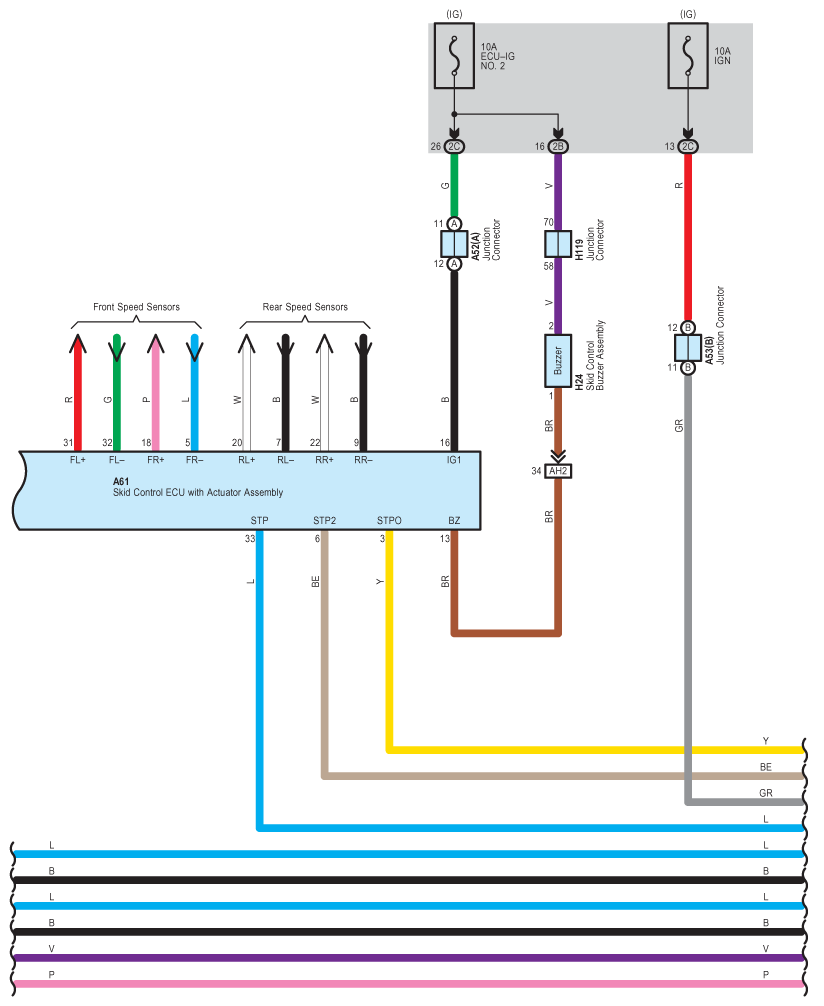

Fig 1: Pre-Collision System - Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

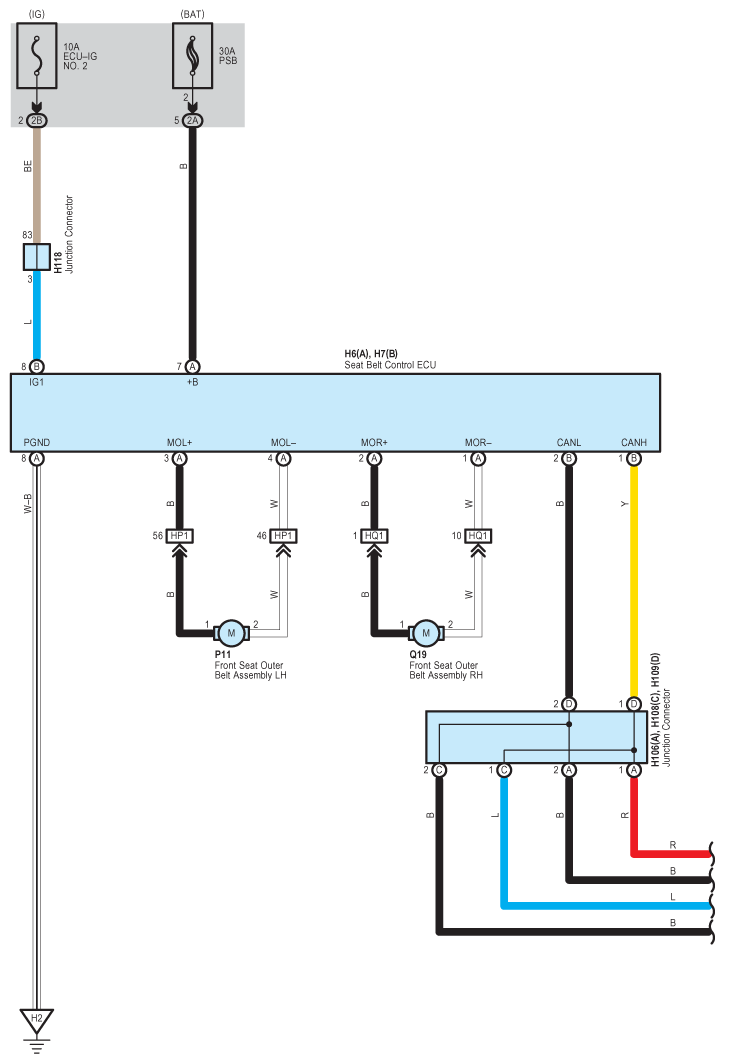

Fig 2: Pre-Collision System - Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

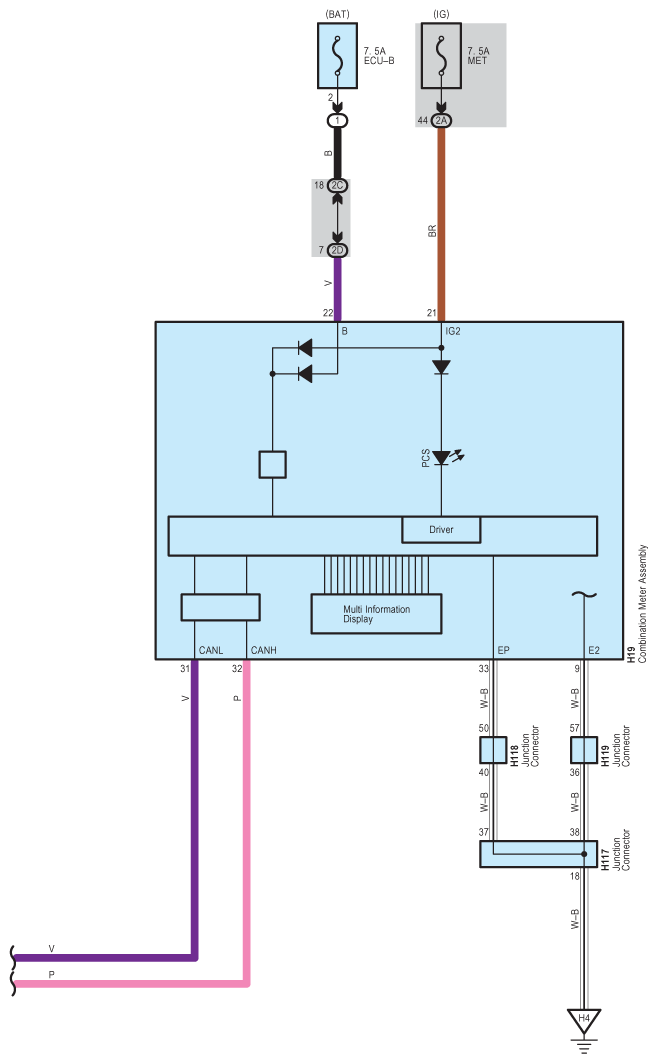

Fig 3: Pre-Collision System - Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

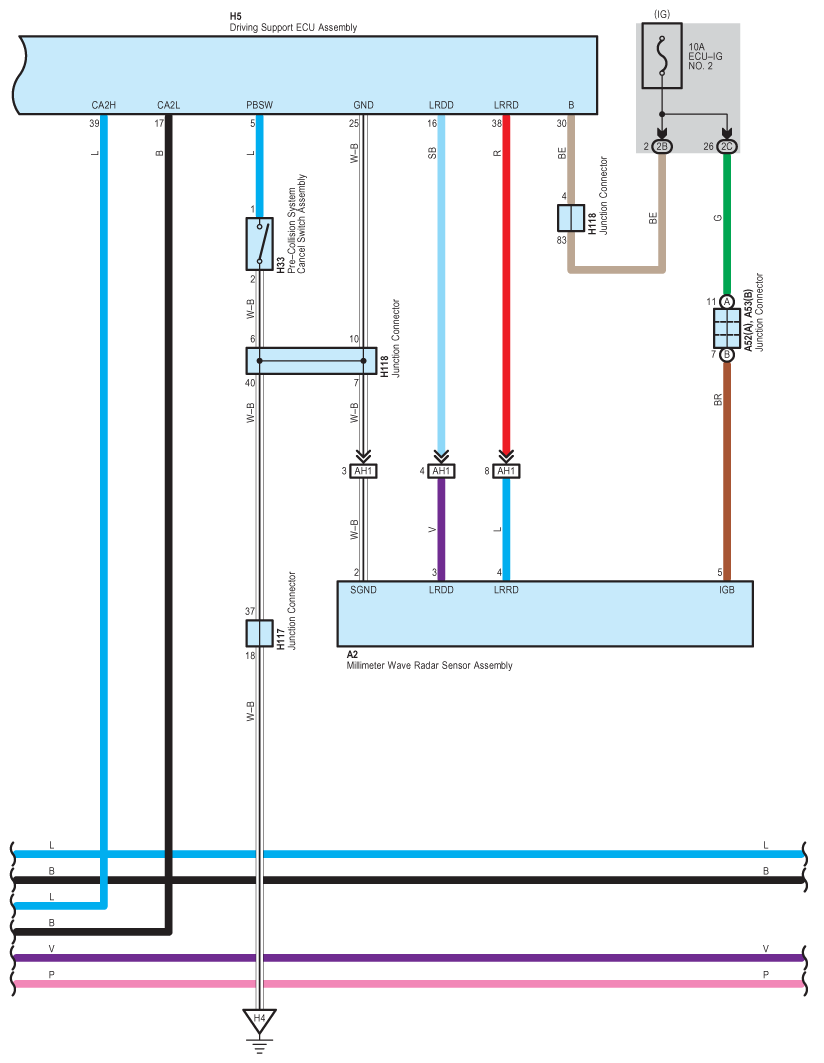

Fig 4: Pre-Collision System - Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

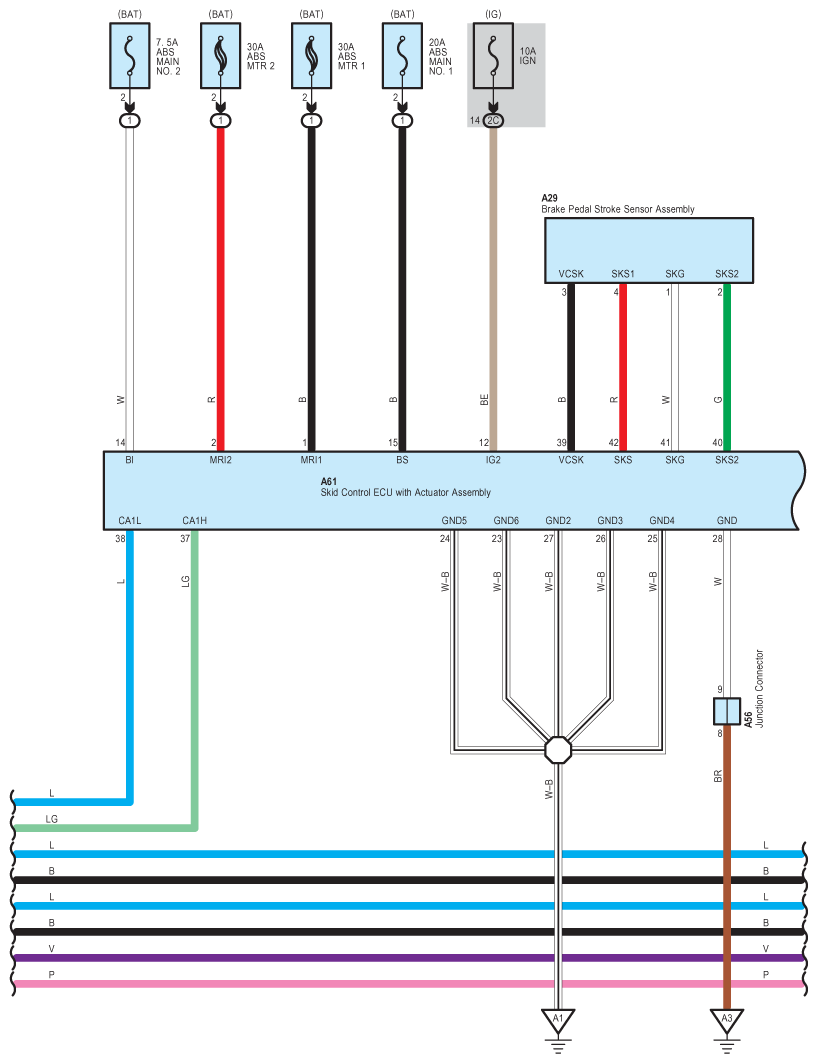

Fig 5: Pre-Collision System - Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

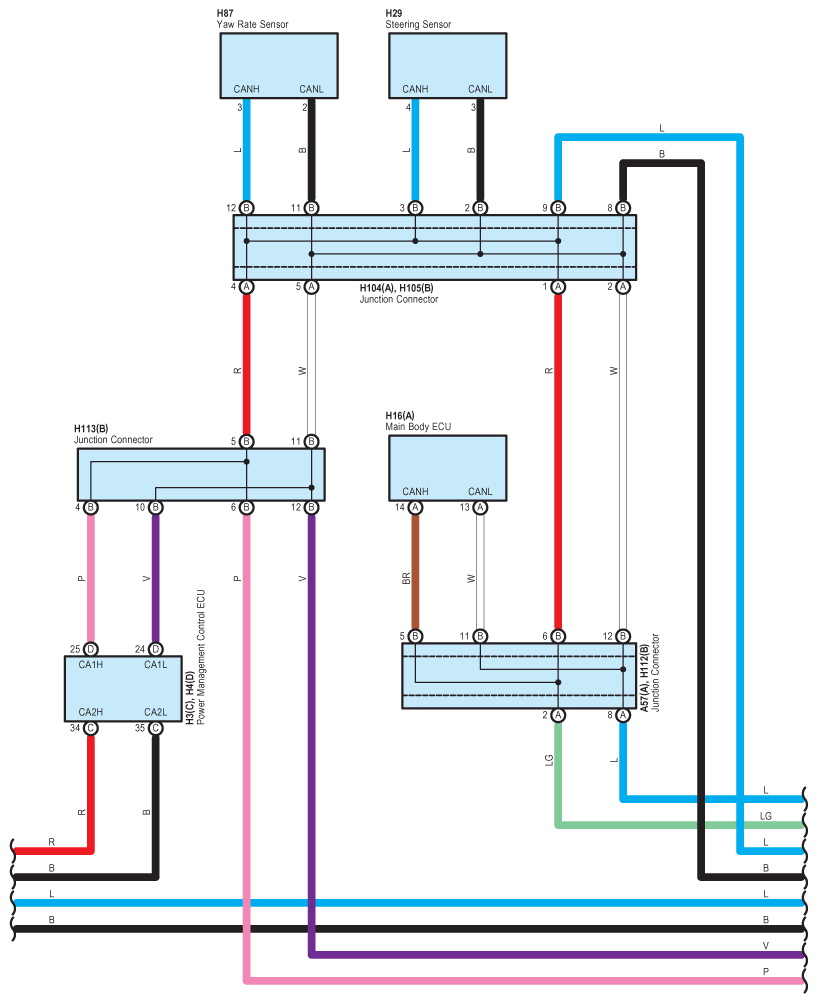

Fig 6: Pre-Collision System - Wiring Diagram (6 Of 8)

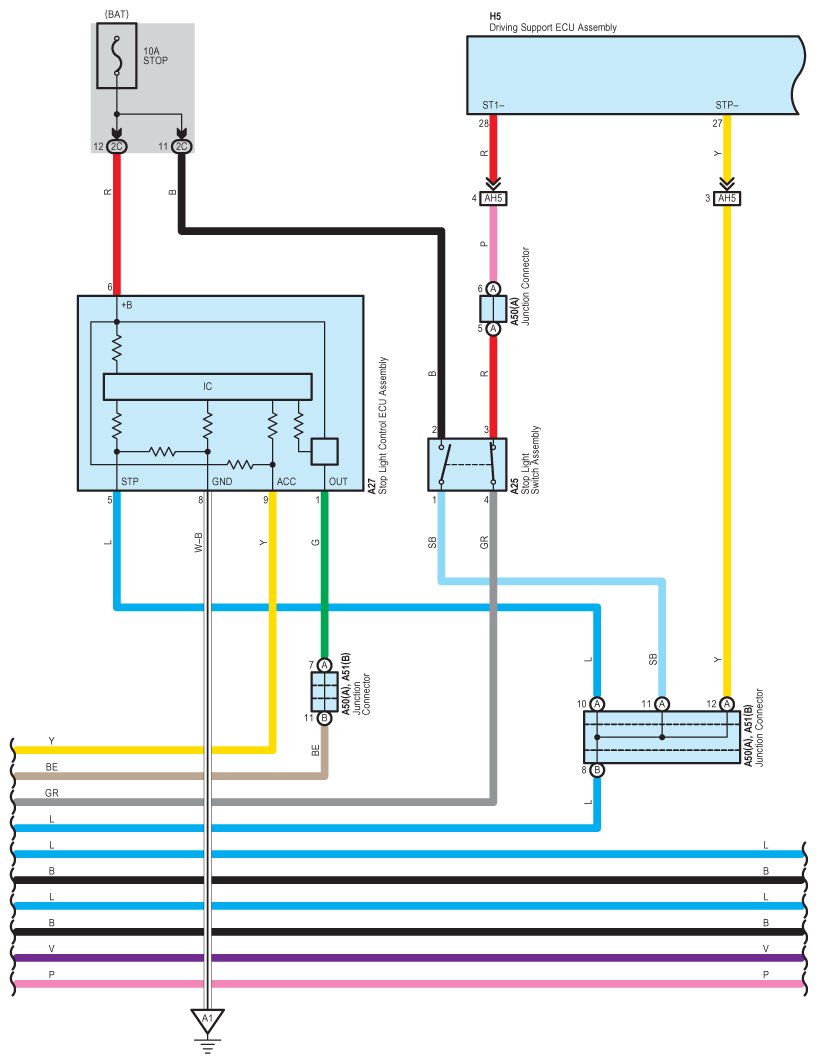

Fig 7: Pre-Collision System - Wiring Diagram (7 Of 8)

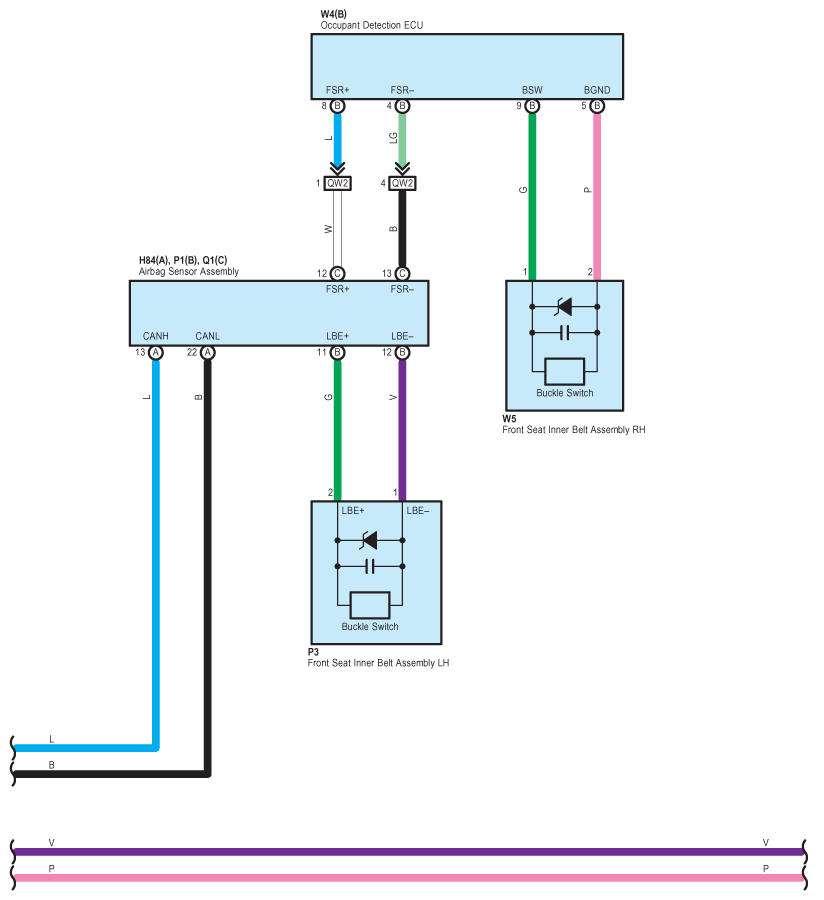

Fig 8: Pre-Collision System - Wiring Diagram (8 Of 8)
