Rear Wiper Motor Assembly: Notes

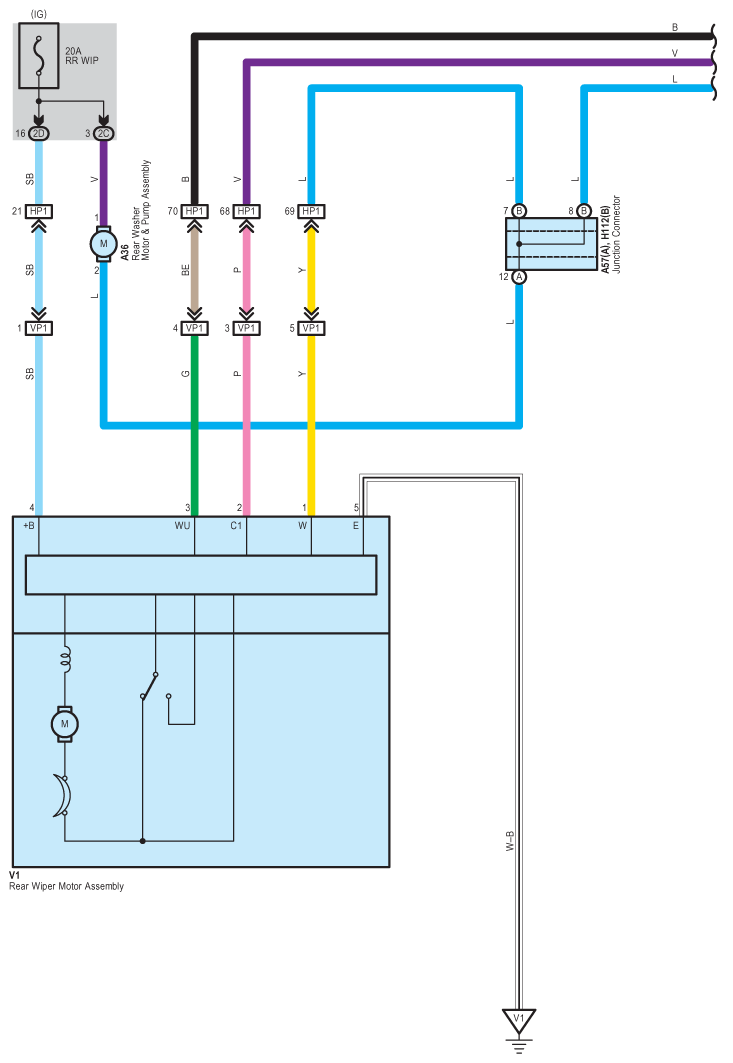

Fig 1: Rear Wiper Motor Assembly - Wiring Diagram (1 Of 2)
G08934633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

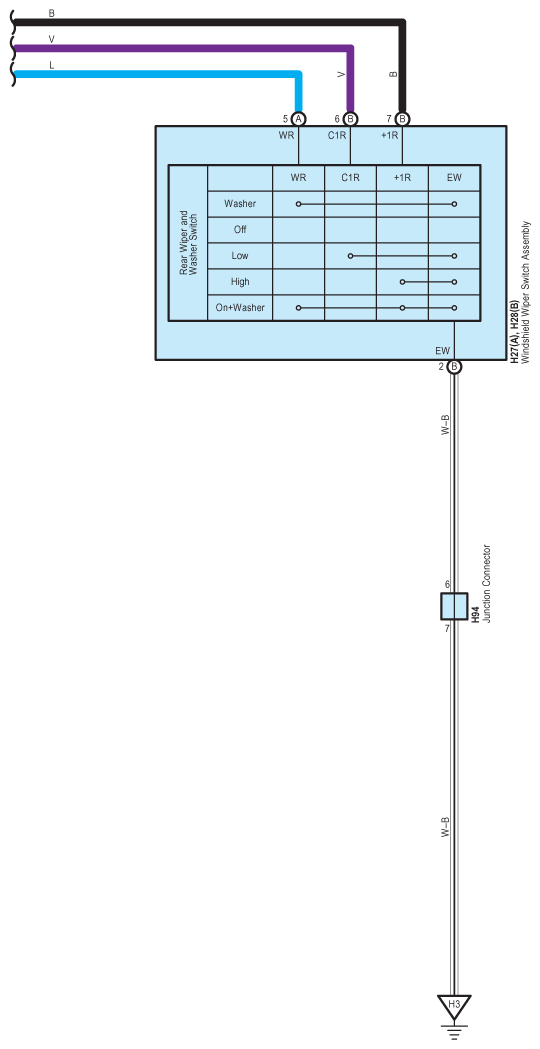

Fig 2: Rear Wiper Motor Assembly - Wiring Diagram (2 Of 2)
G08934634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
