Remote Control Mirror (w/Seat Position Memory): Notes

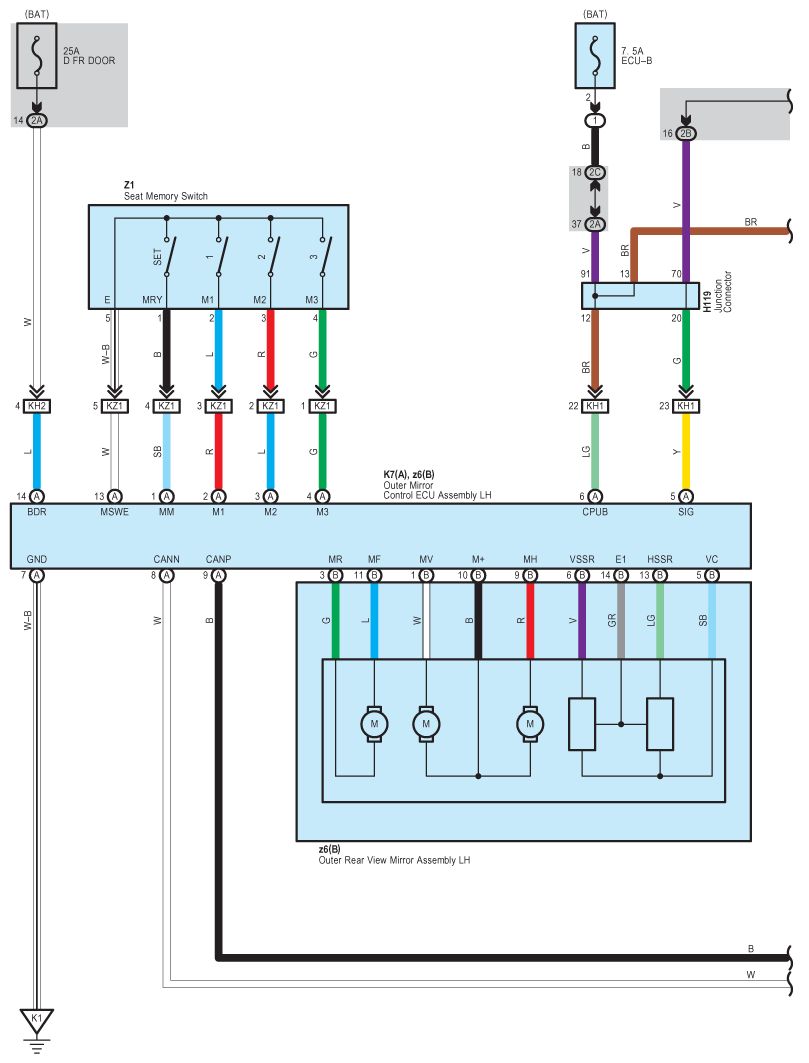

Fig 1: Remote Control Mirror (W/Seat Position Memory) - Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Remote Control Mirror (W/Seat Position Memory) - Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

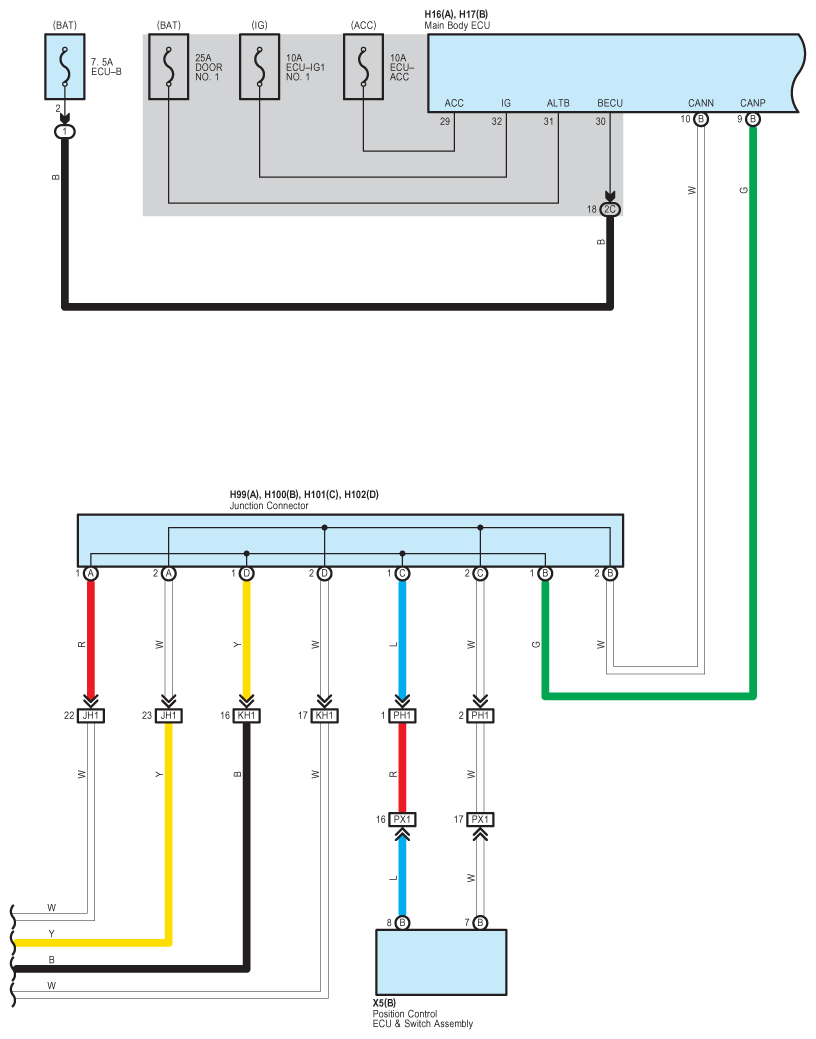

Fig 3: Remote Control Mirror (W/Seat Position Memory) - Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

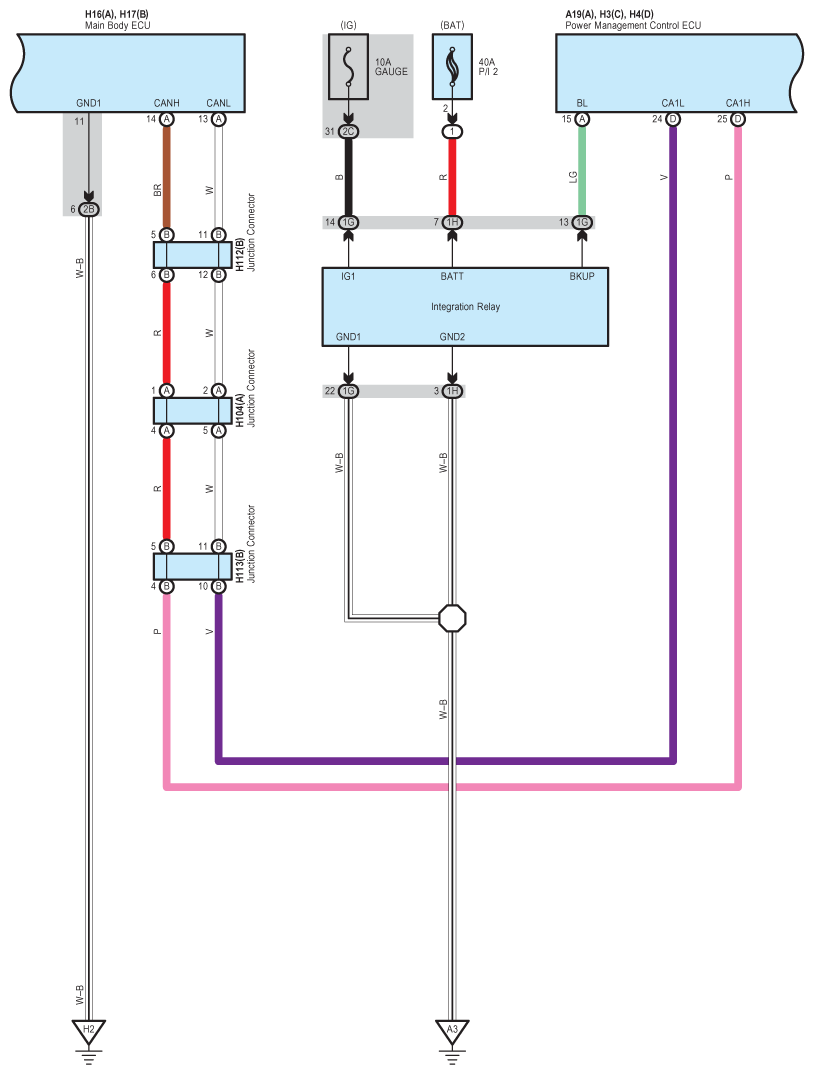

Fig 4: Remote Control Mirror (W/Seat Position Memory) - Wiring Diagram (4 Of 6)

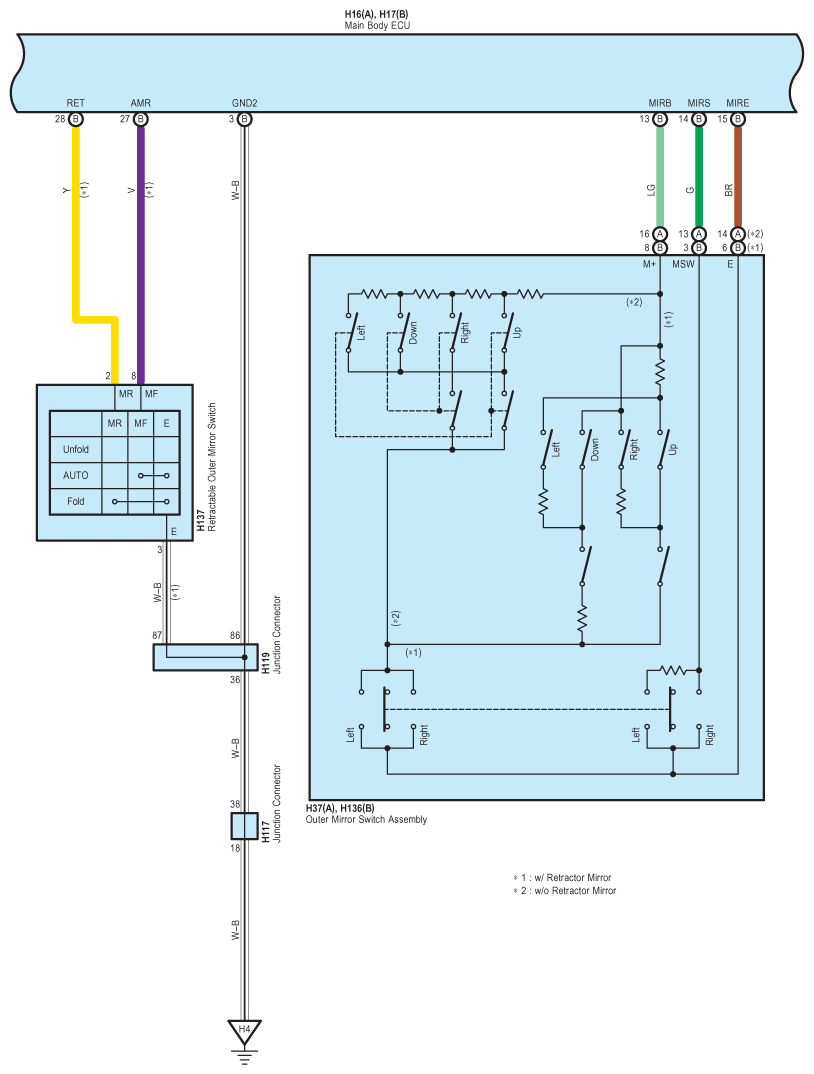

Fig 5: Remote Control Mirror (W/Seat Position Memory) - Wiring Diagram (5 Of 6)

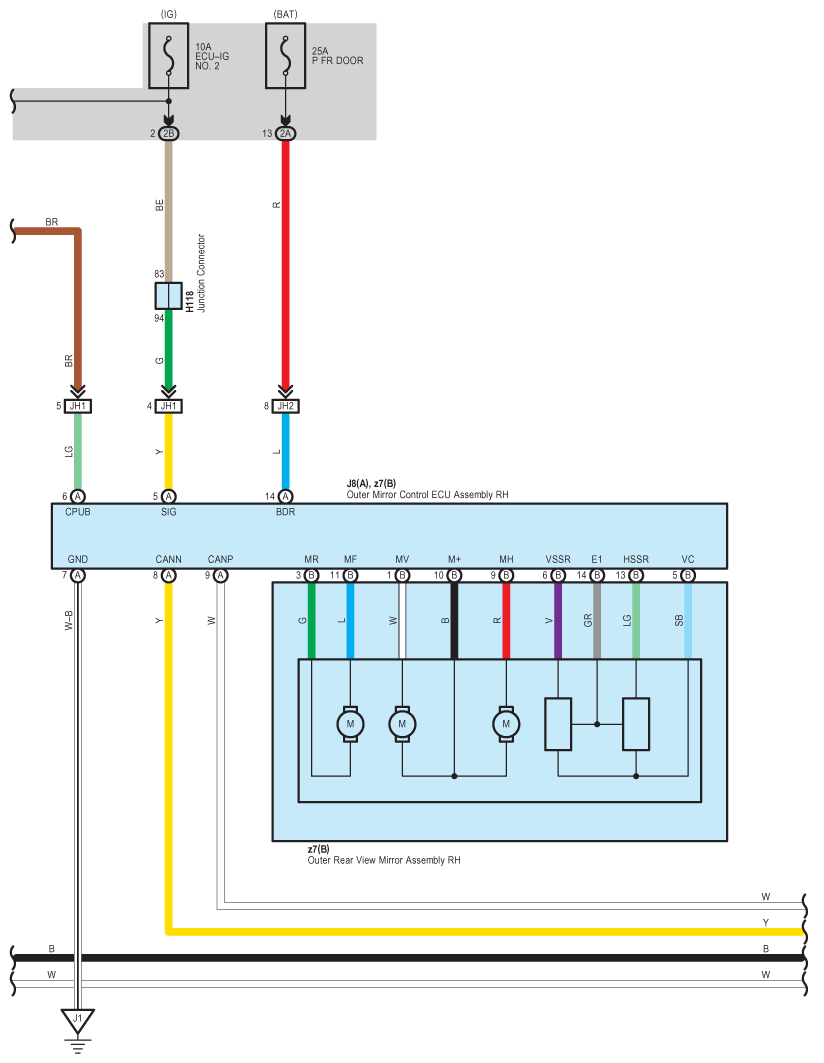

Fig 6: Remote Control Mirror (W/Seat Position Memory) - Wiring Diagram (6 Of 6)
