Stop Light: Notes

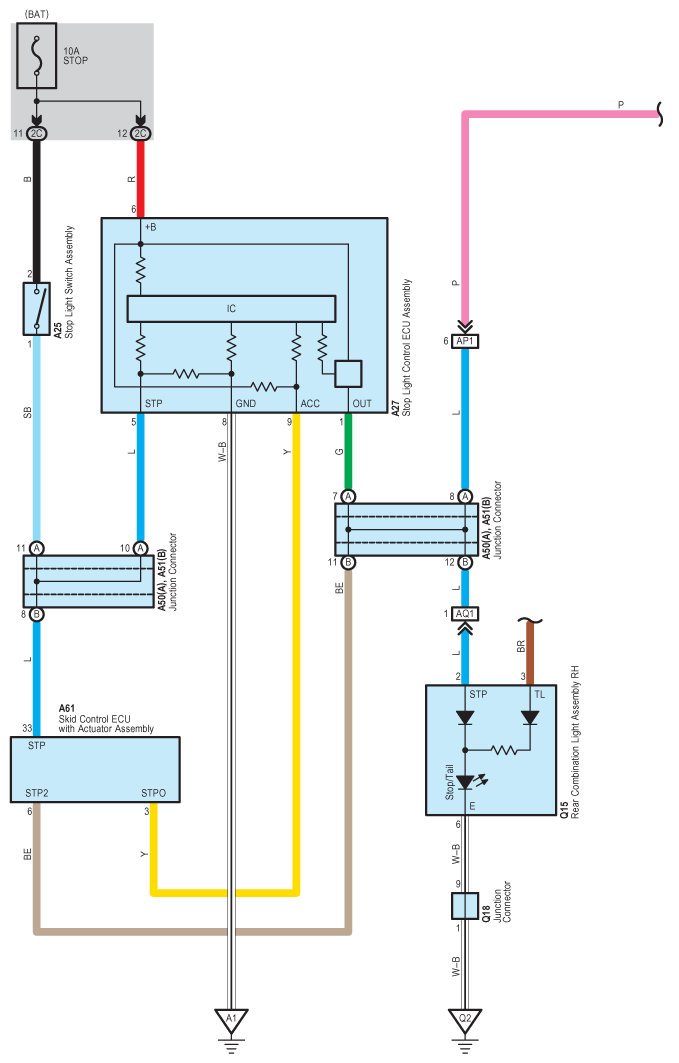

Fig 1: Stop Light - Wiring Diagram (1 Of 2)
G08934524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

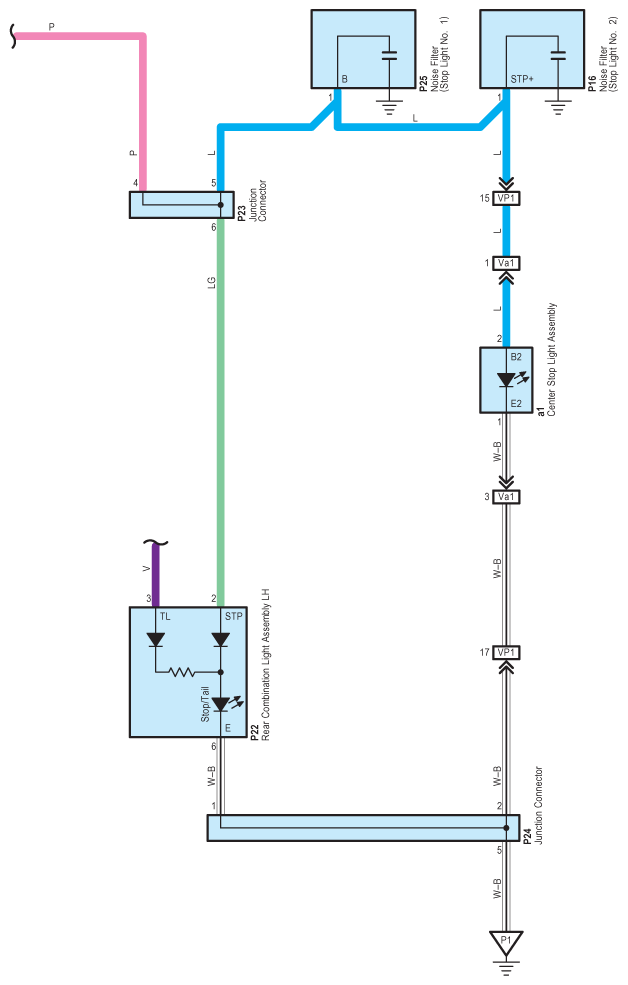

Fig 2: Stop Light - Wiring Diagram (2 Of 2)
G08934525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
