Turn Signal Flasher Assembly: Notes

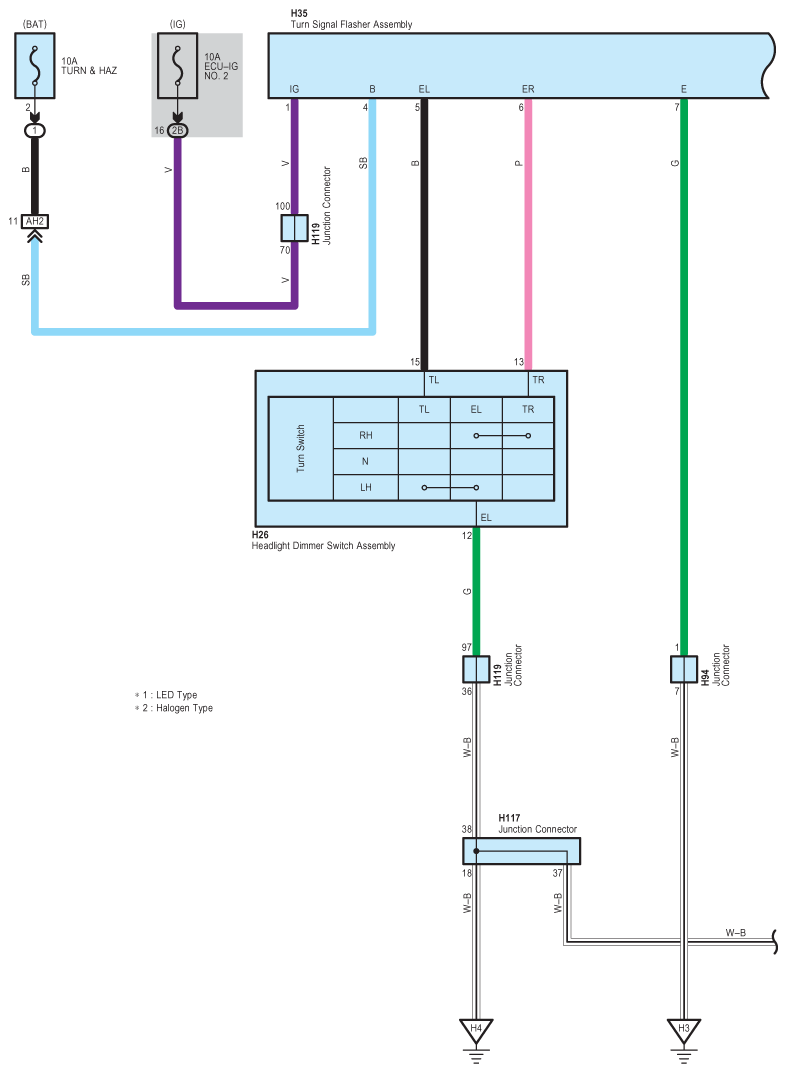

Fig 1: Turn Signal Flasher Assembly - Wiring Diagram (1 Of 4)
G08934520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

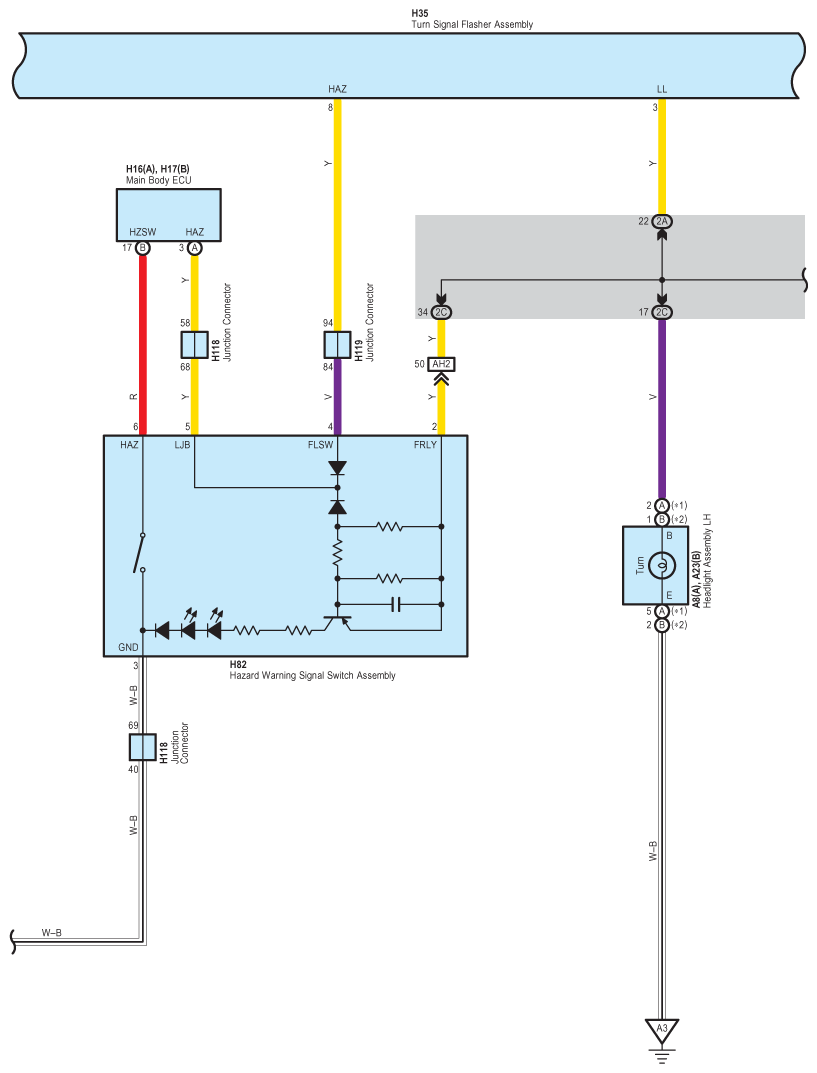

Fig 2: Turn Signal Flasher Assembly - Wiring Diagram (2 Of 4)
G08934521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

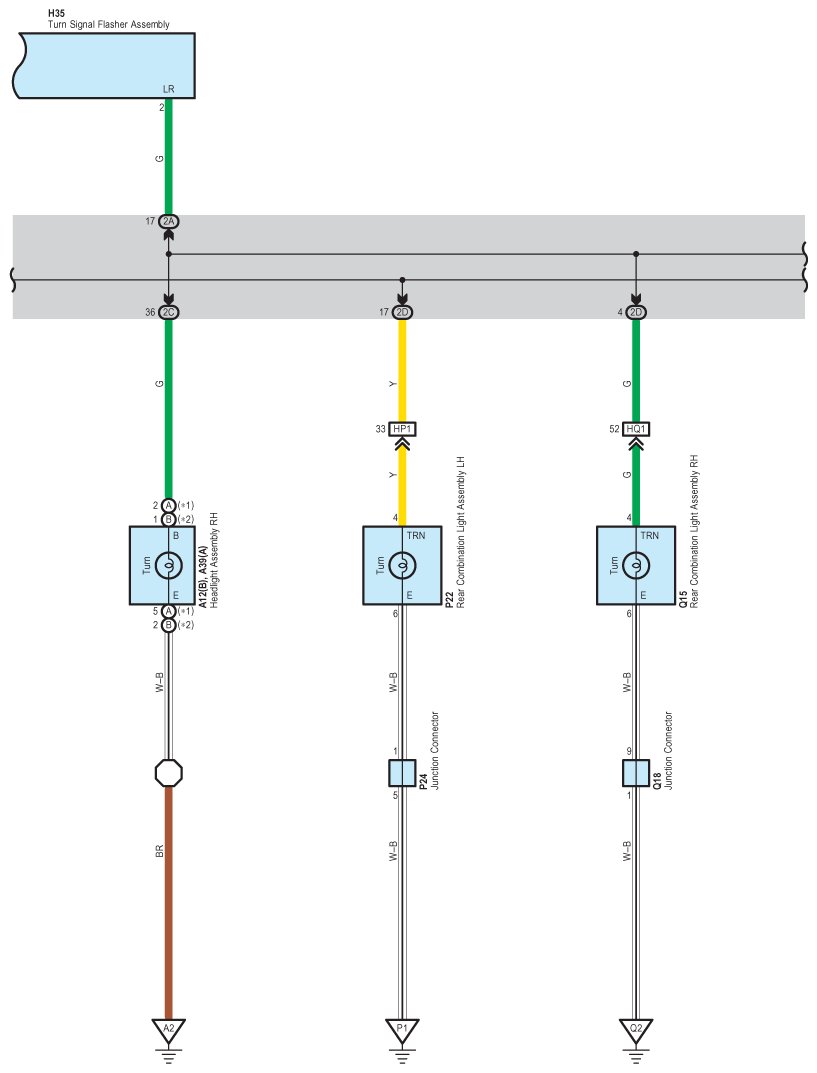

Fig 3: Turn Signal Flasher Assembly - Wiring Diagram (3 Of 4)
G08934522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

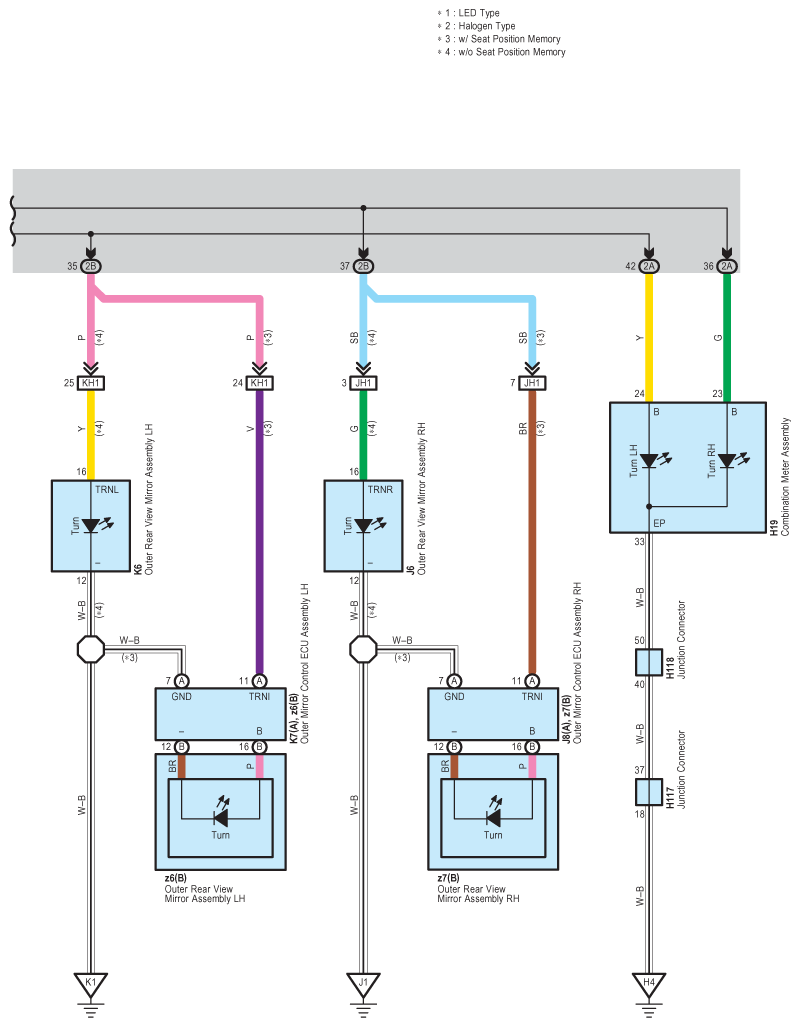

Fig 4: Turn Signal Flasher Assembly - Wiring Diagram (4 Of 4)
G08934523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
