Manifold Absolute Pressure Sensor: Removal: Removal

REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 15
REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR
1. Disconnect the manifold absolute pressure sensor connector.

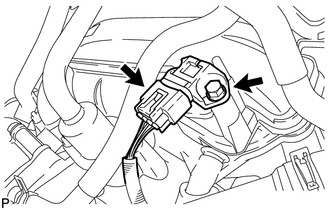

  Fig 1: Identifying Manifold Absolute Pressure Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and manifold absolute pressure sensor.
3. Remove the O-ring from the manifold absolute pressure sensor.
