Audio System (w/o LEXUS Navigation System): Notes

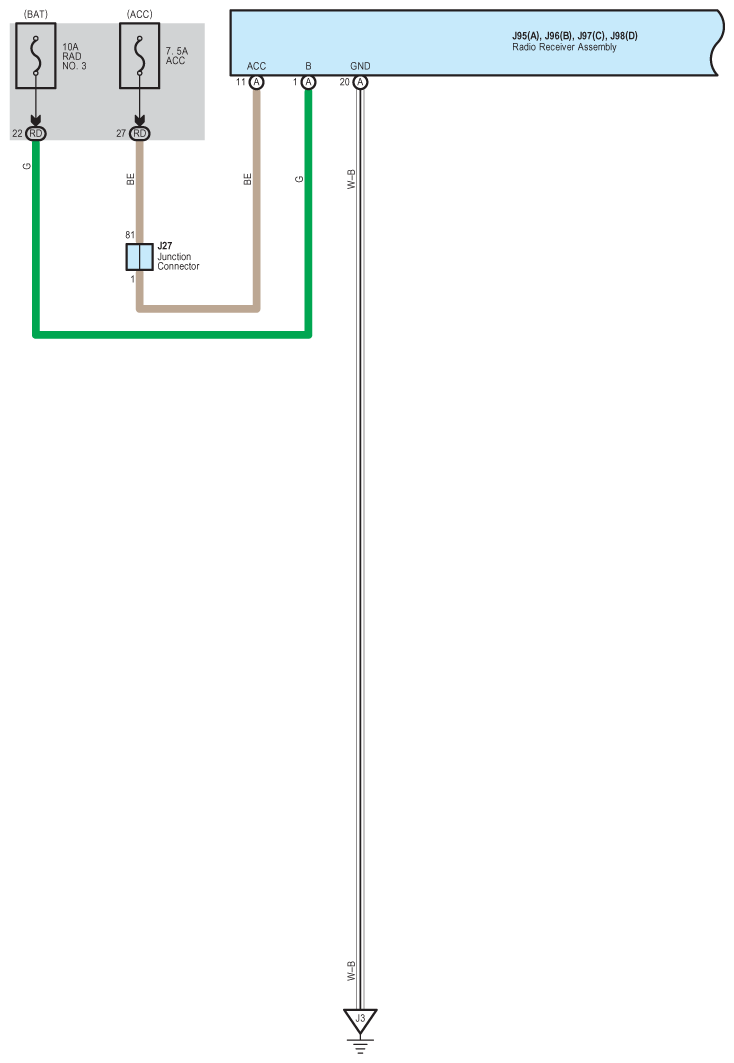

Fig 1: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (1 Of 10)
G08938915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

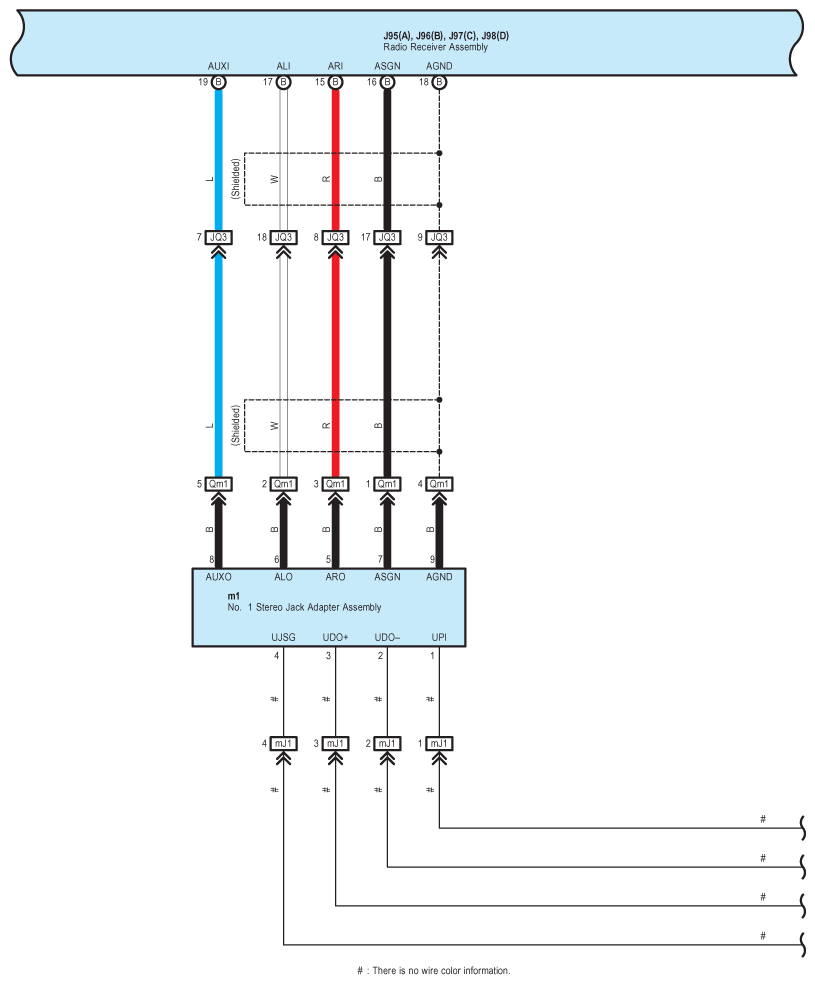

Fig 2: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (2 Of 10)
G08938916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

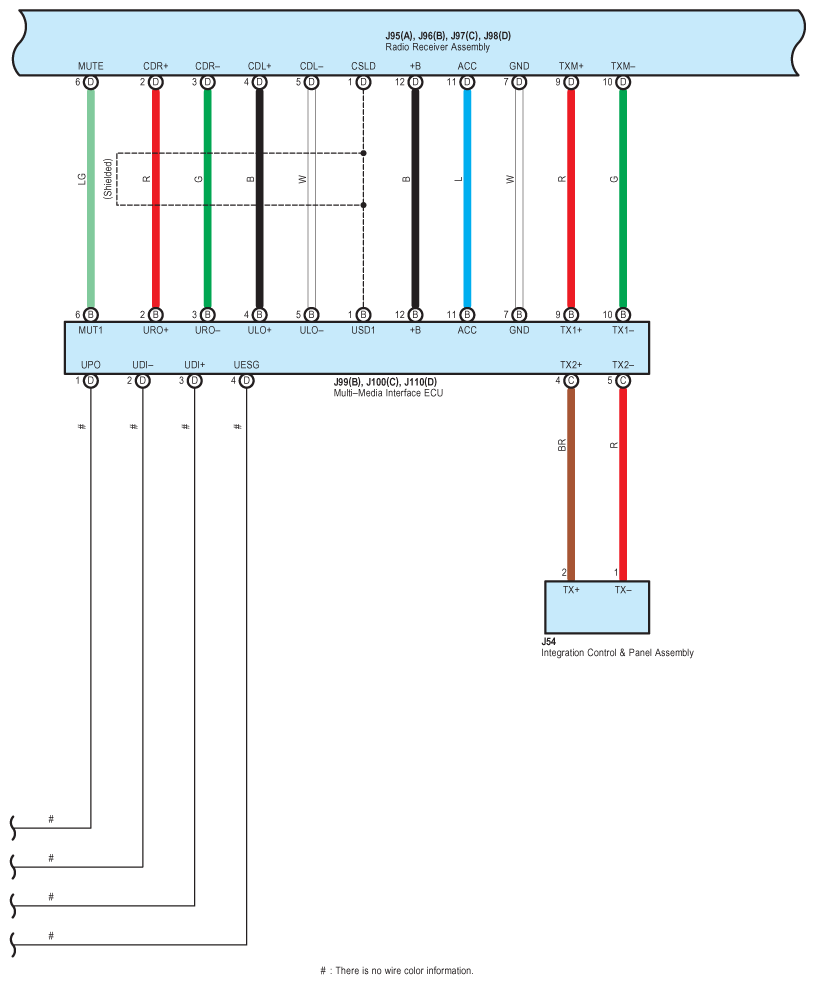

Fig 3: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (3 Of 10)
G08938917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

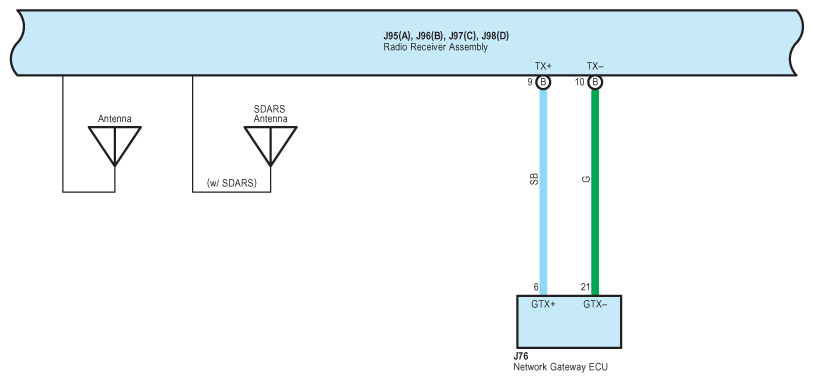

Fig 4: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (4 Of 10)
G08938918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

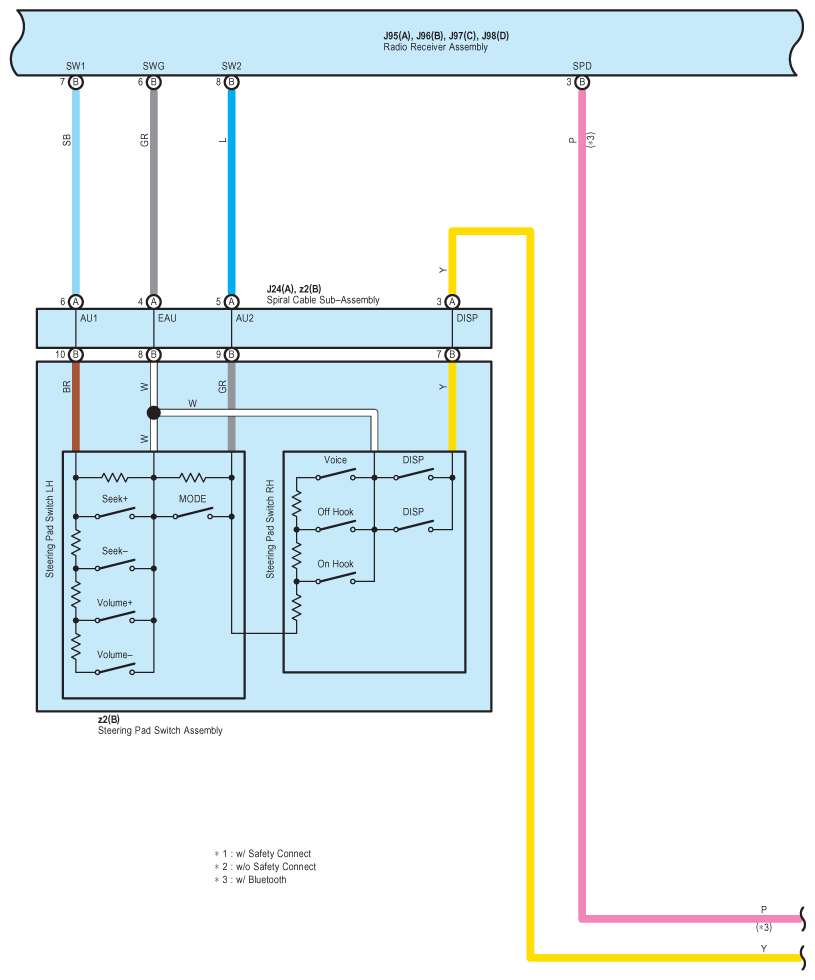

Fig 5: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (5 Of 10)
G08938919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

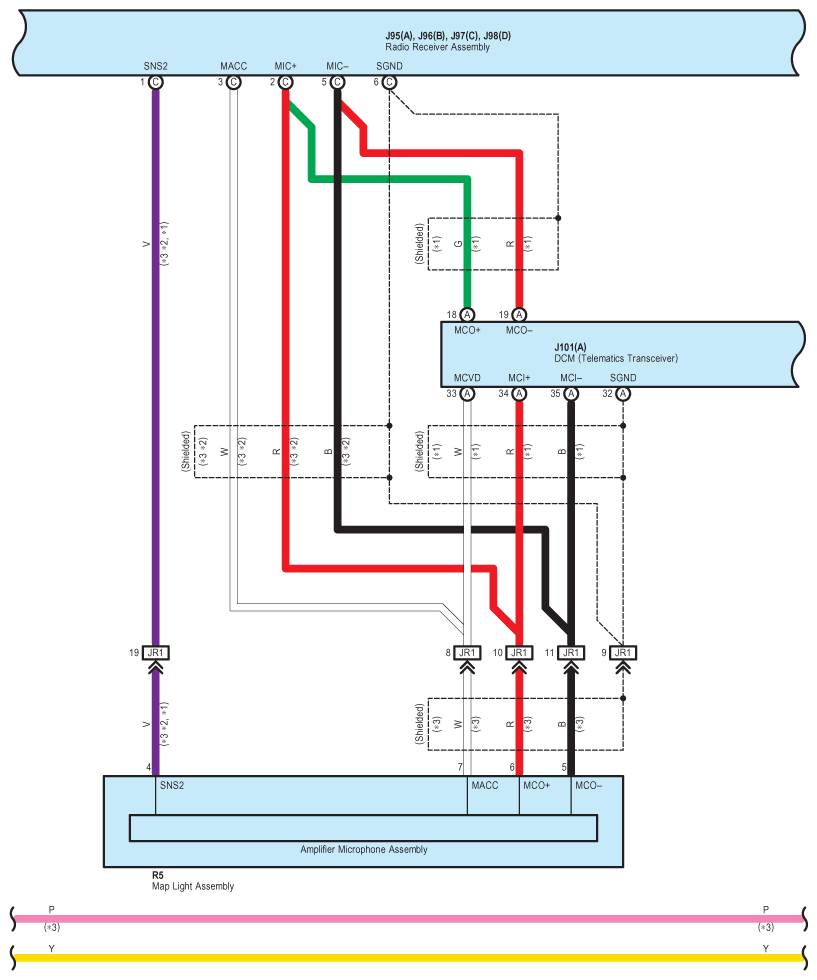

Fig 6: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (6 Of 10)
G08938920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

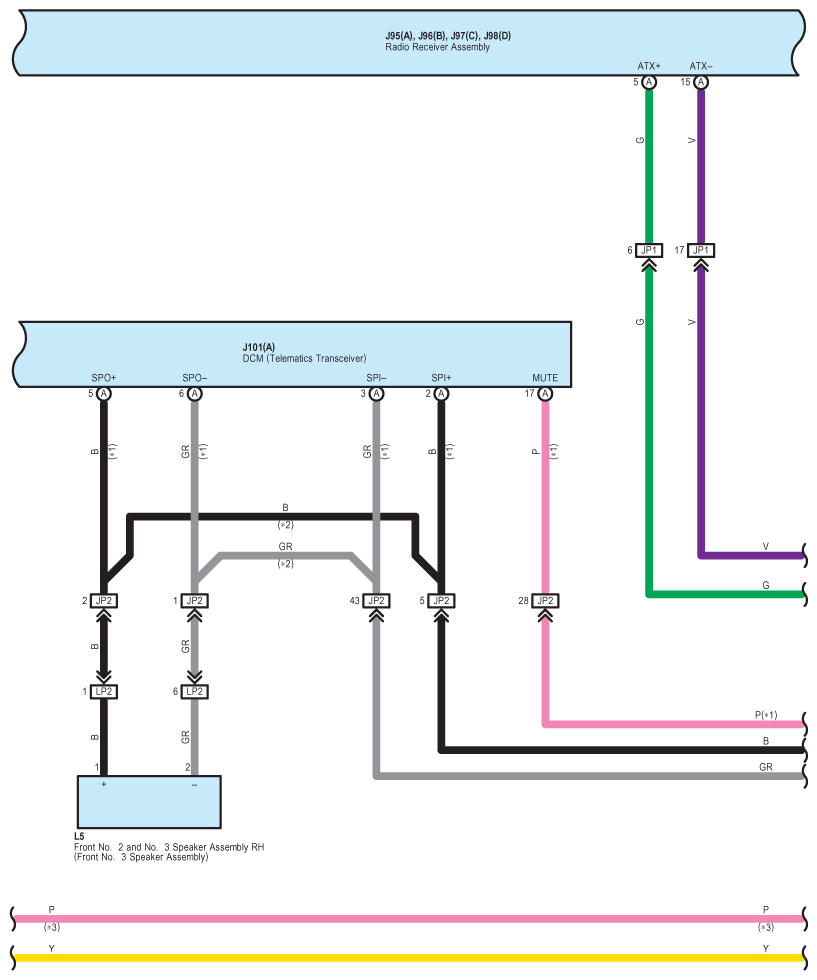

Fig 7: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (7 Of 10)
G08938921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

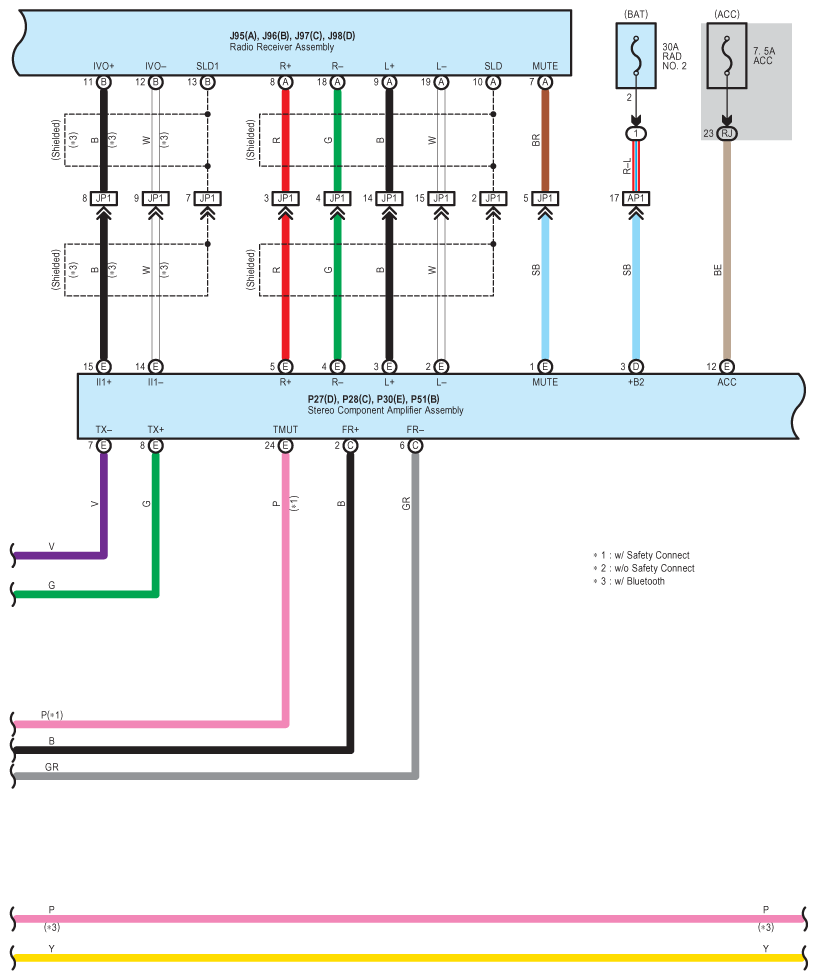

Fig 8: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (8 Of 10)
G08938922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

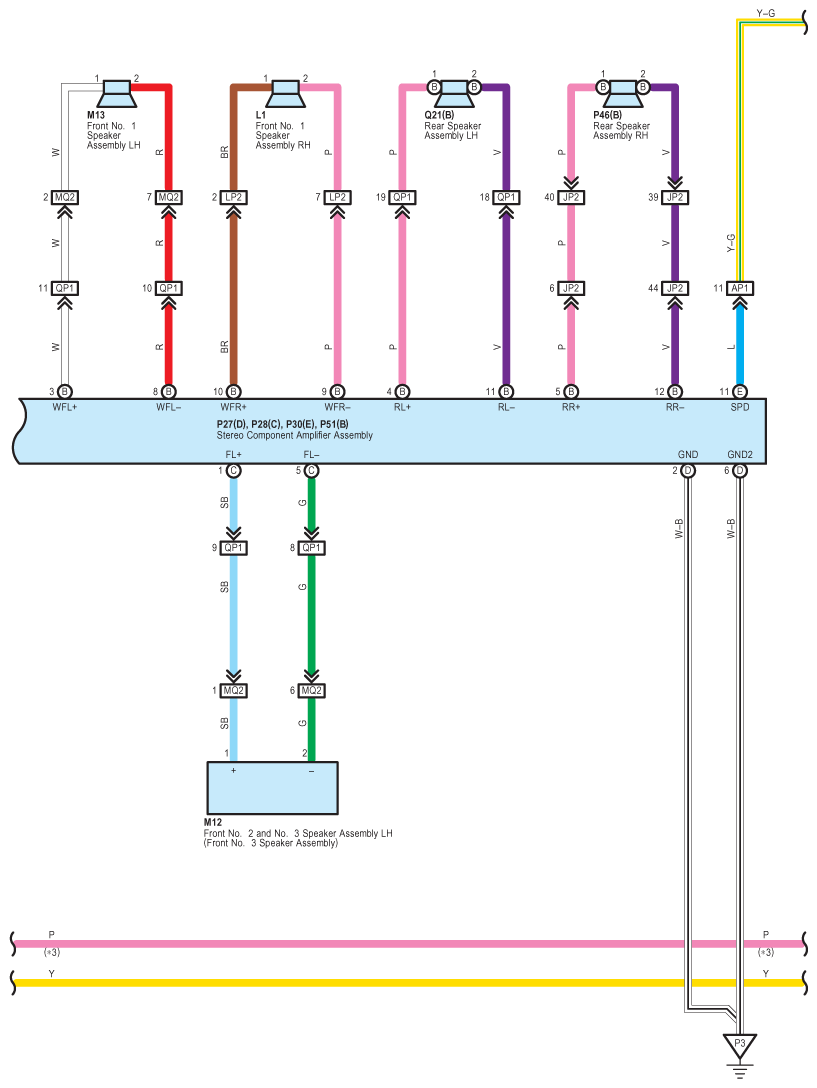

Fig 9: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (9 Of 10)
G08938923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

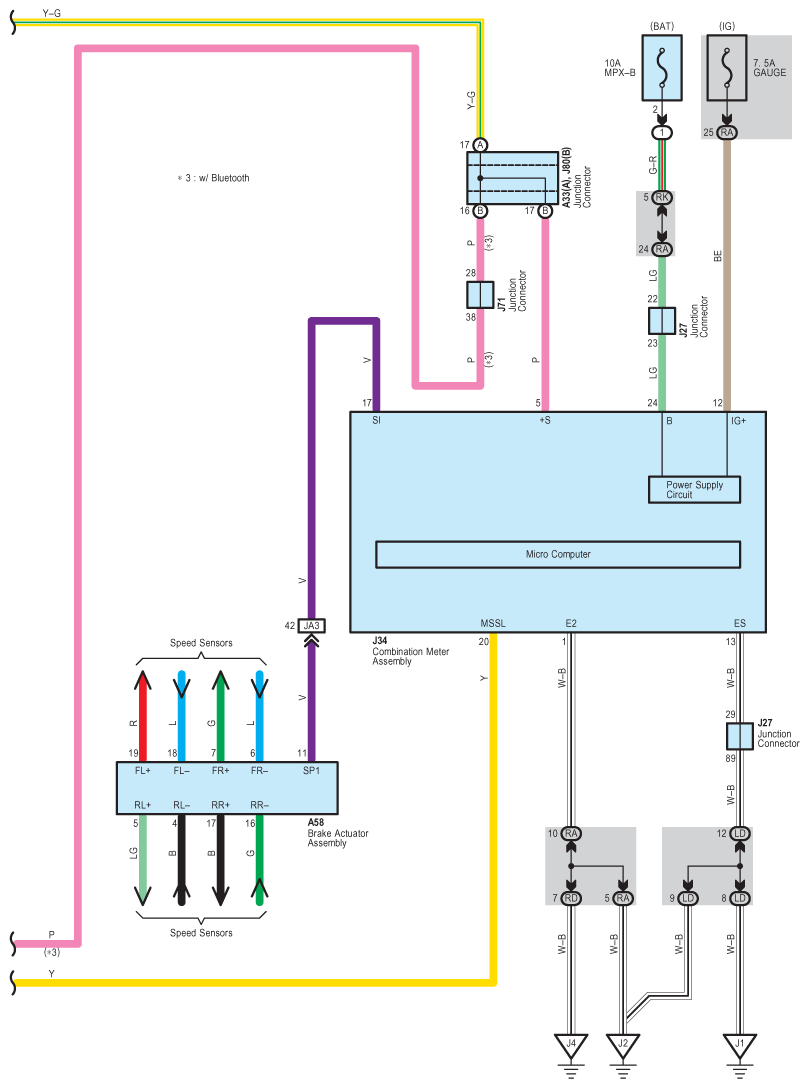

Fig 10: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (10 Of 10)
G08938924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
