Camshaft Oil Control Valve: Installation: Installation

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 2 Intake Side)
1. Apply a light coat of engine oil to a new O-ring and install it to the oil control valve.

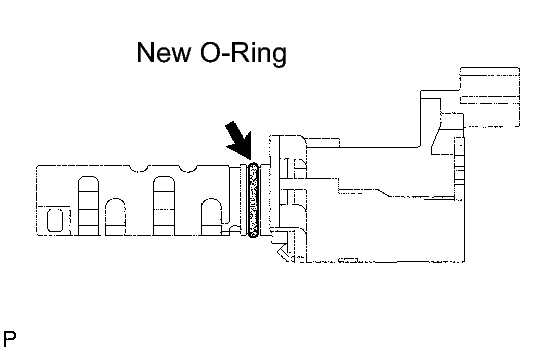

  Fig 1: Locating Camshaft Timing Oil Control Valve O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil control valve with the bolt.

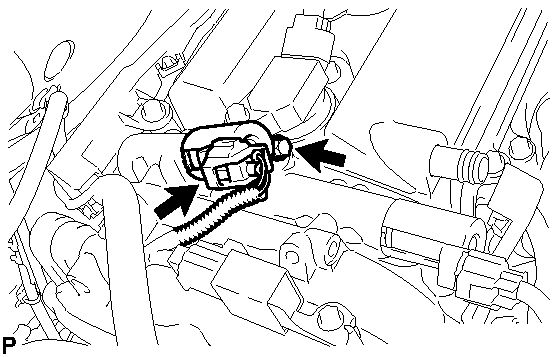

  Fig 2: Identifying Camshaft Timing Oil Control Valve Connector& Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  NOTE:
  Be careful that the O-ring is not cracked or jumped when installing the oil control valve.
3. Connect the camshaft timing oil control valve connector.
4. Install the bracket with the bolt.

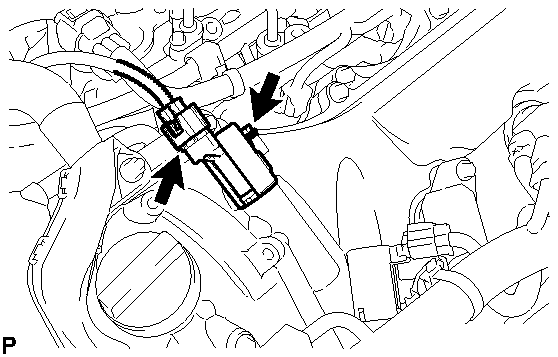

  Fig 3: Identifying Wire Harness, Bolt & Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (104 kgf*cm, 7 ft.*lbf)
5. Connect the wiring harness at the bracket.
INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 2 Exhaust Side)
1. Apply a light coat of engine oil to a new O-ring and install it to the oil control valve.

  Fig 4: Locating Camshaft Timing Oil Control Valve O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil control valve with the bolt.

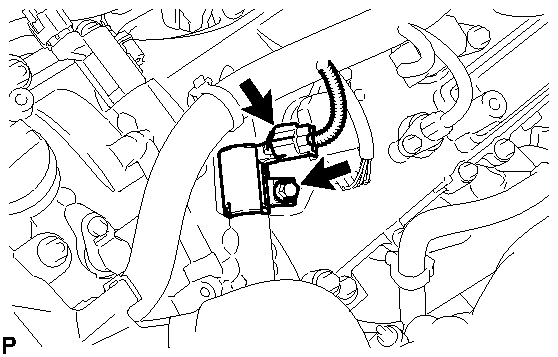

  Fig 5: Identifying Camshaft Timing Oil Control Valve, Bolt & Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  NOTE:
  Be careful that the O-ring is not cracked or jumped when installing the oil control valve.
3. Connect the camshaft timing oil control valve connector.
INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 1 Intake Side)
1. Apply a light coat of engine oil to a new O-ring and install it to the oil control valve.

  Fig 6: Locating Camshaft Timing Oil Control Valve O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil control valve with the bolt.

  Fig 7: Identifying Camshaft Timing Oil Control Valve Connector, Control Valve, Bolt & 0 - Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  NOTE:
  Be careful that the O-ring is not cracked or jumped when installing the oil control valve.
3. Connect the camshaft timing oil control valve connector.
4. Install the V-bank cover bracket with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 1 Exhaust Side)
1. Apply a light coat of engine oil to a new O-ring and install it to the oil control valve.

  Fig 8: Locating Camshaft Timing Oil Control Valve O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil control valve with the bolt.

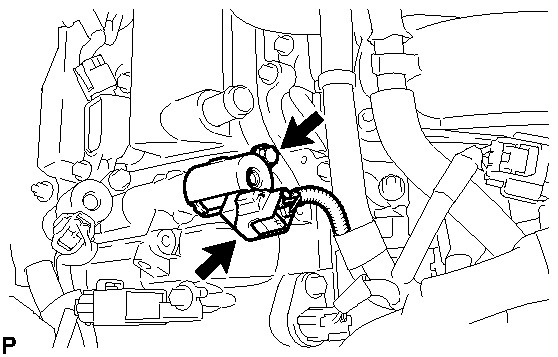

  Fig 9: Identifying Camshaft Timing Oil Control Valve Connector, Oil Valve, Bolt & O - Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  NOTE:
  Be careful that the O-ring is not cracked or jumped when installing the oil control valve.
3. Connect the camshaft timing oil control valve connector.
INSTALL INTAKE AIR SURGE TANK . Refer to INSTALLATION - Step 3
INSTALL THROTTLE BODY See step 1
INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE See step 2
CONNECT NO. 2 VENTILATION HOSE See step 3
ADD ENGINE COOLANT . Refer to ON-VEHICLE INSPECTION - Step 5
INSPECT FOR COOLANT LEAK . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 3
INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH . Refer to INSTALLATION - Step 5
INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH . Refer to INSTALLATION - Step 4
INSTALL FRONT WIPER ARM HEAD CAP . Refer to INSTALLATION - Step 6
INSTALL ROOF DRIP SIDE FINISH MOULDING RH
INSTALL ROOF DRIP SIDE FINISH MOULDING LH
INSTALL FRONT FENDER PROTECTOR UPPER RH . Refer to INSTALLATION - Step 10
INSTALL FRONT FENDER PROTECTOR UPPER LH . Refer to INSTALLATION - Step 9
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 114
INSTALL ENGINE ROOM SIDE COVER LH . Refer to INSTALLATION - Step 115
INSTALL ENGINE ROOM SIDE COVER RH . Refer to INSTALLATION - Step 116
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 117
