VVT Sensor: Removal: Removal

  1. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 4
  2. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the vvt sensor connector.

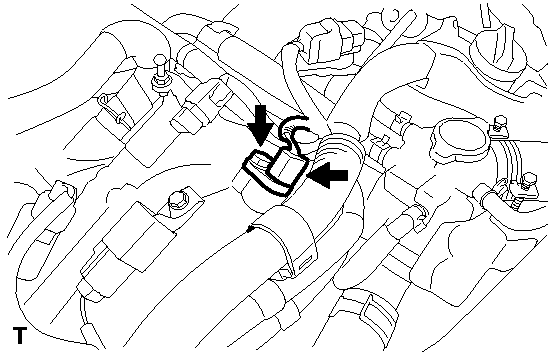

      Fig 1: Identifying VVT Sensor, Connector & Bolt
      GTY101436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and vvt sensor.
  3. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the vvt sensor connector.

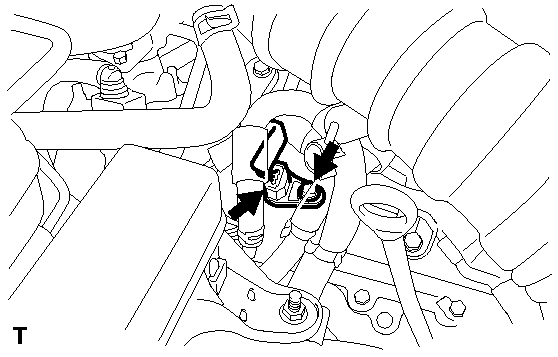

      Fig 2: Identifying VVT Sensor (For Exhaust Side Of Bank 1)
      GTY145903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and vvt sensor.
  4. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the vvt sensor connector.

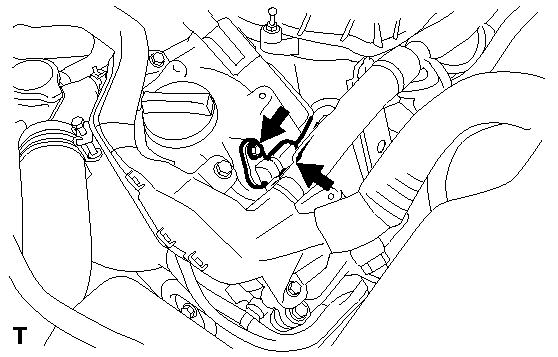

      Fig 3: Identifying VVT Sensor (For Intake Side Of Bank 2)
      GTY104809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and vvt sensor.
  5. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the vvt sensor connector.

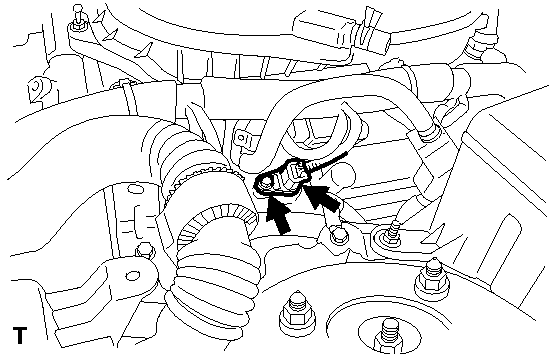

      Fig 4: Identifying VVT Sensor (For Exhaust Side Of Bank 2)
      GTY127896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and vvt sensor.
