Fuel Pump Relay: Components: Illustration

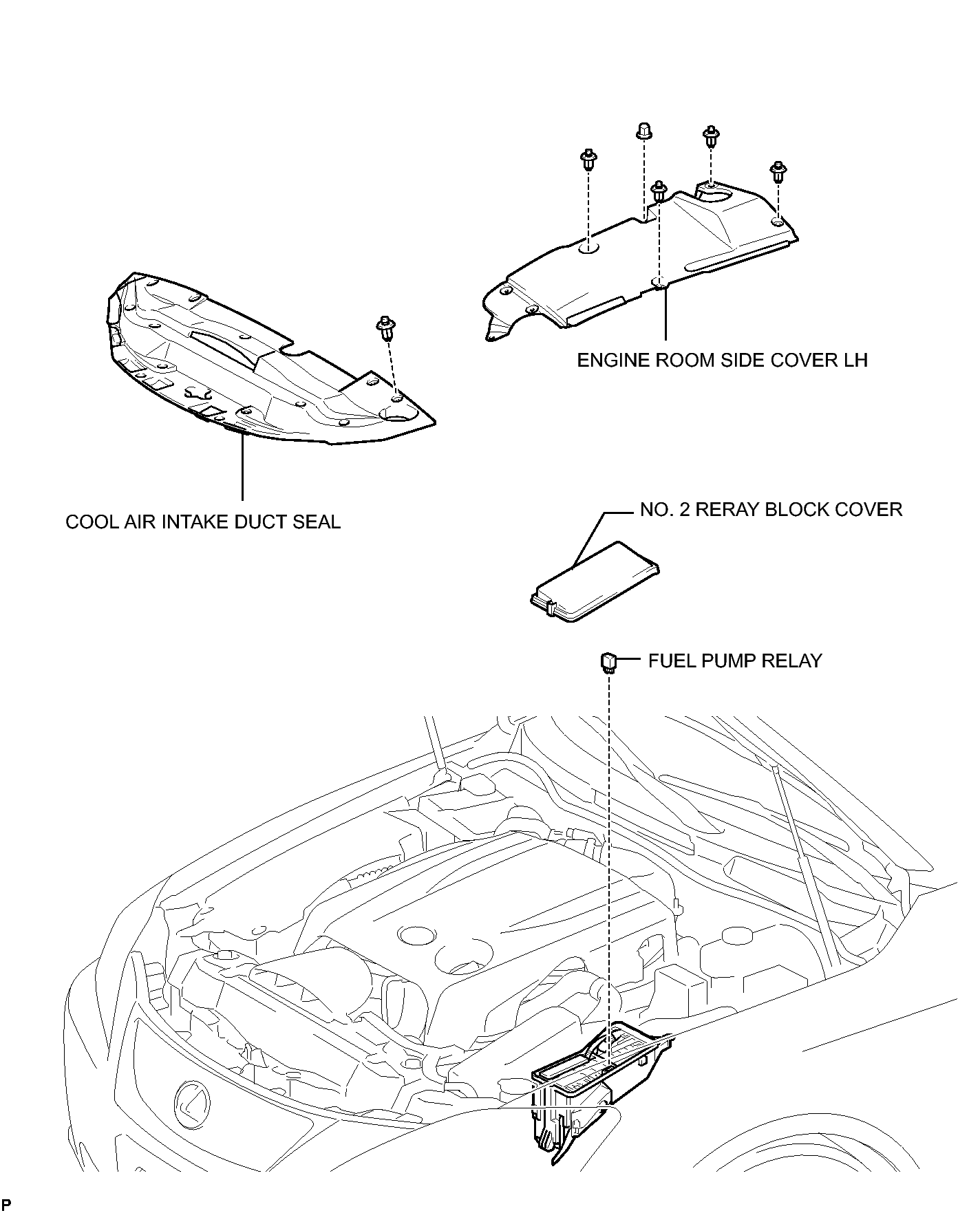

Fig 1: Identifying Fuel Pump Relay Replacement Components
GTY144500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
