Integration Relay: Removal: Removal

  1. REMOVE COOL AIR INTAKE DUCT SEAL  . Refer to REMOVAL - Step 1
  2. REMOVE ENGINE ROOM SIDE COVER LH  . Refer to REMOVAL - Step 2
  3. REMOVE INTEGRATION RELAY
    1. Remove the No. 2 relay block cover.
    2. Using a screwdriver, detach the 2 claws and disconnect the integration relay from the engine room No. 2 relay block.

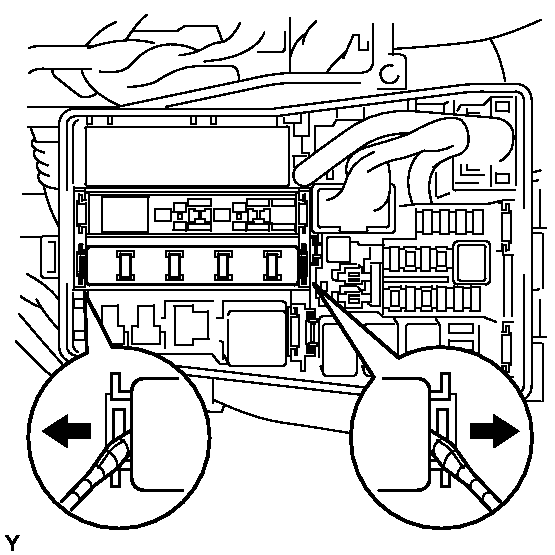

      Fig 1: Identifying Integration Relay
      GTY103087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    3. Disconnect the 3 connectors.
