Customize Parameters

HINT:

The following items can be customized.

NOTE:

When the customer requests a change in a function, first make sure that the function can be customized.
Be sure to make a note of the current settings before customizing.
When troubleshooting a function, first make sure that the function is set to the default setting.

POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

TILT &TELESCOPIC

Display	Default	Contents	Setting
Autoaway/Return function	ON	ON/OFF of the auto away / return function	ON / OFF

AIR CONDITIONING SYSTEM

AIR CONDITIONER

Tester Display	Default	Contents	Setting
Set Temperature Shift	NORMAL	To control with the shifted temperature against the display temperature	+2 C / +1 C / NORMAL / -1 C / -2 C
Air Inlet Mode	AUTO	In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATION mode	MANUAL / AUTO
Compressor Mode	AUTO	Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF	MANUAL / AUTO
Compressor/Air Inlet DEF operation	LINK	Function to turn the A/C ON automatically linked with the FRONT DEF button when A/C OFF	NORMAL / LINK
Evaporator Control	AUTO	Function to set the evaporator control to the AUTOMATIC position (AUTO) to save power, or to the coldest position (MANUAL) to dehumidify the air and to prevent the windows from fogging up	MANUAL / AUTO
Emission Gas Sensor Shift*	NORMAL	Function to change the sensitivity of the exhaust gas sensor	MU MORE / MORE / LI MORE / NORMAL / LI LESS / LESS / MU LESS
Button Press Buzzer	ON	Function to sound a buzzer when button is pressed	OFF / ON
Foot/DEF Auto Mode	ON	Function to turn the airflow from FOOT / DEF ON automatically when AUTO MODE is ON	OFF / ON
Foot/DEF Automatic Blow Up Function	ON	Function to change the blower level automatically when the defroster is ON	OFF / ON
Ambient Temperature Shift	NORMAL	Function to control the shifted ambient temperature in relation to the displayed ambient temperature	+3 C / +2 C / +1 C / NORMAL / -1 C / -2 C / -3 C
Foot Air Leak	ON	Function to cut off the airstream felt underfoot while the vehicle is moving	OFF / ON

*: For 2GR-FSE

THEFT DETERRENT SYSTEM

SECURITY

Display(Item)	Default	Contents	Setting
Passive Mode*	OFF	PASSIVE MODE is a function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not in the actuation area and driver side door is closed, even if doors are not locked by wireless or door key lock operation In PASSIVE MODE, if you do not perform following operations within 14 seconds after door is opened during armed state, theft deterrent system will judge that condition as a theft and switch to alarm sounding state Unlock any door by key or wireless operation Reconnect battery Turn the engine switch on (IG)	ON/OFF
Warning by Horn	ON	Function that makes vehicle horn and theft deterrent horn be able to be used as a warning device	ON/OFF
Entry Delay Time*	14 s	Function that changes entry delay time (time before warning starts) for PASSIVE MODE	0 s/14 s/30 s

*: w/ Occupant Classification System

LIGHTING SYSTEM

ILLUMINATED ENTRY:

Display	Default	Contents	Setting
I/L when ACC OFF	ON	Lights up the seat illumination when the engine switch is turned off.	ON / OFF
Light Control	ON	Dims (ON setting) or turns off (OFF setting) the footwell lights under the following conditions: A/T models: engine switch on (IG), shift lever not in P, and all doors closed. M/T models: engine switch on (IG), parking lever released, and all doors closed, or engine switch on (IG), vehicle speed above 5 km/h (3 mph), and all doors closed.	ON / OFF
Illumination System	ON	Lights up the footwell lights when one of the following occurs: the engine switch is turned on (IG), or any door is unlocked or opened.	ON / OFF
Lighting Time	15 s	Changes the lighting time of the seat illumination.	7.5 s / 15 s / 30 s
I/L ON W/Unlock	ON	Lights up the seat illumination when the doors are unlocked with the transmitter.	ON / OFF
Shift Light Control	AVAIL	Lights up the shift illumination when the engine switch is turned on (ACC or IG).	NOT AVL / AVAIL
Exterior Foot Light Control	AVAIL	Lights up the door mirror foot lights when either of the following occurs: the doors are unlocked with the transmitter, or the key enters any actuation area around the doors.	NOT AVL / AVAIL
Exterior Foot Light Lighting Time	15 s	Changes the lighting time of the door mirror foot lights.	15 s / 7.5 s / 30 s

LIGHT CONTROL:

Display	Default	Contents	Setting
Light Auto OFF Delay	30s	Keeps the headlights on for a certain period of time after turning the engine switch off and closing all the doors with the headlights on.	OFF / 30 s / 60 s / 90 s
Sensitivity	NORMAL	Adjusts the sensitivity of the automatic light control system.	LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2
Disp Ex OFF Sen	NORMAL	Changes the ambient brightness level to brighten the dimmed lights such as the indicator lights of the combination meter, A/C indicator light, and clock	LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2
Disp Ex ON Sen	NORMAL	Changes the ambient brightness level to dim the lights such as the indicator lights of the combination meter, A/C indicator light, and clock.	LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2
DRL Function	ON	ON / OFF of the DRL function	ON / OFF

HINT:

The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

WIPER AND WASHER SYSTEM

WIPER

Display	Default	Contents	Setting
Auto Wiper	Available	Function to change to the intermittent operation when the vehicle comes to a stop from driving condition with the wiper switch in the LO position	Not Available / Available.
Auto Wiper	Available	Function to operate the wiper automatically when it is raining	Not Available / Available.
Re - wiper Control	Speed Mode	Function to change the time between end of wiper motor operation and start of wiper operation to prevent streaking from washer fluid	Speed Mode / 3 sec. / OFF

POWER DOOR LOCK CONTROL SYSTEM

DOOR LOCK

Tester Display	Default	Contents	Setting
Auto Lock	OFF1 ON2, *3	Function that locks doors when vehicle speed reaches 20 km/h (13 mph)	ON/OFF
Unlk/Key Twice (Unlock w/ 2 times D key operation)	ON	Function that unlocks only the driver side door when the driver side door key cylinder is turned to unlock once and unlocks all the doors when it is turned to unlock twice In the OFF setting, turning it once unlocks all doors	ON/OFF
All Unlk/Opn-Cl (All unlock w/ D door open-close)	OFF1 ON2	Function that unlocks all other doors when opening driver side door within approximately 45 seconds after turning the engine switch off from on (IG)	ON/OFF
Unlock/Park*1 (Unlock w/ engine switch on (IG), shift P, speed 0 km/h (0 mph))	ON	Function that unlocks doors when the shift lever is moved to the P position from any other position while the engine switch is on (IG)	ON/OFF
Auto Lock/Shift*1 (Auto lock/shift not P)	ON OFF*3	Function that locks doors when the shift lever is moved from the P position to any other position	ON/OFF

*1: for A/T
*2: for M/T
*3: w/o Occupant Classification System

WIRELESS DOOR LOCK CONTROL SYSTEM

Item (Display)	Default	Contents	Setting
Open Door Warning	ON	If a door is not completely closed and LOCK is pressed, this function sounds a buzzer for 10 seconds.	ON / OFF
Wireless Control (Wireless door lock control function)	ON	This function turns the wireless door lock function on or off.	ON / OFF
Panic Function	ON	This function operates the theft deterrent system when PANIC is pressed and held for 0.8 seconds.	ON / OFF
Unlock 2 Operation (Wireless unlock operated twice)	ON	This function unlocks the driver side door when UNLOCK is pressed once, and unlocks all doors when pressed twice. If set to OFF, pressing UNLOCK once unlocks all doors.	ON / OFF
Trunk Lid Operation (Wireless luggage compartment door open function setting)	0.8 PR	This function changes operation method of transmitter to open luggage compartment door. 1 TIME: Push 1 time 2 TIMES: Push 2 times (within 3 seconds) 0.8 PR: Push longer than 0.8 seconds OFF: Does not operate	1 TIME / 2 TIMES / 0.8 PR / OFF
Wireless Auto Lock	ON	Function to control automatic relocking of doors after unlocking with wireless door lock function.	ON / OFF
Auto Lock Time	60 s	This function controls the amount of time from unlocking doors to automatic re-locking.	30 s / 60 s / 120 s
Hazard Answer Back (Hazard answer-back for wireless door lock operation)	ON	When LOCK is pressed, all hazard warning lights flash once. When UNLOCK is pressed, all hazard warning lights flash twice.	ON / OFF
Wireless Buzzer Resp (Buzzer answer-back of Wireless)	ON	This function makes the wireless door lock buzzer sound for answer-back when LOCK/UNLOCK is pressed.	ON / OFF

SMART ACCESS SYSTEM WITH PUSH-BUTTON START (FOR DOOR LOCK)

SMART (SMART ACCESS SYSTEM WITH PUSH-BUTTON START)

Tester Display	Default	Contents	Setting
Ignition Available Area	ALL	Function that switches the entry ignition detection area	FRONT / ALL
Park Wait Time (Waiting time to permit opening door after locking)	3.0 s	Function that sets waiting time to permit opening door after door is locked with entry lock function	1.0 s / 2.0 s / 3.0 s / 5.5 s
Trunk Open Mode (Luggage compartment door open mode when vehicle is locked)	ON	Function to permit opening luggage compartment door	ON / OFF
Key Low Battery Warning (Warning when key battery becomes weak)	ON	Function that warns driver that the key's battery power is low	ON / OFF

ENTRY UNLOCK MODE SWITCHING
NOTE:
Because the electrical key (card type) does not have a wireless transmitter function, it cannot be used to change the entry unlock mode.
1. Check that the power source mode is OFF and the LED on the electrical key is not blinking. Press the LOCK switch and one of the other switches on the electrical key at the same time for approximately 5 seconds while the electrical key is in the action area.
  - Driver door unlock default setting:
    When the switches are pressed and held for 5 seconds, the entry door unlock mode changes to the mode that is not currently selected.
  NOTE:
  After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.
  - Driver door unlock mode:
    When the driver door touch sensor is touched, only the driver door unlocks. When any of the other touch sensors is touched, all doors unlock.
  - All door unlock mode:
    When any of the touch sensors is touched, all doors unlock.
2. The certification ECU receives wireless signal from the entry door control receiver and changes the smart access system with push-button start to entry unlock mode.
3. The certification ECU sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been changed.

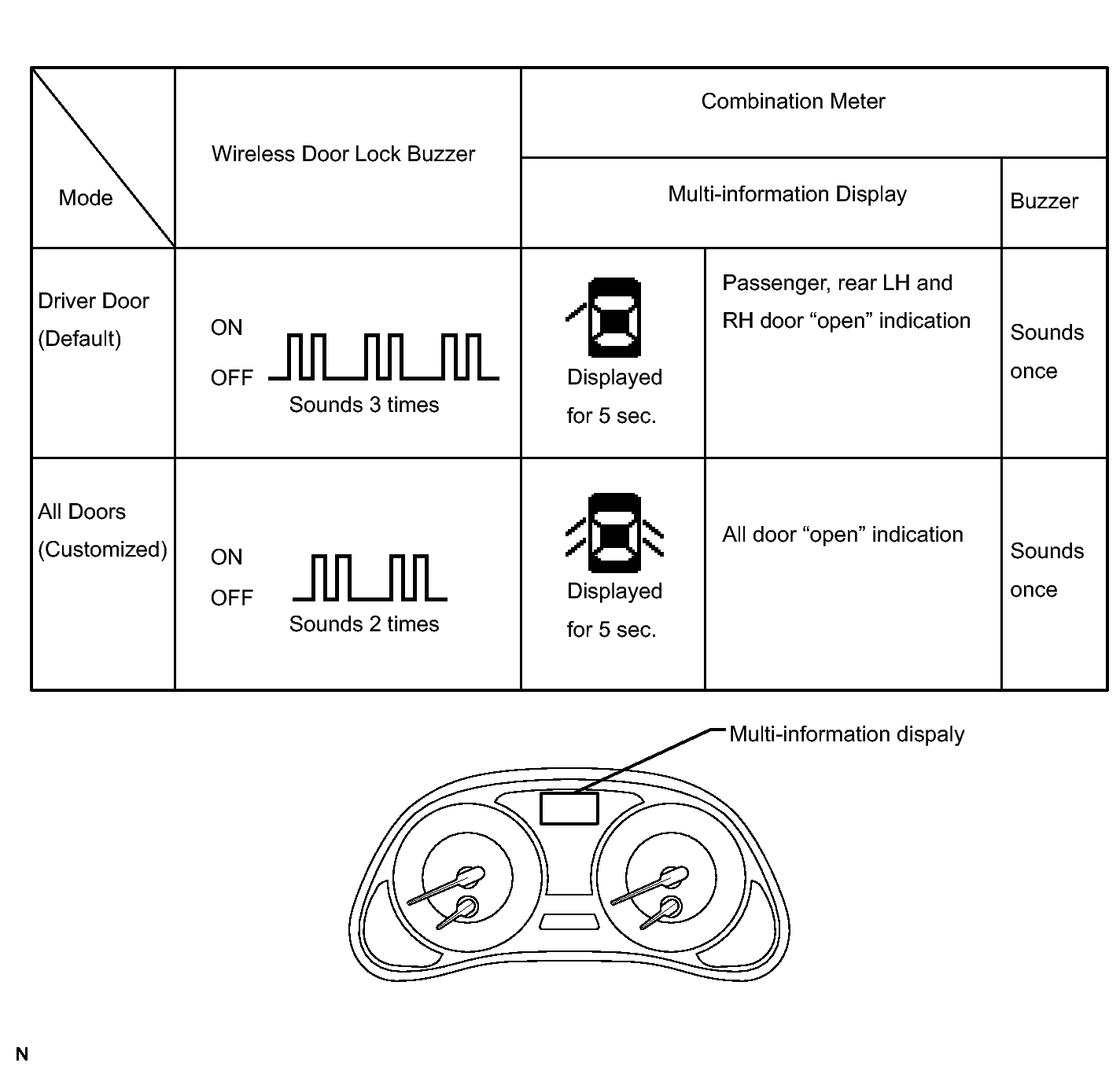

  Fig 1: View Of Muti-Information - Display
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  The procedure only changes the entry unlock mode of the smart access system with push-button start. It does not switch the unlocking of the wireless door lock control.
ELECTRICAL KEY CANCEL
NOTE:
Because the electrical key (card type) does not have a wireless transmitter function, it cannot be used to perform the entry key cancel operation.

The electrical key cancel operation disables the following functions:
- Entry Unlock / Lock
- Entry Luggage Compartment Open
- Electrical key Lock-in Prevention
- Warning
- Memory Call
1. The operation procedure is as follows:
  Precondition:

  Engine switch off, driver side door closed and unlocked
  1. Unlock the driver side door once with the UNLOCK switch of the electrical key.
  2. Open the driver door within 5 seconds.
  3. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
  4. Close and open the driver door twice within 30 seconds.
    (Driver door: Close → Open → Close → Open)
  5. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
  6. Close and open the driver door within 30 seconds.
    (Driver door: Close → Open)
  7. Close the driver door within 5 seconds.
    When electrical key cancel is activated, the wireless door lock buzzer sounds twice.

    To return to the original condition, perform this procedure again. When the original condition is returned, the wireless door lock buzzer sounds once.

METER / GAUGE SYSTEM

WARNING

Tester Display	Default	Contents	Setting
Key Remind Volume	Large	Function to change the volume of the key remind warning buzzer	Large, Medium, Small
Key Remind Sound	Normal	Function to change the cycle of the key remind warning buzzer	Fast, Normal, Slow

UNIT CONVERSION

Tester Display	Default	Contents	Setting
Units By Region	ML/G (1) KM/L (2)	Function to change the unit of the trip information display	ML/G, ML/G, KM/L

*1: for U.S.A.
*2: except U.S.A.

HINT:

The following items can be customized without using the Techstream.

Item	Default	Contents	Setting
Seat belt warning buzzer (See procedure "A")	b-on	Function to change volume of key remind warning buzzer	b-on, b-oFF
Speed indicator (See procedure "B")	75 (mph) (1) 120 (km/h) (2)	Function to change the value that decides the speed indicator when to illuminate	30 to 100 (mph) (1), 50 to 160 (km/h) (2)
Tach indicator (See procedure "B")	5000 (rpm)	Function to change the value that decides the tach indicator when to illuminate	2000 to 6500 (rpm)

*1: for U.S.A.
*2: except U.S.A.

Seat Belt Buzzer ON/OFF setting (Procedure "A")
The buzzer ON/OFF setting, which is a setting of the buzzer function of the combination meter, can disable the driver and front passenger side seat belt buzzers.
NOTE:
- These buzzers should be on for safe driving. Perform these procedures only if it is necessary to set the buzzer off (disabled).
- When either the battery cable or the combination meter connector is disconnected, these buzzers are set on (enabled).
- Odometer returns to 0 after starting this procedure, although it is not displayed.
HINT:

"b-oFF" indicates that the buzzer is OFF. "b-on" indicates that the buzzer is ON. The buzzer ON/OFF setting will be finished (the odometer will display "ODO") if the ODO/TRIP switch is not operated for 10 seconds or more. In this case, perform step 11 to check that the buzzer ON/OFF setting is complete. If it is not complete, start from step 1 again.
1. Driver and front passenger side seat belt buzzers
  1. Engine switch on (IG).
  2. Press the ODO/TRIP switch until the odometer displays "ODO".
  3. Engine switch off.
  4. Engine switch on (IG).
  5. Press the ODO/TRIP switch immediately (within 6 seconds) and hold it down for 10 seconds or more.
  6. Continue holding down the ODO/TRIP switch and fasten the driver side seat belt.
  7. Check that the odometer displays either "b-on" or "b-oFF".
  8. Press the ODO/TRIP switch to change the display to "b-oFF".
  9. Engine switch off.
  10. Engine switch on (IG).
  11. Check that no buzzer sounds.
2. Front passenger side seat belt buzzer
  1. Engine switch on (IG).
  2. Press the ODO/TRIP switch until the odometer displays "ODO".
  3. Engine switch off.
  4. Engine switch on (IG).
  5. Sit in the front passenger seat. Press the ODO/TRIP switch immediately (within 6 seconds) and hold it down for 10 seconds or more.
  6. Sit in the front passenger seat. Continue holding down the ODO/TRIP switch and fasten the front passenger side seat belt.
  7. Check that the odometer displays either "b-on" or "b-oFF".
  8. Press the ODO/TRIP switch to change the display to "b-oFF".
  9. Engine switch off.
  10. Engine switch on (IG).
  11. Check that no buzzer sounds.
SPEED AND TACH INDICATOR (Procedure "B")
1. Select the SPEED INDICATOR or TACH INDICATOR using the satellite switch (RH, ON/OFF, or LH switch).

  Fig 2: Identifying Satellite Display Switch And Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the SPEED INDICATOR or TACH INDICATOR function off by using the ON/OFF switch.
3. Turn the SPEED INDICATOR or TACH INDICATOR function on again by using the ON/OFF switch.
4. Leave the display on for 1 second to allow it to change to the SET display.

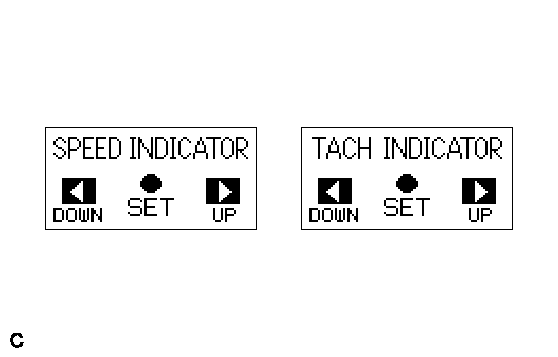

  Fig 3: Identifying Speed Indicator And Tacho Indicator Displays
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. When SET flashes, the speedometer needle moves to indicate the previously set vehicle speed and then stops.
6. Push the LH or RH switch within 6 seconds of the speedometer needle moving in order to allow setting of the speedometer indicator set point.

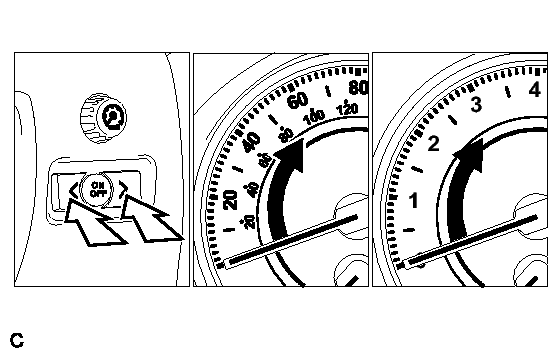

  Fig 4: Identifying ON/OFF Switch And Speedometer Indicator Displays
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - The speedometer needle moves by 1 degree each time the LH or RH switch is pushed.
  - Pushing and holding the switch changes values at a faster rate.
7. When the ON/OFF switch is pushed, the speedometer or tachometer needle stays at the setting value for 1 second, the buzzer sounds once, and the SPEED indicator illuminates only momentarily one time in yellow.

INTUITIVE PARKING ASSIST SYSTEM

WARNING

Tester Display	Default	Contents	Setting
Fr & Rr Buzzer Volume	M2	Function to change volume of buzzer / L, M1, M2, M3 or H	L: Low volume M1: Medium low volume M2: Medium volume M3: Medium high volume H: High volume
Keep Sense Status Buzzer	ON	Function to make buzzer sound when distance between vehicle and obstacle does not change for more than 3 seconds	ON / OFF
Rear Buzzer Onset Range	Wide	Function to set rear buzzer activation range / Narrow or Wide	Narrow: 600 mm(23.62 in.) Wide: 1500 mm (59.06 in.)

SENSOR

Tester Display	Default	Contents	Setting
Sensor Condition N Range	OFF	Make the sensors available when the shift lever is in N / ON or OFF	ON: Available OFF: Not available
Non P/R Range Sensor	F	Function to set available sensors when shift position is not in P or R / F, Rcrn2 or F	F, Rcrn2: Corner sensors are available F: front sensors are available

INTUITIVE PARKING ASSIST SYSTEM (On Display and Navigation Module Display)

NOTE:

When the customer requests a change in a function, first make sure that the function can be customized.
Be sure to make a note of the current settings before customizing.
When troubleshooting a function, first make sure that the function is set to the default setting.

Turn the engine switch on (IG).
Turn the intuitive parking assist system on.
Select the following menus: Setup / Vehicle / LEXUS Park Assist.

Select the setting by referring to the table below.

Display	Default	Content	Setting
Alert volume	3	Change the buzzer volume setting.	1, 2, 3, 4 or 5 1: Low volume 2: Medium low volume 3: Medium volume 4: Medium high volume 5: High volume
Display	On	The display mode setting (when the intuitive parking assist system is normal).	On or Off
Distance	Wide	Set the buzzer activation range for the rear center sensors.	Narrow or Wide Narrow: 600 mm (23.62 in.) Wide: 1500 mm (59.06 in.)

POWER WINDOW CONTROL SYSTEM

POWER WINDOW

Tester Display	Default	Content	Setting
Door Key Linked P/W Up	ON	Function that raises all power windows when, with engine switch off, key in driver door key cylinder is turned to and held in lock position for more than 1.5 seconds	ON / OFF
Door Key Linked P/W Down	ON	Function that lowers all power windows when, with engine switch off, key in driver door key cylinder is turned to and held in unlock position for more than 1.5 seconds	ON / OFF
P/W Down w/ Transmitter	ON	Function that lowers all power windows when, with engine switch off, unlock switch on transmitter is pressed and held for more than 3.0 seconds	ON / OFF

REAR SUNSHADE SYSTEM

OTHERS

Tester Display	Default	Contents	Selection
R Output Time	0.7 sec.	Function to change the time until operating the function linked shift R	0 / 0.7 / 0.9 / 1.2
R-Shade Reverse	AVAIL	NOT AVL/AVAIL of the rear sunshade reverse function.	NOT AVL / AVAIL

SLIDING ROOF SYSTEM

SLIDE ROOF

Tester Display	Default	Contents	Setting
Door Key Related Open*1	ON	Function to manually open sliding roof linked with power window by holding driver side door key for 2.5 seconds or more to unlock position when engine switch is off	ON / OFF
Door Key Related Close*1	ON	Function to manually close sliding roof linked with power window by holding driver side door key for 2.5 seconds or more to lock position when engine switch is off	ON / OFF
Wireless Key Related Open2, 3	OFF	Function to manually open sliding roof linked with power window by pressing transmitter UNLOCK switch for 3.4 seconds or more when engine switch is off	ON / OFF
Door Key Related Operation	Slide	Function to select tilt up or slide open of manual sliding roof operation linked with power window by holding driver side door key for 2.5 seconds or more to unlock position when engine switch is off	Tilt / Slide
Wireless Key Related Operation*3	Slide	Function to select tilt up or slide open of manual sliding roof operation linked with power window by pressing on transmitter UNLOCK switch for 3.4 seconds or more when engine switch is off	Tilt / Slide

*1: This function is linked with the power window key-linked function. If the power window key-linked function is set to OFF, the sliding roof key-linked function will not operate even when it is set to ON.
*2: This function is linked with the power window wireless transmitter-linked function. If the power window wireless transmitter-linked function is set to OFF, the sliding roof wireless transmitter-linked function will not operate even when it is set to ON.
*3: except for models with Navigation System (for DVD)
