Air Conditioning: Notes

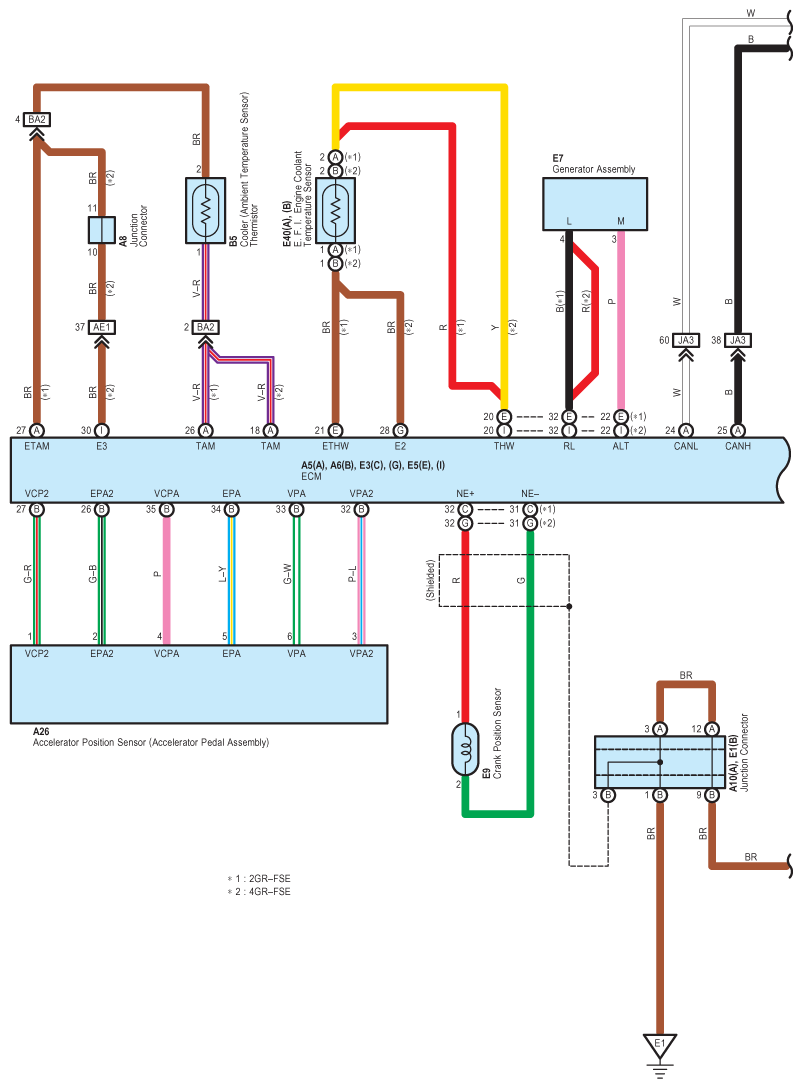

Fig 1: Air Conditioning - Wiring Diagram (1 Of 7)

G08938935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

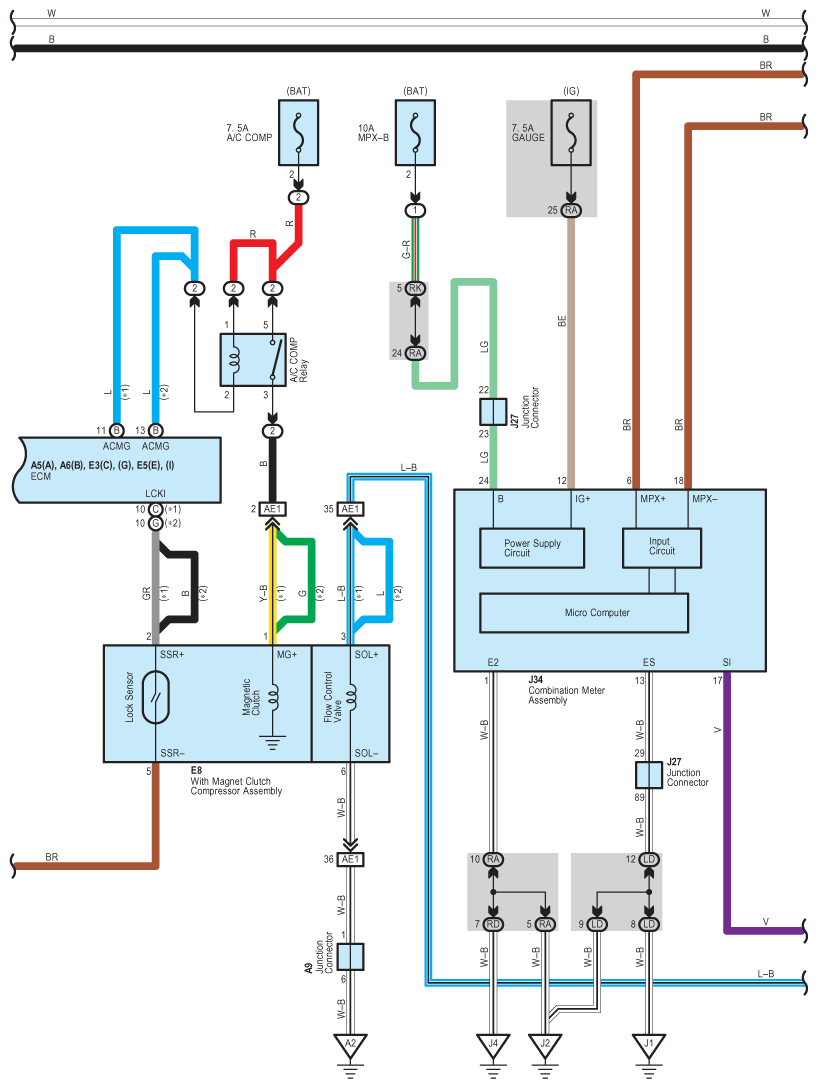

Fig 2: Air Conditioning - Wiring Diagram (2 Of 7)

G08938936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

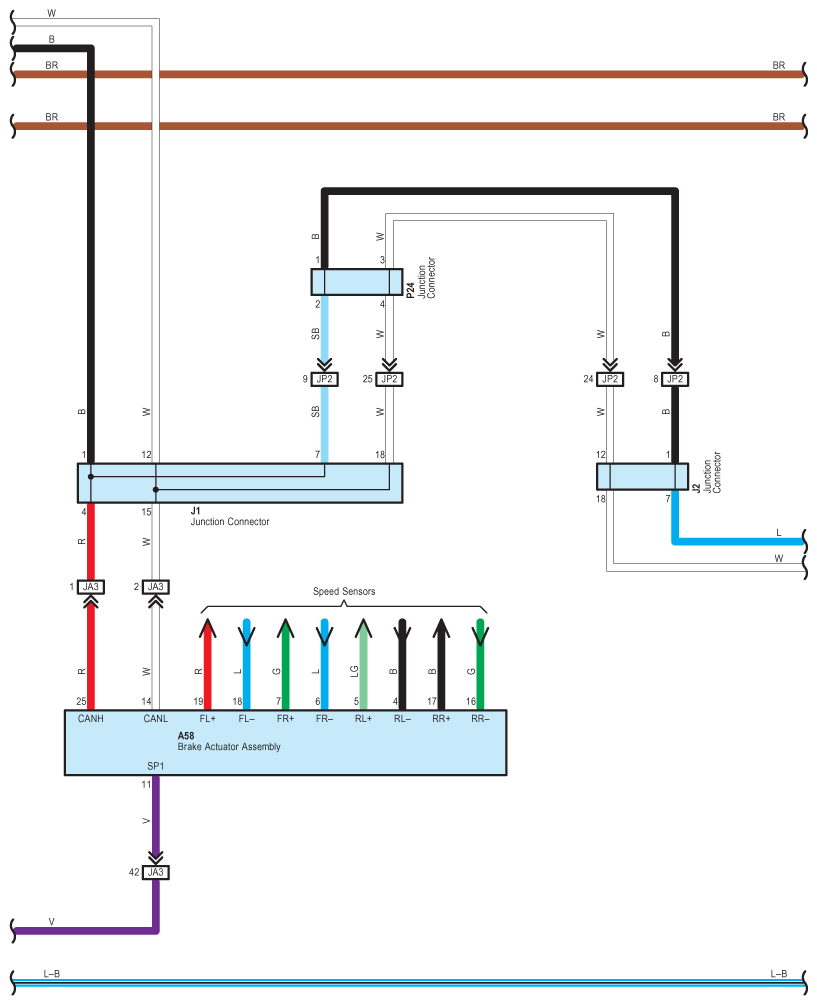

Fig 3: Air Conditioning - Wiring Diagram (3 Of 7)

G08938937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

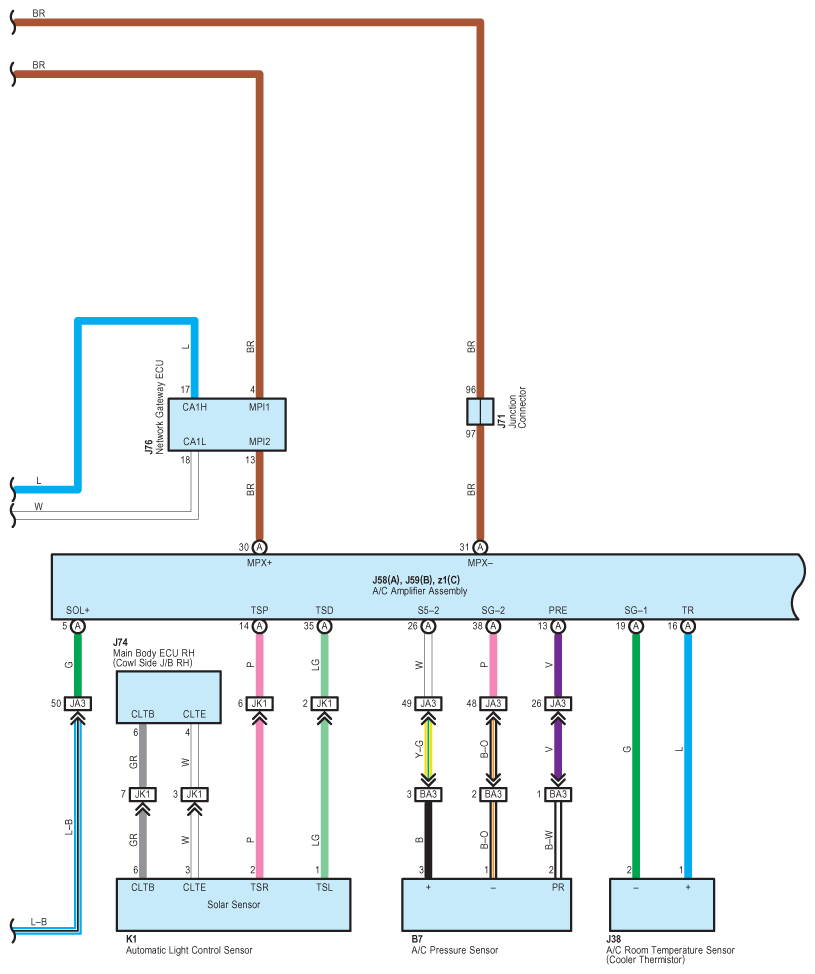

Fig 4: Air Conditioning - Wiring Diagram (4 Of 7)

G08938938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

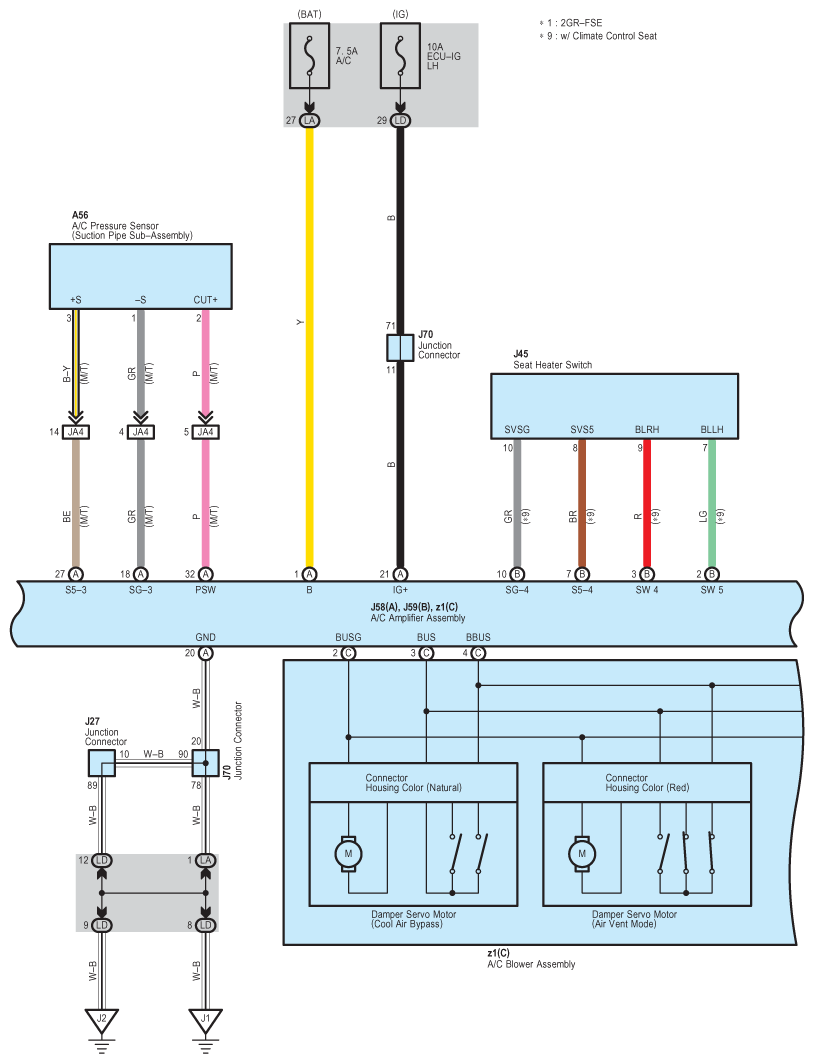

Fig 5: Air Conditioning - Wiring Diagram (5 Of 7)

G08938939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

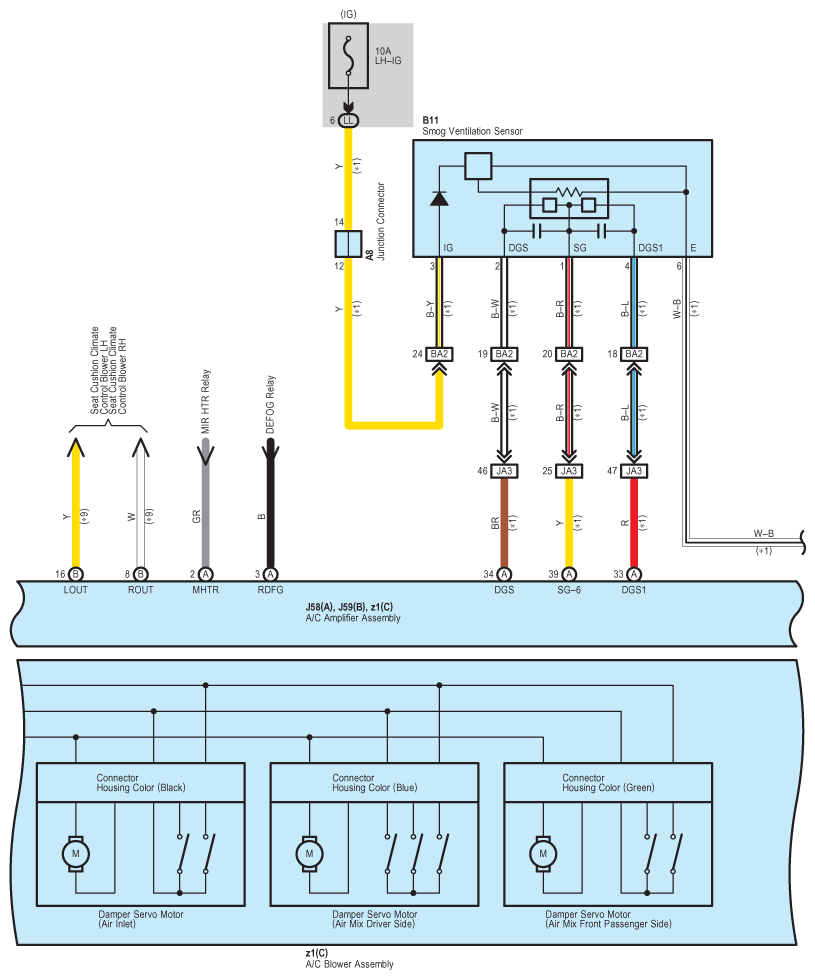

Fig 6: Air Conditioning - Wiring Diagram (6 Of 7)

G08938940

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

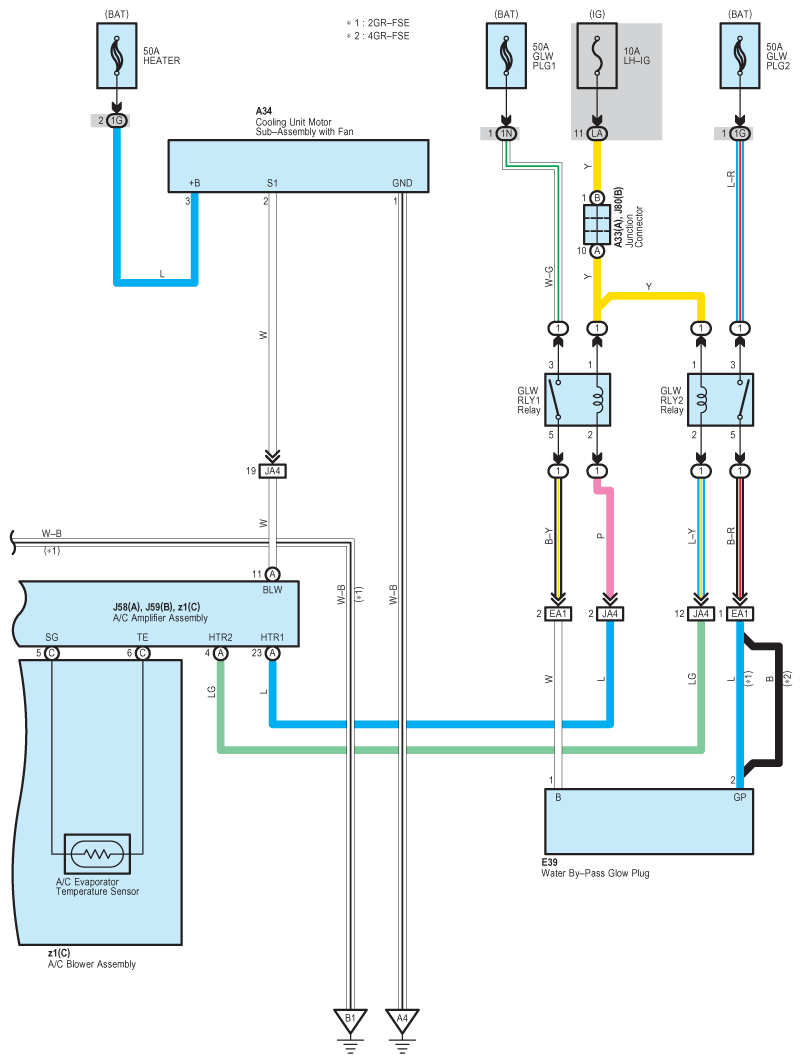

Fig 7: Air Conditioning - Wiring Diagram (7 Of 7)

G08938941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
