Combination Meter: Notes

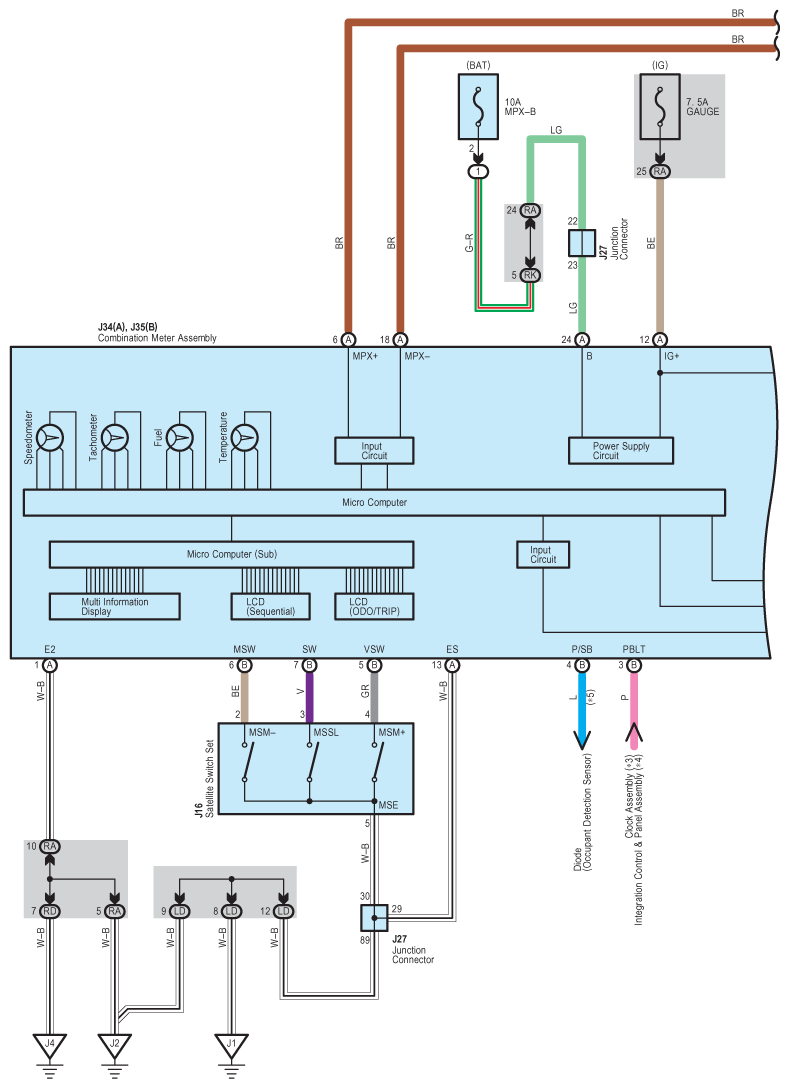

Fig 1: Combination Meter - Wiring Diagram (1 Of 7)
G08938925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

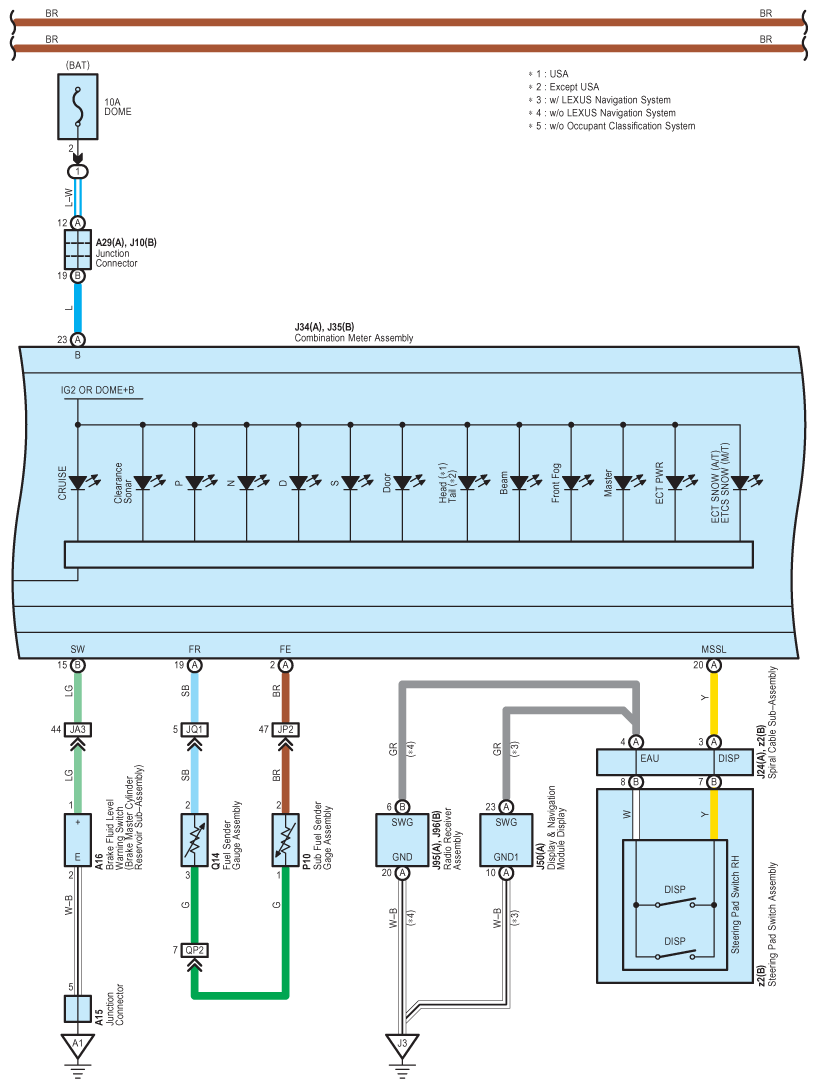

Fig 2: Combination Meter - Wiring Diagram (2 Of 7)
G08938926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

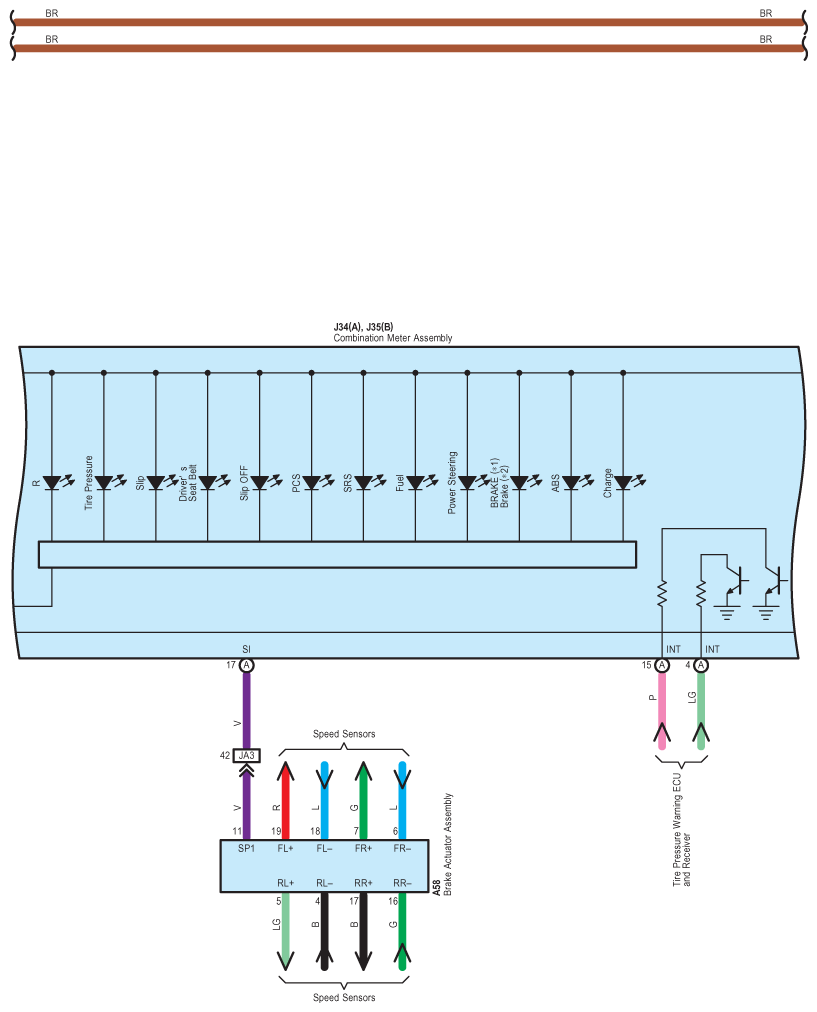

Fig 3: Combination Meter - Wiring Diagram (3 Of 7)
G08938927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

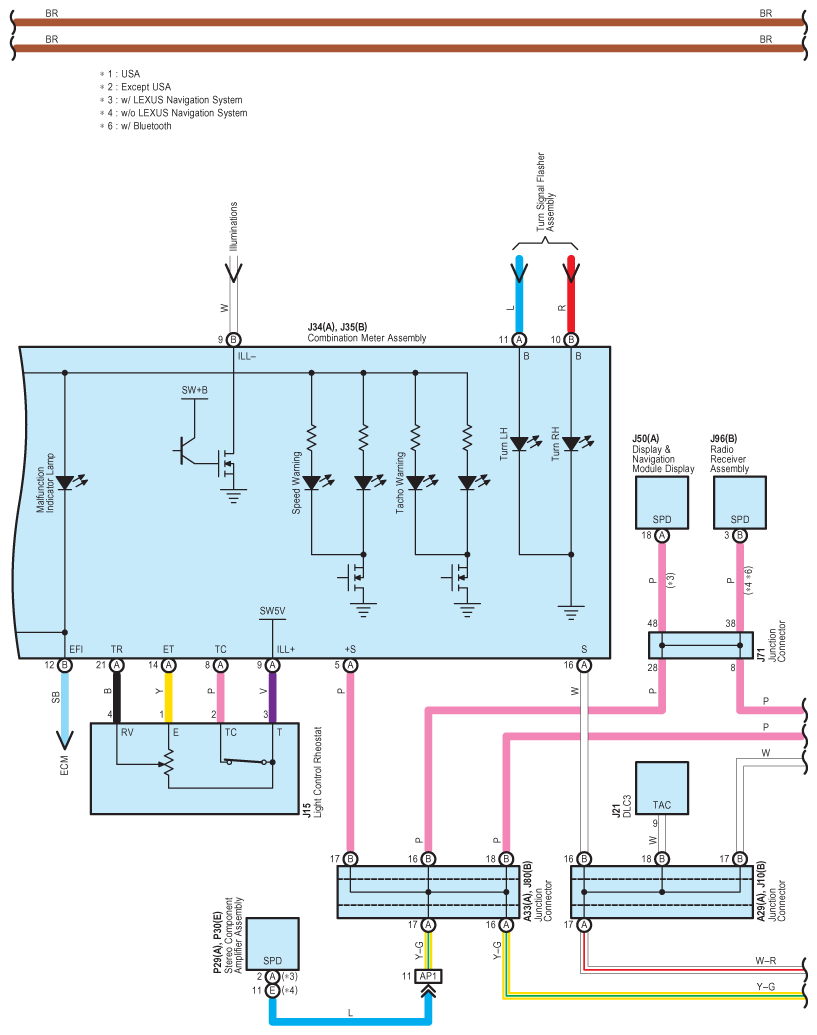

Fig 4: Combination Meter - Wiring Diagram (4 Of 7)
G08938928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

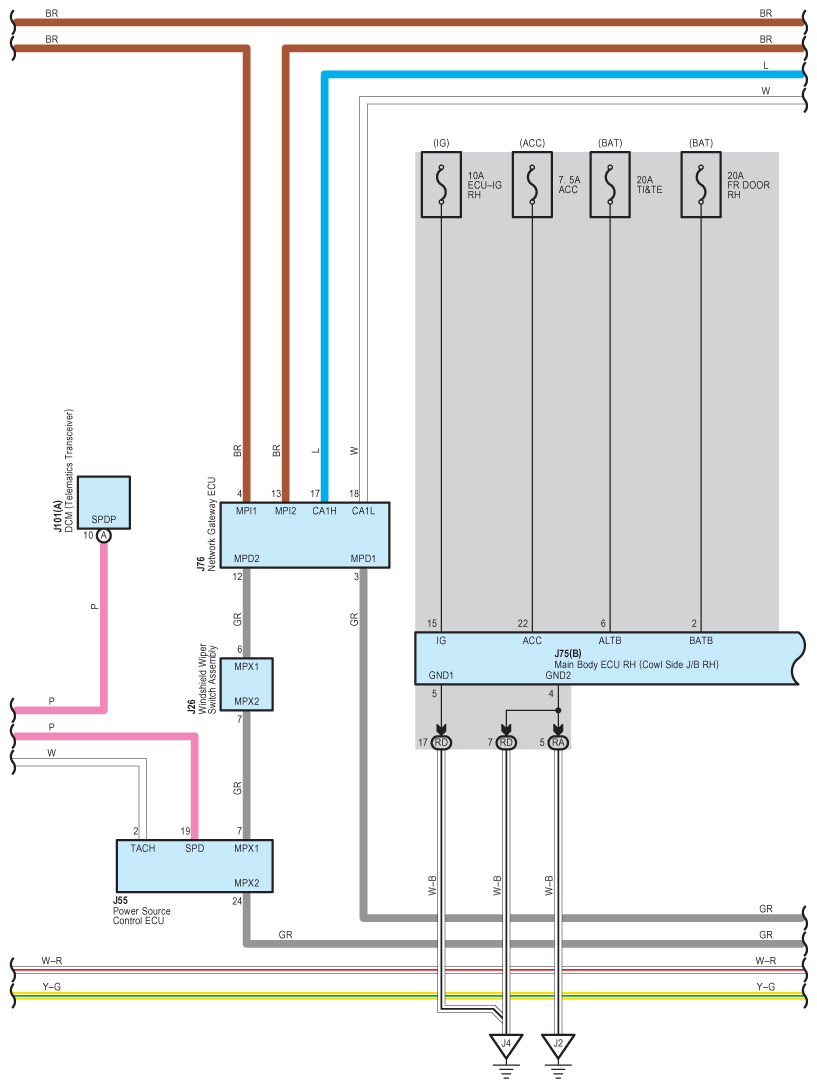

Fig 5: Combination Meter - Wiring Diagram (5 Of 7)
G08938929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

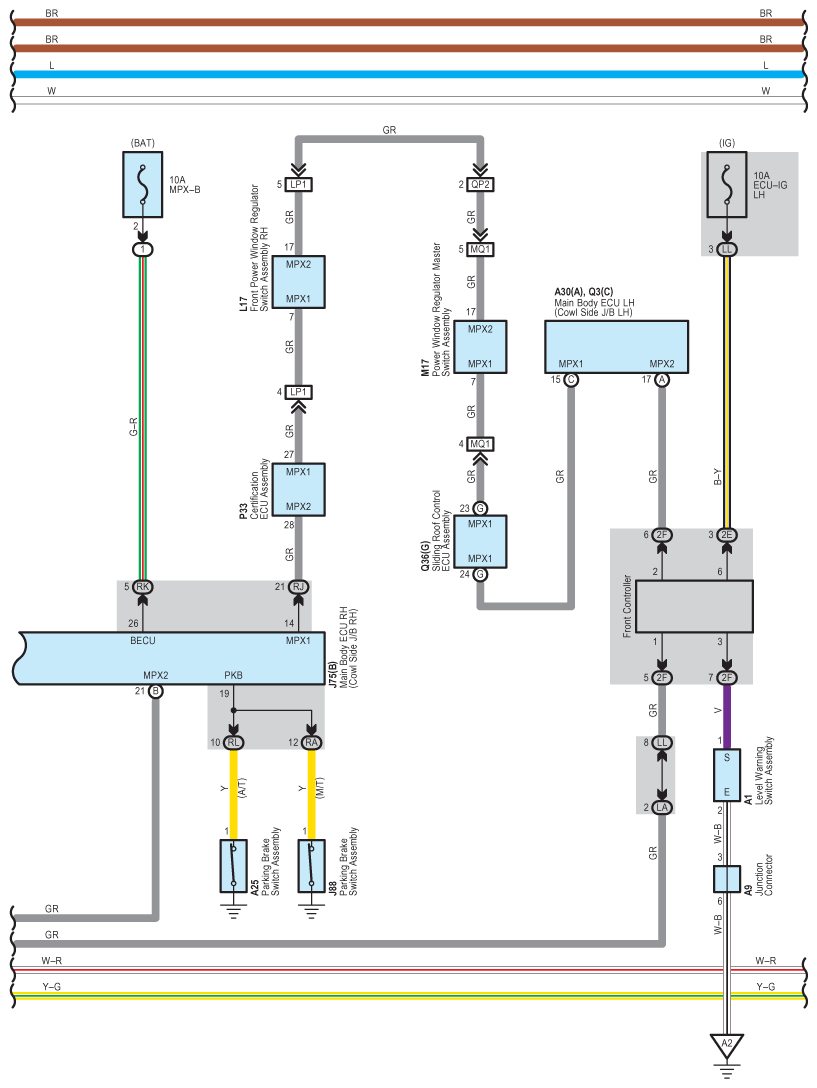

Fig 6: Combination Meter - Wiring Diagram (6 Of 7)
G08938930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

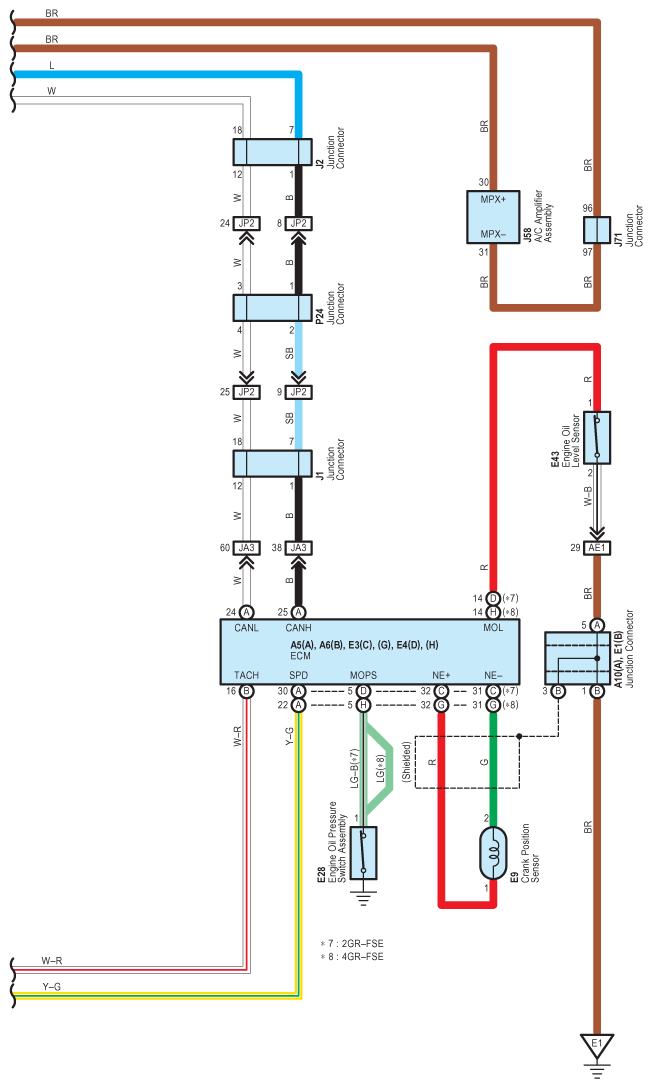

Fig 7: Combination Meter - Wiring Diagram (7 Of 7)
G08938931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
