Data Link Connector 3: Notes

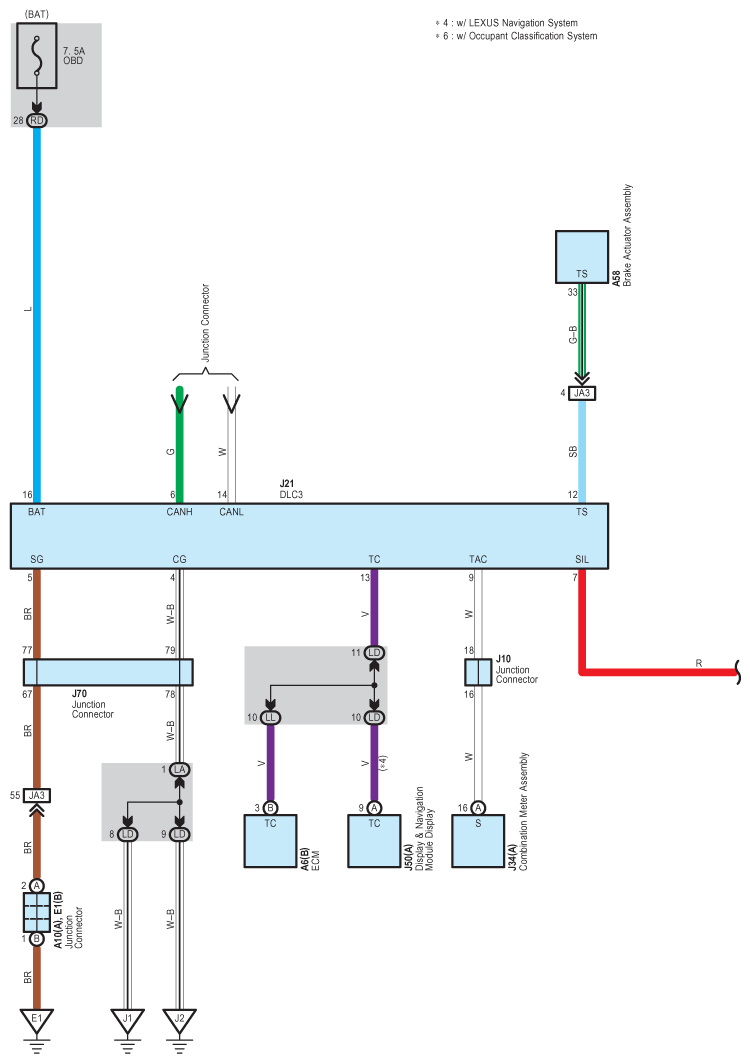

Fig 1: Data Link Connector 3 - Wiring Diagram (1 Of 2)
G08938619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

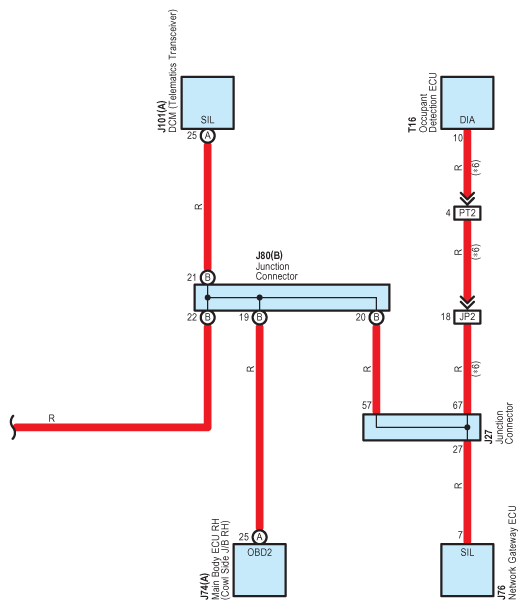

Fig 2: Data Link Connector 3 - Wiring Diagram (2 Of 2)
G08938620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
