Engine Control (2GR-FSE): Notes

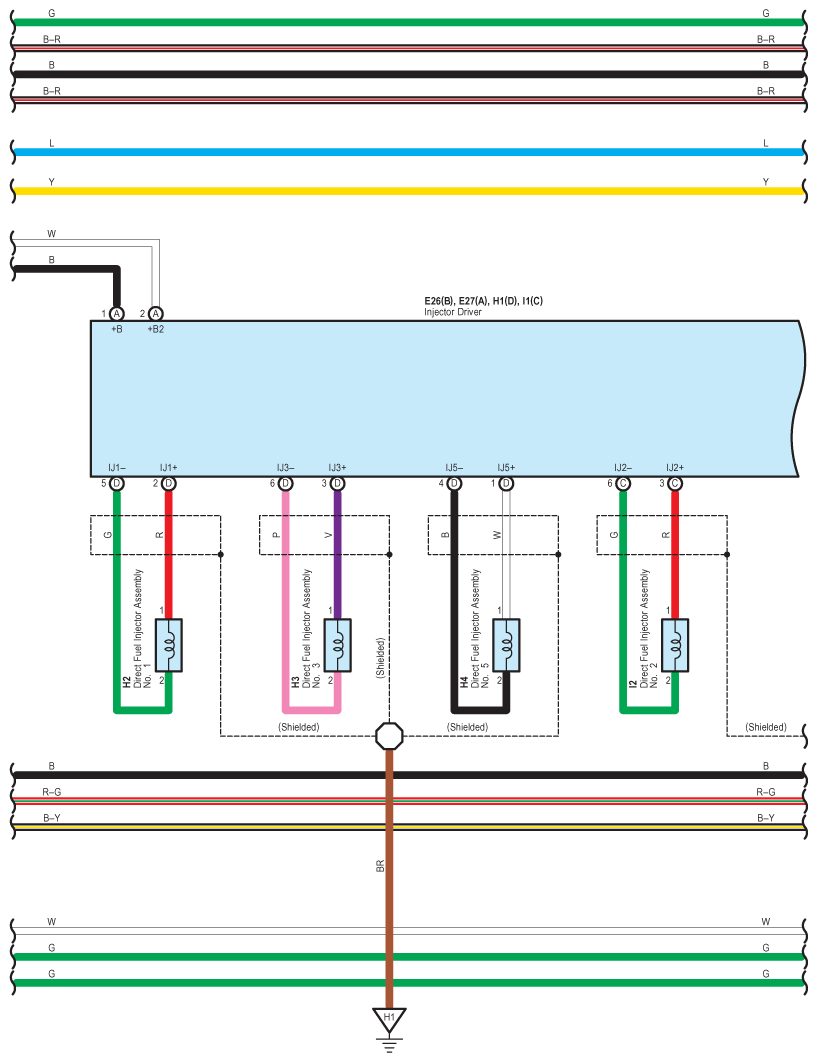

Fig 1: Engine Control (2GR-FSE) - Wiring Diagram (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

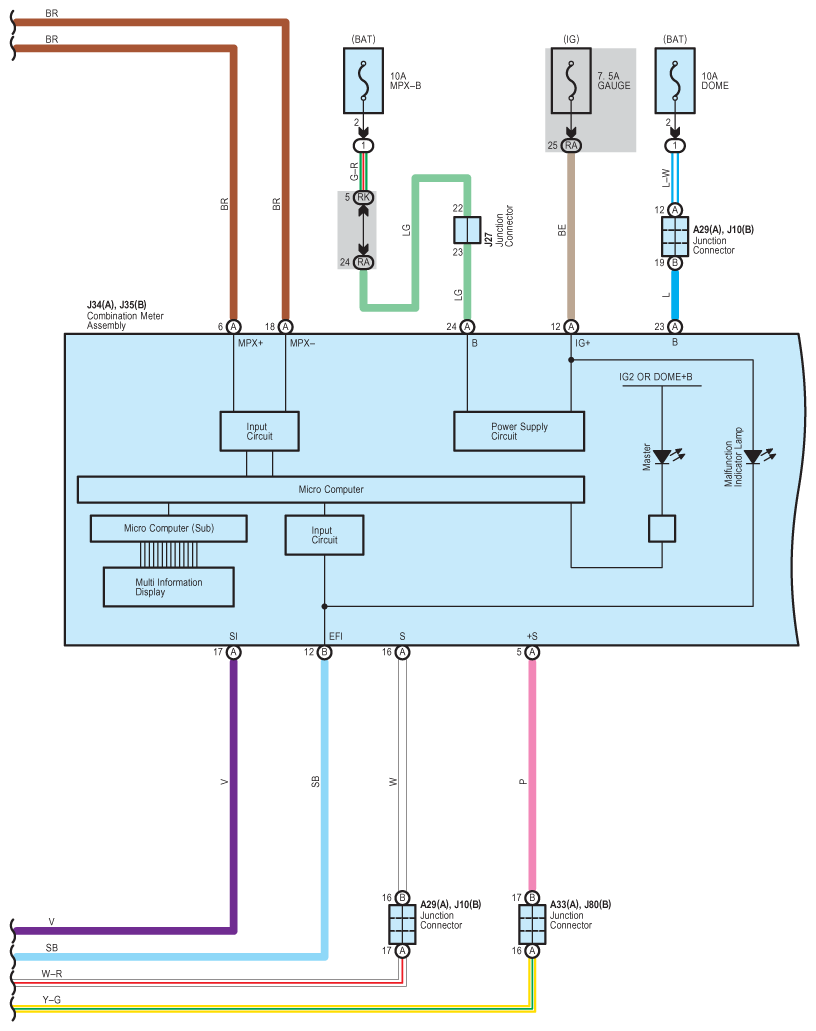

Fig 2: Engine Control (2GR-FSE) - Wiring Diagram (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

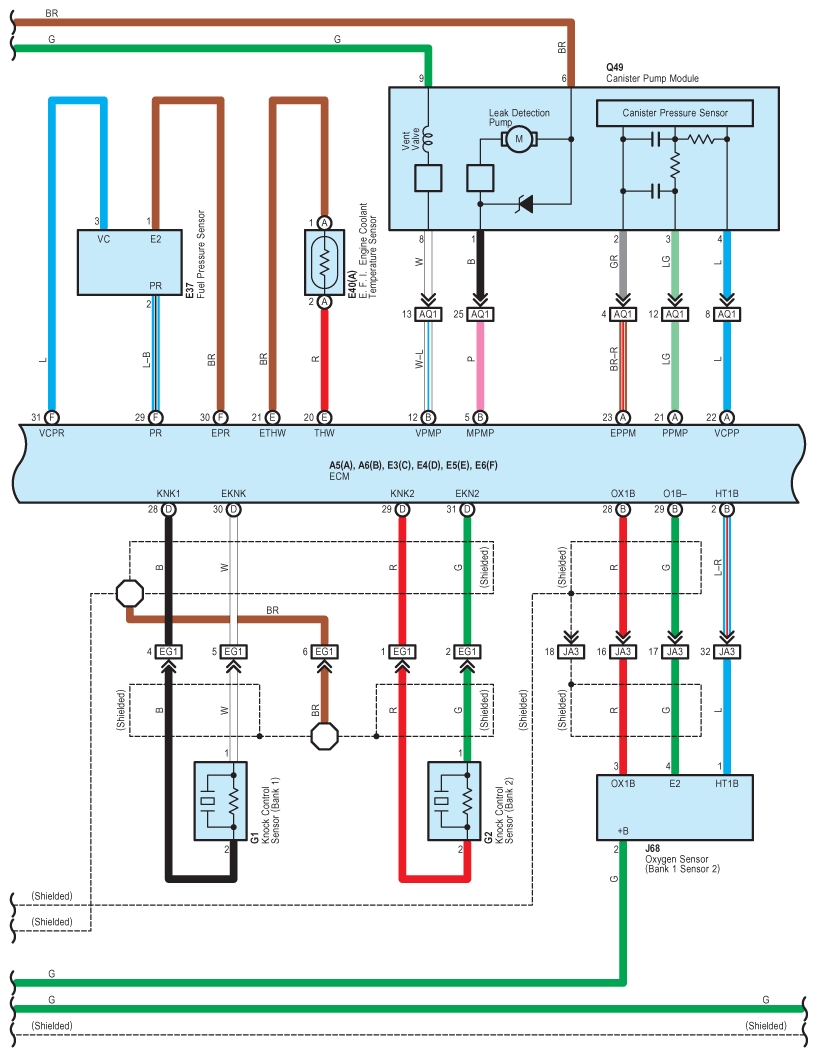

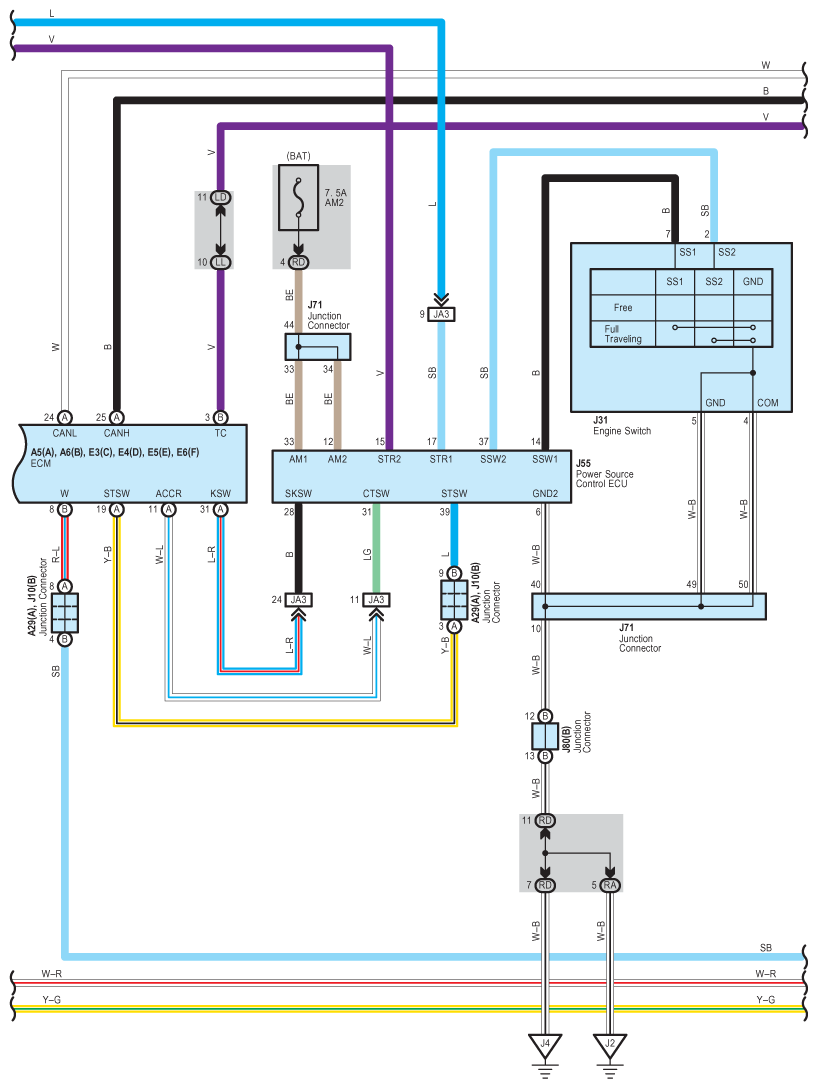

Fig 3: Engine Control (2GR-FSE) - Wiring Diagram (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

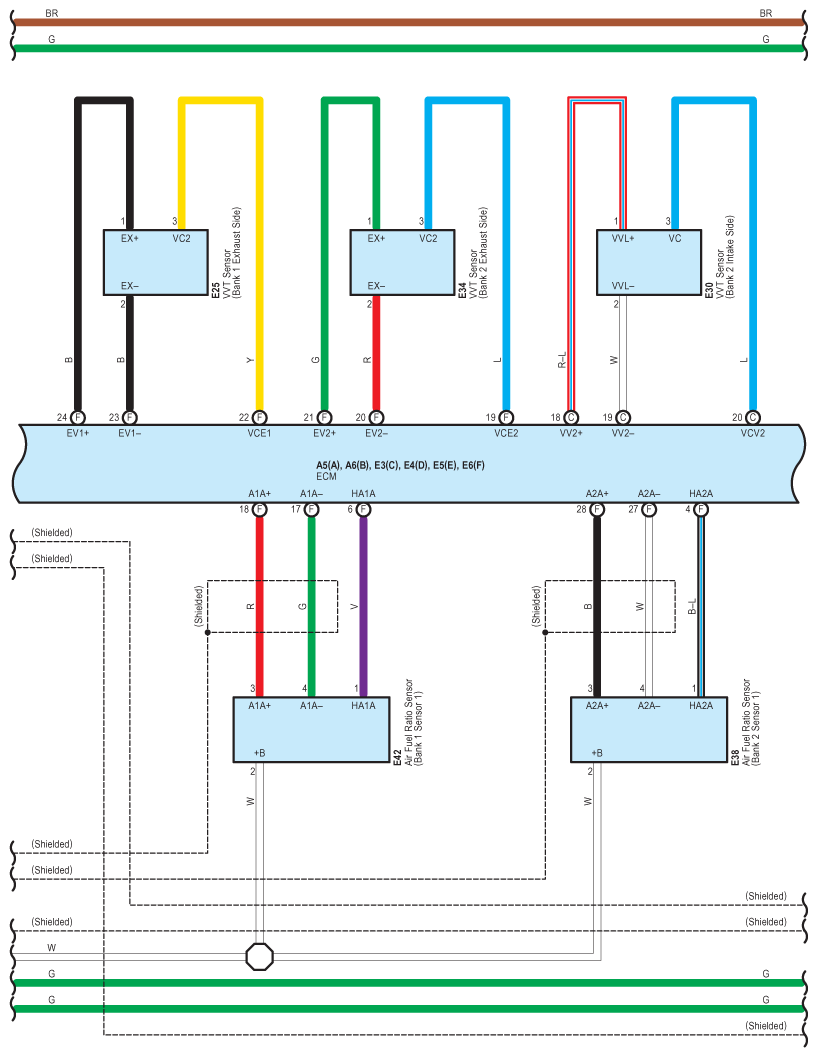

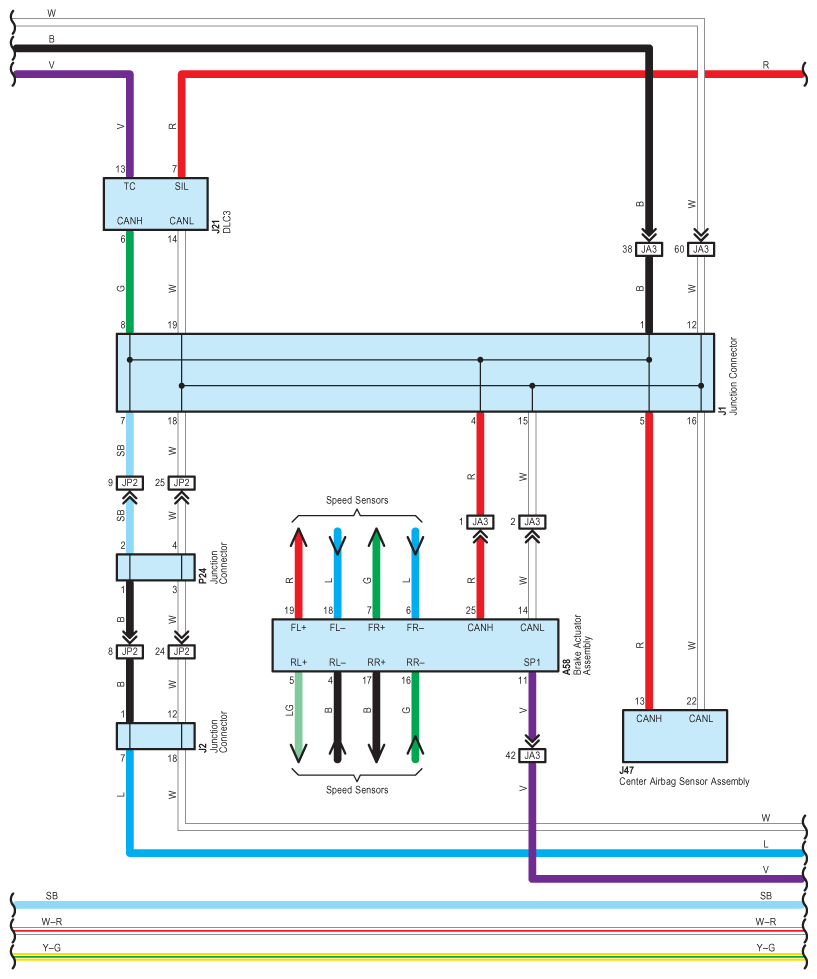

Fig 4: Engine Control (2GR-FSE) - Wiring Diagram (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

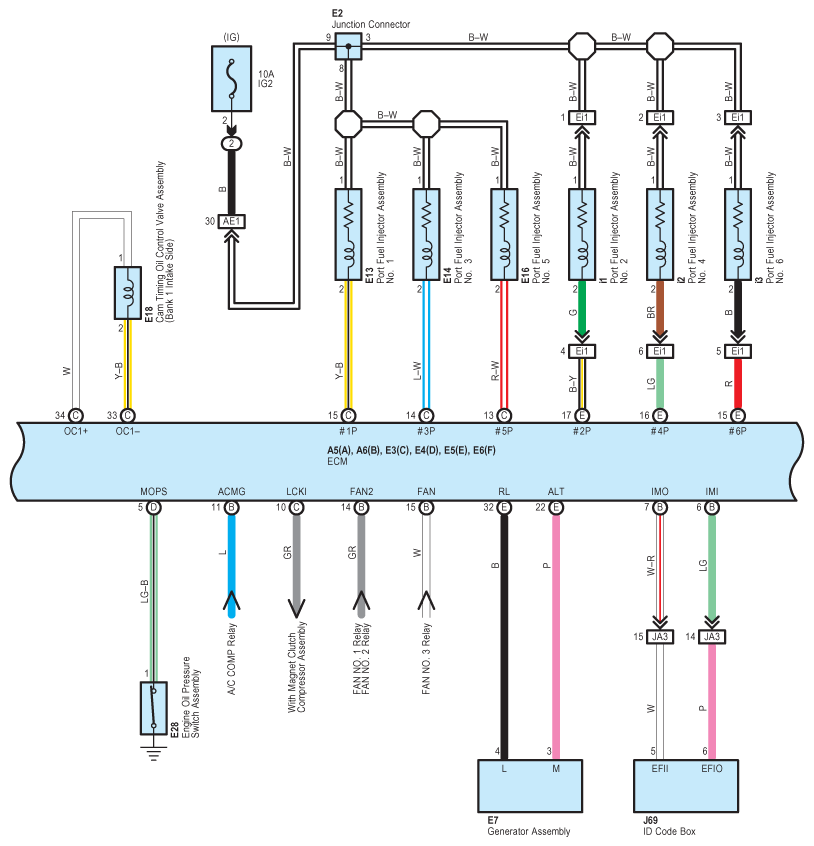

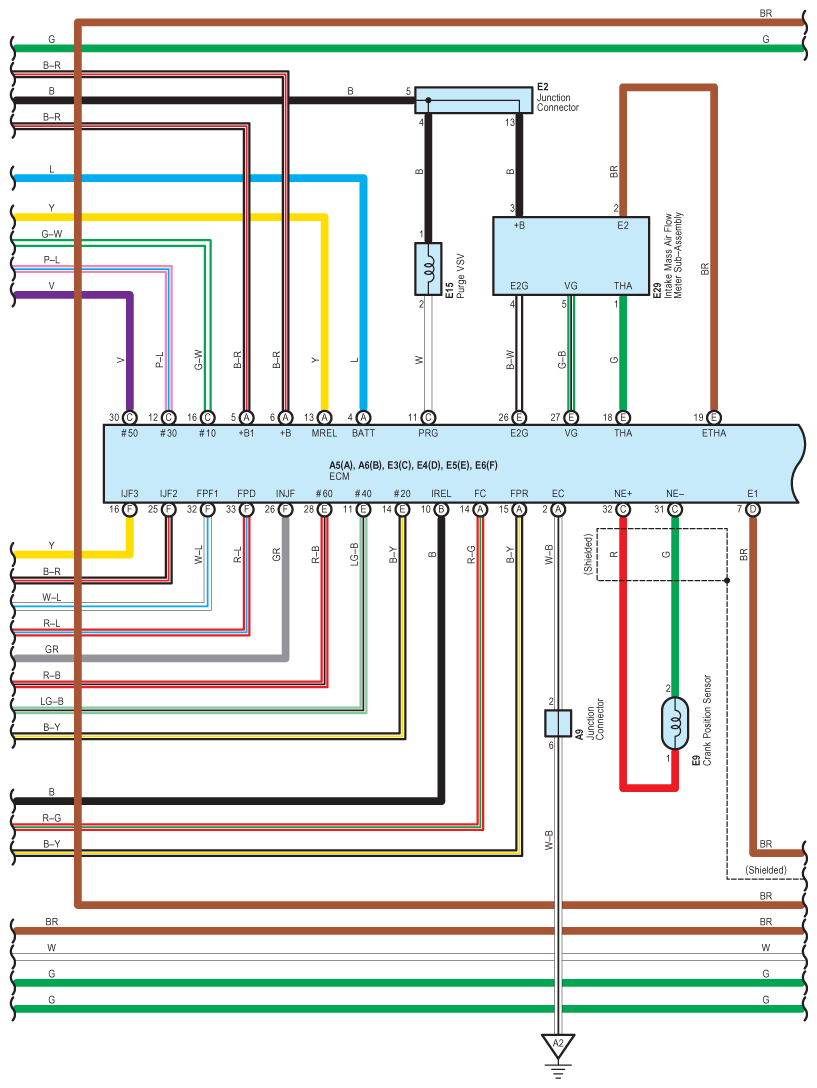

Fig 5: Engine Control (2GR-FSE) - Wiring Diagram (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

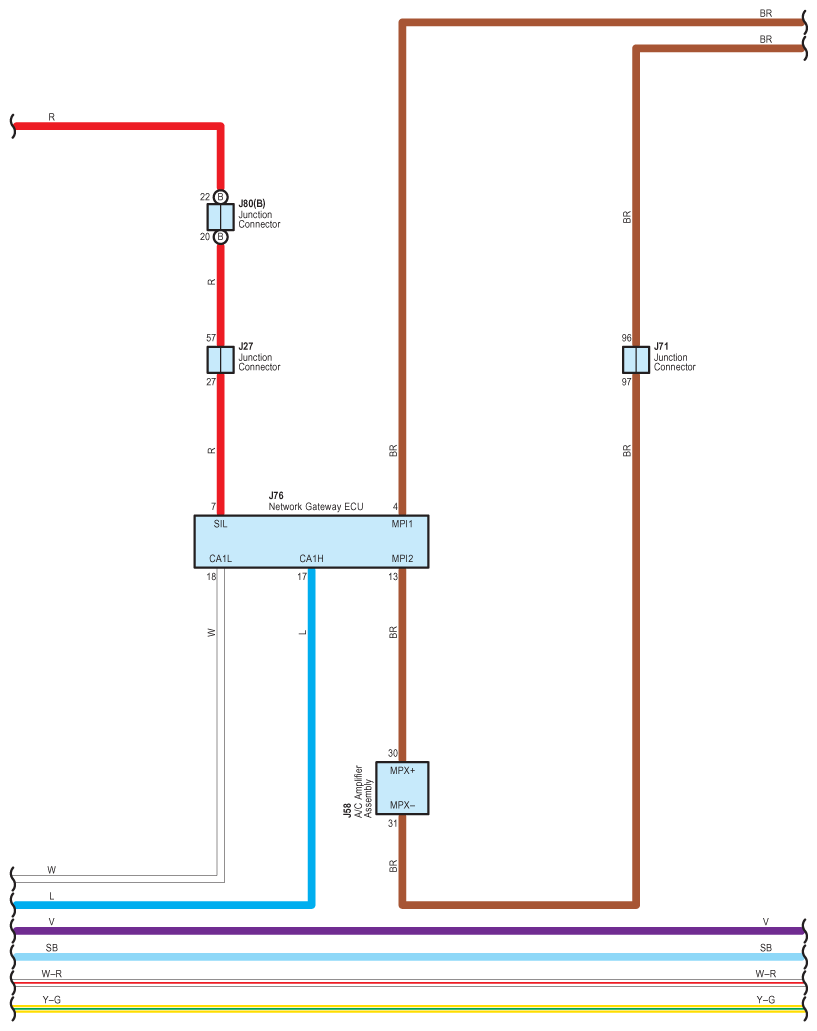

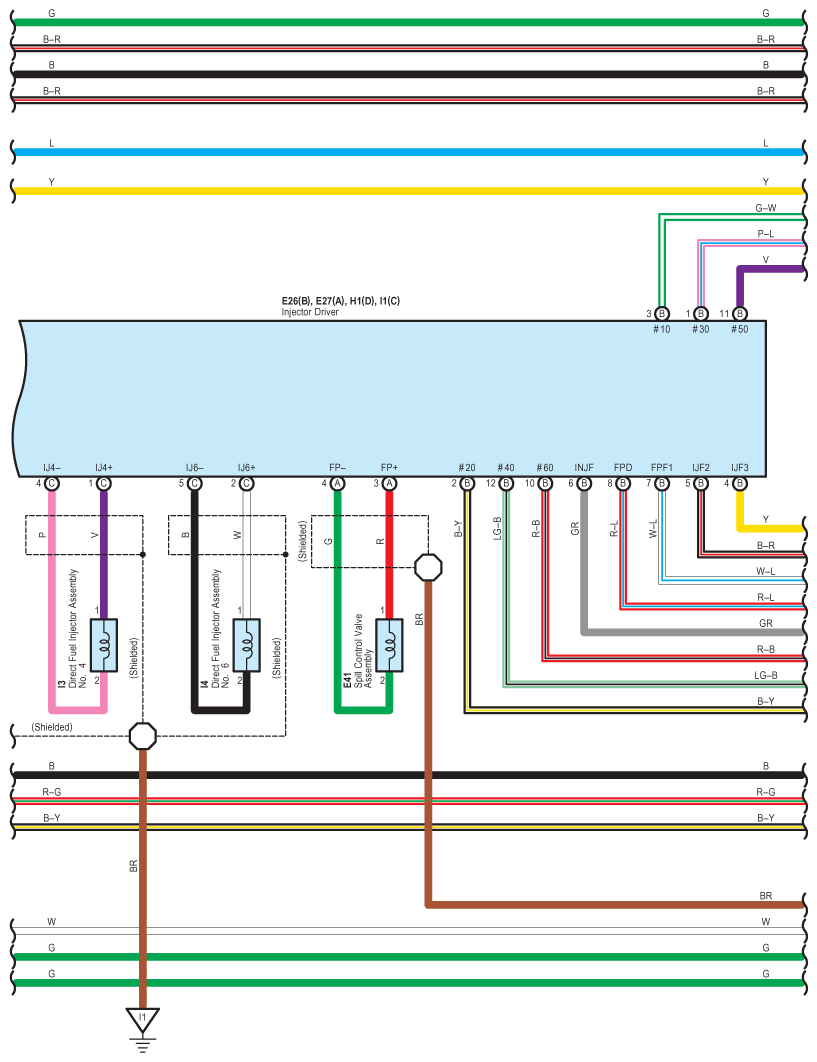

Fig 6: Engine Control (2GR-FSE) - Wiring Diagram (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

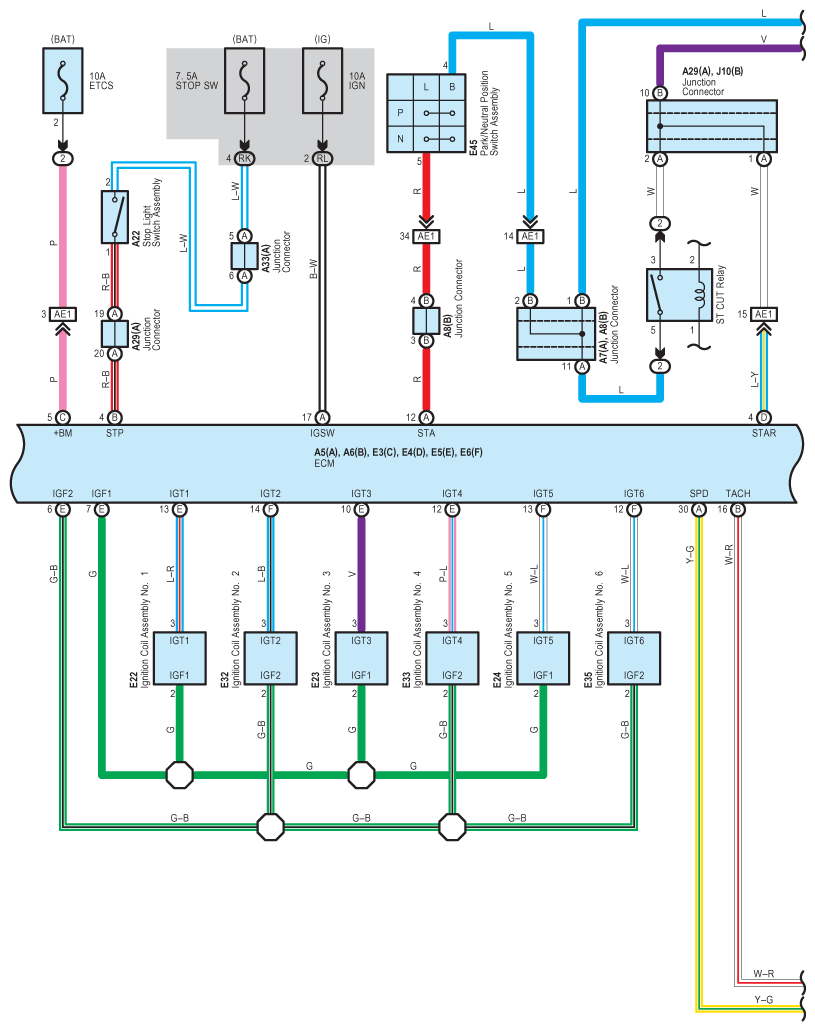

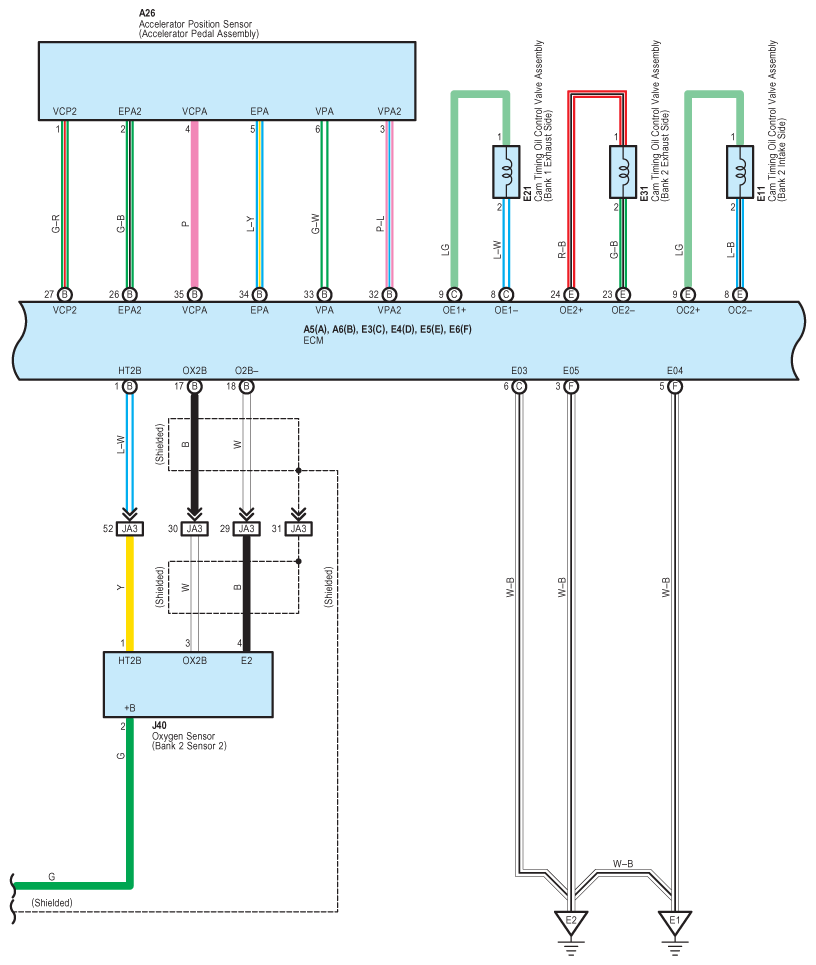

Fig 7: Engine Control (2GR-FSE) - Wiring Diagram (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

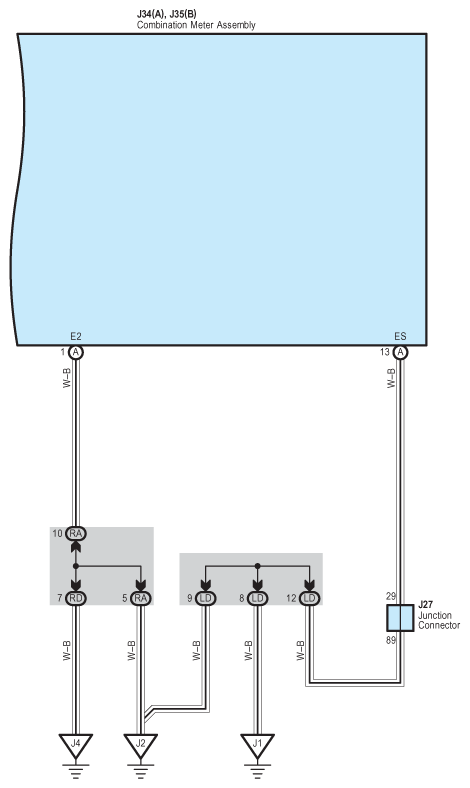

Fig 8: Engine Control (2GR-FSE) - Wiring Diagram (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

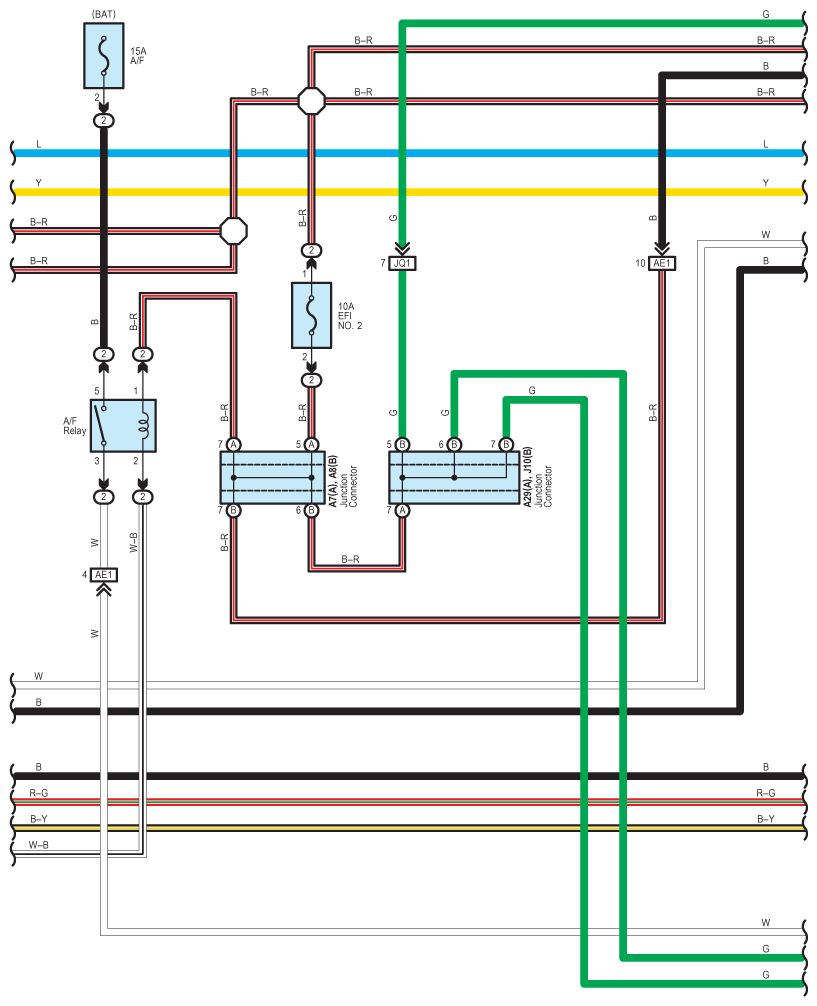

Fig 9: Engine Control (2GR-FSE) - Wiring Diagram (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

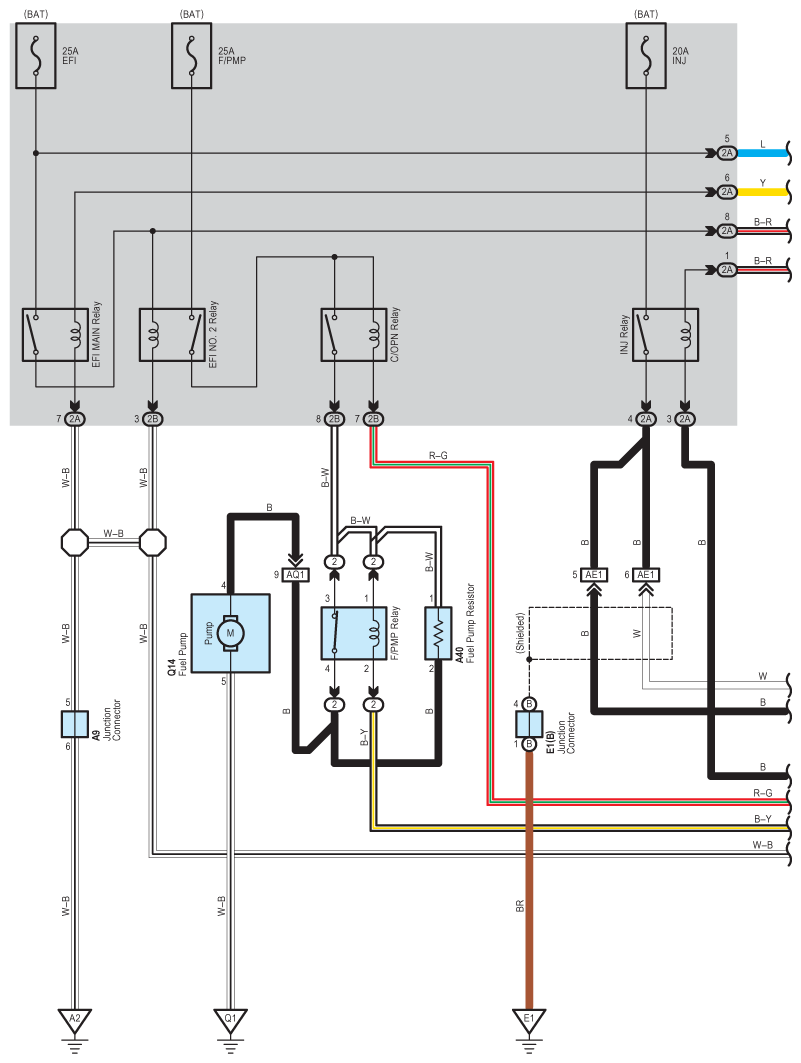

Fig 10: Engine Control (2GR-FSE) - Wiring Diagram (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Control (2GR-FSE) - Wiring Diagram (11 Of 16)

Fig 12: Engine Control (2GR-FSE) - Wiring Diagram (12 Of 16)

Fig 13: Engine Control (2GR-FSE) - Wiring Diagram (13 Of 16)

Fig 14: Engine Control (2GR-FSE) - Wiring Diagram (14 Of 16)

Fig 15: Engine Control (2GR-FSE) - Wiring Diagram (15 Of 16)

Fig 16: Engine Control (2GR-FSE) - Wiring Diagram (16 Of 16)
