Front Fog Light: Notes

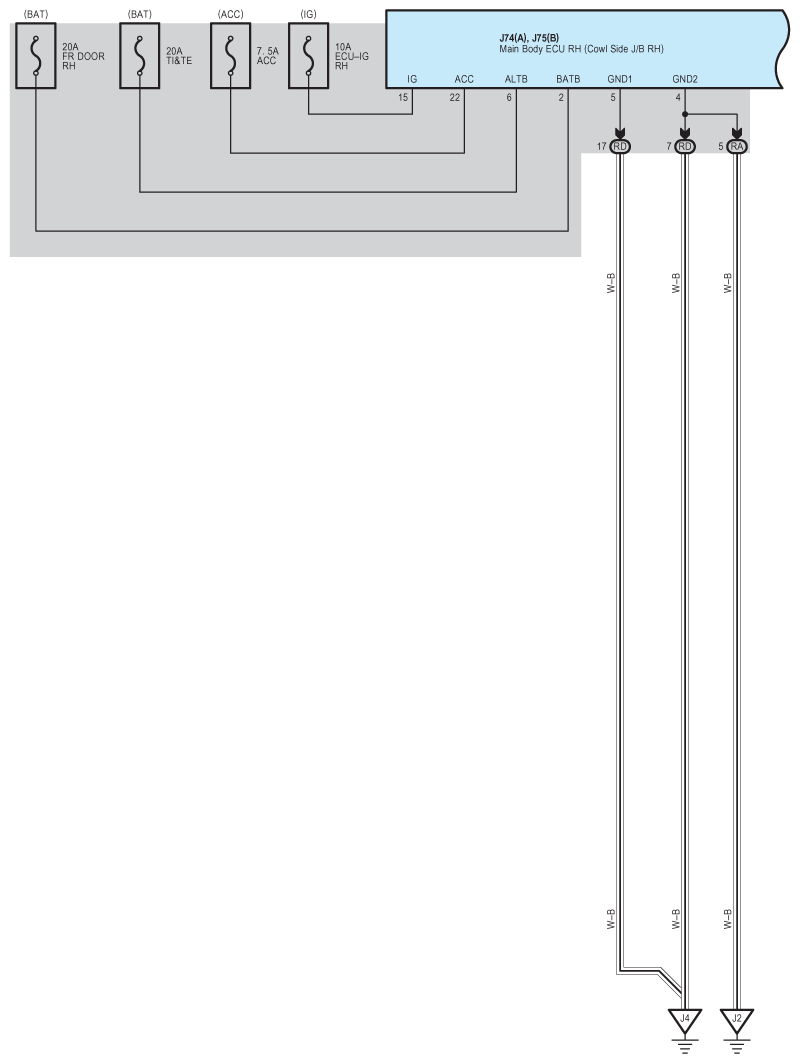

Fig 1: Front Fog Light - Wiring Diagram (1 Of 5)
G08938670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

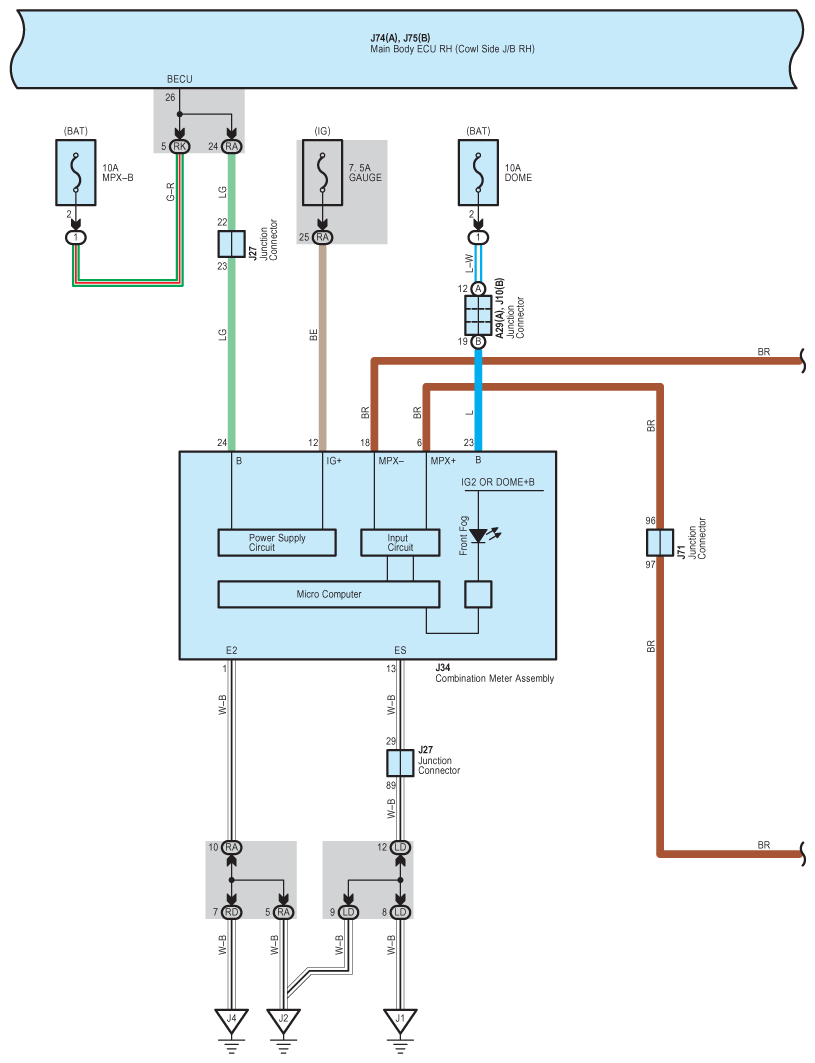

Fig 2: Front Fog Light - Wiring Diagram (2 Of 5)
G08938671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

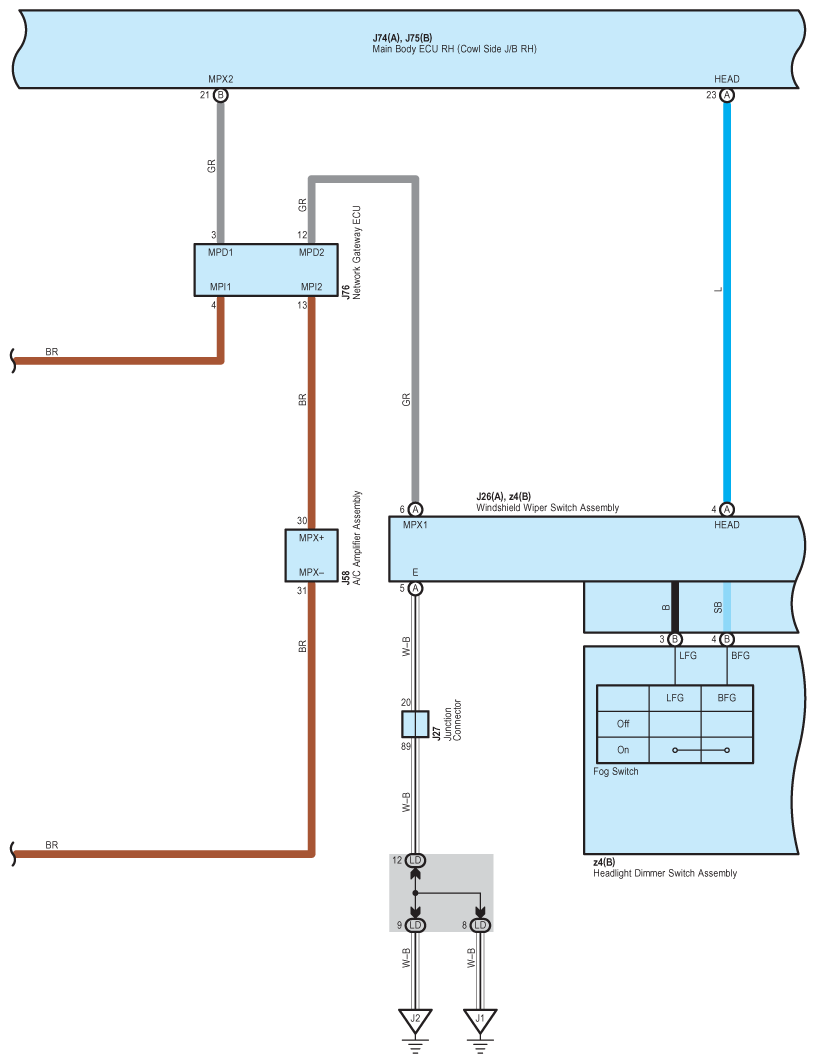

Fig 3: Front Fog Light - Wiring Diagram (3 Of 5)
G08938672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

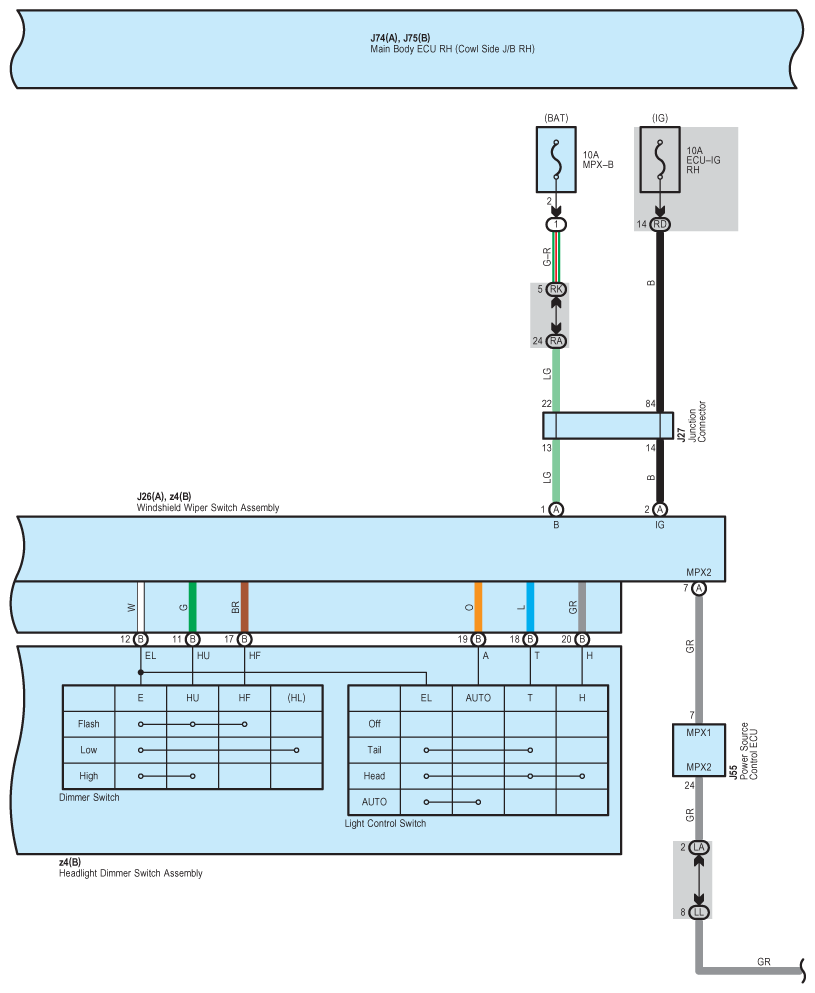

Fig 4: Front Fog Light - Wiring Diagram (4 Of 5)
G08938673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

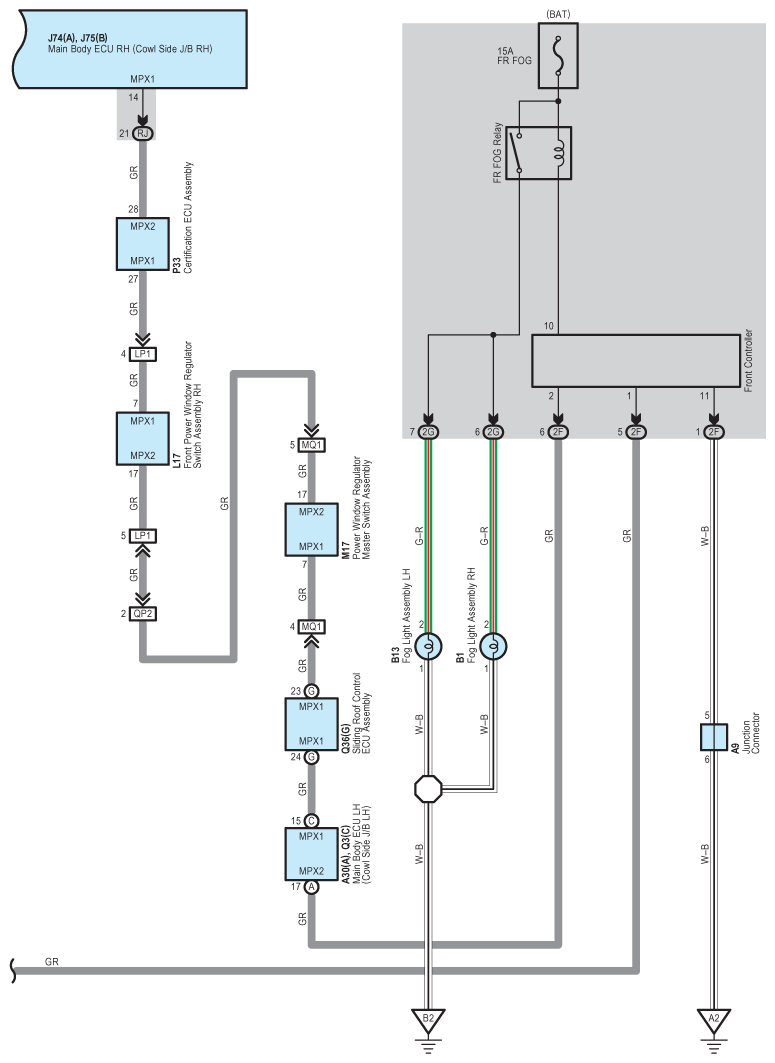

Fig 5: Front Fog Light - Wiring Diagram (5 Of 5)
G08938674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
